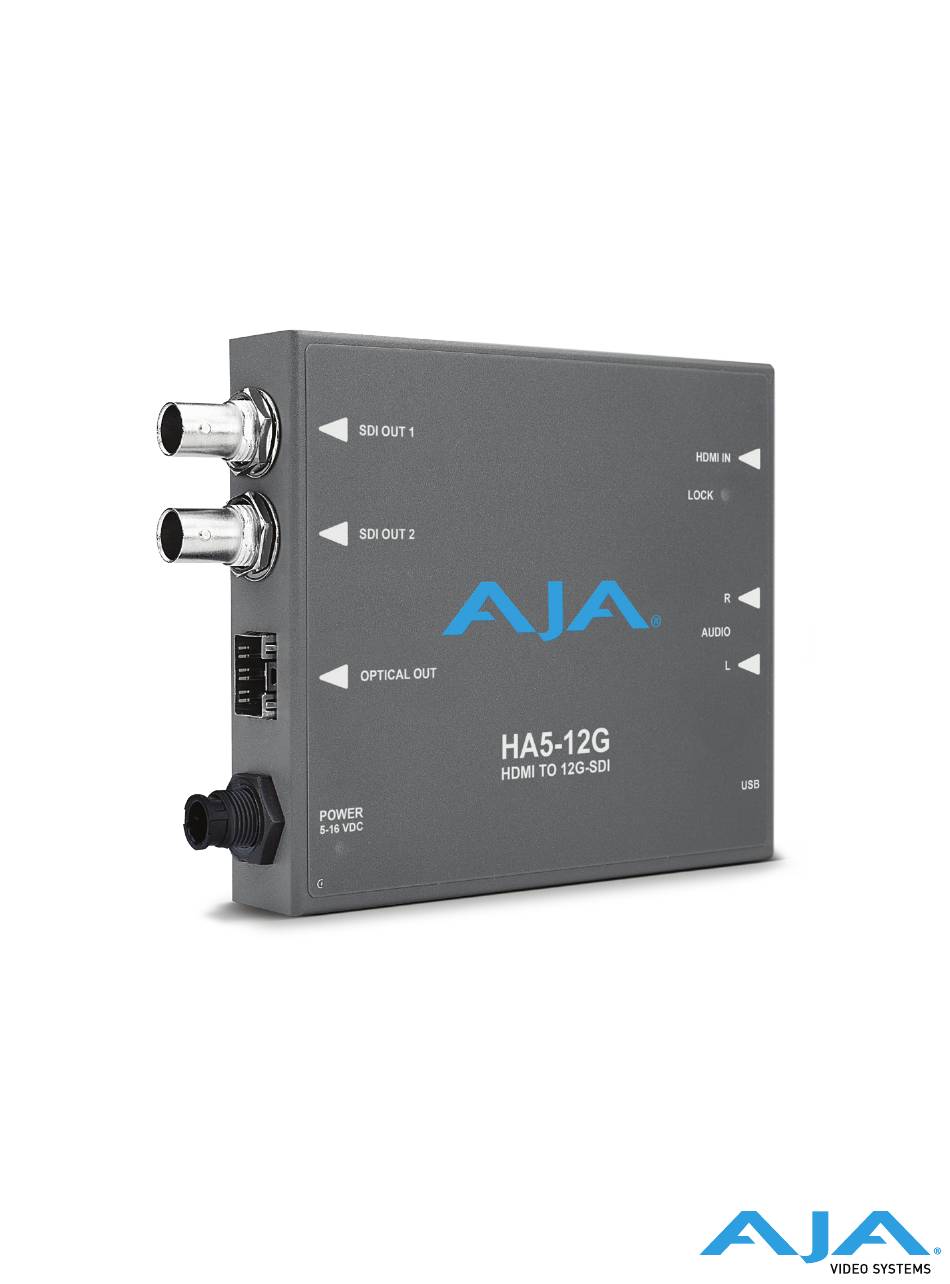

- Page 1 HA5-12G Mini-Converter HDMI 2.0 to 12G SDI Installation and Operation Guide Version 1.1r1 Published December 3, 2019...
-
Page 2: Notices
Contacting AJA Support When calling for support, have all information at hand prior to calling. To contact AJA for sales or support, use any of the following methods: Telephone +1.530.271.3190 +1.530.271.3140 https://www.aja.com Support Email support@aja.com Sales Email sales@aja.com HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 3: Table Of Contents
HA5-12G Tech Specs........19... -
Page 4: Chapter 1 - Introduction
Chapter 1 – Introduction Overview AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI. -
Page 5: Features
• Two 12G-SDI coax outputs • Embedded audio can be selected from the HDMI or Analog audio inputs • Fiber SFP model, HA5-12G-T, includes a 12G-SDI single mode fiber output • Configure via USB port and supplied Mini-Config software • Uses 5-16VDC power. The included DWP-U-R1 universal power supply is 5VDC. -
Page 6: I/O Connections
NOTE: For highest reliability, the mini converter relies on convection cooling instead of using a built-in fan. Therefore, when installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G with other mini converters. -
Page 7: Chapter 2 - Operation
1. Download the application from the AJA website (select the Windows icon on the AJA Mini-Config Support webpage). 2. Open the AJA_MiniConfig.zip file 3. Double-click on the MiniInstaller.msi file. 4. A Setup Wizard will guide you through the installation. HA5-12G Mini-Converter v1.1r1 www.aja.com... - Page 8 NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not work with AJA Mini-Config). 1. Download the application from the AJA website (select the Apple icon on the AJA Mini-Config Support webpage). 2. Open the AJA_MiniConfig folder. 3. Double-click on the AJAMiniConfig.dmg file. HA5-12G Mini-Converter v1.1r1 www.aja.com...
-
Page 9: Running Aja Mini-Config
Mini-Config application. Double-click the application to launch it. Saving Setups File drop down menu on the AJA Mini-Config application bar allows you to save the current state of the Mini-Converter to a preset file for later recall. HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 10: Operating Aja Mini-Config
(name in Each connector parentheses) is labeled with the currently detected input Each connector signal. is labeled with the output signal format Serial Number Firmware version Tabbed screens User con gurable parameters Message Showing Status Status HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 11: Tabbed Screens
8, 10, or 12 bit depth). To determine the bit depth for RGB, divide the bpp by 3. For example: • 24bpp = 8 bit depth • 30bpp = 10 bit depth • 36bpp = 12 bit depth HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 12: Output Tab Screen
Selects the EDID setting. EDID (Extended Display Identification Data) is used to find the highest signal resolution that is compatible with both the source and the destination. When an HDMI source device is initially connected to the HA5-12G, the HA5-12G will communicate with the signal source about what formats the HA5-12G supports. - Page 13 • 4:4:4 YCbCr (HFR 4K/UltraHD 4:4:4 limited to 8 bit) RGB Range Selects the Color Range. Choose from the following: • Auto - (default) The HA5-12G automatically detects the RGB range (if the input signal is RGB). • SMPTE • Full 3G-SDI Mode Selects the 3G SDI Video Mode.
-
Page 14: Hdr Tab Screen
If so, it decodes and presents the static metadata descriptors as defined in CTA-861.3 and HDMI v2.0a. NOTE: The HA5-12G HDR function does not modify the video data. NOTE: Hover the cursor over each parameter field to view its corresponding CTA-861.3 description in a pop-up window. - Page 15 Maximum Frame Average Light Level (FALL) Represents the maximum of frame-based average light levels taken over an entire scene, and can be determined in the post environment. • Range: 0 cd/m to 65535 cd/m • Step size: 1 cd/m HA5-12G Mini-Converter v1.1r1 www.aja.com...
-
Page 16: Audio Tab Screen
NOTE: The actual channel pair depends on the selection made for the Channel Select control. For example, if Ch 1+2 is selected, but the Channel Select is set to Channels 9-16, then the Analog Audio will be embedded into SDI Ch 9+10. HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 17: Update Tab Screen
Config application which you can install into the Mini-Converter by clicking the Update button. Update This button initiates a software update operation loading the “Desired” version of firmware into the Mini-Converter’s non-volatile memory. Progress - This indicator bar shows the progress of firmware installation. HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 18: Software Update Procedure
This is the factory assembly number. Serial Number - This is the factory set unique serial number of your Mini- Converter. If you ever call AJA Support for service, you may be asked for this number. HA5-12G Mini-Converter v1.1r1 www.aja.com... -
Page 19: Appendix A - Specifications
Appendix A – Specifications HA5-12G Tech Specs Video Formats • (4K) 4096 x 2160p • (UltraHD) 3840 x 2160p • (2K) 2048 x 1080p • (HD) 1920 x 1080p • (HD) 1920 x 1080i • (HD) 1280 x 720p • (SD) 720 x 576i •... -
Page 20: Ha5-12G-T Tech Specs
*HA5-12G uses approximately 11 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G with other Mini-Converters. - Page 21 • (HD) 1920 x 1080i 50, 59.94, 60 • (HD) 1280 x 720p 50, 59.94, 60 • 1x 270 Mb SDI • (SD) 625i 50 • (SD) 525i 59.94 *1280 x 720p is Level A Only HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 22 *HA5-12G-T uses approximately 11 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G with other Mini-Converters.
-
Page 23: Appendix B - Safety And Compliance
Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND HA5-12G Mini-Converter v1.1r1 www.aja.com... - Page 24 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 25 2016). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 26 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 27 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 28 AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene effettuata da un centro ufficiale o autorizzato AJA. HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 29 Hersteller. ¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o vendidos por el fabricante. Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo fabricante. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore. HA5-12G Mini-Converter v1.1r1 www.aja.com...
- Page 30 Advertência! Cabos de fibra ótica ativos emitem radiação invisível ao olho humano. Não olhe diretamente para a extremidade de um cabo de fibra óptica ativo; o HA5-12G or HA5-12G-T é um produto laser de classe 1. Avertissement! Lorsqu'ils sont actifs, les câbles en fibre optique émettent des radiations que l'oeil humain ne peut voir.
-
Page 31: Warranty And Liability Information
No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this HA5-12G Mini-Converter v1.1r1 www.aja.com... - Page 32 English and any non-English versions, the English version of this warranty will govern. This limited warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction, some of which are noted above. HA5-12G Mini-Converter v1.1r1 www.aja.com...
-
Page 33: Index
Update Tab Screen 17 HDMI 2.0a Static Metadata Descriptors 14 HDMI Conversion Audio Tab Screen 16 HDR Detected HDR Tab Screen 14 HDR Tab Screen 14 High Dynamic Range HDR Tab Screen 14 Info Tab Screen 18 HA5-12G Mini-Converter v1.1r1 www.aja.com...
