AJA Video Systems Inc IPT-10G2-SDI Installation And Operation Manual

10 gige ip mini-converters smpte 2110 ip transmit/receive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
10 GigE IP Mini-Converters
SMPTE 2110 IP Transmit/Receive
Installation and Operation Guide
Version 2.1
Published May 10, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPT-10G2-SDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJA Video Systems Inc IPT-10G2-SDI

Summary of Contents for AJA Video Systems Inc IPT-10G2-SDI

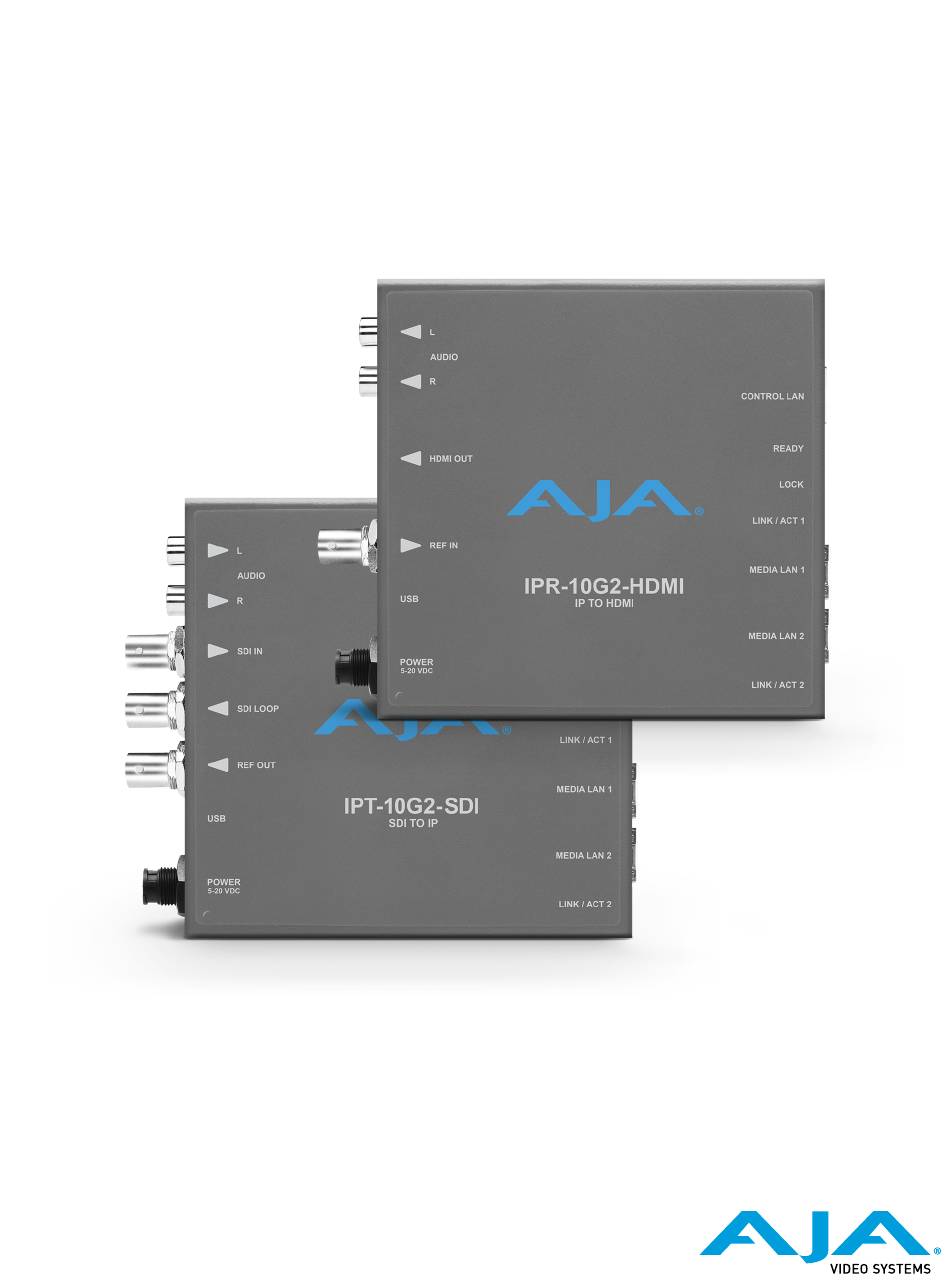

  • Page 1 10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive Installation and Operation Guide Version 2.1 Published May 10, 2019...

  • Page 2: Notices

    Notices Trademarks AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc.

  • Page 3: Table Of Contents

    10 GigE IP Mini-Converters Features ......6 IPT-10G2-SDI Features ........6 IPT-10G2-HDMI Features .
  • Page 4 Appendix A – Specifications ......47 IPT-10G2-SDI Tech Specs ........47 IPT-10G2-HDMI Tech Specs .

  • Page 5: Chapter 1 - Introduction

    Chapter 1 – Introduction Overview AJA 10 GigE IP Mini-Converters are designed for point of use applications for encoding, transport, reception and decoding of IP based video sources. Rugged, compact and fanless, the 10 GigE IP Mini-Converters provide the bridge between Baseband and IP video for a range of applications, such as sending and receiving video over IP from remote facilities in post production, source monitoring, digital signage, and video walls.

  • Page 6: 10 Gige Ip Mini-Converters Features

    10 GigE IP Mini-Converters Features IPT-10G2-SDI Features • SMPTE ST 2110 audio, video transmitter • Rugged, fanless design • 2x 10 GigE SFP+ cages for media LAN (providing support for hitless switching) with status light • 1x 1 GigE RJ45 socket for control LAN (with status light) •...

  • Page 7: Ipr-10G2-Hdmi

    • Embedded SDI audio output (up to eight channels) • 2x RCA analog audio output • 1x BNC Reference (reserved for future potential features) • 1x mini-USB port for initial network configuration with AJA eMini-Setup software • Complete control interface on any web browser from a built-in web server •...

  • Page 8: Frequently Asked Questions

    Safari is the preferred web browser for control on macOS. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions. Simplified Block Diagrams Figure 1. IPT-10G2-SDI/HDMI Simplified Block Diagram IPT-10G2-SDI / IPT-10G2-HDMI Reference Output...

  • Page 9: I/O Connections

    USB Port 2-Channel (connect to PC or Mac) Audio RCA Analog Audio For initial setup of Monitor Output network interfaces I/O Connections Figure 4. IPT-10G2-SDI Connections 2 Channel Unbalanced Analog Audio Input (RCA Jacks) Control Input SDI Connector 1 Ready LED...
  • Page 10 Figure 5. IPT-10G2-HDMI Connections 2 Channel Unbalanced Analog Audio Input Control (RCA Jacks) Input HDMI Ready LED Connector Lock LED Link/Act LED 1 Reference Out BNC SFP+ Cage for 10 Gbps Ethernet USB Port SFP+ Cage for 10 Gbps Ethernet +5-16 VDC Link/Act Power Input...

  • Page 11: Control Lan, Ready, Link/Act, And Lock Led Behavior

    Figure 8. IPR-10G-HDMI Connections 2 Channel Unbalanced Analog Audio Output Control (RCA Jacks) Ready LED Output HDMI Connector Link/Act SFP+ Cage Port for 10 Gbps Ethernet +5-20 VDC Power Lock LED Input Control LAN, Ready, Link/Act, and Lock LED Behavior The Control LAN LED illuminates to indicate a link.

  • Page 12: Initial Setup By Web Browser

    Initial Setup By Web Browser NOTE: Chrome and Firefox are the preferred web browsers for control on Windows. Safari is the preferred web browser for control on macOS. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

  • Page 13: Settings Retained

    NOTE: DHCP is enabled by default, and if the device is connected to a DHCP server the IP address field will populate. 6. Enter the IP address into a browser window. The web UI for your AJA device will display. 7.

  • Page 14: Chapter 2 - Emini-Setup

    2. Click the link corresponding to the version you want to download for Mac or Windows. NOTE: IPT-10G2-SDI and IPT-10G2-HDMI require eMini-Setup version 2.1 or later. IPR-10G2-SDI and IPR-10G2-HDMI require eMini-Setup version 2.0 or later. IPR-10G-HDMI requires eMini-Setup version 1.3 or later.

  • Page 15: Installing Emini-Setup

    To download just the latest documentation, go to: https://www.aja.com/products/mini-converters/ip-converters Click the support button and open the Manuals link. Installing eMini-Setup PC Installation To install eMini-Setup on a Windows PC: 1. Download the application from the AJA website. See "Acquiring eMini-Setup" on page 2.

  • Page 16: Mac Installation

    Figure 10. eMini-Setup Wizard, Re-installation With this screen you can Repair (reinstall) or Remove (uninstall) eMini-Setup on the PC. Mac Installation To install the application on a Mac: NOTE: Mac computers must be Intel-based (G5, G4 and earlier models will not work with eMini-Setup).

  • Page 17: Pc Startup

    PC Startup To run eMini-Setup on a PC, double-click on the AJA eMini-Setup icon on your desktop, or open the AJA folder in the program list and click on the AJA eMini- Setup application located inside the eMini-Setup folder. Figure 12. Launching eMini-Setup on a PC Mac Startup To run eMini-Setup on a Mac, open the Applications folder and locate the AJA eMini-Setup application.

  • Page 18: Control Lan Tab Screen

    Version - The version of firmware installed in the AJA device is displayed below the graphic. Sn - This is the factory set unique serial number of your AJA device. If you ever call AJA Support for service, you may be asked for this number. A status field at the bottom of the screen shows if the eMini-Setup application is connected and communicating with an AJA device.

  • Page 19: Media Network 1 Tab Screen

    UPnP Host - Choose from Enable or Disable to control whether the AJA device makes itself visible for Windows network browsing. MAC Address - This is the permanent MAC address of the Control LAN Ethernet port of the AJA device. Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

  • Page 20: Media Network 2 Tab Screen

    Media Network 2 Tab Screen Figure 16. eMini-Setup Media LAN 2 Tab Screen Use this Media LAN 2 tab to change the corresponding media network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

  • Page 21: Update Tab Screen

    Update Tab Screen Figure 17. eMini-Setup Update Tab Screen Use this Update tab to install new firmware. Installed - This field shows the version of the firmware currently installed. Browse - This button opens a navigation window, allowing you to select the firmware and load that version of firmware into the AJA device’s non-volatile memory.

  • Page 22: Info Tab Screen

    Info Tab Screen Figure 18. eMini-Setup Info Tab Screen This tab provides basic information about the connected AJA device. This information is mostly useful when calling AJA Support for service or technical support. System Name - This field allows you to give your AJA device a unique name. This can be useful if you have several attached to a Mac/PC via USB so you can distinguish between them easily.

  • Page 23: Chapter 3 - 10 Gige Ip Mini-Converters Web Interface

    Chapter 3 – 10 GigE IP Mini-Converters Web Interface Overview Once you have established network connectivity with the 10 GigE IP Mini- Converter, you can further configure and more fully control the unit through its web interface. Subsequently, eMini-Setup is no longer required to interface with the unit.

  • Page 24: Web Browser Via Ethernet

    5. Set the controlling computer’s Ethernet port that is being used to control the 10 GigE IP Mini-Converter to DHCP. 6. From the controlling computer, point a web browser to the IP address noted in step 1. The 10 GigE IP Mini-Converter’s web user interface displays in the browser.
  • Page 25 Figure 19. Overview of Web Browser User Interface Menu of Screens: Click one S/N, software version and to display that screen. connection status Alarms appear here Selections Information Dynamic Controls • Hovering the mouse on a parameter name displays a brief description of its function.

  • Page 26: Status Screen

    Status Screen IPT-10G2-SDI Figure 20. IPT-10G2-SDI Status Screen 1 of 2 The IPT-10G2-SDI Status screen reports the current status and settings for: • Stream Status • PTP Clock Status • Network Status • NMOS Status • Firmware Status Each group of parameters can be expanded or collapsed.
  • Page 27 Figure 21. IPT-10G2-SDI Status Screen 2 of 2 10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 27 www.aja.com...

  • Page 28: Ipr-10G2-Hdmi

    IPR-10G2-HDMI Figure 22. IPR-10G2-HDMI Status Screen 1 of 2 The IPR-10G2-HDMI Status screen reports the current status and settings for: • Input Status • PTP Clock Status • Network Status • NMOS Status • Firmware Status Each group of parameters can be expanded or collapsed. 10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 28 www.aja.com...

  • Page 29: Config Screen

    Figure 23. IPR-10G2-HDMI Status Screen 2 of 2 Config Screen This section describes the Config Screen for the IPT-10G2-SDI followed by the Config Screen for the IPR-10G2-HDMI. IPT-10G2-SDI The IPT-10G2-SDI Config Screen, shown in three parts, has the parameters required for the general operation of the IPT-10G2 units.
  • Page 30 Figure 24. IPT-10G2-SDI Config Screen 1 of 3 JG­IPT­10G2­SDI Menu Connection Status Serial Number Config ENG003 Config Page Presets Software Version 2.1.0.40d Network System Name JG­IPT­10G2­SDI Connection Status Firmware Connected Alarms Network User Authentication D i s a b l e d None CY­...
  • Page 31 PTP Grand Master Capable NOTE: Applicable only if PTP is selected for Video Output Clock Selection. For local demonstration purposes only, the IPT-10G2-SDI and IPT-10G2-HDMI can act as a grandmaster in network environments where there is not one already present, such as during basic testing, or setting up a PoC or demonstration.
  • Page 32 Figure 25. IPT-10G2-SDI Config Screen 2 of 3 JG­IPT­10G2­SDI Menu Connection Status Serial Number Config ENG003 Software Version Presets Audio Destination Port 1 10000 2.1.0.40d Network Connection Status Firmware Audio Source Port 1 Connected 10001 Alarms Network None CY­ IPT­10G2­SDI...
  • Page 33 ST2110, connect your traditional video source to this reference output to lock it to the facility PTP timing prior to bringing it into the IPT-10G2-SDI or IPT- 10G2-HDMI for conversion. This provides the unit with the ability to lock cameras, tape decks, Ki-Pro, Kona, or other sources to PTP timing.
  • Page 34 Figure 26. IPT-10G2-SDI Config Screen 3 of 3 JG­IPT­10G2­SDI Menu Connection Status Serial Number Audio Destination Port 2 10000 Config ENG003 Software Version Presets 2.1.0.40d Network Audio Source Port 2 10003 Connection Status Firmware Connected Alarms Ref Output Format Network...

  • Page 35: Ipr-10G2-Hdmi

    Ember+ Enable or disable Ember+ network discovery for the device. IPR-10G2-HDMI The IPR-10G2-HDMI Config Screen, shown in three parts, has the parameters required for the general operation of the IPR-10G2 units. Figure 27. IPR-10G2-HDMI Config Screen 1 of 3 JG­IPR­10G2­HDMI Menu Connection Status...
  • Page 36 Video Output Clock Selection Select which clock source you want to use for the video output. PTP - Use the current Precision Time Protocol (PTP) master on the network. Lock to Input - Use the input signal as the clock source. PTP Domain NOTE: Applicable only if PTP is selected for Video Output Clock Selection.
  • Page 37 Figure 28. IPR-10G2-HDMI Config Screen 2 of 3 JG­IPR­10G2­HDMI Menu Connection Status Serial Number Config ENG003 Input Stream Selection M a n u a Software Version Presets 2.1.0.15d Network Connection Status Firmware Connected Video Input Format Alarms 1 9 2 0 x 1 0 8 0 i 5 9 . 9 4 Input Stream Selection Network None...
  • Page 38 • Audio 2 Destination Address • Audio 2 Source Address Manual - When Manual is selected, you must enter configuration parameters manually into the following Input Stream Selection fields: • Video Input Format • Audio Channels • Audio Packet Interval •...
  • Page 39 NOTE: The Test Pattern is supported only in 1080p and 1080i formats. Audio Signal Generator You can output a test audio signal to validate audio signal connections. Select Off or 400 Hz Tone. Off - No audio signal is generated. 400 Hz Tone - A 400 Hz tone is generated on both channels of a pair and sent to the analog RCA audio outputs.

  • Page 40: Presets Screen

    Presets Screen Figure 30. IPR-10G2-HDMI Presets Screen JG­IPR­10G2­HDMI Menu Connection Status Serial Number Factory Reset Factory Settings ­­ Reset ­­ ­­ ­­ Config ENG003 Presets Software Version Preset #1 My PC Kona Manual Save Recall Export Import Erase 2.1.0.15d Network Connection Status Firmware Preset #2...

  • Page 41: Network Screen

    CAUTION: IP Mini-Converter stored presets may contain a web server access password. If you share an exported preset to someone, that person can extract the password. Before loaning the device to someone, or returning it as a rental, it is recommended that you clear the device of sensitive information.
  • Page 42 Figure 31. IPR-10G2-HDMI Network Configuration Control Tab JG­IPR­10G2­HDMI Menu Connection Status Serial Number Factory Reset Factory Settings ­­ Reset ­­ ­­ ­­ Config ENG003 Software Version Presets Preset #1 My PC Kona Manual Save Recall Export Import Erase 2.1.0.15d Network Connection Status Firmware Preset #2...
  • Page 43 Figure 33. IPR-10G2-HDMI Network Configuration Media 2 Tab JG­IPR­10G2­HDMI Menu Connection Status Serial Number Factory Reset Factory Settings ­­ Reset ­­ ­­ ­­ Config ENG003 Software Version Presets Preset #1 My PC Kona Manual Save Recall Export Import Erase 2.1.0.15d Network Connection Status Firmware...

  • Page 44: Firmware Screen

    • If IP Address Type is set to DHCP, the Subnet Mask is set by the DHCP server and cannot be changed by the user. Default Gateway - Default Gateway determines the gateway or router used on your LAN for TCP/IP networking. Without a properly configured default gateway (whether you have a router/ gateway or not), your IP Mini-Converter will be unable to see other IP Mini- Converters on the network, although you may still be able to control this IP...

  • Page 45: Booting The 10 Gige Ip Mini-Converters From The Safeboot Firmware

    To Download and Install Updated Firmware 1. Visit the AJA website (aja.com) to locate and download the updated software. The following page provides support information and will include links to locations where you can download updates: https://www.aja.com/products/mini-converters/ip-converters#support 2. After downloading the software update to your local drive, use the Browse or Choose File button to locate the local software copy.
  • Page 46 Figure 36. The Safeboot alarm message 5. Finally, update the firmware as described above under "Downloading and Installing Updated Firmware" on page 44. Following a successful firmware update and reboot, the message "None" displays under the Alarms heading. Figure 37. The alarm message after a successful firmware update 10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 46 www.aja.com...

  • Page 47: Appendix A - Specifications

    Appendix A – Specifications IPT-10G2-SDI Tech Specs Video Formats • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920x1080i 50, 59.94 • (HD) 1280x720p 50, 59.94, 60 • (SD) 625i 50 • (SD) 525i 59.94 Video Quality •...
  • Page 48 Reference • 1x BNC • Reference Out connector generates an analog/tri-level reference output synchronized to the PTP clock • This can be used to ensure the baseband video arriving at the IP Transmitter is properly timed Discovery, Registration and Control •...

  • Page 49: Ipt-10G2-Hdmi Tech Specs

    IPT-10G2-HDMI Tech Specs Video Formats • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920x1080i 50, 59.94 • (HD) 1280x720p 50, 59.94, 60 • (SD) 625i 50 • (SD) 525i 59.94 Video Quality • 10-bit, 4:2:2, uncompressed Media Transport Interfaces •...

  • Page 50: Ipr-10G2-Hdmi Tech Specs

    • This can be used to ensure the baseband video arriving at the IP transmitter is properly timed Discovery, Registration and Control • NMOS Tx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0 • Ember+ control (no discovery, control only) •...
  • Page 51 Media Transport Interfaces • SMPTE ST 2110 (-10, -20, -21, -30) • 2x SFP+ Cages - SFPs not included • Recommended 10 GigE SFP+ modules: • Arista Networks SFP-10G-SR Compatible 10GBASE-SR • Fiberstore SFP-10GSR-85 10G SFP+ 850nm • Finisar FTLX1471D3BCL (for single mode 1310nm) •...

  • Page 52: Ipr-10G2-Sdi Tech Specs

    User Controls • 1x RJ-45 for 10/100/1000 Base-T Ethernet • Web and REST clients supported for remote network setup and configuration • 1x USB 2.0 Mini-B connector • AJA eMini-Setup supported for network setup and configuration via local desktop computer •...
  • Page 53 • SMPTE ST 2022-7 dual stream input for hitless switching • Rx support for Narrow/Wide, Gapped/Linear Modes Audio Input IP • SMPTE ST 2110 • Up to 16 channels audio, 24-bit per channel, 48 kHz synchronous • 1 ms or 125 µs packet interval •...

  • Page 54: Ipr-10G-Hdmi Tech Specs

    Power • 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase) Environment • Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) •...
  • Page 55 Audio Output Analog • 2x RCA analog audio • Levels at -10 dBu (nominal) User Controls • 1 x RJ-45 for 10/100/1000 Base-T Ethernet • Web and REST clients supported • 1 x USB 2.0 Mini-B connector • AJA eMini-Setup of network parameters via local desktop computer Size (w x d x h) •...

  • Page 56: Appendix B - Safety And Compliance

    Appendix B – Safety and Compliance Federal Communications Commission (FCC) Compli ance Notices Class A Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 57 Declaration of Conformity Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2014/30/EU. This equipment meets the following conformance standards: Safety EN 60065: 2014 (T-Mark License), IEC 60065: 2014 (CB Scheme Report/Certificate) Additional licenses issued for specific countries available on request.
  • Page 58 Taiwan Compliance Statement This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 59 Warning! Do not use this device near water and clean only with a dry cloth. Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement avec un tissu sec.. Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem trockenen Tuch säubern.
  • Page 60 Warning! Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
  • Page 61 Warning! Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device. Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des réceptacles de convenance, et à...
  • Page 62 Warning! Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 63 Warning! Disconnect the external AC power supply line cord(s) from the mains power before moving the unit. Avertissement! Retirez le ou les cordons d’alimentation en CA de la source d’alimentation principale lorsque vous déplacez l’appareil. Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor Sie das Gerät verschieben.

  • Page 64: Warranty And Liability Information

    Warranty and Liability Information AJA VIDEO SYSTEMS, INC. Limited Warranty on Hardware AJA Video Systems, Inc. (AJA Video) warrants that the hardware product, not including storage modules or software components, will be free from defects in materials and workmanship for a period of five (5) years from the date of purchase. AJA Video warrants that the storage modules provided as part of the hardware product will be free from defects in materials and workmanship for a period of one year from the date of purchase.

  • Page 65: Limitation Of Liability

    Limitation of Liability Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST, CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE, OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 66: Index

    Entering Compatible IP Address Controlling Computer's Ethernet Status Screen Port 24 IPR-10G2-HDMI 28 Using Media LAN for Control and Failure 43 IPT-10G2-SDI 26 Media IP Address 18, 19, Subnet Mask Using Standard RJ-45 Connector Setting IP Address Type for Determined by Netmask 43...
  • Page 67 Enabling or Disabling for Web Interface Web Browser Accessing Unit Through Its IP Address 14 Loading Firmware 14 Preferred 8 System Requirements 8 Web Server Access Password 41 Built In Unit's Internal 8 10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 67 www.aja.com...
