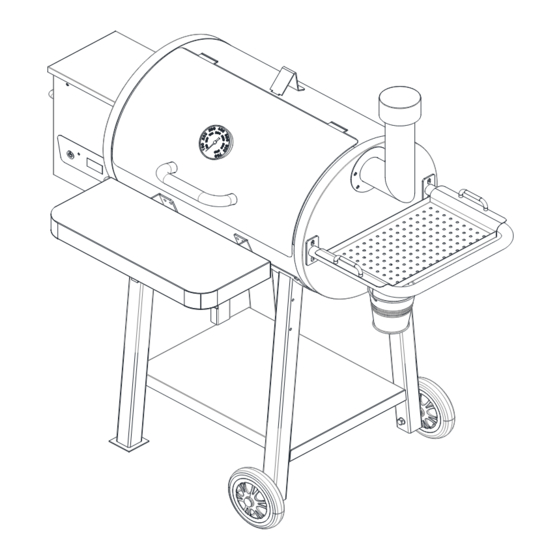

HORIZONTAL PELLET
GRILL SMOKER
MODEL: JY-MY-YXL-580-120
JY-MY-YXL-580-220
JY-MY-YXL-580-240
Advertisement
Related Manuals for VEVOR JY-MY-YXL-580-120
Summary of Contents for VEVOR JY-MY-YXL-580-120
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support HORIZONTAL PELLET GRILL SMOKER MODEL: JY-MY-YXL-580-120 JY-MY-YXL-580-220 JY-MY-YXL-580-240 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is...
- Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. - Page 5 clean and cover it and store it in a dry and safe place. 11. Do not leave the power cord hanging over the edge of table or counter or let it come into contact with any hot surfaces. 12. Do not place the unit on or near hot air, electric burners or heaters. 13.
-
Page 6: Product Parameters
Cleaning and user maintenance shall not be made by children without supervision. ATTENTION! This article is intended for outdoor use. Do not use indoors! PRODUCT PARAMETERS Model No. Region Voltage Power Plug Type JY-MY-YXL-580-120 North AC120 American America PLUG 60Hz JY-MY-YXL-580-220 Europe AC220V... -
Page 7: Product Components
PRODUCT COMPONENTS ATTENTION! 1. Check all parts for completeness before beginning assembly. To avoid accidents or sharp edges injuries please assemble and use carefully. For assembly you need a Phillips screwdriver and different screw wrenches. 2 persons are needed to assemble the product. - Page 8 Part name Part name Barbecue barrel Front trim panel Upper cover handle Leg 2 Chimney Front desk panel Side storage tray Front desk panel bracket Side shelf Insulation net Receiving barrel Pilot plate Leg 1 Pilot plate cover Caster Baking net Chassis Limit baffle No.
- Page 9 STEP2 D: M6x16-4PCS 2. Use M6x16 screws to install the frame chassis on the foot 1/2. STEP3 C: M5x50-4PCS 3. Fix the front trim panel with M5x50 screws.
- Page 10 STEP4 D:M6x16-3PCS 4. Use M6x16 screws and shrapnel to install the upper cover handle on the barbecue barrel; Use M6x16 screws to install the limit baffle on the grill barrel and hang the oil receiving barrel on the grill barrel. STEP5 B:M5*16-4PCS 5.
- Page 11 STEP6 B:M5x16-4PCS 6. Fix the chimney on the side of the barbecue barrel with M5x16 screws. STEP7 D:M6x16-16PCS 7.Fix the grill barrel on the proper position of the frame as shown in the figure above, and use M6x16 screws to lock it from the outside of the grill barrel.
- Page 12 STEP8 D:M6x16-6PCS 8. Use M6x16 screws to install the front platen bracket on the barbecue barrel. STEP9 8x6xM6 Nut-2PCS Φ 9. Place the front desk board on the front desk board bracket and use Φ 8x6xM6 Nut locking.
- Page 13 STEP10 10. Put on the ignition plate and the cover of the ignition plate. STEP11 11. Put on the grill and insulation net, and the installation is completed. Turn on the power supply, place the pellet fuel in the feeder, start the feeding controller, adjust to the appropriate temperature, and smoke the food when the temperature of the cylinder rises to the set temperature.
- Page 14 OPERATING INSTRUCTIONS Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates are clean and free of dust. If necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil. When your product is heated for the first time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.
- Page 15 WARNING! This product rotisserie grill will become very hot, do not move it during operation. WARNING! Keep children and pets away. WARNING! In case of the danger of carbon monoxide poisoning, do not use the product rotisserie grill indoors. WARNING! Do not use the barbecue in a confined and/or habitable space e.g.
- Page 16 4. Cooking larger pieces of meat and joints is recommended before finally cooking on the grill. 5. After cooking on your grill always clean the cooking surfaces and utensils. CLEAING MAINTENANCE AND STORAGE 1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint free cotton cloth.
- Page 17 Technical Support and E-Warranty Certificate www.vevor.com/support Made in China...
