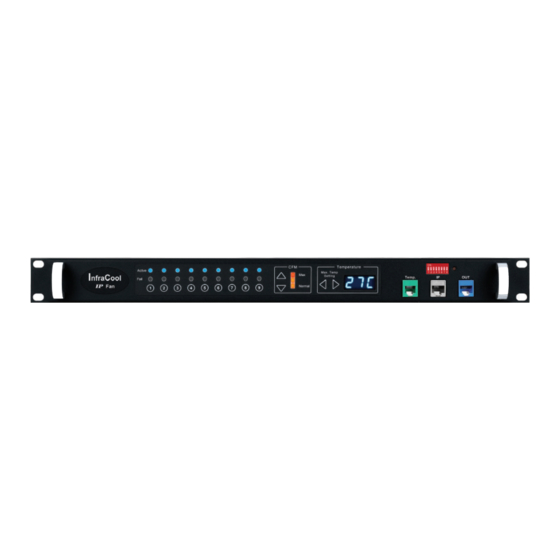

Infra Cool CMS-02-S User Manual

Master ip fan unit gui & snmp
Hide thumbs

Advertisement

Quick Links

Download this manual
Rack Airfl ow Control
User Manual
CMS-02-S , Master IP Fan unit GUI & SNMP
Designed and manufactured by Austin Hughes
UM-CMS-02-S-Q420V1
www.austin-hughes.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMS-02-S and is the answer not in the manual?

Questions and answers

Related Manuals for Infra Cool CMS-02-S

Summary of Contents for Infra Cool CMS-02-S

  • Page 1 Rack Airfl ow Control User Manual CMS-02-S , Master IP Fan unit GUI & SNMP Designed and manufactured by Austin Hughes UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 3 Unpacking The equipment comes with the standard parts shown on the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately. UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 4 RF-33.9 ( 33U Door Mount Fan Panel with 9 fans ) Specifi cation Table < 2.5 > Daisy Chain Connection < 2.6 > Audio Temperature Alarm Setting < 2.7 > Temperature Sensor < 2.8 > Alarm Temperature Setting < 2.9 > Fan Unit CFM Setting UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 5 P.23 < 3.1 > Key Features < 3.2 > Master IP Confi guration < 3.3 > CMS-02-S Master IP Fan Unit GUI < 3.4 > SNMP Setup < 3.5 > Master IP Fan Unit Firmware Upgrade < 3.6 > DHCP Setting UM-CMS-02-S-Q420V1 www.austin-hughes.com...

  • Page 6: Package Content

    * Bracket for MRF-1.6 / 9 & RF-1.6 / 9 only * M6 screws for fi xing are not included Installation MRF-1.3 / RF-1.3 M6 screws MRF-1.6 / RF-1.6 Rear mounting M6 screws brackets MRF-1.9 / RF-1.9 M6 screws Rear mounting brackets UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 7 - M4*6mm screw with nut x 4 sets - Mounting screw x 6 pcs ( attached with the unit ) - M4*10mm screw x 2 pcs - Air blocking material x 1 pc * For installation, please refer to p.5 UM-CMS-02-S-Q420V1 www.austin-hughes.com...

  • Page 8: Installation Steps

    If no cable entry on the top, the unit may be installed on the inside but the model need to be changed. Please refer to P.2 . Use cable clip to hold the power cord if necessary Power cord Mounting Cable screws clip ON / OFF Button Perforated Rack Door UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 9 Ensure all open perforations are covered by the material. Fix the air blocking material with magnets or double sided adhesive tapes Magnets & adhesive tapes not provided Perforated Rack Door UM-CMS-02-S-Q420V1 www.austin-hughes.com...

  • Page 10: Hanging Bracket Installation

    Place attached 4 screws then through the door and tighten them. Follow steps on P.3 and P.4 . Power cord Cable clip ON / OFF Hanging bracket with Button M4*6mm screw & nut M4*10mm screws Mounting screws Perforated Rack Door UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 11 - Unit CFM ( fan speed ) Setting - Temperature LED - Fan Status LED - CFM Status LED 1U Fan Tray 3 / 6 / 9 fans 3 / 6 / 9 fans Door Mount Fan Panel 9 fans 9 fans UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 12 Air Delivery : 108 CFM Rated Speed : 3000 rpm, +/-10% Rated Voltage : 12V DC Rated Current : 350 mA Noise Level : 41 dB Dimension : 120 x 120 x 25 mm Bearing System : Dual ball bearing UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 13 - IP port for remote access - Only Master IP fan unit provides an IP port - 1 x IP port allows access to 16 levels - Daisy chain port for connecting to the link port of the 2nd level fan unit UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 14 - IP port for remote access - Only Master IP fan unit provides an IP port - 1 x IP port allows access to 16 levels - Daisy chain port for connecting to the link port of the 2nd level fan unit UM-CMS-02-S-Q420V1 www.austin-hughes.com...
  • Page 15 - IP port for remote access - Only Master IP fan unit provides an IP port - 1 x IP port allows access to 16 levels - Daisy chain port for connecting to the link port of the 2nd level fan unit UM-CMS-02-S-Q420V1 P.10 www.austin-hughes.com...
  • Page 16 2nd level fan unit - Individual fan status - Individual fan On / Off buttons - Unit CFM Status LED - Unit CFM ( fan speed ) Setting - Buttons for Alarm Temp. Setting UM-CMS-02-S-Q420V1 P.11 www.austin-hughes.com...
  • Page 17 8 kgs / 17.6 lbs MRF-1.9 9 kgs / 19.8 lbs 11 kgs / 24.2 lbs MRF-33.9 5 kgs / 11 lbs 7.4 kgs / 16.3 lbs Casing Color Black Regulatory FCC & CE Environmental RoHS3 & REACH compliant by SGS UM-CMS-02-S-Q420V1 P.12 www.austin-hughes.com...
  • Page 18 - Daisy chain LIN K LIN K port for connecting to the out port of the last level fan unit - Daisy chain OU T port for connecting to the link port of the next level fan unit UM-CMS-02-S-Q420V1 P.13 www.austin-hughes.com...
  • Page 19 - Daisy chain LIN K LINK port for connecting to the out port of the last level fan unit - Daisy chain OU T OU T port for connecting to the link port of the next level fan unit UM-CMS-02-S-Q420V1 P.14 www.austin-hughes.com...
  • Page 20 - Daisy chain LIN K LIN K port for connecting to the out port of the last level fan unit - Daisy chain OU T O UT port for connecting to the link port of the next level fan unit UM-CMS-02-S-Q420V1 P.15 www.austin-hughes.com...
  • Page 21 - Individual fan status - Individual fan On / Off buttons - Unit CFM Status LED - Unit CFM ( fan speed ) Setting - Buttons for Alarm Temp. Setting UM-CMS-02-S-Q420V1 P.16 www.austin-hughes.com...
  • Page 22 8 kgs / 17.6 lbs RF-1.9 9 kgs / 19.8 lbs 11 kgs / 24.2 lbs RF-33.9 5 kgs / 11 lbs 7.4 kgs / 16.3 lbs Casing Color Black Regulatory FCC & CE Environmental RoHS3 & REACH compliant by SGS UM-CMS-02-S-Q420V1 P.17 www.austin-hughes.com...

  • Page 23: Daisy Chain Connection

    Off Off Off Off 15th level Expansion Serial Fan Unit Model Off Off Off Off 16th level Expansion Serial Fan Unit Model Off Off Off Off Off ** No. 7 dip switch only for audio alarm setting UM-CMS-02-S-Q420V1 P.18 www.austin-hughes.com...
  • Page 24 LINK LINK Cat5 / 6 cable Cat5 / 6 cable max. 20 meters max. 20 meters To LINK port of next level Expansion Serial Fan Unit (max level: 16) To Network Device for IP Access via WAN UM-CMS-02-S-Q420V1 P.19 www.austin-hughes.com...

  • Page 25: Temperature Sensor

    Part no. : IG - T01 - 2M - Plug & Play - External sensor with 2M cord - Low profi le design with magnetic base for easy affi xing to the rack Optional 4M cord for Temp. Sensor UM-CMS-02-S-Q420V1 P.20 www.austin-hughes.com...
  • Page 26 4-wired 3.5mm to RJ11 cable ( 2m, black color ) Compatibility InfraPower W / WS / Wi / WSi series PDU InfraSolution X-2000 series InfraGuard EC-300M & EC-300 Safety Regulatory FCC & CE certifi ed Environmental RoHS3 & REACH compliant UM-CMS-02-S-Q420V1 P.21 www.austin-hughes.com...

  • Page 27: Alarm Temperature Setting

    CFM setting. However, if the outside temperature is over alarm temperature, the unit CFM will be automatically changed to Max. level. Under this condition, all fan kits will be turned on. UM-CMS-02-S-Q420V1 P.22 www.austin-hughes.com...

  • Page 28: Key Features

    < 3.1 > Key Features InfraCool Manager CMS-02-S is a FREE built-in GUI of each Master IP Fan unit to remotely monitor the connected Expansion Serial Fan units. ( max. up to 16 fan units ) InfraCool Manager CMS-02-S Features...
  • Page 29 10. Change the desired IP address / Subnet mask / Gateway, then click Save to confi rm the setting to Master IP fan unit. 11. The default IP address is as below: IP address : 192.168.0.1 Subnet mask : 255.255.255.0 Gateway : 192.168.0.254 UM-CMS-02-S-Q420V1 P.24 www.austin-hughes.com...
  • Page 30 < 3.3 > CMS-02-S Master IP Fan Unit GUI Each Master IP Fan Unit provides a FREE built-in GUI, CMS-02-S, which allows user, via a web browser, to see and manage the Intelligent Fan Unit’s data remotely over a TCP / IP Ethernet network.
  • Page 31 < 3.3 > CMS-02-S Master IP Fan Unit GUI In < Details >, - Change “ Rack “ and “ Position “ of Fan Unit and Click “ Apply “ to fi nish the settings. - Switch ON / OFF Fan Unit...
  • Page 32 < 3.3 > CMS-02-S Master IP Fan Unit GUI In < Temp. Setting >, - “ Activate “ or “ Deactivate “ Temp. sensor - Change “ Location “ , “ Alarm Setting “ & “ R. alert setting “ of Temp. sensor - “...
  • Page 33 < 3.3 > CMS-02-S Master IP Fan Unit GUI In < System >, - Change Master IP Fan Unit name & location - Change temperature unit displayed in UI - Change Master IP Fan Unit’s IP address, subnet Mask & gateway. ( For static IP setting only ) - Select “...
  • Page 34 < 3.3 > CMS-02-S Master IP Fan Unit GUI In < Login >, - Change “ Login name “ OR “ Password “ - Re-enter password in “ Confi rm password “. ( For change password ONLY ) - Click “ Apply “ & “ OK “ on the pop up window to make the changes eff ective.
  • Page 35 Step 3. Enter the confi gured Master IP Fan Unit address into the I.E. address bar. Default IP address is “ 192.168.0.1 “ Step 4. Enter “ Login name “ & “ Password “. Default login name & password are “ 00000000 “ UM-CMS-02-S-Q420V1 P.30 www.austin-hughes.com...
  • Page 36 Step 15. Input “ Trap Station IP “ , “ Trap Port “ & “ Trap Community “ of Station 1 Step 16. Repeat Step 14 & 15 for Station 2 & 3. Step 17. Click “ Apply “ to fi nish the SNMP v1 / v2 settings UM-CMS-02-S-Q420V1 P.31 www.austin-hughes.com...
  • Page 37 Step 4. Enter “ Login name “ & “ Password “. Default login name & password are “ 00000000 “ Step 5. Select SNMP from the left navigation pane Step 6. The SNMP Settings window appears as below: UM-CMS-02-S-Q420V1 P.32 www.austin-hughes.com...
  • Page 38 Step 20. Input the “ Trap Station IP “ & “ Trap port “ Step 21. Repeat step 12 to 20 for User 2 & 3. Step 22. Click “ Apply “ to fi nish the SNMP v3 settings. UM-CMS-02-S-Q420V1 P.33 www.austin-hughes.com...
  • Page 39 Default IP address is “ 192.168.0.1 “ Step 6. Enter “ Login name “ & “ Password “. Default login name & password are “ 00000000 “ Step 7. Select the Firmware from the left navigation pane UM-CMS-02-S-Q420V1 P.34 www.austin-hughes.com...
  • Page 40 Click “ Open ” Step 10. Click “ Upgrade ” to start the upgrade process. It takes a few minutes to complete. Step 11. Once complete, UI will return to the login page. UM-CMS-02-S-Q420V1 P.35 www.austin-hughes.com...

  • Page 41: Dhcp Setting

    Step 4. Enter the “ Login name “ & “ Password “ . Default login name & password are “ 00000000 “ Step 5. Select “ System “ from the left navigation pane Step 6. Select “ ON “ from “ DHCP “ & click “ Apply “ to save the settings UM-CMS-02-S-Q420V1 P.36 www.austin-hughes.com...
  • Page 42 Step 7. Select “ Firmware “ from the left navigation pane Step 8. Record the “ Device MAC address “ Step 9. Assign an IP address to the Master IP Fan Unit from your DHCP server. Complete UM-CMS-02-S-Q420V1 P.37 www.austin-hughes.com...
  • Page 43 UM-CMS-02-S-Q420V1 P.38 www.austin-hughes.com...
  • Page 44 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CMS-02-S-Q420V1 P.39 www.austin-hughes.com...
