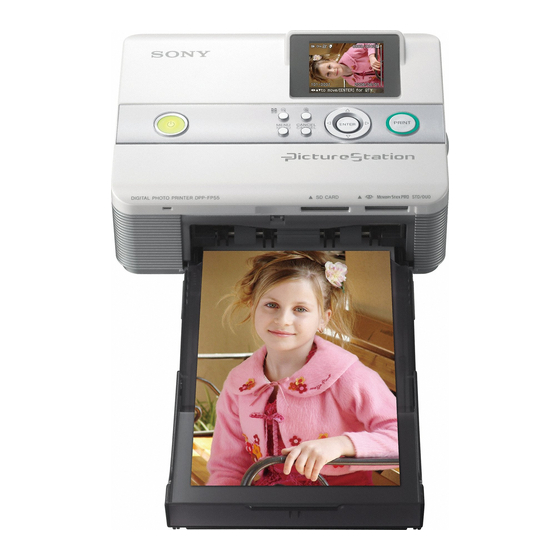

Sony DPP-FP55 Quick Start Manual

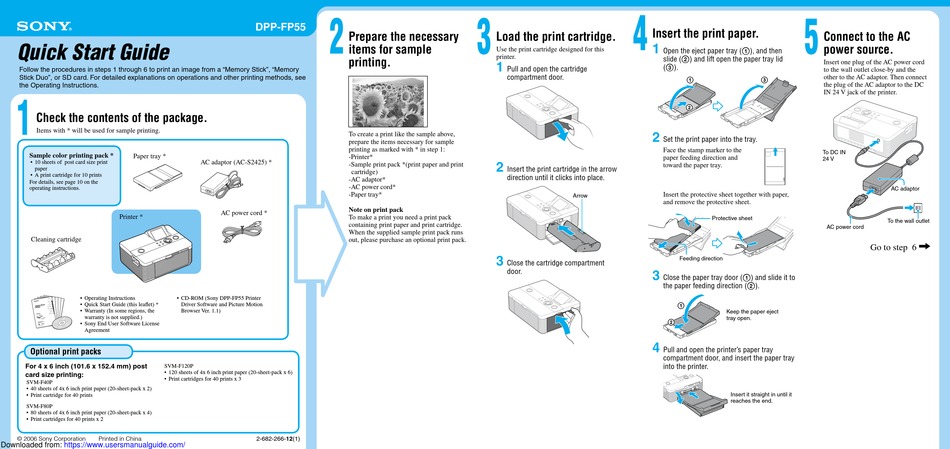

Quick Start Guide
Follow the procedures in steps 1 through 6 to print an image from a "Memory Stick", "Memory
Stick Duo", or SD card. For detailed explanations on operations and other printing methods, see
the Operating Instructions.
1
Check the contents of the package.
Items with * will be used for sample printing.
Sample color printing pack * Paper tray *
• 10 sheets of post card size print
paper
• A print cartridge for 10 prints
For details, see page 10 on the
operating instructions.
Printer *
Cleaning cartridge
• Operating Instructions • CD-ROM (Sony DPP-FP55 Printer
• Quick Start Guide (this leaflet) *
• Warranty (In some regions, the
warranty is not supplied.)
• Sony End User Software License
Agreement
Optional print packs
For 4 x 6 inch (101.6 x 152.4 mm) post
SVM-F120P
• 120 sheets of 4x 6 inch print paper (20-sheet-pack x 6)
card size printing:
• Print cartridges for 40 prints x 3
SVM-F40P
• 40 sheets of 4x 6 inch print paper (20-sheet-pack x 2)
• Print cartridge for 40 prints
SVM-F80P
• 80 sheets of 4x 6 inch print paper (20-sheet-pack x 4)
• Print cartridges for 40 prints x 2
© 2006 Sony Corporation Printed in China
Downloaded from: https://www.usersmanualguide.com/
2
DPP-FP55
Prepare the necessary
items for sample
printing.
To create a print like the sample above,
prepare the items necessary for sample
printing as marked with * in step 1:
-Printer*
AC adaptor (AC-S2425) *
-Sample print pack *(print paper and print
cartridge)
-AC adaptor*
-AC power cord*
-Paper tray*
Note on print pack
AC power cord *
To make a print you need a print pack
containing print paper and print cartridge.
When the supplied sample print pack runs
out, please purchase an optional print pack.
Driver Software and Picture Motion
Browser Ver. 1.1)
2-682-266-12(1)
4
3
Insert the print paper.
Load the print cartridge.
1
Use the print cartridge designed for this
printer.
1
Pull and open the cartridge
compartment door.
2
2
Insert the print cartridge in the arrow
direction until it clicks into place.
Arrow
3
Close the cartridge compartment
door.
3
4
5
Connect to the AC
power source.
Open the eject paper tray (), and then
slide () and lift open the paper tray lid
Insert one plug of the AC power cord
().
to the wall outlet close-by and the
other to the AC adaptor. Then connect
the plug of the AC adaptor to the DC
IN 24 V jack of the printer.
Set the print paper into the tray.
Face the stamp marker to the
To DC IN
paper feeding direction and
24 V
toward the paper tray.
Insert the protective sheet together with paper,
and remove the protective sheet.
Protective sheet
AC power cord
Feeding direction
Close the paper tray door () and slide it to
the paper feeding direction ().
Keep the paper eject
tray open.
Pull and open the printer's paper tray
compartment door, and insert the paper tray
into the printer.
Insert it straight in until it
reaches the end.
AC adaptor
To the wall outlet
Go to step 6 
