Zennio GetFace IP ZVP-CB3M Installation

Surface installation - Frame - 3 modules
ZVP-CB3M

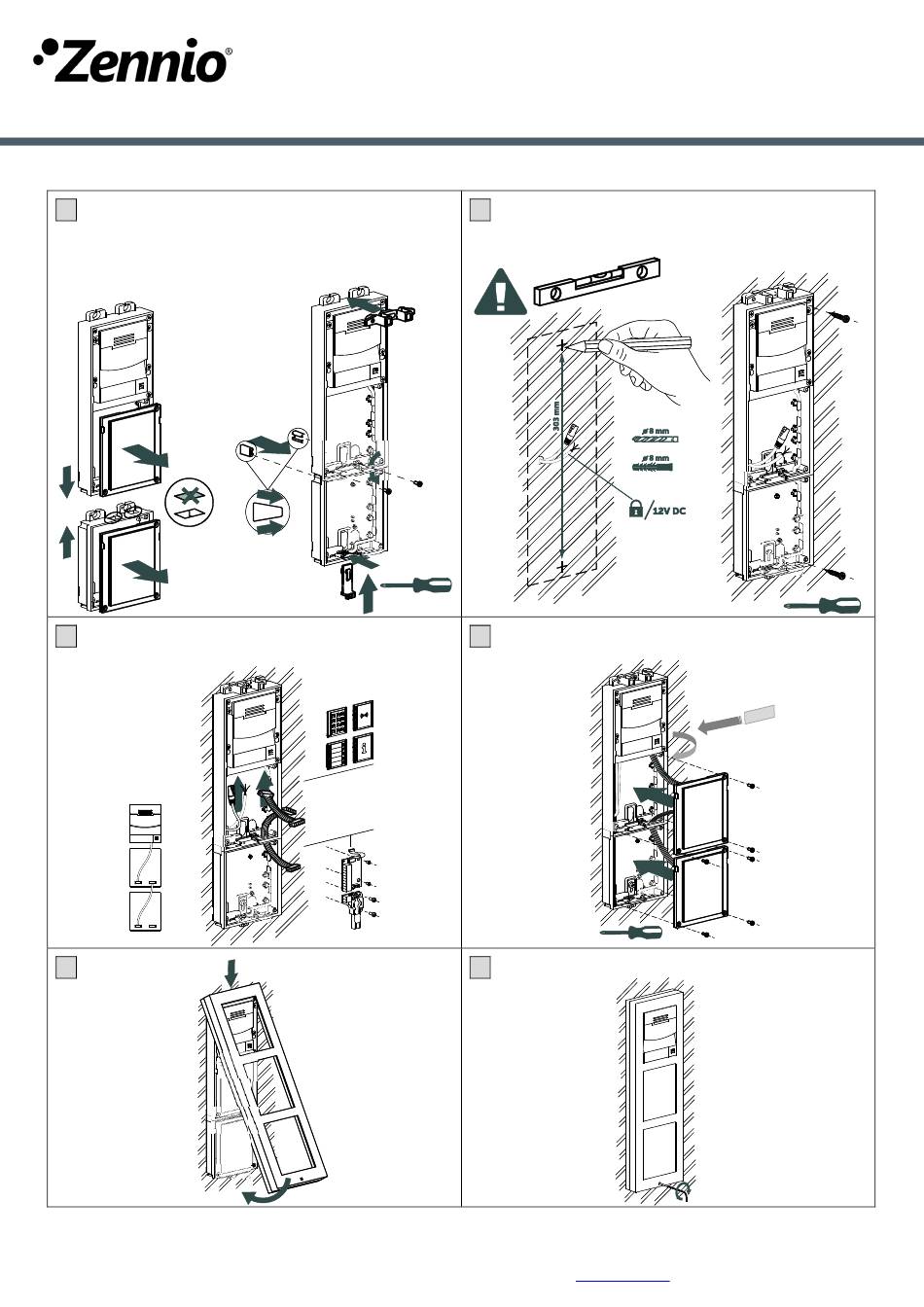

ASSEMBLY OF THE FRAME (ONE-COLUMN LAYOUT)

1
Please remove the blind panels and the additional modules. After
that, assemble the additional module enclosures, opening the gaps
previously. Then fix the assembly by using the supplied parts and
screws. Place the metallic auxiliary parts supplied with the frame. Move
the microphone to the lower enclosure.
3
Connect the cables to the basic unit and interconnect the additional
modules with the bus as shown in the schema.
5
.
Place the frame
Note: it is recommended to install the backplate (ZVP-BPLA3) if the wall surface irregularity is greater than 0.5mm.
© Zennio Avance y Tecnología S.L.
2
Place the basic unit correctly leveled on the wall and drill two holes
for the expanding plugs. Recover the cables and fix the module with the
screws (included).
4
Fix the blind panel and additional modules that remain in sight with
supplied screws and put the labels with captions next to the buttons.
6
Fix the frame using by the supplied Allen key.
Ed. 1 For more info
GetFace IP
Assembly instructions
www.zennio.com
Page 1 / 2
