Goal Zero Switch 10 Core - Power Bank Manual

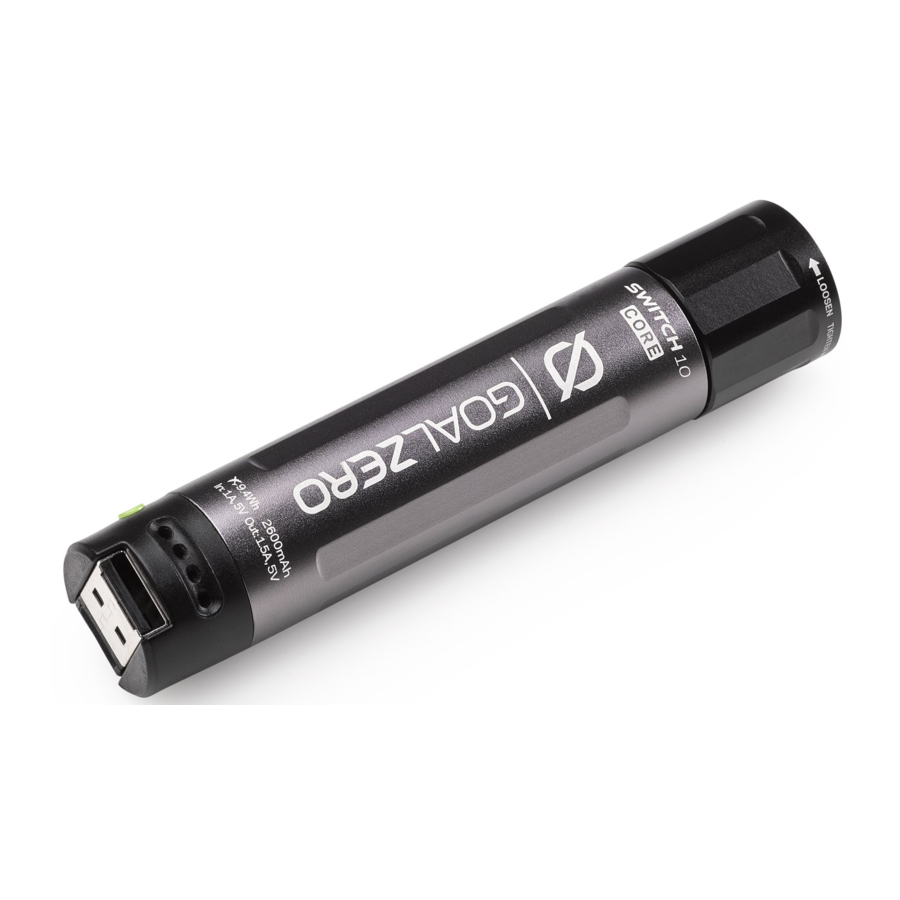

GET TO KNOW YOUR GEAR

GET TO KNOW YOUR GEAR

USB Output
USB Output

Flip-out Charging Tip
Flip-out Charging Tip

CHARGE IT

CHARGE IT

  1. Using the flip-out charging USB tip, plug Goal Zero Switch 10 into any live USB port and charge up in 3 hours.
  2. Know it's charging when the blue indicator lights illuminate and flash.
  3. Goal Zero Switch 10 is ready to go when all lights are illuminated and holding steady.

Goal Zero Switch 10 allows for pass-through power so you can charge your gear and Goal Zero Switch 10 at the same time.

Check the battery level of Goal Zero Switch 10 by pressing the button next to the indicator lights.

SOLAR READY ℠

SOLAR READY

Goal Zero Switch 10 is engineered to charge quickly from Goal Zero's Nomad ® Solar Panels.

  1. Using the flip-out charging USB tip, plug Goal Zero Switch 10 into the USB port on the back of the Nomad panel.
  2. Know it's charging when the blue lights illuminate and flash.
  3. Goal Zero Switch 10 is ready to go when all lights are illuminated and holding steady.

CHARGE YOUR GEAR

Goal Zero Switch 10 is designed to charge POV cameras, phones, and other handheld USB-powered gear.

What It Powers:
What It Powers

  1. Using your gear's charging cable, plug into Goal Zero Switch 10's USB output.
  2. Goal Zero Switch 10 will automatically begin charging when you plug in your gear.

You can also use the micro-USB cable included with Switch 10 to charge compatible devices.

TROUBLESHOOTING

Goal Zero Switch 10 Reset:
Plug Goal Zero Switch 10 into any live USB port to reset it.

TECHNICAL SPECIFICATIONS

Goal Zero Switch 10 Core Recharger

Charge times:
GOAL ZERO Nomad 7 Plus 3-5 hrs
USB Source 3 hrs
Battery:
Cell chemistry Li-ion NMC
Cell type 18650
Cell capacity 9.4Wh (3.6V, 2600mAh)
Lifecycles hundreds of cycles
Shelf-life Keep plugged in, or charge every 3-6 months
Fuses none
Management system Charging and low-battery protection built-in
Ports:
USB port (output) 5V, up to 1.5A (7.5W max), regulated
USB port (input) 5V, up to 1A (5W max)
General:
Chainable No
Weight 4 oz (113g)
Dimensions 4.5 x 1 x 1 in (11.4 x 2.5 x 2.5 cm)
Operating usage temp. 32-104 F (0-40 C)
