Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Introduction
The Keithley Instruments Model 2450-BenchKit contains the hardware that you need to set up any of the
following instruments for use on a benchtop:
2450-RACK
2450-NFP-RACK
2460-RACK
Number
1
2
3
4
5
6
7
071315803 / May 2019
2460-NFP-RACK
2461-RACK
2461-NFP-RACK

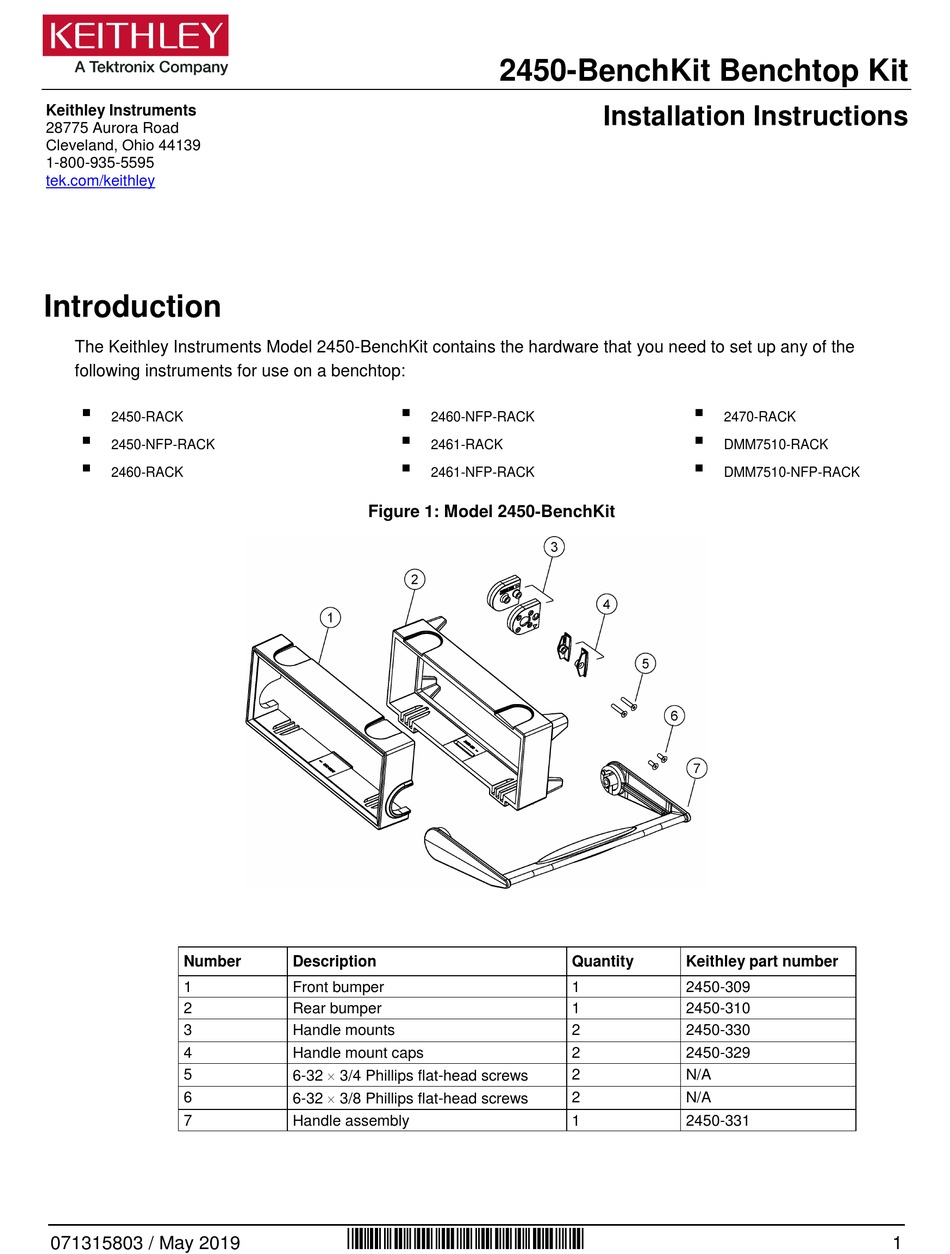

Figure 1: Model 2450-BenchKit
Description
Front bumper
Rear bumper
Handle mounts
Handle mount caps
6-32 × 3/4 Phillips flat-head screws
6-32 × 3/8 Phillips flat-head screws
Handle assembly
*P071315803*
2450-BenchKit Benchtop Kit
Installation Instructions
Quantity
1
1
2
2
2
2
1
2470-RACK
DMM7510-RACK
DMM7510-NFP-RACK
Keithley part number
2450-309
2450-310
2450-330
2450-329
N/A
N/A
2450-331
1

Advertisement

loading

Related Manuals for Tektronix KEITHLEY 2450-BenchKit

Summary of Contents for Tektronix KEITHLEY 2450-BenchKit

  • Page 1 2450-BenchKit Benchtop Kit Keithley Instruments Installation Instructions 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Introduction The Keithley Instruments Model 2450-BenchKit contains the hardware that you need to set up any of the following instruments for use on a benchtop: ...

  • Page 2: Installation Precautions

    2450-BenchKit Benchtop Kit Installation Instructions Installation precautions Turn off instrument power and unplug all cables before installing the Model 2450-BenchKit hardware. Failure to remove power before installation may cause personal injury or death from electrical shock. To prevent overheating and ensure specified performance, keep the exhaust vents free of obstructions.
  • Page 3 2450-BenchKit Benchtop Kit Installation Instructions 2. Align the handle-mount and cap assembly with the two lower mounting holes on one side of the instrument. Make sure that the flat edge of the assembly is facing the rear of the instrument and the raised flanges are placed inside the mounting holes.

  • Page 4: Install The Handle

    2450-BenchKit Benchtop Kit Installation Instructions Install the handle To install the handle assembly: 1. Holding the handle assembly above the top of the instrument, gently pull the handle ends apart to widen the handle as you slide it over the instrument case. Figure 4: Installing the handle 2.
  • Page 5 2450-BenchKit Benchtop Kit Installation Instructions Figure 5: Installing the front bumper 3. Push the bumper evenly toward the instrument until it snaps into place. 4. Align the rear bumper so that the feet of the bumper face away from the rear panel. 5.

  • Page 6: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 7 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
