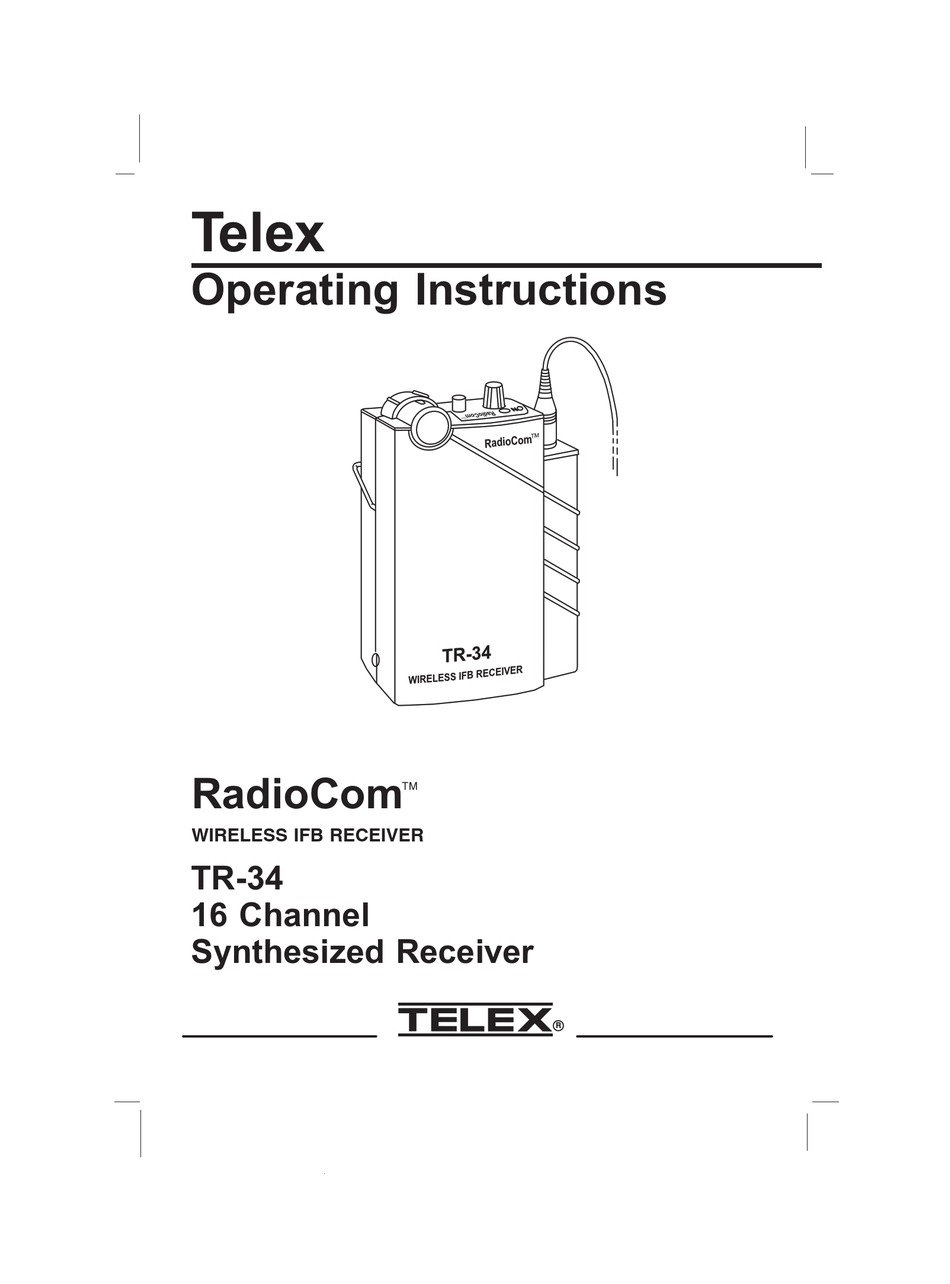

- Page 1 Telex Operating Instructions RadioCom ä WIRELESS IFB RECEIVER TR-34 16 Channel Synthesized Receiver...
-
Page 2: Specifications
TR-34 16 Channel Synthesized Receiver SPECIFICATIONS Temperature Range ...0 to +50 degrees C Supply Voltage ...2-3 Volts, (2) AA Batteries Battery Life ...16-20 Hrs - Alkaline Frequency Response 100-10 kHz ...Less than 3 dB Variation Sensitivity (12 dB SINAD @ 74 MHz)... 1mV max. -
Page 3: Operating Features
NOTE: The Audio Output Jack must have a head- phone, or other accessory, plugged in to activate the TR-34 power “ON”. Power “ON” is indicated by the lighting of the channel numbers. Channel Selection Dial The Channel Dial is rotated in the clockwise counterclockwise directions to attain reception of the desired channel(s) being transmitted within the 64 to 67 MHz frequency band. - Page 4 VOLUME OFF/ON CONTROL HEADPHONE JACK RadioCom TREBLE CONTROL CHANNEL DIAL Treble Control A push button treble control is provided to enhance the “High” audio when the button is engaged, indicated by the “High” audio is emphasized. Belt Clip The belt clip supplied is detachable by spreading the wire apart at the tops and removing one side of the clip from the case and then the other.
-
Page 5: Operation
OPERATION General The Telex TR-34 Receiver is synthesized receiver which oper- ates on 16 channels in the 64 to 67 MHz Band. The TR-34 is designed to be used with the Telex TT-34 Transmitter. To operate the TR-34 Receiver: 1. Select a suitable location for the transmitter, and try to keep a clear, unobstructed path between the transmitter and receiver antennas for a clear transmission. -
Page 6: Battery Replacement
Receiver is not in use to preserve battery life. BATTERY REPLACEMENT The TR-34 Receiver uses two AA alkaline batteries. Replace weak batteries with two fresh AA alkaline batteries, and posi- tion them in the battery compartment as illustrated. 16-20 Hours of operations can be expected from alkaline batteries and 8-10 hours on nickel-cadmium batteries. - Page 7 NOTE: If the unit is to be stored for any length of time be sure to remove the batteries from the unit. FCC INFORMATON The Telex Model TR-34 Receiver is Authorized under Part 15 of the Federal Communications Commission. Licensing of Telex equipment is the user’s responsibility and licensability depends upon the user’s classification, user’s application, and...
-
Page 8: Optional Accessories
OPTIONAL ACCESSORIES Description Catalog No. Earphone (single)...59840-005 Earphone (dual) ...59840-007 Lightweight Headphone ...59840-003 Full Cushion Headphone ...63510-021 Button Receiver and 30 inch Cord...64115-001 NL-4 Induction Coil Neckloop ...71120-001... - Page 9 TELEX COMMUNICATIONS, INC. 12000 Portland Ave. South, Burnsville, MN 55337, U.S.A. PN 802814 AUG 2000 Made in U.S.A.
