Summary of Contents for COTLIN IMC22

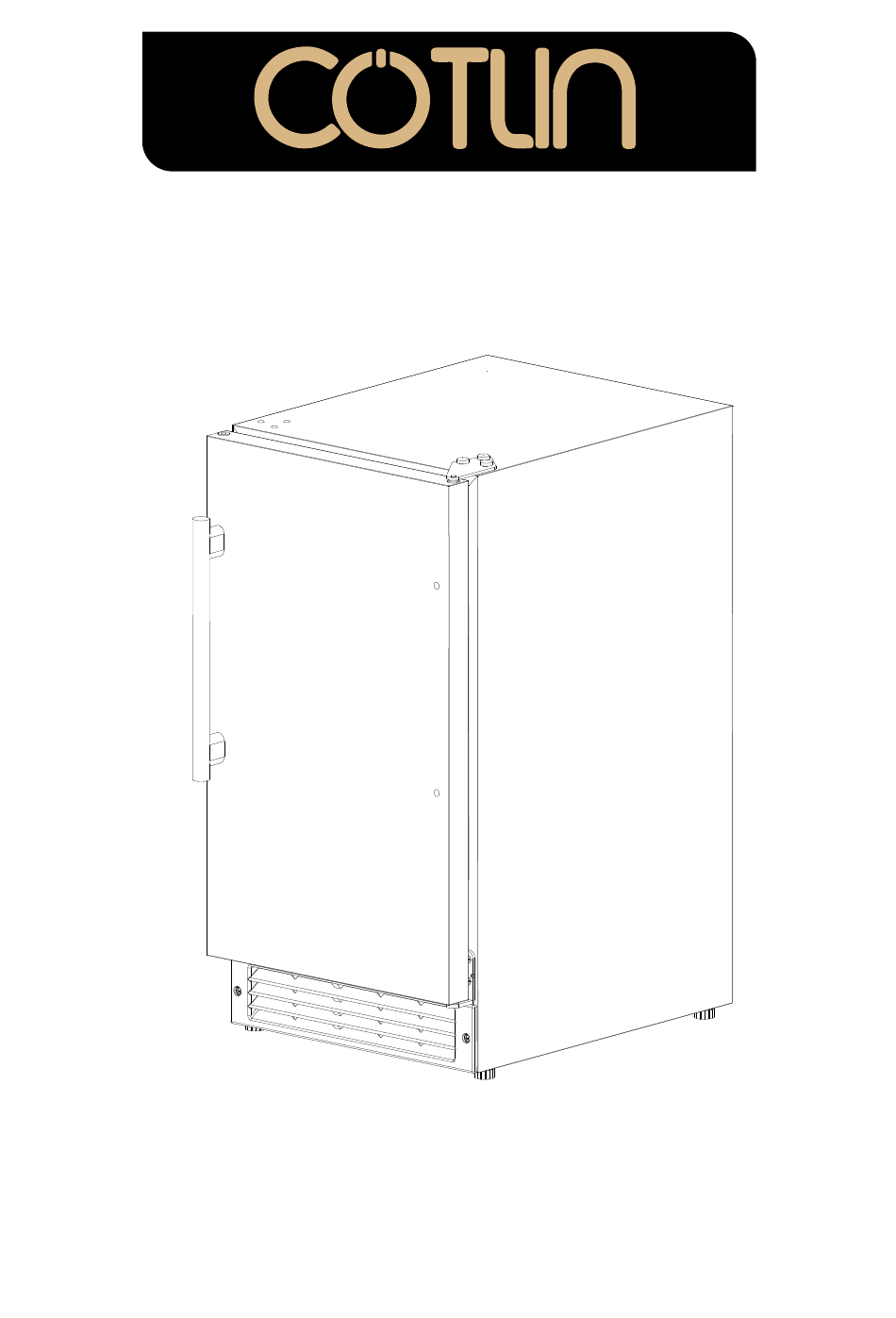

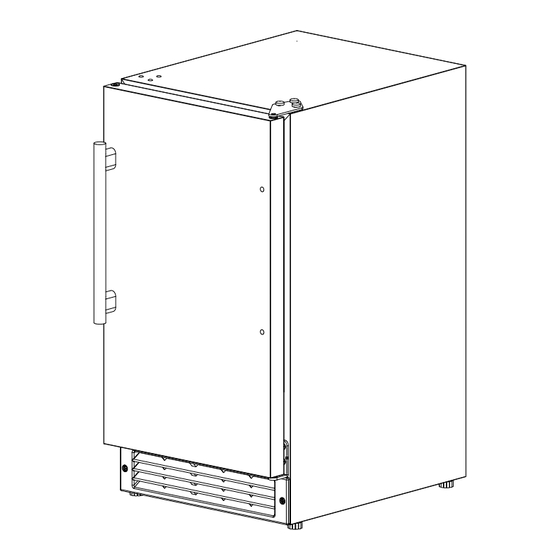

- Page 1 Crescent Ice Maker INSTRUCTION MANUAL Model: IMC22 IMC25BI IMC20 120822a...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS POWER CORD PRECAUTIONS • Do not use the appliance if the power cord is damaged. If the power cord is damaged, have a qualified electrician replace the power cord. • Never lift, carry or drag the appliance by the power cord. •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ………………………………………………...…...3 - 4 Product overview and Specs Installation Before Using Your Ice Maker …………………………………………………………………5 Installation The Ice Maker …………………………………………………………………….5 Reversing The Door Swing …………………………………………………………………..6 Electrical Connection ………………………………………………………………………….7 Extension Cord ………………………………………………………………………………...7 Connecting The Water Supply …………………………………………………………………7 Operating Initial Start-Up Operation ……………………………………………………………………..8 Maintenance Cleaning Your Ice Maker ……………………………………………………………………...8 Power Failure …………………………………………………………………..…... -
Page 4: Product Overview And Specs
Product overview and Specs Ice Module Ice Bucket Power Switch... - Page 5 Accessories Plug × 2 Ice Bucket × 1 Ice Scoop ×1 Model IMC2 IMC20 IMC22 Voltage/Frequency AC 115V 60Hz Rated Ice making current 1.9A 1.2A 1.2A Rated Ice harvest current 1.5A 1.5A Refrigerant R600a, 1.69Oz. R600a, 1.69Oz. R600a, 1.58Oz. Indoor/Outdoor...
-
Page 6: Installation
Installation BEFORE USING YOUR ICE MAKER • REMOVE THE EXTERIOR AND INTERIOR PACKAGING MATERIAL. • CHECK TO BE SURE YOU HAVE ALL OF THE FOLLOWING PARTS: • 1 DOOR HANDLE& 2 SCREWS • 2 DECORATIVE PLUGS • 1 ICE BUCKET •... -
Page 7: Reversing The Door Swing
REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD. ANY QUESTIONS CONCERNING POWER AND/OR GROUNDING SHOULD BE DIRECTED TOWARD A CERTIFIED ELECTRICIAN. The product is designed and • manufactured for seamless integration in the specified cutout opening shown, which requires precise measurements. The opening must be square and plumb front to back. -
Page 8: Electrical Connection
3. Take away the 2 plugs in the front of the door, install the door handle on the opposite position, then push to insert the door gasket back. finish the door handle reverse. 4. Unscrew to take away the bottom hinge, and then remove the caps in the left of the cabinet and install the bottom hinge at the left. -
Page 9: Operating
Operating INITIAL START-UP OPERATION 1. PLUG THE APPLIANCE INTO A 115/120V POLARIZED AND GROUNDED WALL ELECTRICAL OUTLET. 2. PLACE THE ON-OFF SWITCH IN THE “I” POSITION. 3. MAKE SURE THE WATER SUPPLY IS ON. AS SOON AS THE INNER MECHANISM REACHES THE PROPER TEMPERATURE, THE ICEMAKER MECHANISM WILL FILL THE MOLD WITH WATER. -
Page 10: Power Failure
CAUTION FAILURE TO UNPLUG THE ICE MAKER WHEN CLEANING, MOVING, OR SERVICING IT COULD RESULT IN ELECTRICAL SHOCK OR PERSONAL INJURY. POWER FAILURE MOST POWER FAILURES ARE CORRECTED WITHIN A FEW HOURS AND SHOULD NOT AFFECT THE TEMPERATURE OF YOUR ICE MAKER IF YOU MINIMIZE THE NUMBER OF TIMES THE DOOR IS OPENED. -
Page 11: Troubleshooting
TROUBLESHOOTING GUIDE Before Calling for Service: If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the issue persists, check the Troubleshooting Guide below. Some of the problems mentioned in the Troubleshooting Guide can be solved easily without a service call. Problem Possible Cause Probable Correction... - Page 12 The thermostat may had been tweaked Tweak towards to the COLDEST. to the highest temperature seting. The ambient temperature is high, or Tweak towards to the COLDEST. the unit is near a heat source. Abnormal Ice, The door gasket does not seal Close the door.
