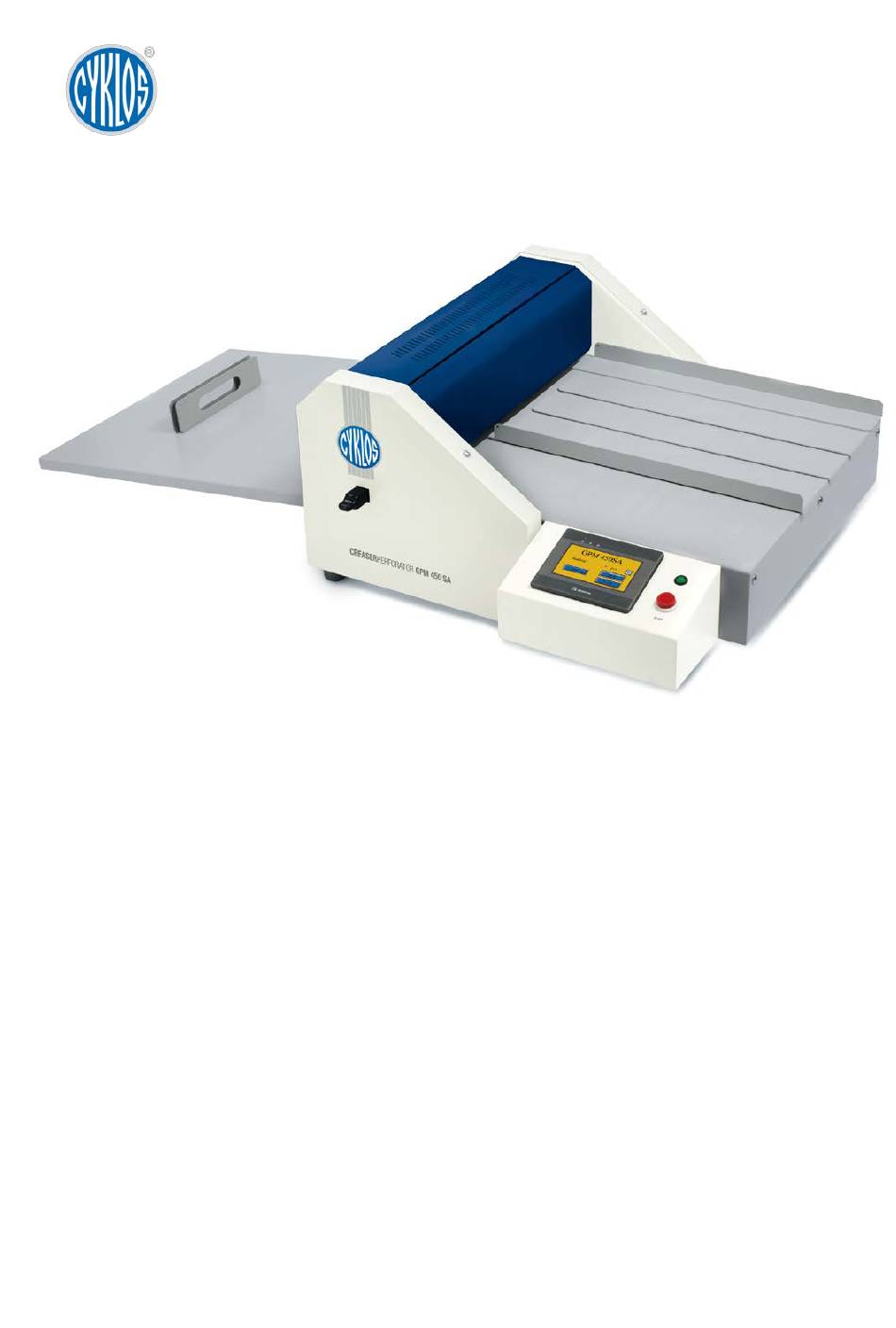

Semi-automatic creasing and
perforating machine GPM 450 SA
This document including the attachments is exclusive intellectual property of Cyklos Choltice
(producer cooperative). Any other use (copying, distribution or sale) is possible only with approval
of the chairman of the cooperative.
Operating Instructions
Valid from serial number:
Warnings
16043163
Issue no.
3
Sheets
15
Advertisement
Table of Contents
Related Manuals for Cyklos GPM 450 SA
Summary of Contents for Cyklos GPM 450 SA
- Page 1 Semi-automatic creasing and perforating machine GPM 450 SA Warnings This document including the attachments is exclusive intellectual property of Cyklos Choltice (producer cooperative). Any other use (copying, distribution or sale) is possible only with approval of the chairman of the cooperative.
-
Page 2: Table Of Contents
Operating Instructions | GPM 450 SA CONTENT 1. Introduction ..........................3 2. Safety Risks ..........................3 Safety Warning ......................... 3 General Work Safety and Health Protection ..............3 3. Warnings ............................. 4 4. Technical Parameters ......................... 6 5. Machine Description........................7 6. -
Page 3: Introduction
If the GPM 450 SA is used correctly, it is a very safe machine. However, if used incorrectly, it can be dangerous. When operating the machine, the operator is responsible for their own personal... -
Page 4: Warnings
Operating Instructions | GPM 450 SA safety. The manufacturer is not responsible for any injury to a person or damage to the machine caused by use or operation that is not in compliance with the Operating Instructions. The owner of the machine is responsible for the machine being operated, maintained and serviced only by qualified people. - Page 5 Operating Instructions | GPM 450 SA f) It is forbidden to plug the machine into other voltage than indicated on producer’s identification plate. g) Read all instructions before using the machine. h) It is not suitable for children to be near the machine.
-
Page 6: Technical Parameters
Operating Instructions | GPM 450 SA 4. TECHNICAL PARAMETERS Max. working width 450 mm Recommended paper grammage - creasing 80 - 400 g/m² Recommended paper grammage - perforation 80 - 250 g/m² CITO 1,0 mm - paper thickness < 0,2 mm... -
Page 7: Machine Description
Operating Instructions | GPM 450 SA 5. MACHINE DESCRIPTION Content of package the machine GPM 450 SA magnetic side guide magnetic strip perforating knife creasing knife (fitted on the machine) lower creasing/perforating tool (fitted on the machine) supply cable hexagonal key 1 –... -
Page 8: Machine Installation
Operating Instructions | GPM 450 SA 6. MACHINE INSTALLATION Electric creasing and perforating machine is suited for final processing of graphic materials up to 450 mm width. Creasing enables easy folding of the paper. Knife change and turning of the square bar (9) allows making perforation. -
Page 9: Setting Machine Using Touch Screen
Operating Instructions | GPM 450 SA 7. SETTING MACHINE USING TOUCH SCREEN Language selection After the power supply switch has been turned on, the display shows the basic menu (fig.1) Fig. 1: The Main screen There is a hidden icon in the left upper corner. If you press this space a language menu comes up (fig.2). -
Page 10: Setting Number Of Segments
Operating Instructions | GPM 450 SA Setting Number of Segments Pressing the numeric icon under the “Number of creases" sign the displays the numeric keypad. By pressing the relevant digit, the number of creases/perforations (segments) is set. The program enables setting of up to 15 segments. The selection of number of segments is ended by pressing the "Enter"... -
Page 11: Saving And Loading Of Program
Amongst these types of fold there is one very special function called book cover. The machine GPM 450 SA is excellent for making professional book and brochure covers. Book cover is defined by 4 creases made in the middle of the sheet with fixed distances 6 mm between the first and second crease and third and fourth crease. -
Page 12: Working Cycle
Operating Instructions | GPM 450 SA Choose the number for numbering the program using the keys "prg +" and "prg -". Press the “Save" icon. Go back to the main menu by pressing "Return". The program is saved. Load the program as follows: On the main screen press the number in the right side of the screen showing program number. -
Page 13: Service Menu
For return to the main menu, press „Return“. Service Menu There is a hidden icon in the right upper corner. This icon serves for service technicians trained by Cyklos. To access this icon you need to enter a password (fig. 8). Fig. 8: Service screen... -
Page 14: The Most Common Faults (Troubleshooting)
Operating Instructions | GPM 450 SA 8. THE MOST COMMON FAULTS (TROUBLESHOOTING) a) upstroke stoppage: If this problem occurs during adjusting and checking the upstroke of the ram (14), it is necessary to loosen locking nuts and then turn clockwise by the adjusting screws (18) two revolutions (the ram goes up).
