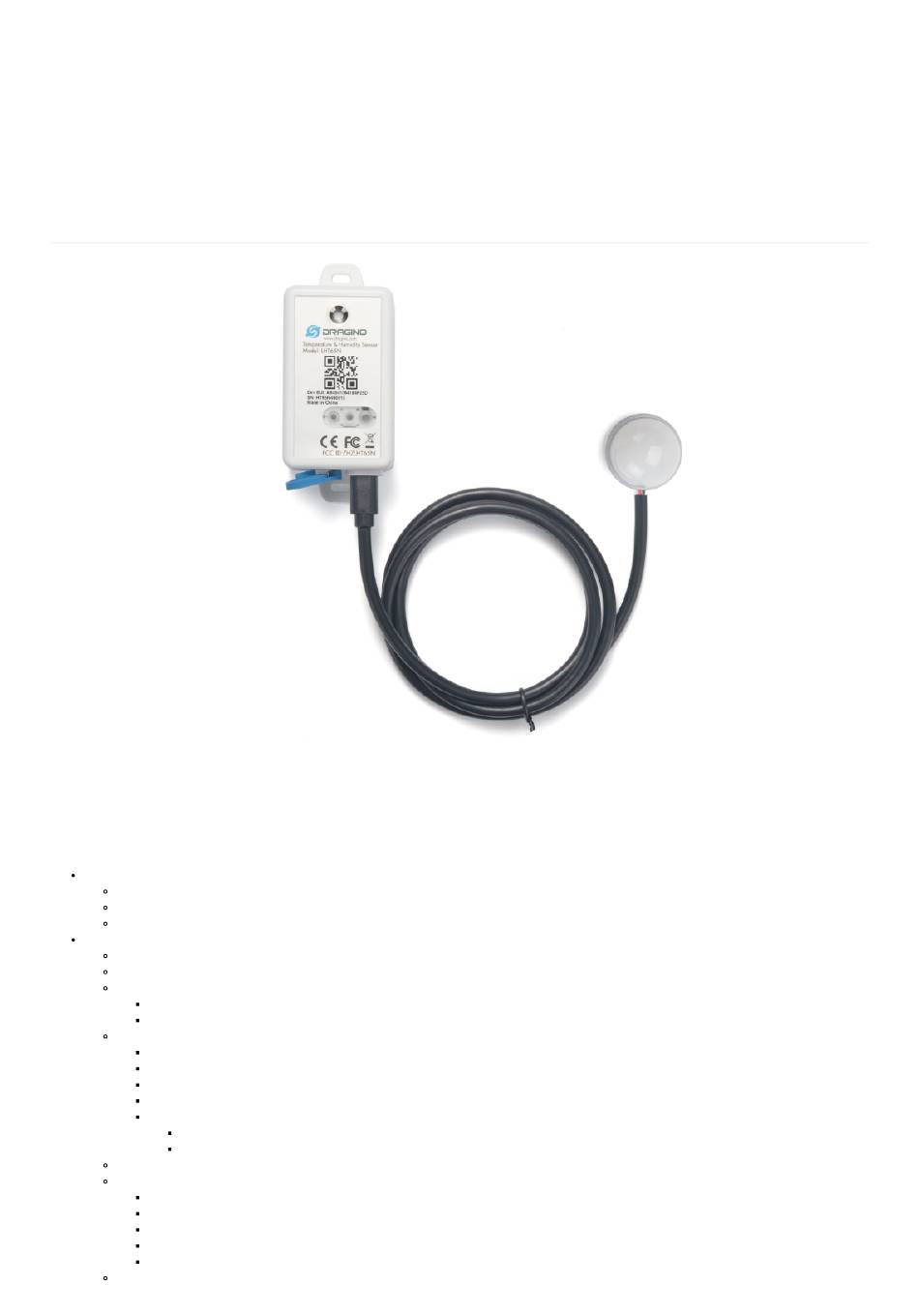

Dragino LHT65N-E5 User Manual

Lorawan temperature humidity & illuminance sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
01.06.23, 11:35
 (/xwiki/bin/view/Main/)  / Home (/xwiki/bin/view/Main/) 
/ User Manual for LoRaWAN End Nodes (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/) 
/ LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/LHT65N-
E5%20LoRaWAN%20Temperature_Humidity%20%26%20Illuminance%20Sensor%20User%20Manual/) 
LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance
Sensor User Manual
Last modified by Xiaoling (/xwiki/bin/view/XWiki/Xiaoling) on 2023/04/27 10:59

Table of Contents：

wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance Se... 1/28
LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHT65N-E5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dragino LHT65N-E5

Summary of Contents for Dragino LHT65N-E5

  • Page 1: Table Of Contents

    2.2 How to Activate LHT65N-E5? 2.3 Example to join LoRaWAN network 2.3.1 Step 1: Create Device n TTN 2.3.2 Step 2: Activate LHT65N-E5 by pressing the ACT button for more than 5 seconds. 2.4 Uplink Payload ( Fport=2) 2.4.1 Decoder in TTN V3 2.4.2 BAT-Battery Info...

  • Page 2: Introduction

    Illuminance sensor. The LHT65N-E5 allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.

  • Page 3: Connect Lht65N-E5 To Iot Server

    2.1 How does LHT65N-E5 work? LHT65N-E5 is configured as LoRaWAN OTAA Class A sensor by default. Each LHT65N-E5 is shipped with a worldwide unique set of OTAA keys. To use LHT65N-E5 in a LoRaWAN network, first, we need to put the OTAA keys in LoRaWAN Network Server and then activate LHT65N-E5.

  • Page 4: Example To Join Lorawan Network

    This section shows an example of how to join the TTN V3 LoRaWAN IoT server. Use with other LoRaWAN IoT servers is of a similar procedure. Assume the LPS8v2 is already set to connect to TTN V3 network (https://eu1.cloud.thethings.network) , So it provides network coverage for LHT65N-E5. Next we need add the LHT65N-E5 device in TTN V3: 2.3.1 Step 1: Create Device n TTN...
  • Page 5 01.06.23, 11:35 LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO Note: LHT65N-E5 use same payload decoder as LHT65. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance Se… 5/28...

  • Page 6: Step 2: Activate Lht65N-E5 By Pressing The Act Button For More Than 5 Seconds

    2.3.2 Step 2: Activate LHT65N-E5 by pressing the ACT button for more than 5 seconds. Use ACT button to activate LHT65N-E5 and it will auto-join to the TTN V3 network. After join success, it will start to upload sensor data to TTN V3 and user can see in the panel.

  • Page 7: Decoder In Ttn V3

    2.4.1 Decoder in TTN V3 When the uplink payload arrives TTNv3, it shows HEX format and not friendly to read. We can add LHT65N-E5 decoder in TTNv3 for friendly reading. Below is the position to put the decoder and LHT65N-E5 decoder can be download from here: https://github.com/dragino/dragino-end-node-decoder (https://github.com/dragino/dragino-end-node-decoder)

  • Page 8: Ext Value

    1: Set time ok，0: N/A. After time SYNC request is sent, LHT65N-E5 will set this bit to 0 until got the time stamp from the application server. Unix Time Request: 1: Request server downlink Unix time, 0 : N/A. In this mode, LHT65N-E5 will set this bit to 1 every 10 days to request a time SYNC.
  • Page 9 Step 2: Configure your Application to forward data to Datacake you will need to add integration. Go to TTN V3 Console --> Applications --> Integrations --> Add Integrations. Add Datacake: Select default key as Access Key: In Datacake console (https://datacake.co/ (https://datacake.co/) ) , add LHT65 device. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance Se… 9/28...

  • Page 10: Datalog Feature

    2.6 Datalog Feature Datalog Feature is to ensure IoT Server can get all sampling data from Sensor even if the LoRaWAN network is down. For each sampling, LHT65N-E5 will store the reading for future retrieving purposes. There are two ways for IoT servers to get datalog from LHT65N-E5.

  • Page 11: Unix Timestamp

    Once LHT65N-E5 Joined LoRaWAN network, it will send the MAC command (DeviceTimeReq) and the server will reply with (DeviceTimeAns) to send the current time to LHT65N-E5. If LHT65N-E5 fails to get the time from the server, LHT65N-E5 will use the internal time and wait for next time request (AT+SYNCTDC to set the time reques period, default is 10 days).

  • Page 12: Datalog Uplink Payload

    For example, downlink command 31 5FC5F350 5FC6 0160 05 Is to check 2020/12/1 07:40:00 to 2020/12/1 08:40:00’s data Uplink Internal =5s，means LHT65N-E5 will send one packet every 5s. range 5~255s. 2.6.5 Datalog Uplink payload The Datalog poll reply uplink will use below payload format.

  • Page 13: Alarm Mode

    The LHT65 has a triple color LED which for easy showing different stage . While user press ACT button, the LED will work as per LED status with ACT button. In a normal working state: wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 13/28...

  • Page 14: Installation

    3. Sensors and Accessories 3.1 E2 Extension Cable 1m long breakout cable for LHT65N-E5. Features: Use for AT Command Update firmware for LHT65N-E5 Exposed All pins from the LHT65N-E5 Type-C connector. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 14/28...

  • Page 15: Configure Lht65N-E5 Via At Command Or Lorawan Downlink

    1. General system settings like: uplink interval. 2. LoRaWAN protocol & radio-related commands. They are the same for all Dragino Devices which supports DLWS-005 LoRaWAN Stack(Note**). These commands can be found on the wiki: End Device Downlink Command (/xwiki/bin/view/Main/End%20Device%20AT%20Commands%20and%20Downlink%20Command/) Commands special design for LHT65N-E5 These commands are only valid for LHT65N-E5, as below: 4.1 Set Transmit Interval Time...

  • Page 16: Set System Time

    // Same as AT+SYNCTDC=0x0A 4.7 Print data entries base on page. Feature: Print the sector data from start page to stop page (max is 416 pages). AT Command: AT+PDTA wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 16/28...

  • Page 17: Print Last Few Data Entries

    4.10 Auto Send None-ACK messages Feature: LHT65N-E5 will wait for ACK for each uplink, If LHT65N-E5 doesn't get ACK from the IoT server, it will consider the message doesn't arrive server and store it. LHT65N-E5 keeps sending messages in normal periodically. Once LHT65N-E5 gets ACK from a server, it will consider the network is ok and start to send the not-arrive message.

  • Page 18: Battery & How To Replace

    The minimum Working Voltage for the LHT65N-E5 is ~ 2.5v. When battery is lower than 2.6v, it is time to change the battery. 5.2 Replace Battery LHT65N-E5 has two screws on the back, Unscrew them, and changing the battery inside is ok. The battery is a general CR17450 battery (3.0v). Any brand should be ok. 5.3 Battery Life Analyze Dragino battery-powered products are all run in Low Power mode.
  • Page 19 In PC, User needs to set serial tool(such as putty (https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html) , SecureCRT) baud rate to 9600 to access to access serial console for LHT65N-E5. The AT commands are disable by default and need to enter password (default:123456) to active it. Timeout to input AT Command is 5 min, after 5-minute, user need to input password again.
  • Page 20 Get or Set the Network Join Mode. (0: ABP, 1: OTAA) AT+NWKID: Get or Set the Network ID AT+FCU: Get or Set the Frame Counter Uplink AT+FCD: Get or Set the Frame Counter Downlink wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 20/28...

  • Page 21: Where To Use At Commands And Downlink Commands

    Get or Set time synchronization method AT+SYNCTDC: Get or set time synchronization interval in day AT+PID: Get or set the PID 6.2 Where to use AT commands and Downlink commands AT commands： wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 21/28...
  • Page 22 01.06.23, 11:35 LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO Downlink commands: TTN: Helium： wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 22/28...
  • Page 23 01.06.23, 11:35 LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO Chirpstack: The downlink window will not be displayed until the network is accessed Aws: wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 23/28...

  • Page 24: How To Change The Uplink Interval

    LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO 6.3 How to change the uplink interval？ Please see this link: http://wiki.dragino.com/xwiki/bin/view/Main/How%20to%20set%20the%20transmit%20time%20interval/ (http://wiki.dragino.com/xwiki/bin/view/Main/How%20to%20set%20the%20transmit%20time%20interval/) 6.4 How to use TTL-USB to connect PC to upgrade firmware? wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 24/28...
  • Page 25 Then use DuPont cable to short circuit port3 and port1, and then release them, so that the device enters bootlaod mode. Step3：Select the device port to be connected, baud rate and bin file to be downloaded. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 25/28...
  • Page 26 When this interface appears, it indicates that the download has been completed. Finally, unplug the DuPont cable on port4, and then use the DuPont cable to short circuit port3 and port1 to reset the device. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 26/28...

  • Page 27: Order Info

    This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference； (2) this device must accept any interference received, including interference that may cause undesired operation. wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 27/28...
  • Page 28 01.06.23, 11:35 LHT65N-E5 LoRaWAN Temperature_Humidity & Illuminance Sensor User Manual - DRAGINO Tags: Created by Xiaoling (/xwiki/bin/view/XWiki/Xiaoling) on 2022/12/06 11:44  0 No comments for this page wiki.dragino.com/xwiki/bin/view/Main/User Manual for LoRaWAN End Nodes/LHT65N-E5 LoRaWAN Temperature_Humidity %26 Illuminance S… 28/28...
