Thank you for purchasing a GODOX product.

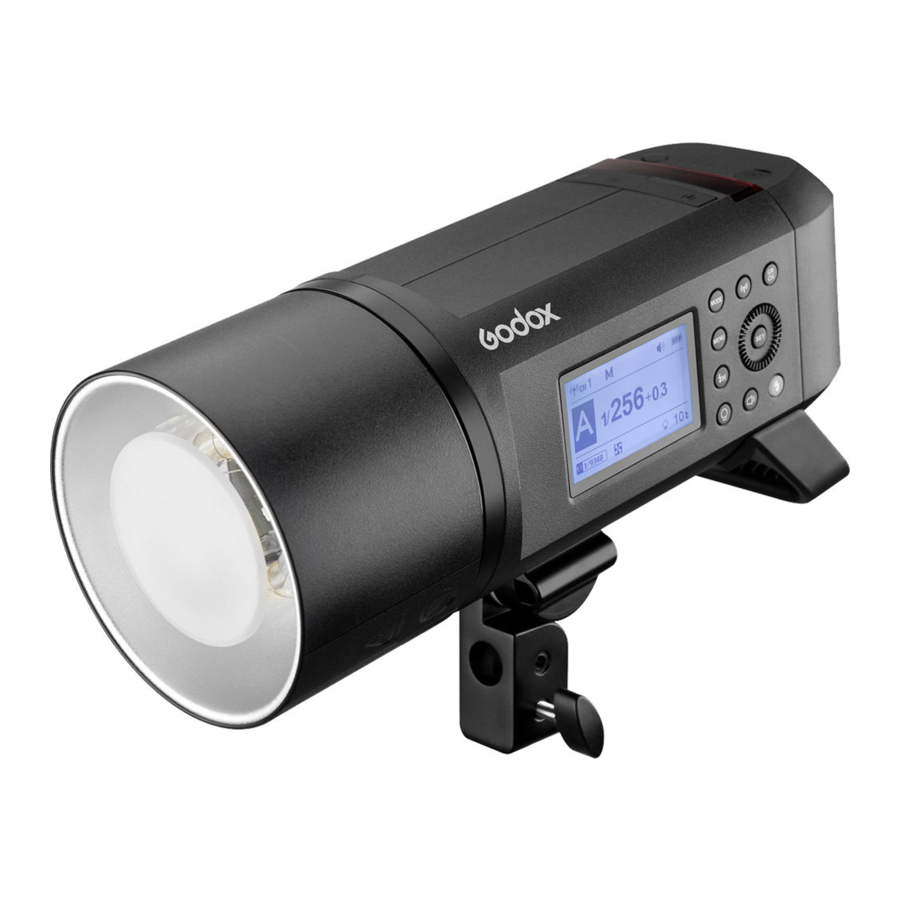

WITSTRO All-in-One Outdoor Flash AD600Pro has strong power, all-in-one lithium battery pack and great portability. When using Godox 2.4G wireless X system off camera, AD600pro can be triggered by XPro and Xl series flash trigger in TTL/M/Multi mode, etc. With master & slave functions, AD600Pro can also use in combination with Godox TTL camera flashes, TTL outdoor flashes, TTL studio flashes, etc. With this AD600Pro flash, your shooting will become simpler. You can easily achieve a correct flash exposure even in complex light-changing environments.
WITSTRO AD600Pro offers studio quality light for outdoor and live shooting with strong power and large capacity lithium battery pack. The powerful and portable AD600Pro meets the demands of freelance commercial photographers, photojournalists, wedding and beach portraiture shooters, event and backpack photographers, photograph enthusiasts, etc. The AD600Pro offers:
Optical transmission wireless shooting
Flash tube | |
Battecy charger | |
Lithium battery pack | |
Power cord | |
Lamp cover | |
|
The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects:
Xpro & Xl Wireless Flash Trigger, FT-16 Remote Control, Softbox, Beauty Dish, Fold up Umbrella, Snoots, Light Stand, etc.
Note: To avoid damage, please detach the flash tube during the transportation.
Loading:
Unloading:
Attach the battery pack to the flash correctly. Be aware of the battery level by check the battery level indication on the LCD panel when using.
Battery Level Indication on the LCD Panel (Indicating battery level and management of the whole fiash system) | LED Battery Level Indication on the Battery (Indicating battery level and management of non-loaded battery) | Meaning/Percentage of Battery Level |
3 grids | 1 red grid +3 green grids | 75%~100% |
2 grids | 1 red grid +2 green grids | 50%~75% |
1 grid | 1 red grid +1 green grid | 25%~50% |
Blank grid | 1 red grid | 3%~25% |
Low battery and charging reminder | 2%: red light blinks 1%: the indicator is off. | <2% The battery level is going to be used out immediately. And the flash will alarm for the 1 minute and auto power off in 3 minutes. Note: Please recharge the battery as soon as possible (within 10 days). Then, the battery can be used or be placed for long period. |
Note: The indications are almost the same except of grids shift.
Long press the <ON/OFF> Power Switch for 1 seconds to control the on/off of the flash unit. Turn off the power pack if the flash unit will not be used for an extended period. This product has auto power off function. The flash will auto power off in 30 to 120 min. which is set on C.Fn-STANDBY.
AD600Pro can only be set as slave unit (receiver end). Press Wireless Selection Button to switch the two wireless modes: built-in wireless transmission and external wireless transmission.
This flash has three flash modes: TTL, Manual (M), and Multi (Stroboscopic). In TTL mode, the camera and the flash will work together to calculate the correct exposure for the subject and the background.
* Press <MODE> Mode Selection Button and three flash modes will display on the LCD panel one by one with each pressing.
Press <MODE > Mode Selection Button to enter TTL mode. The LCD panel will display <TTL>.
With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where minor adjusting of the TTL system is needed based on the environment.
Setting FEC:
Set the flash exposure compensation amount.
Turn the Select Dial to set the amount.
"0.3"means 1/3 step, "0.7"means 2/3 step.
To cancel the flash exposure compensation, set the amount to "+0".
Press < SET > button again to confirm the setting.
High Speed Sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is convenient when you want to use aperture priority for fill-flash portraits.
Press High Speed Sync Button so that < > is displayed.
Please use XPro or X1 series transmitter.
NOTE:
The flash output is adjustable from 1/1 full power to 11256th power in 1/3rd stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output.
The following table makes it easier to see how the stop changes in terms of f/stop when you increase or decrease the flash output. For example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-0.7, and then increase the flash output to more than 1/2, 1/2+0.3, 1/2+0.7, and 1/1 will be displayed.
Figures displayed when reducing flash output leve
1/1 | 1/1-0.3 | 1/1-0.7 | 1/2 | 1/2-0.3 | 1/2-0.7 | 1/4 | ... |
1/2+0.7 | 1/2+0.3 | 1/4+0.7 | 1/4+0.3 | ... |
Figures displayed when increasing flash output level
Note:
Sl and S2 optical triggering is only available in M manual flash mode.
Flash duration refers to the length of time that from flash's firing to reach the half peak at maximum. The half peak at maximum is usually expressed as t=0.5. In order to provide the photographer with more concrete data, this product adopts t=0.1. The difference between t=0.5 and t=0.1 is shown in the following picture.
Note:
The flash duration will only be displayed on the LCD panel in M mode.
When use this function, the color temperature changes within ±75K over the entire power range: enter MENU C.Fn-COLOR and set it as ON, which means the color temperature function is turned on. When adjusting the power output from high to low in M mode, Flash Ready Indicator will blink (the beeper will alarm for 1 minute). Now press the Test Button to discharge, and the flash can be used as normal.
Note:
This function can only be supported in M non-high-speed mode.
With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving subject in a single photograph. You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output.
During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the shutter speed and set it with the camera.
Number of Flashes I Flash Frequency = Shutter Speed
For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 seconds.
To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession. After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow at least 15 minutes' rest for the flash.
Maximum Stroboscopic Flashes:
Flash Output/Hz | 1 | 2 | 3 | 4 | 5 | 6-7 | 8-9 | 10 | 11 | 12-14 | 15-19 | 20-50 | 60-100 |
1/4 | 7 | 6 | 5 | 4 | 4 | 3 | 3 | 2 | 2 | 2 | 2 | 2 | 2 |
1/8 | 14 | 14 | 12 | 10 | 8 | 6 | 5 | 4 | 4 | 4 | 4 | 4 | 4 |
1/16 | 30 | 30 | 30 | 20 | 20 | 20 | 10 | 8 | 8 | 8 | 8 | 8 | 8 |
1/32 | 60 | 60 | 60 | 50 | 50 | 40 | 30 | 20 | 20 | 20 | 18 | 16 | 12 |
1/64 | 90 | 90 | 90 | 80 | 80 | 70 | 60 | 50 | 40 | 40 | 35 | 30 | 20 |
1/128 | 100 | 100 | 100 | 100 | 100 | 90 | 80 | 70 | 70 | 60 | 50 | 40 | 40 |
1/256 | 100 | 100 | 100 | 100 | 100 | 90 | 80 | 70 | 70 | 60 | 50 | 40 | 40 |
AD600Pro adopts Godox 2.4G wireless X system, which has good compatibility with other products of our company.
As a slave unit, AD600Pro is automatically compatible with Canon E-TTL Il, Nikon i-TTL, Sony, Olympus, Panasonic and FUJIFILM system according to the master unit.
*As a slave unit, AD600Pro can be controlled by the following master units: AD360II series, TT685 series, V860II series, XPro series, X1T series, TT600 series, TT350 series, etc.
Press < > Wireless Setting Button again until < > is displayed on the panel.
If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the same.
Wireless ID setting: press the MENU button to enter C.Fn-ID and choose from 01 to 99 (Note: this can only be achieved when the master unit also has this function).
Short press the < GR/CH > Button to choose group ID from A to E.
Positioning and Operation Range (Example of wireless flash shooting)
Note:
You can divide the slave units into two or three groups and perform TTL autoflash while changing the flash ratio (factor). In addition, you can set and shoot with a different flash mode for each firing group.
The Reason & Solution of Not Triggering in Godox 2.4G Wireless
Custom Function Signs | Functions | Setting Signs | Settings & Descriptions | Restrictions |
COLOR | Stable color temperature | ON | ON | M Non high-speed mode |
OFF | OFF | |||
SLAVE | Sl/S2 mode selection | OFF | OFF | M mode |
S1 | S1 mode | |||
S2 | S2 mode | |||
MODEL | Modeling lamp | CONT | Continuous lighting | NO |
INTER | Off after finishing the flash recycle | |||
STANDBY | Auto power off | OFF | OFF | NO |
30min | Auto power off without any operation | |||
60min | ||||
90min | ||||
120min | ||||
LIGHT | Backlighting time | 15sec | Off in 15 sec. | NO |
OFF | Always off | |||
ON | Always lighting | |||
DELAY | Delay flash | OFF, 0.01-30S | Can be triggered as second curtain | M/Multi mode |
UNITS | Total number of flashes | 2~4 | Use UNITS in combination with ALT: UNITS sets the total number of flashes; ALT sets the triggering times before flash's firing | M mode |
ALT | Triggering times | 1-4 | ||
M mode | ||||
LCD | LCD contrast | -3 ~ +3 | 7 levels | |
ID | Wireless ID | OFF | off | Wireless mode |
01-99 | Choose from 01 to 99 | |||
RESET | Parameter resetting | NO | NO | |
YES | Reset |
AD600Pro is equipped with a 38W LED modeling lamp which has two continuous lighting modes.
The flash unit is built in with a Wireless Control Port so that you can wirelessly adjust the power level of the flash and the flash triggering.
To control the flash wirelessly, you need a FT-16 remote control set (on camera and on-flash). Insert its receive end into the Wireless Control Port on the flash and insert the transmit end into the camera hot shoe. Settings made on the hotshoe-mounted transmit and receive ends will be wirelessly communicated to the flash. Then you can press the camera shutter release button to trigger the flash. You can also hold the transmit end at hand to control your off-camera flash.
Note:
For full instructions on the use of FT series remote control, see its user manual.
The Sync Cord Jack is a 03.5mm plug. Insert a trigger plug here and the flash will be fired synchronously with the camera shutter.
Number of flashes that will activate over-temperature protection:
Power Output Level | Number of Flashes |
1/1 | 75 |
1/2 (+0.3,+0.7) | 100 |
1/2 (+0.3) | 120 |
1/2 | 150 |
1/4 (+0.3,+0.7) | 200 |
1/8 (+0.3,+0.7) | 300 |
1/16 (+0.3,+0.7) | 400 |
1/32 (+0.3,+0.7) | 500 |
1/64 (+0.3,+0.7) | 1000 |
1/128 (+0.3,+0.7) | |
1/256 (+0.3,+0.7) |
Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:
Power Output | Times |
1/1 | 50 |
1/2 (+0.3,+0.7) | 60 |
1/4 (+0.3,+0.7) | 75 |
1/8 (+0.3,+0.7) | 100 |
1/16 (+0.3,+0.7) | 150 |
1/32 (+0.3,+0.7) | 200 |
1/64 (+0.3,+0.7) | |
1/128 (+0.3,+0.7) | 300 |
1/256 (+0.3,+0.7) |
LCD Panel | Meaning |
Error 1 | A failure occurs on the recycling system so that the flash cannot fire. Please restart the flash unit. If the problem still exists, please send this product to a maintenance center. |
Error 3 | The voltage on two outlets of the flash tube is too high. Please send this product to a maintenance center. |
Error 9 | There are some errors occurred during the upgrading process. Please using the correct firmware upgrade method. |
Model | AD600Pro | |
Wireless Slave Unit Mode | Radio transmission mode (compatible with Canon E-TTL Il, Nikon i-TTL, Sony, Olympus, Panasonic and FUJIFILM). | |
Flash Mode | Wireless off | M/Multi |
Slave unit of radio transmission | TTL/M/Multi | |
Guide No. (m ISO 100) | 87 (m ISO 100, with high-efficiency standard reflector) | |
Flash Duration | 1/220 to 1/10100 seconds (T0. 1) | |
POWER | 600Ws | |
Power Output | 9 steps: 1/256-1/1 | |
Stroboscopic Flash | Provided (up to 100 times, 100Hz) | |
Flash Exposure Compensation (FEC) | Manual. Feb: ±3 stops in 1/3 stop increments. | |
Sync mode | High-speed sync (up to 1/8000 seconds), first-curtain sync, and second-curtain sync | |
Delay Flash | 0.01~30 Seconds | |
Mask | √ | |
Fan | √ | |
Beeper | √ | |
Modeling Lamp (LED) | 38W/4800K/TLlC: 93 | |
Optical Slave Flash | S1l/S2 | |
Flash Duration Indication | √ | |
Display | Dot-matrix panel | |
| ||
Wireless Flash Function | Slave, Off | |
Controllable Slave Groups | 5 (A, B, C, D, E) | |
Transmission Range (approx.) | 100m | |
Channels | 32 (1~32) | |
Wireless ID | To avoid signal interference effectively, triggering can only be achieved when the channels and wireless IDs of the master and slave unit are set to the same. | |
| ||
Power Supply | Lithium battery pack (28.8V/2600mAh) | |
Full Power Flashes | 360 | |
Recycle Time | Approx. 0.01-0.9s | |
Battery Indicator | √ | |
Power Indication | Power off automatically after approx. 30—120 minutes of idle operation. | |
| 3.5mm sync line, wireless control port | |
| 5600±200К | |
| Changes within ±75K in entire power range | |
| ||
Dimension (with battery) | 250x245x125 mm (flash tube & reflector not included) | |
Net Weight (with battery) | 3 Kg (flash tube & reflector not included) |
If there is a problem, refer to this Troubleshooting Guide. The flash exposure is underexposed or overexposed.
This flash supports firmware upgrade through the USB port. Update information will be released on our official website.
