FULL MANUAL

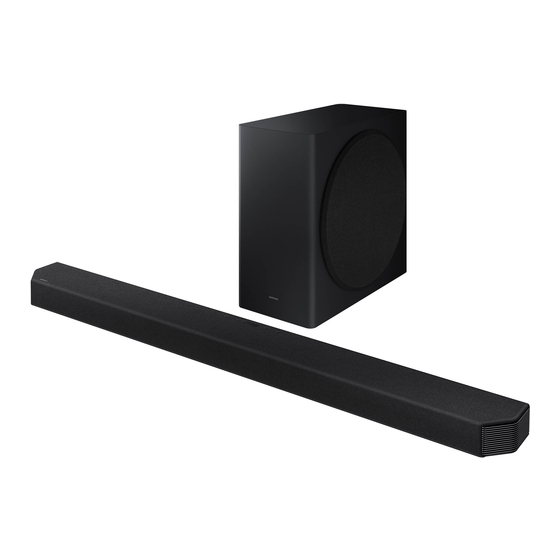

HW-Q900C
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
Figures and illustrations in this User Manual are provided for
reference only and may differ from actual product appearance.
Advertisement
Table of Contents
Related Manuals for Samsung HW-Q900C
Summary of Contents for Samsung HW-Q900C
- Page 1 FULL MANUAL HW-Q900C Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
-
Page 2: Table Of Contents
CONTENTS 01 Checking the Components 09 Installing the Soundbar in front of TV 25 Component ..........25 02 Product Overview 10 Software Update Top Panel of the Soundbar. -
Page 3: Checking The Components
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care. • For more information about the wallmount or rubber-foot, see pages 24~26. -
Page 4: Product Overview
02 PRODUCT OVERVIEW Top Panel of the Soundbar (Multi Function) Button • In standby mode, press the (Multi Function) button to turn on the Soundbar. • Press the (Multi Function) button to change the input source. (Volume) Button Adjusts the volume. Mic Off Mic On (Mic On/Off) Button... -
Page 5: Using The Soundbar Remote Control
03 USING THE SOUNDBAR REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position. •... - Page 6 By pressing the button, you can set the audio function such as SpaceFit Sound, AVA, Voice enhance mode, Night mode, Sync, Virtual. The desired item can be adjusted using the Up/Down buttons. Sound Control • Voice enhance mode enhances spoken dialog in movies and TV to make it easier to hear. •...
-
Page 7: Active Voice Amplifier (Ava)
Active Voice Amplifier (AVA) • Analyzes external noise in real time while soundbar is playing, so that voice audio can always be heard clearly. • No data is saved during the analysis. Using the Hidden Buttons (Buttons with more than one function) Hidden Button Reference page Remote Control Button... -
Page 8: Adjusting The Soundbar Volume With A Tv Remote Control
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds. -
Page 9: Connecting The Soundbar
04 CONNECTING THE SOUNDBAR Connecting the power and units Use the Power cord to connect the Subwoofer, and Soundbar to an electrical outlet in the following order: • For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit) 1. -
Page 10: Manually Connecting The Subwoofer
Manually connecting the Subwoofer Before performing the manual connection procedure below: • Check whether the power cables for the Soundbar and subwoofer are connected properly. • Make sure that the Soundbar is turned off. 1. Turn off the Soundbar main. 2. -
Page 11: Led Indicator Lights On The Rear Of Subwoofer
Connecting an SWA-9500S (Sold Separately) to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9500S, sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit manual. -
Page 12: Connecting To A Tv
• When connecting a TV that supports the eARC function, “eARC” appears on the display and the sound is heard. • To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV : Home ( ) → Menu → Settings ( ) →... -
Page 13: Connecting Using An Optical Cable
Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Bottom of the Soundbar Optical Cable (not supplied) DIGITAL AUDIO IN... -
Page 14: Connecting Via Bluetooth
3. Select “Soundbar Q***C” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection. -
Page 15: Connecting Via Wi-Fi
What is the difference between BT READY and BT PAIRING? • BT READY : In this mode, you can reconnect any Samsung TV or mobile device that was connected before. • BT PAIRING : In this mode, you can connect a new device to the Soundbar. -
Page 16: Using The Q-Symphony Function
Using the Q-Symphony Function • When the Soundbar connects to a Samsung TV that supports the Q-Symphony function you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three- dimensional surround sound effect. -
Page 17: Using The Spacefit Sound
“OFF” appears on the display. • This is available in all Sound modes. Method 2. Connecting via TV To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu. (Home ( ) → Menu → Settings ( ) →... -
Page 18: Connecting An External Device
Open the audio output options on the settings menu of your BD player or other device and make sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed). -
Page 19: Method 2. Connecting Using An Optical Cable
Method 2. Connecting using an Optical Cable Top of the Soundbar BD / DVD player / Set- top box / Game console D.IN DIGITAL AUDIO IN (OPTICAL) Optical Cable OPTICAL OUT (not supplied) Bottom of the Soundbar 1. Use an optical cable (not supplied) to connect the DIGITAL AUDIO IN (OPTICAL) on the Soundbar main and the OPTICAL OUT port on the external device. -
Page 20: Connecting A Mobile Device
What is the difference between BT READY and BT PAIRING? • BT READY : In this mode, you can reconnect any Samsung TV or mobile device that was connected before. • BT PAIRING : In this mode, you can connect a new device to the Soundbar. - Page 21 Notes on Bluetooth connection • Locate a new device within 3.28 ft (1 m) to connect via Bluetooth communication. • If asked for a PIN code when connecting a Bluetooth device, enter <0000>. • The Soundbar automatically turns off after 18 minutes in the Ready state. •...
-
Page 22: Method 2. Connecting Via Wi-Fi (Wireless Network)
With AirPlay 2, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar. • To enable AirPlay2 in your Soundbar, you must first register the device with the Samsung Smart Things app by agreeing with the app’s terms and conditions. -
Page 23: Using The Tap Sound
Tap the Soundbar with your mobile device to play the sound of content on the mobile device through the Soundbar. • This function may not be supported, depending on the mobile device. • This function is only compatible with Samsung mobile devices with Android 8.1 or later. SmartThings App... -
Page 24: Installing The Wall Mount
08 INSTALLING THE WALL 2. Align the Wall Mount Guide’s Center Line with the center of your TV (if you are mounting the Soundbar below your TV), and then fix MOUNT the Wall Mount Guide to the wall using tape. •... -
Page 25: Installing The Soundbar In Front Of Tv
09 INSTALLING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the SOUNDBAR IN FRONT OF wall. Component Rubber-Foot (BN67-00398L) 8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws. -
Page 26: Software Update
• For the best performance of the microphones, keep the Soundbar NETWORK at least 2 cm away from the TV’s panel. Samsung may offer updates for the Soundbar’s system firmware in the future. When an update is available, you can update the Soundbar by connecting the USB drive that contains the update firmware to the SERVICE port of the Soundbar. -
Page 27: Initialization
• When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device. • For sound output of the TV, select Soundbar. (Samsung TV: Home ( ) → Menu → Settings ( ) →... - Page 28 • Your device is unable to play the input signal. Change the • Disconnect the mobile device, and the TV sound will be output TV’s audio output to PCM or Dolby Digital. (For a Samsung TV: from the Soundbar again.
