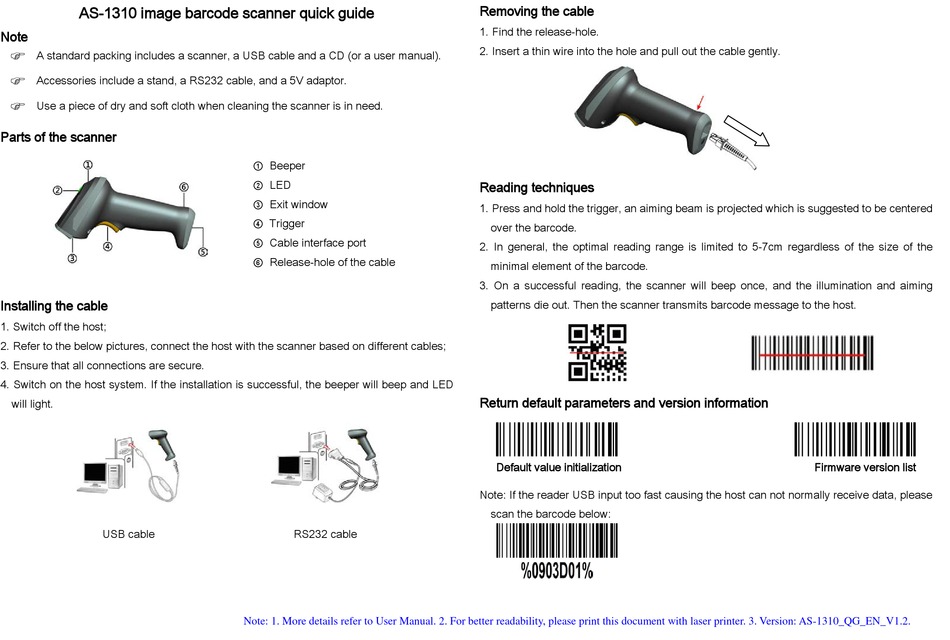

ARTDEV AS-1310 Quick Manual

AS-1310 image barcode scanner quick guide
Note
 A standard packing includes a scanner, a USB cable and a CD (or a user manual).
 Accessories include a stand, a RS232 cable, and a 5V adaptor.
 Use a piece of dry and soft cloth when cleaning the scanner is in need.

Parts of the scanner

Installing the cable

1. Switch off the host;
2. Refer to the below pictures, connect the host with the scanner based on different cables;
3. Ensure that all connections are secure.
4. Switch on the host system. If the installation is successful, the beeper will beep and LED
will light.
USB cable
① Beeper
② LED
③ Exit window
④ Trigger
⑤ Cable interface port
⑥ Release-hole of the cable
RS232 cable
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: AS-1310_QG_EN_V1.2.

Removing the cable

1. Find the release-hole.
2. Insert a thin wire into the hole and pull out the cable gently.

Reading techniques

1. Press and hold the trigger, an aiming beam is projected which is suggested to be centered
over the barcode.
2. In general, the optimal reading range is limited to 5-7cm regardless of the size of the
minimal element of the barcode.
3. On a successful reading, the scanner will beep once, and the illumination and aiming
patterns die out. Then the scanner transmits barcode message to the host.

Return default parameters and version information

Default value initialization
Note: If the reader USB input too fast causing the host can not normally receive data, please
scan the barcode below:
Firmware version list
