Vektor™ ERS-MD Fan Plenum Curb Assembly Instructions
Greenheck VK-ERS curb is shipped in sections for field assembly. All required hardware is provided. Attachment
to roof or structural members and building weather protection by others.
Curb Section Parts List
ERS Plenum Section
Description
Quantity
End Panel
Corner Bracket
Side Panel
Side Bracket
Corner Bracket
Side Bracket
Shipping with these assembly instructions are
parts and subassembly drawings which provide
dimensions and quantities required.
1
Fan Plenum Curb for Vektor™
2
4
4
2
End Panel
Side Panel
NOTE
Fan Plenum Curb Assembly
Fan Bypass Air Plenum (BAP) Section*
Description
End Panel
Corner Bracket
Side Panel
Center T-Bracket
M-Wall Bracket
Center Support Bracket
Corner Bracket
M-Wall Bracket
Center Support Bracket

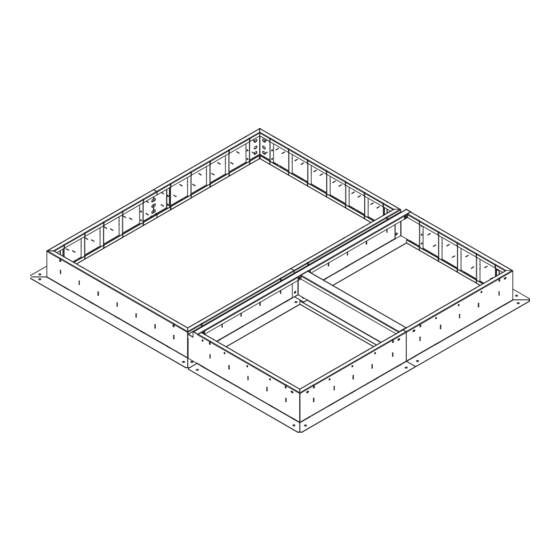

* Image shown is a representative drawing. Actual curb for bypass air
plenum section may have additional pieces, depending on quantity of
fans. Image is for a two fan system.
Part #474117
Number of Fans
Quantity
2
4
one fan
1
two fans
2
three fans
3
one fan
0
two fans
1
three fans
2
one fan
1
two fans
2
three fans
2
one fan
0
two fans
1
three fans
2
Side Panel
Center T-Bracket
End Panel
