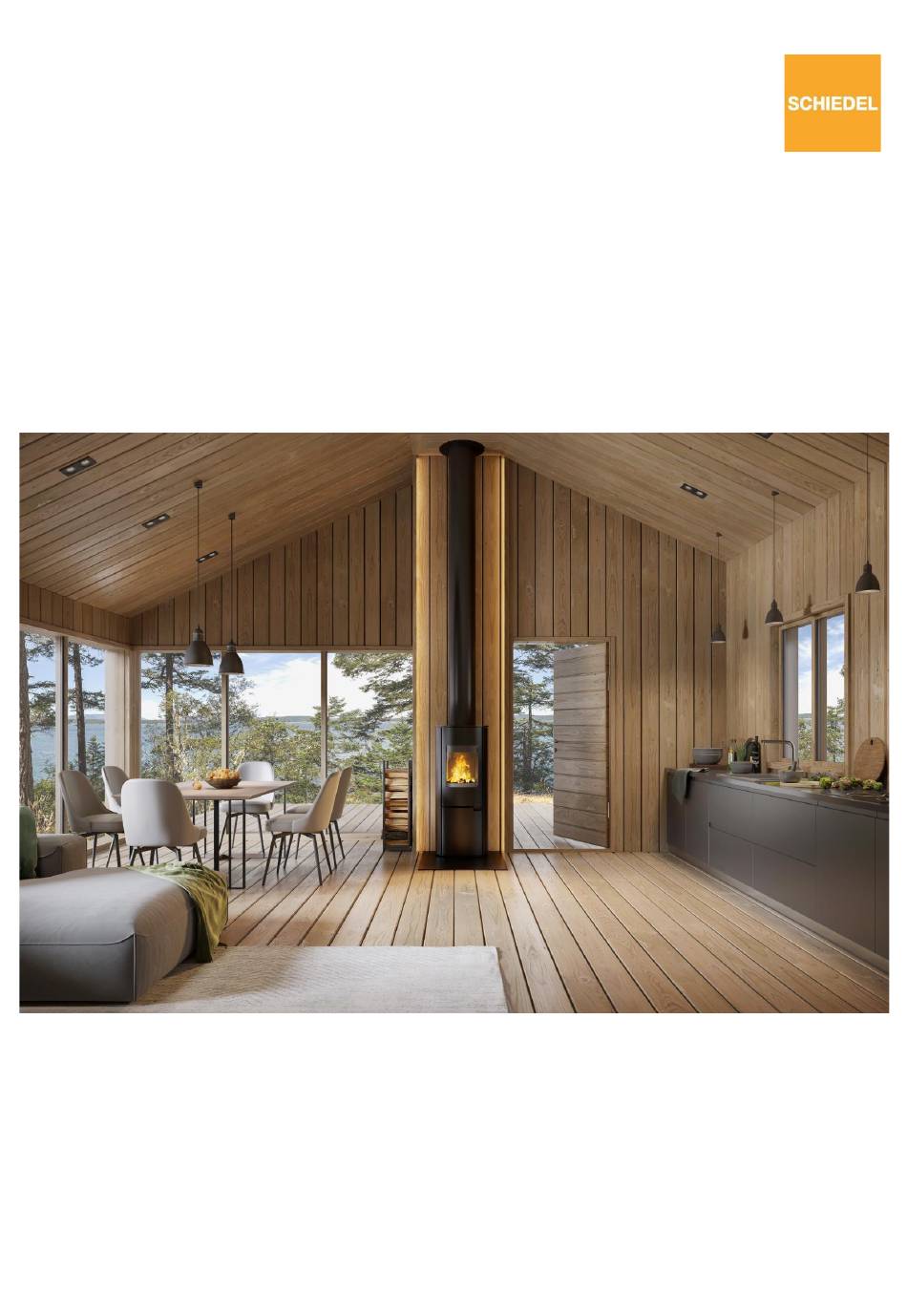

- Page 1 INSTRUCTIONS FOR INSTALLATION AND OPERATION SIRIUS 1.1 & SIRIUS 3.1 Version from 27.6.2023 Subject to typing and printing errors, as well as minor deviations in colour for printing reasons, deviations in surfaces and dimensions, and other technical modifications.
-
Page 2: Table Of Contents
27.6.2023 Table of Content FOREWORD ..................................3 DEVICE DESCRIPTION ............................... 4 Documents included ..............................5 Accessories included ..............................5 Device dimensions ................................ 6 IMPORTANT INFORMATION ............................. 7 SAFETY ..................................7 Labelling ..................................7 Liability ..................................7 Information on legal regulations ..........................7 Only use suitable fuel .............................. -
Page 3: Foreword
CE marking & DoP ............................... 26 FOREWORD By opting to purchase the SIRIUS fireplace, you are receiving a quality SCHIEDEL product. In addition to its elegant and classic design, we have paid particular attention to ensuring that the combustion technology is advanced, materials are high in quality and workmanship is immaculate. -
Page 4: Device Description
27.6.2023 DEVICE DESCRIPTION The SIRIUS fireplace is a stove for intermittent burning This means that a stove for intermittent burning can be which has been specially designed for the combustion used over longer periods of time (3-5 hours = 3-5 of firewood. -
Page 5: Documents Included
Installation and Packaging label operation manual* *in national language to be added by Schiedel prior shipment to customer Accessories included All the accessory components below are located in a small plastic bag that sticks on the plastic cover over the stove. -
Page 6: Device Dimensions
27.6.2023 Device dimensions * Lateral heating door window (only on Sirius 3.1) -
Page 7: Important Information
27.6.2023 If the instruction manual goes missing, you can contact IMPORTANT INFORMATION SCHIEDEL to order a new copy at any time. Please read these instructions on installation and Illustrations and simplified images are for general operation carefully before installing the device and guidance. -
Page 8: Regular Cleaning And Maintenance Work
“0”! Move flammable parts away from the chimney! Detailed information can be found on Do not try and put the chimney fire out by throwing www.schiedel.com by reading the SCHIEDEL chimney water on it under any circumstances. documentation applicable for your country. -
Page 9: Modes Of Transport
27.6.2023 Serial number: The serial number of the stove can be found (1) on the packaging label, (2) on the type plate that is stuck in the lower door or (3) on the type plate inside small plastic bag in combustion chamber. To remove the wooden crate, four screws have to be removed (on each corner one). -
Page 10: Installation
National SIRIUS 1.1+3.1 SIRIUS 1.1 requirements must be observed. Detailed information can be found on www.schiedel.com by reading the SCHIEDEL chimney documentation applicable for your country. Room-sealed operation SCHIEDEL RECOMMENDS USING THE STOVE AIR SIRIUS 1.1 SIRIUS 1.1+3.1... -
Page 11: Changing The Combustion Air Feed/Exhaust Extraction Pipe
2.) Stick the (accessory component 2, see page 5) onto the inner flue tube support and attach it to the stove, together with the cover SCHIEDEL) (changing to this variant as described in (4). Put back the top plate on and use the ring for the top plate (5). -
Page 12: Operation
27.6.2023 2.) Screw on connecting element for the central air inlet (100 mm) (accessory part 1). Exhaust pipe from the rear OPERATION Heating door The device has a self-closing door. Simply pull on the door handle in order to open the heating door, hold the door handle to load fuel or activate/deactivate the interlock mechanism and leave out door handle to activate the self-closing mechanism. -
Page 13: Window Cleaning Air
27.6.2023 Please make sure that there are no objects in the combustion chamber. After the device has been installed and connected, and before it is entered into service for the first time: open the door of the combustion chamber and remove the accessories. -
Page 14: Heating In The Transitional Period
27.6.2023 If you wish to put the fire out, so will fully open the air let the remaining embers go supply. out and close the air regulator. Now pile two to three dry wooden logs (not too thick, girth smaller than 20cm) on Fuel amounts top of each other in the The recommended filling quantity for nominal heat... -
Page 15: How To Fix The Heating Door
27.6.2023 regular basis in order to ensure that the device is safe to operate, efficient and retains its value. A deep clean should be performed after every heating period, as well as if the device has been left unused for a long period of time. -
Page 16: Cleaning The Combustion Chamber
27.6.2023 Cleaning the combustion chamber Ash grate and container PLEASE NOTE: Do not empty the ash container when it is hot! Please note that seemingly cold ash may still contain small embers. In order to avoid starting a fire, it is recommended to place ash into a suitable metal container before throwing it away. -
Page 17: Lubricating The Locking Mechanism
27.6.2023 Warning! Do not close the heating door with the spring Lubricating the locking mechanism lock mechanism in closed position as damages can Locking mechanism (spring lock and hinges) need to be occur. lubricated with copper paste on demand or at least once a year. -
Page 18: Special Care And Maintenance Instructions
27.6.2023 and nuts very lightly by hand, if necessary with a Special care and maintenance instructions wrench. If it is difficult to open or close the door, we Please check occasionally (about 2x per heating recommend that the locking mechanism (spring lock season) that the screws and nuts are securely and hinges) and the friction surfaces be slightly attached to the (1) glass retaining strips, (2) door... - Page 19 27.6.2023 Always check the door seal (5) at least once a year, preferably after the heating season. If the seal is damaged or in the wrong position, it will need to be replace. Also check the tightness of the side windows (6) - only on SIRIUS 3.1.
-
Page 20: Replacement Of Lining
27.6.2023 Replacement of lining In case of demage to any part of the lining, it is necessory to replace it with a new one. Follow the step-by-step de picted in the picture. [20]... -
Page 21: Troubleshooting
27.6.2023 TROUBLESHOOTING PLEASE NOTE: In the event that an error occurs, (overloading, ...) set the air regulator to “0“ and keep the door to the combustion chamber closed. Do not add any more fuel! In the event of damage or potential fire, leave the building immediately and call the fire brigade! PROBLEM CAUSE SOLUTION... -
Page 22: Technical Data
27.6.2023 TECHNICAL DATA Type testing / Quality seal The SIRIUS 1.1 & SIRIUS 3.1 room-sealed wood stoves from SCHIEDEL have been certified according to the following testing principles: EN 13240 (Room heaters fired by solid fuel) Certification principles for the inspection and evaluation of room-sealed stoves for solid fuel, DIBt Berlin (DIBt- Mitteilungen 3/2015 –... -
Page 23: Energy Label & Product Fiche & Technical Documentation
27.6.2023 Energy label & Product fiche & Technical Documentation The energy label is placed inside a small plastic bag inside the combustion chamber. [23]... -
Page 24: Serial Number
27.6.2023 Serial number The serial number of the stove can be found (1) on the packaging label or (2) on the type plate that is inside a small plastics bag in the combustion chamber. The serial number can be also found (3) on the type plate that sticks on the inner side of the door of wood storage compartment. -
Page 25: Information On Disassembly, Recycling And/Or Disposal At End-Of-Life
27.6.2023 Further claims under this warranty don’t exist if technical changes made to the respective stove, not authorized by SUPPLIER. Information on disassembly, recycling and/or disposal at end-of-life Your stove consists for the most part of recyclable raw materials. Caution: There is a risk of environmental damage if the device is not disposed of properly! Do not dispose of the device and accessories with normal household waste! Dispose of the device and accessories in an environmentally friendly and appropriate way (recycling)! Dispose of the device and the accessories according to the legal regulations, waste disposal company or your... -
Page 26: Ce Marking & Dop
27.6.2023 CE marking & DoP [26]...
