AMIRIDIS-SAVVIDIS UNITED ARC-8809 Operating Instructions

7. The distance between the unit and the ceiling must be at least 30mm.
8. The unit must be installed horizontally.
9. It is recommended to install the unit at height
of at least 2.3m above the ground.
10. A triple-pole switch should precede the appliance
with at least 3mm breaking gap.

MAINTENANCE AND REPAIR:

1. Unplug the unit from the power source prior to checking or
maintaining.
2. Keep electric motor or other parts away from moisture, to avoid short
circuit.
3. Regular checking and maintenance is recommended. Clean the dust
off. Simply clean with a cloth dampened in mild detergent.
4. Detachment of the unit must be executed only by professionals.

SPECIFICATIONS:

Air Velocity (m/s)
Power (W)
Model No.
HI MED LO HI
ARC-8809 475 430 393
ARC-8812 610 560 510 18.7
ARC-8818 915 840 765
Rated voltage and frequency are stated as per rating label
NOTE:
Air Vol.
Length (mm)
3
MED LO (m /h)
1398 900
16 13.5 1864 1200
2796 1800
Weight
(kg)
15,3
19.0
31.5
.
Before using this unit, please read all the instructions carefully.

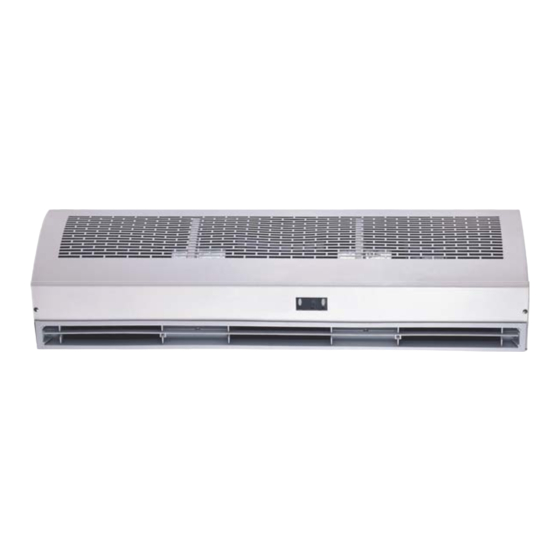

PRODUCT OUTLINE:

By AMIRIDIS – SAVVIDIS S.A.
Air Curtain
Centrifugal Type
Operating Instructions
