Summary of Contents for Celsius EVAP 2600

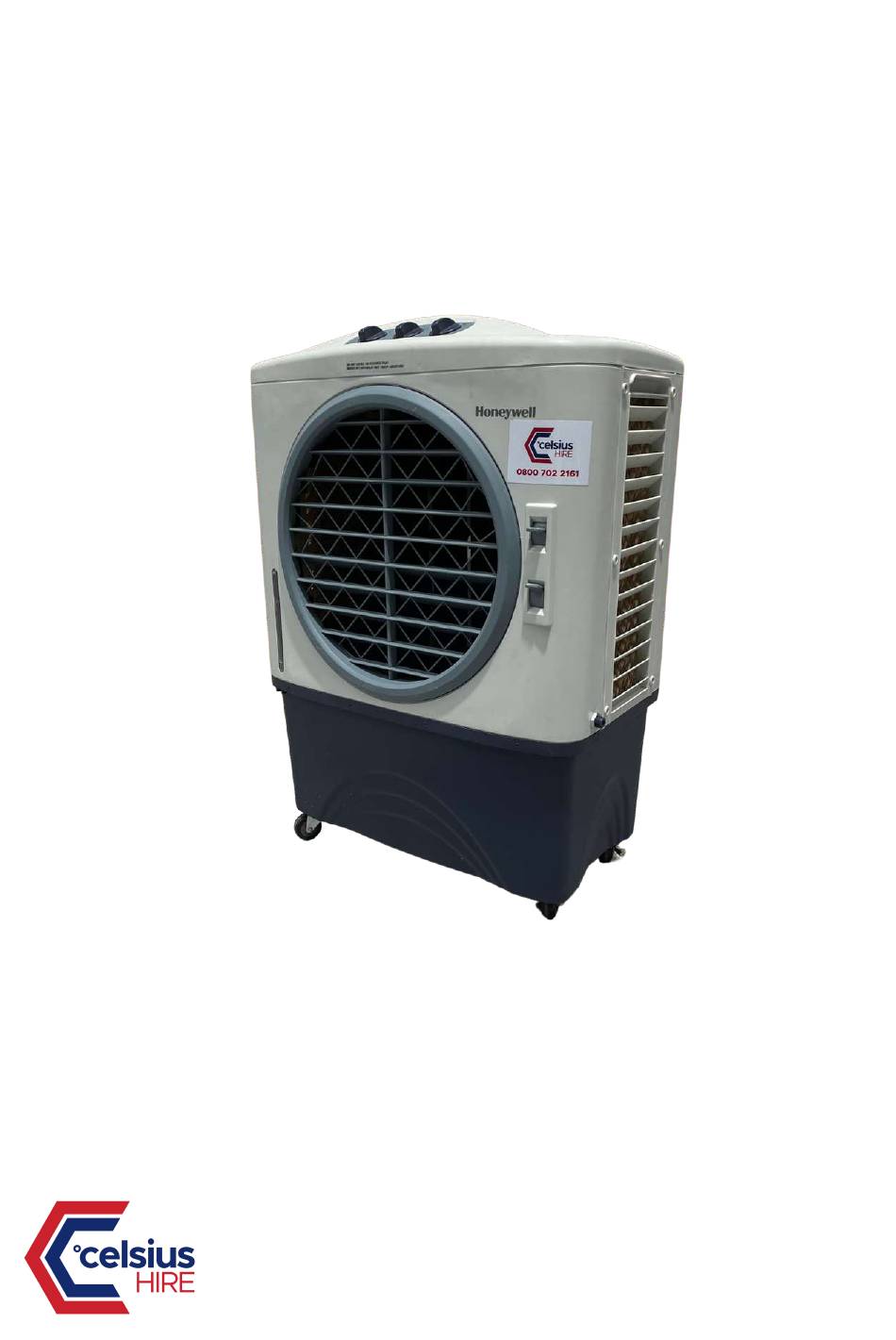

- Page 1 USER GUIDE EVAP 2600...
- Page 2 WARNINGS WARNING—READ AND SAVE THE AIR COOLER GUIDE AND USER MANUAL The Air Cooler Guide and User Manual are intended to provide important information needed to set up, operate, maintain and troubleshoot your Air Cooler. Failure to follow these instructions may damage and/or impair its operation, create hazards, and void the warranty.
- Page 3 Never pull the cord. Remove it from the electrical outlet/ socket by grasping and pulling on the plug-end of the cord. This appliance has been manufactured for use in domestic environments and must not be used for other purposes. DO NOT use in areas where gasoline, paint or other flammable goods and objects are stored.
-
Page 4: What Is Evaporative Cooling
WHAT IS EVAPORATIVE COOLING? Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep energy costs low. Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped from the water tank pours over the Honeycomb Cooling Media. -
Page 5: Troubleshooting Guide
TROUBLE SHOOTING GUIDE... - Page 7 1) Control Panel 2) Lever for Horizontal Louvers 3) Louvers 4) Water Level Indicator 5) Water Fill Door 6) Handle 7) Side Grill 8) Casters 9) Rear Grill Screws 10) Rear Grill 11) Water Tank 12) Drain Plug 13) Water Inlet Valve 14) Power Cord &...
-
Page 8: Control Panel
CONTROL PANEL SPEED / ON - OFF Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to 1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0. COOL You must add water before operating the unit on Cool mode. -
Page 9: Filling With Water
FILLING WITH WATER It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time without refilling the tank. This also helps prevent pump failure in case the cooler is running with inadequate water in the tank. CAUTION: Unplug the unit from the electrical power outlet before filling or emptying the water tank. - Page 10 MANUAL WATER TANK REFILL • Using a portable container or a garden hose, you can refill the water tank manually by pouring water into the water tank through the water inlet hole located at the top of the air cooler. •...
- Page 11 CLEANING AND DRAINING WATER TANK Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket. Move the unit to a location where the water can be drained. Remove the cap from the Drain plug located at the bottom of the unit. Allow the tank to empty.
- Page 12 REMOVING THE HONEYCOMB COOLING MEDIA: 1. Remove the screws from the Rear Grill of the Air Cooler. 2. Carefully pull out the Rear Grill from the Air Cooler. 3. The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in place by two screws on the Left and Right Sides of these Horizontal Bars.
