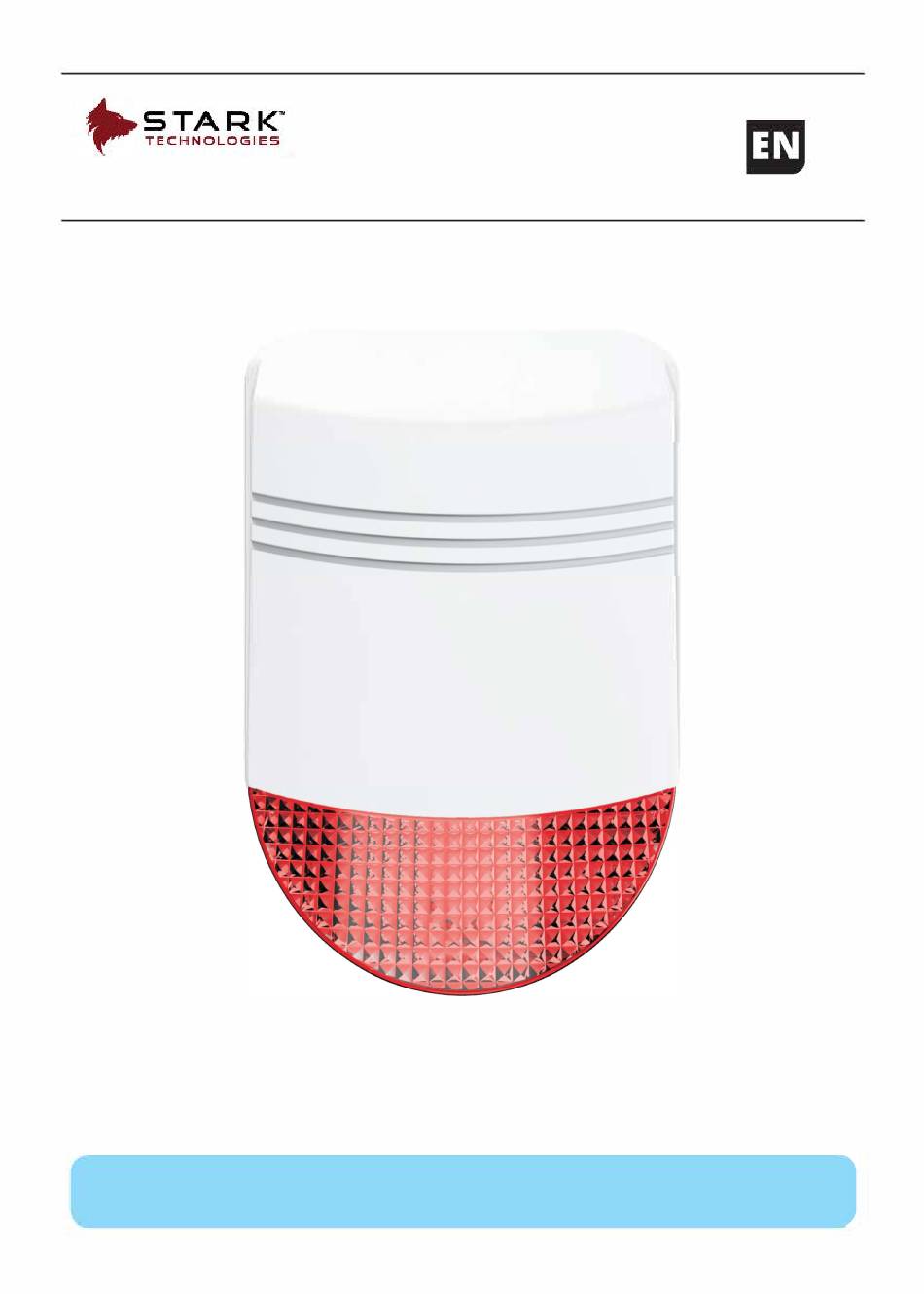

- Page 1 OPERATING MANUAL STARK Outdoor Wireless Acousto-optic Siren ST-6107W * This product is a networking accessory that needs to be used with the company's gateway...

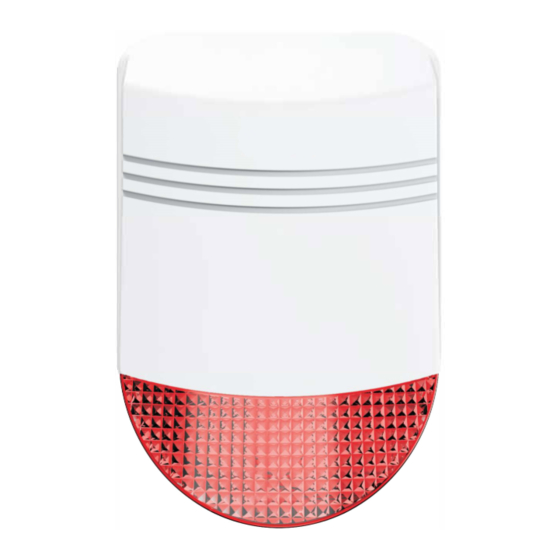

- Page 2 Outdoor Wireless Acousto-optic Siren User’s Manual 1. Brief Introduction The outdoor wireless acousto-optic siren adopts 8 bit MCU technology, built-in 48 LED lights, 2 wired zone Interfaces, 2 120dB buzzers and 1 built-in 12V/1.2A Lead-acid battery. The outdoor wireless acousto-optic siren not only can connect with the alarm host via wireless transmission, but also can be used as an alarm host and a repeater.
- Page 3 3.1 Siren Setting ① Report transfer REP_ON: Reports of the wireless siren will be transferred to the panel. REP_OFF: Reports of the wireless siren will not be transferred to the panel. ② LED light 12L: 12 LED lights flashing 24L: 24 LED lights flashing ③...
- Page 4 4. Operation Instruction 4.1.Remote Control 4.1.1. Enroll Remote Control Step1: Under the normal status without alarm event, long press “SET” button with 3s until heard a short “Di” and address “E1” will be shown in LED, then user can start to enroll remote control. The current address in LED refers to the current remote control to be enrolled.
- Page 5 display 1, indicating "Light prompt”, with "Sound prompt"; display 2, indicating "Light prompt", "No sound prompt"; display 3, indicating "No light prompt", "No sound prompt"; Exit "Arm/disarm prompt mode" In the setting state of the arm/disarm prompt mode, short press the "SET" key once to exit the detector code matching state.
- Page 6 4.7. Recovery Factory Default After the outdoor wireless acousto-optic siren power on, long press “SET” and “ENROLL” , until hear 2 short “DI” , It means that the siren has been back to factory default. 5. Technical parameter Size specification: 320mm*213mm *94mm * (length * width *thickness) Working voltage: DC 15V Battery: 12V/1.2Ah Standby current: <35mA/15V...
