Summary of Contents for Teledex B120
-

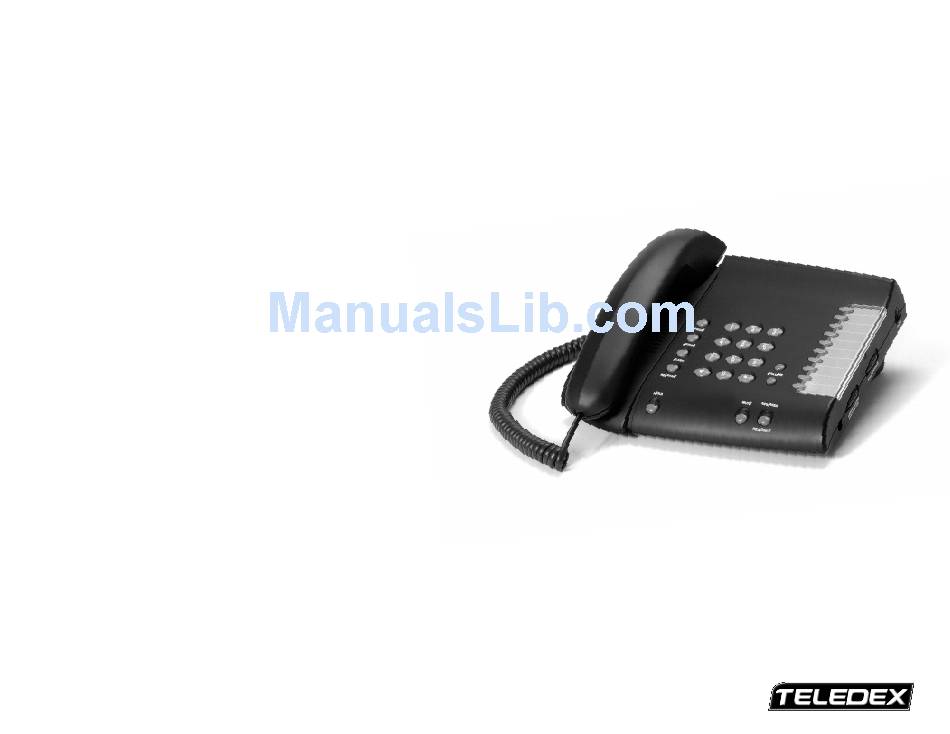

Page 1: Users Guide
users guide single-line business speakerphone... -
Page 2: European Standards
600-0480-51B email: EUROPEAN STANDARDS Teledex phone model B120 has been successfully tested to the applicable European standards below: TELECOMMUNICATIONS (R&TTE DIRECTIVE 99/5/EC) TBR 21 (EN 301 437)- Access to Public Switch Telecommunications Network TBR 38- Acoustics (Analog voice device with handset) SAFETY 89/336/EEC - EMC directive (EN 61000-4-2;4-3;4-4;4-5;4-6;4-8), EN 55022:1998, EN 550024, EN 61000-3-3... -
Page 3: Important Safety Instructions
Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. -
Page 4: Requirements Of Part 68- Fcc Rules
DATA JACK – For connecting an additional phone, laptop/desktop computer or answering machine to the B120 on the same line. 1.10 HEARING AID COMPATIBLE The B120 is ETL listed to UL standards and meets all applicable FCC standards and requirements. 2. UNPACKING YOUR B120... -
Page 5: Installation
Remove the desk/wall mount bracket from the bottom of the B120. Rotate the bracket 180º and re-install it into the four slots the bottom of the B120. Connect the short line cord into the LINE jack on the bottom of your phone. -
Page 6: Ring Cadences
FIGURE 6 5. ADJUSTING THE RINGER VOLUME Your B120 has three ringer volume levels: Off, Low and High. To adjust, slide the switch located along the right hand side of the telephone to the desired ringing level. FIGURE 7...
