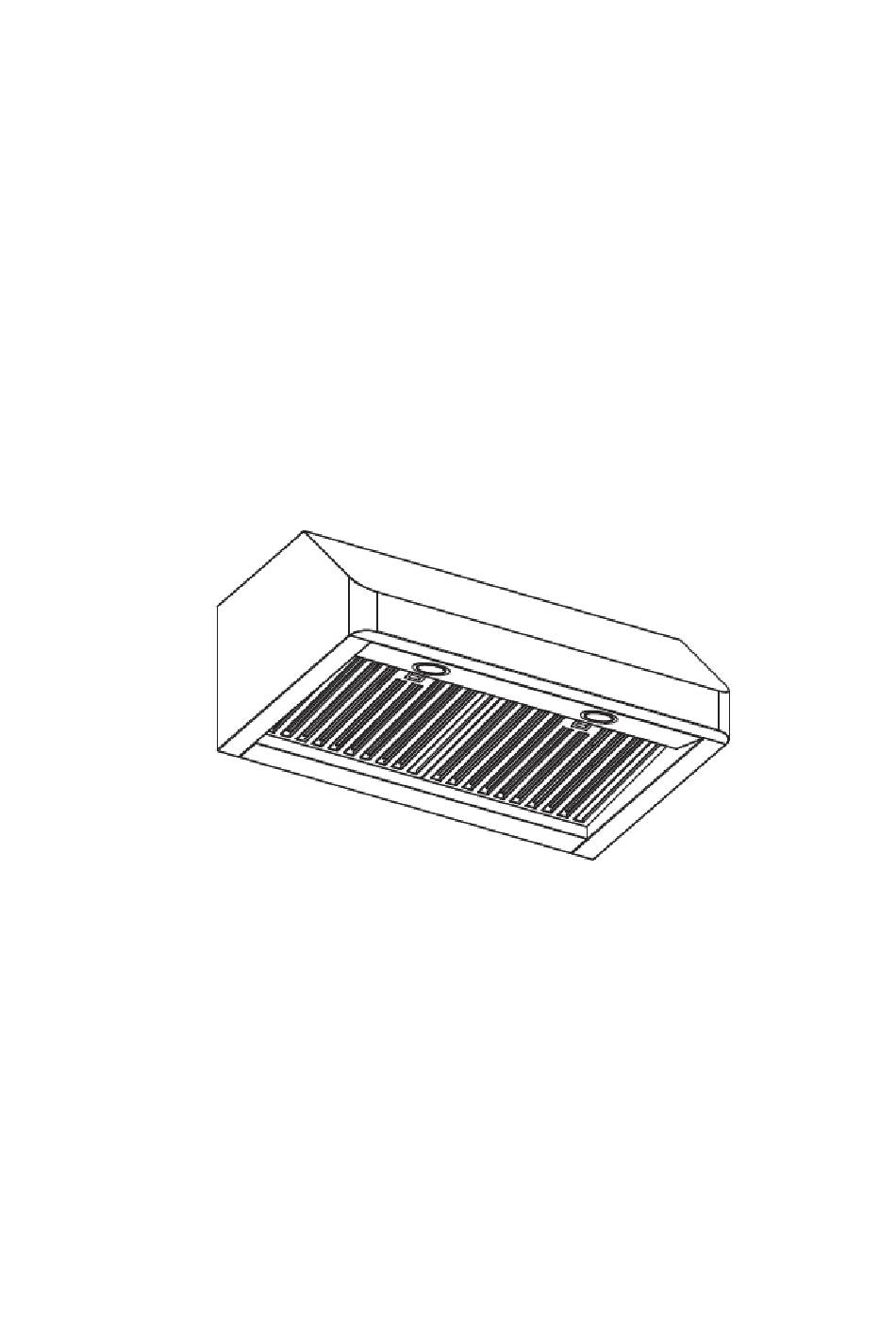

- Page 1 EVERKITCH Cooker Hood Instruction Manual...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read itcarefully before using even if you are familiar with the product. The manual should be keptin a safe place for future reference. Never to do: Always to do: ●... - Page 4 Always to do: Always to do: ● ● lways put lids on pots and pans aution: The appliance and its when cooking on a gas cooker. accessible parts can become hot during operation. Be careful to avoid ● hen in extraction mode, air in the touching the heating elements.
- Page 5 INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should: •...
- Page 6 2. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1. 3. After determining the installation height, drill fourΦ 8mm holes in the position of the solid place on the wall according to the center distance of the hole on the back of the cooker hood. See pic 2.
- Page 7 B. INSTALLATION (Cabinet Mounting) 1. Drill 4 holes on the hanging cupboard. See pic 6. 2. Insert the v-flaps in to the outlet, and install the outlet on the cooker hood with 4pcs screws(see pic 4). Then install the cooker hood on the bottom of the cupboard, tighten the cooker hood with enclosed 4 pcs ST4*18screws.See pic 7.
-
Page 8: Start Using Your Cooker Hood
WARNING: For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. -
Page 9: Troubleshooting
4.2 Press the (Medium) button, the indicator light of will beam, and the motor runs at low speed. Press it again and the motor will stop, the indicator light of will be off. 4.3 Press the (High) button,the indicator light of will beam, and the motor runs at low speed. -
Page 10: Maintenance And Cleaning
The Cooker hood The fixing screw is not tight Tighten the hanging screw and inclines enough make it horizontal. NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws.Please contact the service centre if in any doubt before undertaking any of the above.Always disconnect the unit from the power source when opening the unit. - Page 11 Filters should be washed separately to crockery andkitchen utensils. It is advisable not to use rinse aid. INSTALLING GREASE MESH FILTERS • To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter.
-
Page 12: Environment Protection
– LED modules –round lamp – Max wattage: 2×1.5 W – Voltage range: DC 12V –Dimensions: ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
