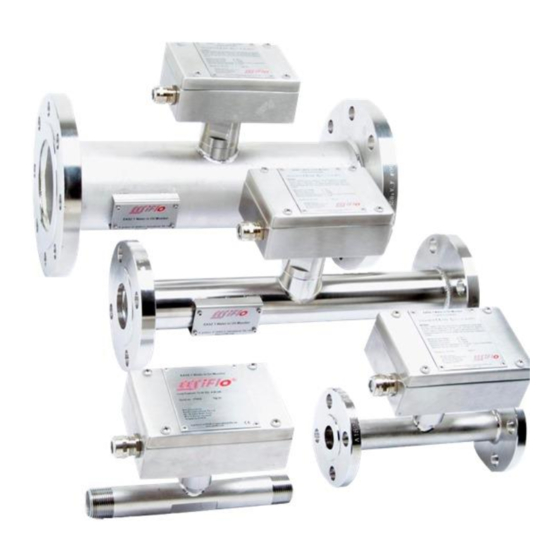

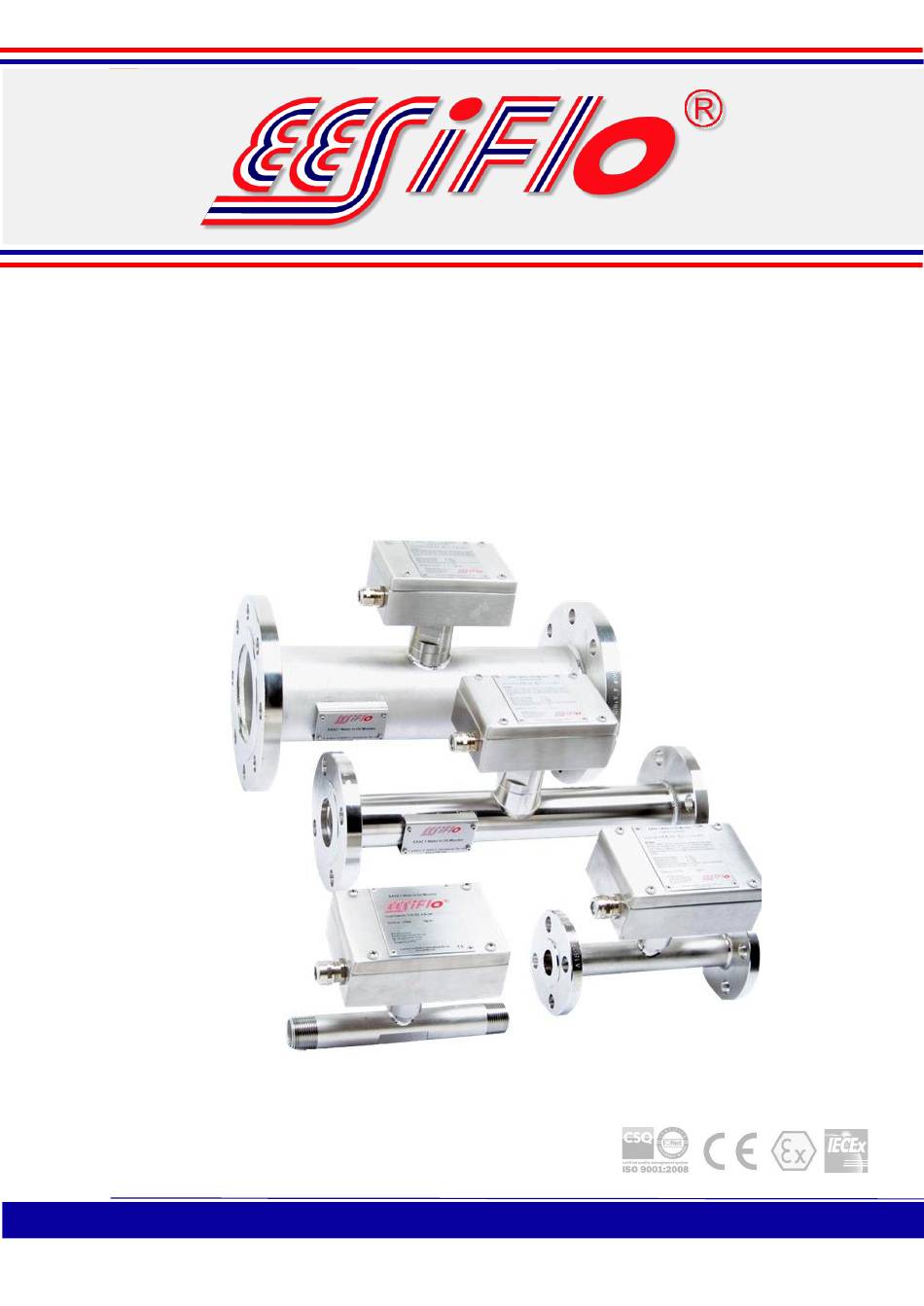

- Page 1 Measuring Worldwide EASZ-1 Standard Range Water In Oil Monitor Installation and Operating Manual EESIFLO® is a US registered trademark serial number 77071229 Standard Range EASZ-1 EESIFLO® is a US registered trademark serial number 77071229 Standard Range EASZ-1 Manual v1.115.12.2022...
-
Page 2: Table Of Contents
To Calibrate for a Percentage ....................44 Standalone HART Communicator ....................46 • Resetting HART Poll Address ....................46 • Universal HART Commands ....................46 Warranty ............................47 EESIFLO® is a US registered trademark serial number 77071229 Standard Range EASZ-1... -
Page 3: Atex/ Iecex/ Csa - For Hazardous Areas
Start up Instructions (Hazardous Area Versions) • FUNCTION: The EASZ-1 Water In Oil Monitor (Water-Cut / BS&W) is aimed at measuring water content in hydrocarbon liquids. The equipment delivers a 4-20 mA signal proportional to the measured water content. - Page 4 The EASZ-1 shall not be used with Zener barriers. Only IS barriers of the isolator/galvanic type shall be used. EESIFLO® is a US registered trademark serial number 77071229...
-
Page 5: Warning
• The EASZ-1 must be installed on an isolated 4-20 mA current loop. • If your wiring is grounded or shared with any other device, your EASZ-1 WILL NOT WORK. • The recommended wiring for the EASZ-1 begins on page 14 of this manual. -
Page 6: Read Me First
EESIFLO be liable for any special or consequential damages including, but not limited to, loss of production, loss of profits, etc. -
Page 7: Introduction
Introduction to EASZ-1 The EASZ-1 is an Online Water in Oil Monitor which has been designed to fit in a piping system and to measure the water content in an oil when there is a positive flow. The measurement works correctly only with a positive flow, unlike a laboratory instrument that will measure the water content of oil in a static condition. -
Page 8: General Specifications
Panel or Field Type (galvanically isolated) Process Temperature Up to 130°C (266°F) Process Pressure Up to 100 Bar (1,450 Psi), higher pressure consult EESIFLO with process information. Connection Size DN25…DN600 (1” Inch…24” Inch), larger sizes consult EESIFLO with process information. Process Connection NPT, BSP, ANSI flanges, PN flanges, JIS flanges Body &... -
Page 9: Atex Specifications
The data plates clearly describe the product type, serial number, manufacturer, and information in regard to electrical safety for hazardous area applications. If the unit is not being used in a hazardous area, the information will be more general. EESIFLO® is a US registered trademark serial number 77071229 Standard Range EASZ-1... -
Page 10: Basic Measurement Principle
Measuring Worldwide Basic Principle of Measurement The EASZ-1 measurement units are in in picofarads (pF) A picofarad is a unit used to measure capacitance i.e., the ability of a system to store an electric charge. Measurement of Capacitance between 2 plates Instead of measuring the capacitance between 2 plates, the EASZ-1 is measuring the capacitance between 2 pipes. -
Page 11: Typical Measurement Scenario
(1-inch EASZ-1) The EASZ-1 is not limited to measuring only water in oil. It is a device that can measure the concentration of one type of liquid in another. However, there must be a very big difference in the dielectric constant of the liquids in order for a meaningful measurement. -
Page 12: Standard Range Vs High Range
High Range EASZ-1’s are manufactured as a “rod within a pipe”, and can be recognized by looking inside the sensor. If the inner sensor is a solid rod, you’re looking at a High Range EASZ-1 which is capable of measuring all water content in higher ranges. -
Page 13: Instrument Overview
Refer to “as built” drawings on each order. HANDLING The EASZ-1 is supplied as a complete working instrument and its main parts should never be dismantled for any reason. In order to protect the instrument from damage, the operators who are installing the monitor should avoid doing the following: •... -
Page 14: Wiring
Measuring Worldwide WIRING The EESIFLO EASZ-1 Water in Oil Monitor is a loop powered device. It runs on the power in the 4- 20mA current loop. For hazardous area applications, it is important to make sure whatever device is powering the loop is appropriate for the hazardous area in question. -
Page 15: Cable Paths
INTRINSIC SAFE ISOLATOR–CONNECTION (Pepperl+Fuchs) We supply the P&F model KFDO-SCS-EX1.55 for these applications. If you wish to use other brands or model numbers, you will need to check with EESIFLO on their suitability. INTRINSIC SAFE LOCAL DISPLAY AND OUTPUT (Beka & Associates) A Beka display is often supplied as a local indicator for hazardous areas using the same loop power. -
Page 16: Grounding/ Isolation
Always protect the EASZ-1 from electrical damage or erroneous readings by making sure you understand good electrical practices. If you are using the EASZ-1 in a non-hazardous application, the power/signal loop should be galvanically isolated unless the EASZ-1 and remote device are sharing the same local ground. -
Page 17: Static Electricity
Measuring Worldwide STATIC ELECTRICITY Warning: Static electricity can damage the PCB. If you are configuring the EASZ-1 in a lab or company workspace, always make sure that there is no chance of static being transferred to the board. Static electricity will damage the board. -
Page 18: Installation
MOUNTING The EASZ-1 can be mounted in either a horizontal or vertical position. It is important to ensure that the pipe is always full of liquid. It is not advisable to mount it in a vertical position where the direction of flow is from up to down. -
Page 19: Optional: Static Mixer, Thermal Insulation Box And Sunshade
To improve the level of accuracy, it may be necessary to ensure that effective mixing occurs just prior to entering the EASZ-1. To maximize the accuracy of the EASZ-1, an inline static mixer will ensure the water and oil are mixed into a homogeneous solution prior to passing through the EASZ-1. -
Page 20: The Effects Of Air, Gas And Chemicals
EASZ-1. The EASZ-1 assumes that it is always full of fluid. If it is partially filled with air or gas, the water content readings will be reduced because the Dielectric Constant of the Air/Gas is much closer to oil than water. -
Page 21: Sampling Point
The sampling point can either be a standard “Tee” piece (threaded or flanged) added to the pipe work by the customer between the mixer (if installed) and the unit, or The sampling point can be ordered from EESIFLO factory fitted as a part of the sensor pipe and mixer (if required) EESIFLO®... -
Page 22: Safely Connecting To The Easz-1
To connect the unit correctly follow the instructions: Before powering up the unit, make sure that any remote device that the EASZ-1 is connected to is galvanically isolated (see grounding/ isolation section.) Failure to properly protect the EASZ-1 electronics can result in catastrophic board failure. -
Page 23: Rs-232 Communication
2. Make sure that there is no chance of static electricity transfer from personnel to the card. If the EASZ-1 is being tested in a lab or a workshop, ensure that steps have been taken to ground the electronics and prevent any discharge of static electricity to the electronics due to handling. - Page 24 7. Once you select the COM port, go back to the Putty Software. Select “Serial” for connection type then type the serial line e.g. COM5 and click “OPEN” Click to open Terminal Screen EESIFLO® is a US registered trademark serial number 77071229 24 | Standard Range EASZ-1...
-
Page 25: List Of Commands
Measuring Worldwide The default port settings for the EASZ-1 are: Bits per seconds 9600 Data bits Stop bits Parity None Flow Control None 8. Type Command “load”. If the response is “OK” it means the electronics is functioning. List of... - Page 26 Before storing any value, always type the load “get” command first to see what the current value is. The store command will tell EASZ-1 to store C: 280.9pF H2O: 15.00% it’s latest capacitance and temperature T: 34.1C measurement as a calibration reference...
- Page 27 EASZ-1 1 inch Oil type: diesel Empty pipe capacitance: 90pF Full pipe (containing dry diesel): 180pF Note: These values will be different for a different sized EASZ-1. EESIFLO® is a US registered trademark serial number 77071229 27 | Standard Range...
-
Page 28: A Typical Calibration Scenario Using Rs-232
The “cal” command is simply putting the measurement at specified point on the graph below. It is a Zero offset function, and the graph is linear. In most cases the default table in the EASZ-1 will be sufficient for most lower range scenarios. -
Page 29: Percent Calibration
Note: If it becomes necessary to perform a temperature coefficient procedure because the liquid is experiencing large temperature swings, refer to the chapter on temperature coefficient procedure. EESIFLO® is a US registered trademark serial number 77071229 29 | Standard Range... -
Page 30: Temperature Coefficient Procedure
Calculating your Temperature Coefficient is best performed with a sample of the actual oil being used in your process. Fill the EASZ-1 with what you consider to be dry oil at ambient temperature then use the get button in the EASZ-1 Interface software to recover a single capacitance and temperature value. -
Page 31: Custom Calibration
174.6 (enter) ccc 180.2 (enter) ccd 186.0 (enter) cce 191.9 (enter) … 6. Repeat for valid range. You have now created your custom calibration/linearization curve. EESIFLO® is a US registered trademark serial number 77071229 31 | Standard Range EASZ-1... -
Page 32: Laboratory Calibration
Although the EASZ-1 will show a reading in a non-flow static condition where there are these readings will be incorrect because of water and oil separation. The only meaningful calibration that can be done in a static condition is on a dry oil at process temperature to determine zero water. -
Page 33: Communication Through The Hart Modem
Measuring Worldwide COMMUNICATION THROUGH THE HART MODEM The EASZ-1 has a built-in HART Modem. This option enables the user to communicate with the EASZ-1 remotely using a PC. Some additional operations have been added to the software which include the ability to trim the 4-20mA signal. This is useful in situations where the readings sent to... -
Page 34: Galvanic Isolation Barriers
EASZ-1 Water in Oil Sensor when located in a Hazardous Area and repeats the EASZ-1 current signal in a floating circuit to drive a Safe Area load. The circuit allows bi- directional communication for Hart transmitters and can be mounted on standard DIN-Rail, with or without Power Bus, or on customized Termination Boards, in Safe Area or in Zone 2. -
Page 35: Installing The Eesiflo Software For Hart Communication
EESIFLO. If using the software provided by EESIFLO you will need a Windows PC with the proper driver installed. The EASZ-1 loop will need to have a Galvanic Isolation Barrier as described in the beginning of this section. - Page 36 To ensure compatible communication settings, select the COM Port and properties as follows: After clicking the properties box, the display should show the following: EESIFLO® is a US registered trademark serial number 77071229 36 | Standard Range...
- Page 37 Measuring Worldwide Select the tab “Port Settings” Change the bits per second to “1200” Now you should be ready to launch the EASZ-1 HART Software. EESIFLO® is a US registered trademark serial number 77071229 37 | Standard Range EASZ-1...
- Page 38 Measuring Worldwide The EASZ-1 Software will run and display the default tab contents showing the contents of the terminal tab. Select the correct COM Port according to your set up EESIFLO® is a US registered trademark serial number 77071229 38 |...
- Page 39 Measuring Worldwide To check that the instrument is working properly with the software, click Open COM then click Cmd0. The screen should be shown as the snapshot below. EESIFLO® is a US registered trademark serial number 77071229 39 | Standard Range...
-
Page 40: How To Do 4-20Ma Trim
(Note that due to the characteristics of the electrical circuits set zero will not always be possible +/- 0.1 -0.2 is normally acceptable) EESIFLO® is a US registered trademark serial number 77071229 40 | Standard Range... -
Page 41: Understanding The Functions Of The Hart Software
The minimum is 5 seconds and the maximum 60 seconds. Tx and Rx show that communication is taking EESIFLO® is a US registered trademark serial number 77071229 41 | place by changing color Standard Range... - Page 42 HOW TO ENSURE A 4- 20mA TRIM section of this manual. HART tab gives information for advanced HART users. EESIFLO® is a US registered trademark serial number 77071229 42 | Standard Range EASZ-1...
-
Page 43: Calibration Parameters
This is similar to the “cal” command using RS-232. To calibrate the EASZ-1 use an uncontaminated sample of the oil that is being measured. (Uncontaminated oil contains no water) If you are sure that the oil is uncontaminated, and water free, then capture the capacitance and temperature by using store. -
Page 44: To Calibrate For A Percentage
In this case, refer to the chapter on temperature coefficient procedure. To perform this function, you will need to capture the Temperature Compensation capacitance at 2 different temperatures to calculate TC which is a temperature coefficient. EESIFLO® is a US registered trademark serial number 77071229 44 | Standard Range EASZ-1... - Page 45 Measuring Worldwide Report is a graphical representation. Data grid is for logging events. EESIFLO® is a US registered trademark serial number 77071229 45 | Standard Range EASZ-1...
-
Page 46: Standalone Hart Communicator
HART capable host applications. Resetting HART Poll Address The HART Poll address can be reset to 0 by keeping the EASZ-1’s S1 button pressed during power up. Universal HART Commands The following commands are implemented. Please refer to your HART documentation for extensive information on each of these commands. -
Page 47: Warranty
EESIFLO. If you suspect a problem with your EASZ-1, please contact any of the offices of EESIFLO indicated on the bottom of each page in this manual. - Page 48 Measuring Worldwide EESIFLO® is a US registered trademark serial number 77071229 48 | Standard Range EASZ-1...
