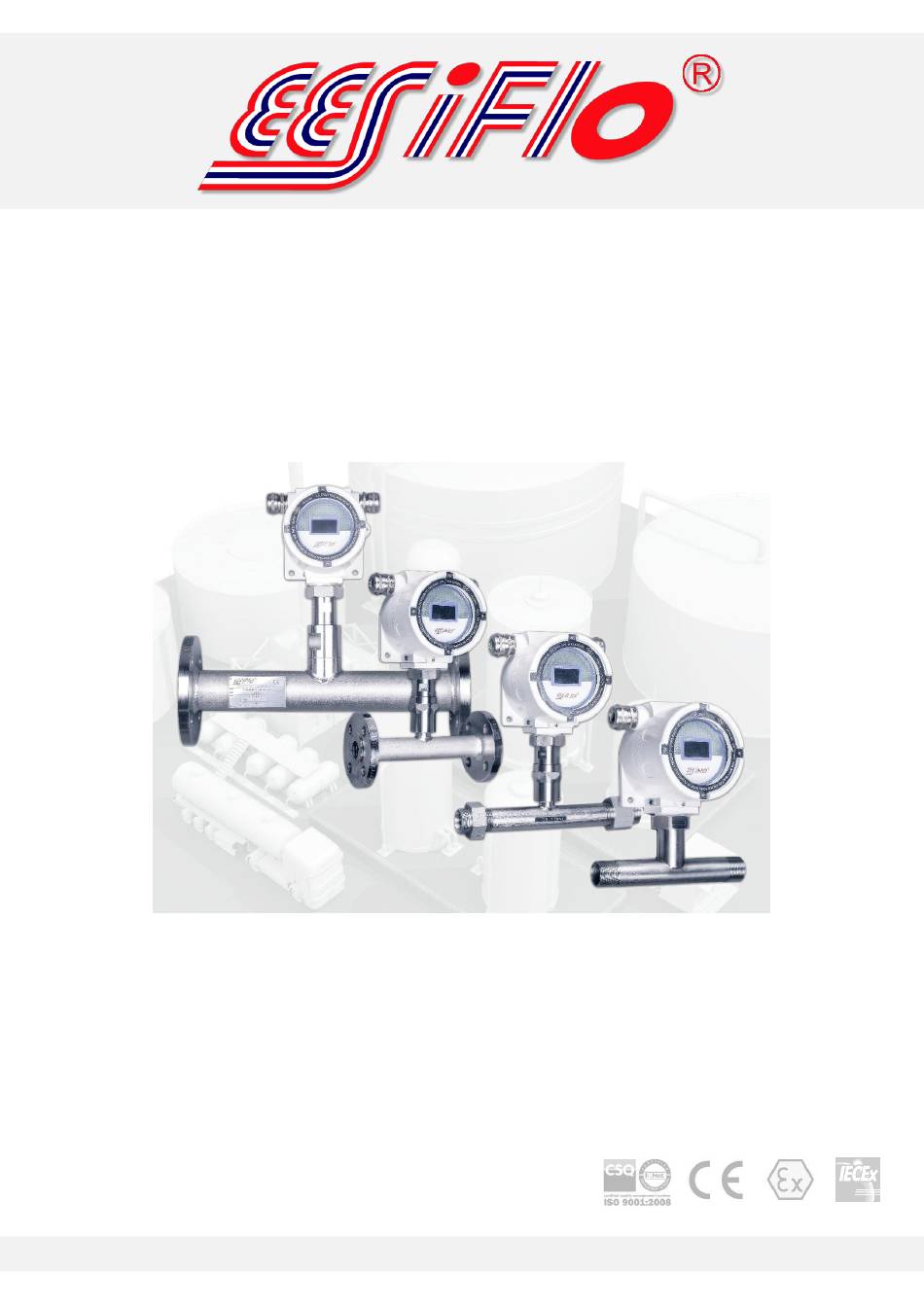

- Page 1 EASZ-2 Water In Oil Monitor Installation and Operating Manual For variants: EASZ 2Sd-L Standard EASZ 2Ex-L For Hazardous Areas EASZ-2 Manual v1.12 - 12.2.2018 EesiFlo® is a registered trade mark of Eastern Energy Services Pte Ltd...
-
Page 2: Table Of Contents
CONTENTS Introduction to EASZ-2 Technical Specification 2.1. Specification ............................... 4 2.2. Intrinsically Safe Parameters ..........................5 2.3. Data Plates ................................. 5 2.4. Dimensions................................. 5 How the EASZ-2 Works 3.1. Unit Description ..............................7 3.2. EASZ-2 Variants ..............................7 3.3. Functionality ............................... 8 3.4. -
Page 3: Introduction To Easz-2
Construction Flanged 1” to 48” The EESIFLO EASZ-2 Water-In-Oil Monitor is a full-bore inline and online highly accurate product designed to continuously monitor the water content in a flowing hydrocarbon media (oil). It is inline because it can be fitted easily into an existing pipeline and online because it can continuously monitor and transmit the values to a remote location. -
Page 4: Technical Specification
2. Technical Specification 2.1. Specification EASZ-2 Sd and Ex versions ■ Environment Ingress Protection IP66 Ambient Temperature -20°C to +60°C (-4 to 140°F) - RH up to 95% Media Temperature 0°C to +90°C (32 to 194°F) -20°C to +60°C (-4 to 140°F) – See Warranty for details Storage Temperature ■... -
Page 5: Intrinsically Safe Parameters
2.2. Intrinsically Safe Parameters ■ IS Parameters Power Supply Open Collector RS485 Current Loop Sensor Pipe 28 V 28 V 28 V 28 V 28 V 28 V 250 mA 50 mA 50 mA 9.42 µF 5.88 V 28 V 5.88 V 0.6 A 300 mA... - Page 6 Installation Dimensions 2.4.2. The body of the EASZ-2 is standard on all units. The Sensor Pipe will vary according to customer requirements depending on pipeline size, type of connection, built-in mixer and sampling point. Specific drawings are provided for each order, please check your specification with the unit delivered. Dimensions for pipes 1”...
-
Page 7: How The Easz-2 Works
3. How the EA SZ-2 Works 3.1. Unit Description The EASZ-2 comprises 2 main parts: the Body and the Sensor Pipe. The Body has two main parts, the base and the cover which screws onto the base. Both parts are die- cast aluminium and powder-coated and the cover also has a safety glass viewing window. -
Page 8: Functionality
3.3. Functionality The EASZ-2 Water-In-Oil Monitor (Water-Cut / BS&W) is designed to continuously measure the water content in hydrocarbon fluids: ■ Accurately ■ Reliably ■ Provide a linear analog or digital output The fluid being measured flows through a fixed electrode assembly in the sensor pipe which measures the dielectric constant as a variable capacitance across the electrode. -
Page 9: Installation
(threaded or flanged) added to the pipe work between the mixer (if installed) and the unit, the sampling point can be ordered from EESIFLO as a part of the Sensor Pipe and Mixer (if required). EASZ-2 Manual v1.12 - 12.2.2018... -
Page 10: Mounting
An incorrectly designed bypass could restricted flow, if you require engineering assistance on bypass design, consult EESIFLO. 4.4. Electrical Connection and Configuration... - Page 11 Pre-wired options are available (see Pre-Wired Options) and different cable lengths are available on request. For more information and assistance with a project please contact an official EESIFLO sales or service centre.
- Page 12 To make cable access easier remove all the orange connector blocks. Pass the incoming (and outgoing if used) cable through the gland ensuring to leave a loop on the outside to avoid running water into the unit, otherwise the IP certification could be at risk and this will invalidated the warranty.
- Page 13 Place the display board onto the body making sure that it sits flush and firmly mating with the pins at the top and bottom of the opening. The base has 4 magnets to hold the display board. Apart from mounting the display board vertically it can be mounted 90º...
-
Page 14: Cable Paths
Bespoke Pre-Wired Options 4.6.3. For bespoke pre-wired options and combinations contact an official EESIFLO sales or service centre. 4.7. Power Supply W AR NI NG : The unit is powered by DC and must NOT be connected to an AC supply. -
Page 15: Detailed Connection Diagrams
The output depends on the selected alarm state and is configured in the software. Consult EESIFLO if you require automatic sampling options. EASZ-2 Manual v1.12 - 12.2.2018... - Page 16 Current Loop – Active (4 - 20 mA) 4.8.3. Connect the power supply to the “Power” terminals and the active current loop to the “Loop” Out terminal as follows using 3-core cable and then set the DIP switches correctly. NOTE: the Loop DIP switch MUST be set to ACTIVE.
- Page 17 RS485 (Modbus) Interface Connection 4.8.5. Connect the power supply to the “Power” terminals and the RS485 interface to the noninverting (A) and the inverting (B) terminals using 5-core cable. Both the power supply and the RS485 interface can be connected as a single cable or as a through connection to another unit. RS485 –...
- Page 18 MODBUS Registers 4.8.8. To aid PLC programming the following table shows the main MODBUS registers. Registers Address Name Description Note Group Input Registers - ( Read Only ) function 0x04 30007 Concentration Concentration [100*%] e.g. 67.89% = 6789 30008 AD average Last 8 AD Conversions Averaged Value Oil/Medium temperature calculation 30009...
-
Page 19: Intrinsic Safety
4.9. Intrinsic Safety When using EASZ-2Ex, the unit must only be connected to intrinsically safe certified equipment. This association must be compatible to the intrinsic safety rules. The electrical parameters of this equipment must not exceed the values indicated in the “ATEX Specification” table. When using EASZ-2Ex the unit is intrinsically safe and an intrinsically safe isolator must be used before the power supply in the safe zone and any units in the hazardous area. -
Page 20: Operation
5. Operation The display is located on the unit behind the round viewing window. The display consists of a colour backlight and a graphical display which show the status and other information. 5.1. Start up When the unit is powered up, the current version and date of the display board and control board firmware are shown. -
Page 21: Software
6. Software The Software supplied is used to configured and calibrate the EASZ-2. A computer is connected to a unit either by using the USB-RS or USB-CL communication cable. Connecting directly to a unit using a Com Cable must NOT be performed in a hazardous area. 6.1. -
Page 22: Software Description
6.3. Software Description The EASZ-2 software has one main window with 3 tabs. Main Window 6.3.1. The main window contains: “Com Port” is used to set the communicate port with the computer. “Sampling Interval” is used to sets the rate at which the software readings are updated. -
Page 23: Calibration
10% water. Once the unit is mounted on site it requires either a High-Point or a Two-Point Calibration. EESIFLO also design and supply calibration loops for customers who have higher accuracy requirements. Contact EESIFLO for further information on how we can be of assistance in this area. 7.2. On-site Calibration... -
Page 24: Lab Calibration Service
7.3. Lab Calibration Service EESIFLO also offer a Laboratory Calibration Service whereby customers can send their exact oil and unit to an EESIFLO authorized Service Centre for exact Calibration. This type of calibration is most beneficial when users who simply want to have the instrument supplied for an application and have the highest “out of the box”... -
Page 25: Two-Point Calibration Procedure
If this calibration is performed correctly the accuracy of the readings is ± 0.1%. Should a higher accuracy of ± 0.05% be required it is necessary to use the factory calibration service from an EESIFLO authorized service centre. To calibrate the unit correctly follow the instructions:... -
Page 26: Maintenance, Servicing And Spare Parts
8. Maintenance, Ser vicing and Spare Parts 8.1. Maintenance In general the EASZ-2 does not require any regular user maintained or service. Occasional visual inspections are however recommended. Visual Inspection 8.1.1. When the unit is inspected visually check for any signs of damage to the cables, glands, body, the glass viewing window or leaking petroleum products. -
Page 27: Troubleshooting
8.2. Troubleshooting Indication Cause Solutions The display is OFF The unit does not have a power Connect the Unit to the specified power supply supply Change fuse FU1 – type SR-5-T500 mA The display is OFF Fuse FU1 is blown The backlight (green, yellow or red) is The backlight is not activated Using the control software on a laptop... -
Page 28: Spare Parts
RS Connection Box 8.3.3. The RS Connection Box is used to help make configuration of units on RS485 buses easier and quicker rather than opening individual units (standard and pre-wired option). 8.4. Spare Parts Only spare parts from the manufacturer can be used for repairs, otherwise this invalidates the warranty and the whole product. -
Page 29: Warranty And Compliance
EESIFLO guarantees the certification of the equipment Ex-Works and our standard terms and conditions apply – available upon request. Any action on the unit other than software changes will invalidate the warranty and EESIFLO will not indemnify the customer for any costs incurred. -
Page 30: Contact
60 Kaki Bukit Place #02-19 Eunos TechPark Singapore SG 415979 Singapore Tel: +65 - 6748 6911 Email: sales@eesiflo.com Web: www.eesiflo.com Please consider the environment before printing this document EesiFlo® is a registered trade mark of Eastern Energy Services Pte Ltd. © 2017...
