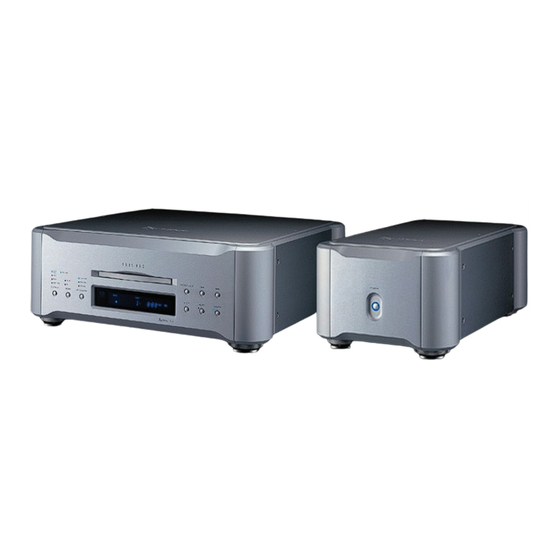

- Page 1 Super Audio CD/CD Transport P-01/P-01VU Monaural D/A Converter D-01/D-01VU...
- Page 2 • VRDS-NEO mechanism (Steel) • Advanced pick up sled servo section • Ultra-high-rigid body construction • Separated power supply unit for maximum power quality • ‘ES-LINK’: The ESOTERIC original digital connection (XLR) / ‘i.LINK’ • D/D converter (convertible up to 192kHz)
- Page 3 VRDS-NEO High rigid cut aluminum SS400 steel mechanism base (T:20mm ) (T:12mm) High quality magnesium turntable...
-
Page 4: Pick Up Assembly
Pick up assembly Main (sub-frame) chassis Perfect horizontal/vertical pick up movement for high accuracy trace ability Ultra-high-rigid construction T:10mm/10lb Isolates the unit from unwanted vibrations Cut Aluminum pick up base... - Page 5 SA-CD signal digital output (DSD format) ‘i.LINK’ Standard digital format for DSD signal D/D converter Internal D/D converter converts digital signal up to 192kHz ‘ES-LINK’ The ESOTERIC original high quality digital connection (XLR)
- Page 6 Monaural D/A Converter D-01/D-01VU Features … •The world’s first* monaural D/A converter •24bit multi-bit DAC chip ‘PCM1704’ ×8 pieces •3 types of digital filter: FIR/RDOT/FIR+RDOT and filter OFF mode •SA-CD digital input: ‘ES-LINK’(XLR) / ‘i.LINK’ •D/D converter (convertible up to 768kHz) •Word Sync input / output mode (internal crystal clock = +/-3ppm)
- Page 7 High quality circuit board Discreet analog driver circuit 24bit multi-bit DAC chip ‘PCM1704’ ×8 pieces × × No channel cross No channel cross talk talk Same PCB layout pattern Same PCB layout pattern ・High S/N ratio, improved linearity ・Precise musical expressiveness and enhanced ambience ・More presence and transparency...
-
Page 8: Digital Filter
Digital filter 3 types; ・FIR / RDOT / FIR+RDOT ・Filter OFF mode Digital signal ⇒convertible up to 768kHz Word Sync input / output mode Rb IN = Rubidium in (for G-0s) A high precision internal crystal clock (±3ppm of accuracy) SA-CD digital input ES-LINK / i.LINK... -
Page 9: Power Supply
Power supply For perfect power quality, stability and isolation P-01 D-01 3 separated transformers: 1.mechanism motor 2.signal processor/up-converter 3.clock circuit R-core transformer for digital circuit WB transformer for higher-quality analog circuit +/-42V discreet circuit... - Page 10 The World’s finest separate digital source system SACD/CD transport and mono-block DACs...
