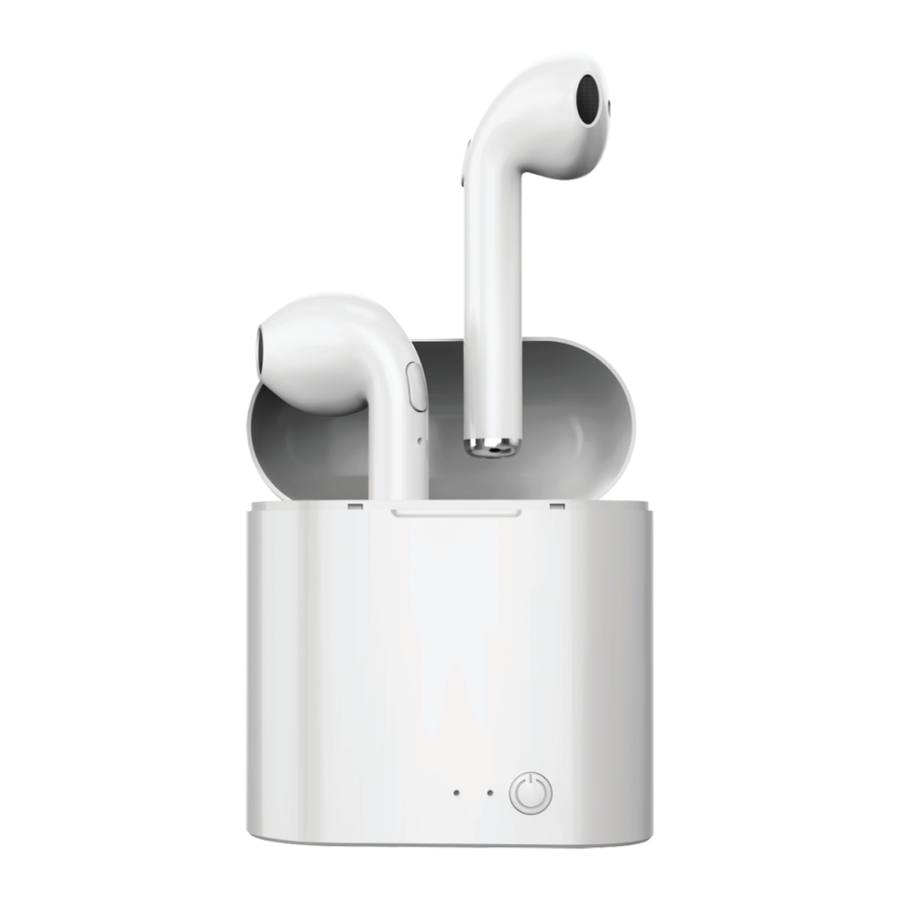

Polaroid PTWS16 - Active Pro Wireless Earbuds Manual

Before You Begin...

Questions & Customer Support

For questions, troubleshooting or any other assistance, please visit our website at SouthernTelecom.com and click on Product Support.

In the Box

• PTWS16 - True Wireless Earbuds (x1)
• Charging Case (x1)
• Micro-USB Charging Cable (x1)
• User Manual (x1)

Location of Controls

Getting Started

Charging the Case

Insert the small connector of the supplied micro-USB charging cable into the micro-USB charging port on the back of the charging case. Insert the large connector into the USB port on a computer, a USB charging device, or 5V USB adapter (not included) and plug into a wall socket. The case-charging LED indicator will flash RED while charging and turn solid RED when fully charged.

Charging the Earbuds

Make sure that the charging case is fully charged.

Open the charging case and insert the stem of each earbud into the case's charging port. Gently press down until they "clip" into place and feel secure.

Press the [ ] button to enable charging. The earbud-charging LED indicator on the case will turn BLUE. The earbud LED indicators will turn RED while charging and turn OFF when fully charged.

Powering ON/OFF

• Power the earbuds ON/OFF by long pressing both [Multi] buttons.
• The earbuds will automatically enter Bluetooth pairing mode.

Bluetooth Pairing

1. Hold the earbuds close together. Long press the [Multi] button on both earbuds until their LED indicators flash RED and BLUE.
2. After a moment, a voice will be heard on the earbuds indicating that they are connected. The LED indicator on the main ear bud will flash RED and BLUE and the other earbud will slowly flash BLUE.
3. Set your mobile device to search for Bluetooth devices. When it appears, select PTWS16 from the list of found devices.
4. Once successfully paired, the LED indicators on each earbud will continue to slowly flash BLUE.

Re-Pairing the Earbuds

The PTWS16 earbuds come automatically paired to each other right out of the box. If the earbuds come un-paired from each other, follow these instructions to re-pair:

1. Go to your device's Bluetooth settings and locate the earbuds on the list of Bluetooth devices. Tap to "Forget" the earbuds.
2. Long press the [Multi] button of both earbuds at the same time, until the LED indicators flash RED and BLUE.
3. Double press the [Multi] button on the either earbud. After a moment, the LED indicator will flash RED and BLUE on one earbud and slowly flash BLUE on the other, then two earbuds will re-pair to each other.
4. Once re-paired, you can now pair the earbuds to your mobile device. Please consult the Bluetooth Pairing section of this user manual.

Playing Music

To enjoy music wirelessly on your earbuds, make sure they are properly paired to your Bluetooth-enabled device. Once paired, playback is controlled through your paired device.

If you are pairing the device for the first time, please consult the Bluetooth Pairing section in the previous column.

Pause/Resume Music

• Quick press the [Multi] button on either earbud to pause media playback.
• Quick press the [Multi] button on either earbud to resume media playback.

Answering/Ending Phone Calls

NOTE: Phone calls will only be heard on one earbud.

• Quick press the [Multi] button to answer an incoming phone call.
• Quick press the [Multi] button to end a phone call.
• Double quick press the [Multi] button to redial the last phone number called.

CAUTION

To ensure safe and proper use, read all safety information before using the device. Only use with manufacturer-approved batteries, chargers, accessories, and supplies.

• READ THIS MANUAL AND SAVE FOR FUTURE REFERENCE
• THIS DEVICE IS NOT A TOY, do NOT allow children or pets to use or play with this device.
• Do not disassemble, modify, or repair the device.
• Do not expose the unit to extreme temperatures (heat or cold), open flames, humid, or wet conditions.
• Do not submerge in water.
• Low power may cause poor Bluetooth connection or sound distortion.
• Do not overcharge battery.
• If using with a USB adapter, make sure the adapter is not damaged.
• Do not allow the USB port or the connectors of the supplied USB cable to be exposed to dust, or water, or come into contact with any conductive materials such as liquids, metallic powders, etc.
• This device should not be disposed of with regular household waste. Please consult the local authorities on the correct way to dispose of this device.

PLR IP Holdings, LLC, its licensees and affiliates, fully support all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or other governances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

Polaroid, Polaroid & Pixel, Polaroid Color Spectrum, and Polaroid Classic Border Logo are trademarks of PLR, IP Holdings, LLC, used under license.

PLR IP Holdings, LLC does not manufacture this product or provide any manufacturer's warranty or support.

www.polaroid.com ©2020 All rights reserved

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. used under license.

All product names, trademarks, and registered trademarks are property of their respective owners. All company, product, and service names used in this document are for identification purposes only. Use of these names, trademarks, and brands does not imply endorsement.

Designed in US
Printed in China
v1. 05-2020
