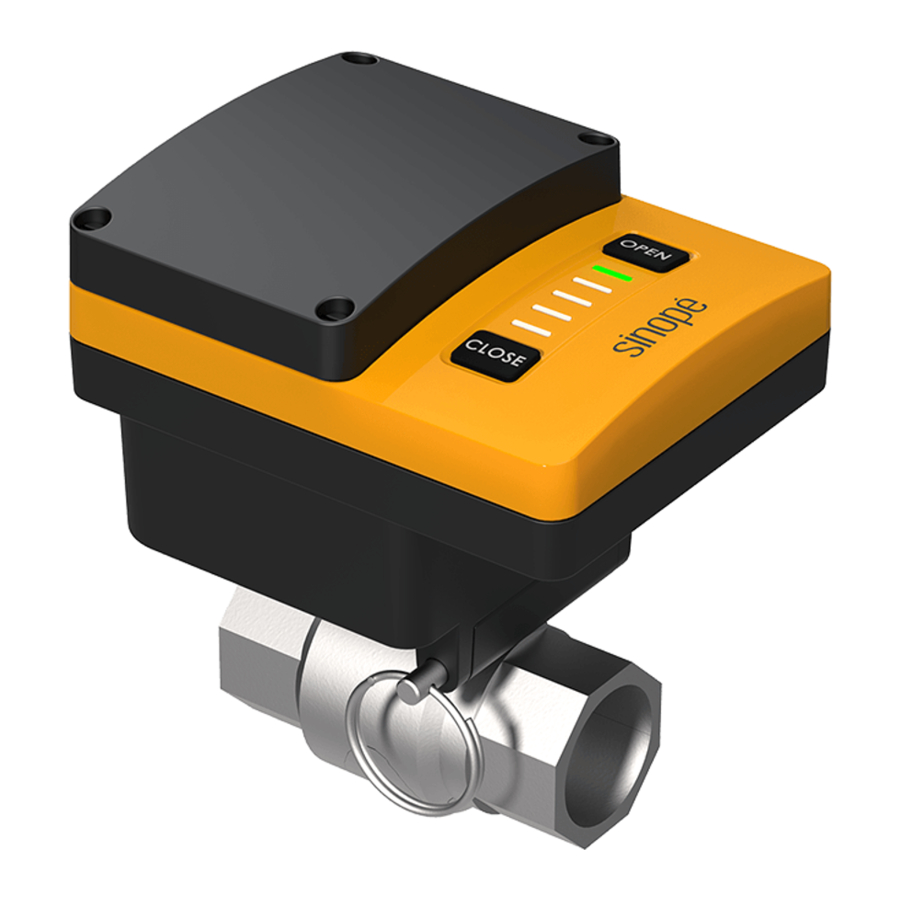

Sinope Senda VA4220ZB, VA4221ZB - Smart Water Valve Manual

Table of Contents

Contents

1 CONNECTION TO THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM
2 INSTALLATION OF THE SMART WATER VALVE
3 CONNECT YOUR SECONDARY VALVE TO THE MAIN VALVE
4 TECHNICAL SPECIFICATIONS
5 Documents / Resources
- 5.1 References
- 5.2 Download manual

CONNECTION TO THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM

lnitiate the connectivity session by pressing the RF signal button on the GT130 gateway. The indicator light will start flashing.
Compatible Zigbee gateway: refer to the installation guide for the latter.
Remove the valve cover by unscrewing the 4 screws with a flat screwdriver.
Connect the valve to an electrical outlet, using the supplied adapter, near where it will be installed. By doing so, you will validate the range of the Wi-Fi communication between the valve and your network.
Press the "A" button to associate the valve with the Zigbee network.

Valve light	Status
Green light blinks	Device is connecting
3 green lights lit for 5 s	Successful connection
Red indicator light ON for 5 sec.	Connection has failed*

**Refer to the "Support" section of our Website at www.sinopetech.com.

Although each unit is pre-tested at the factory, it is strongly recommended that you test the valve before installation to ensure proper operation in your home.

INSTALLATION OF THE SMART WATER VALVE

Make sure the valve is in the "OPEN" position before proceeding with the installation. Separate the controller from the ball valve:

Remove the pin
Tilt the controller back and slide it backwards

Close the main water supply. Open the hot and cold faucets near the main water supply to reduce the water pressure.
Remove the valve safety caps.
Install the smart water valve just downstream of the main water shut-off valve. Depending on your plumbing, additional fittings may be required (not included).

Be sure to leave sufficient space for the controller and the insertion of the pin.
Before replacing the controller, make sure that both the valve and controller are in the "OPEN" position.
Put the controller back in place and insert the pin to secure the controller to the valve.
Power the valve using the AC adapter. To add an emergency power supply in the event of a power failure, insert 4 AAA lithium batteries (not included).

Do not insert the batteries before the valve is installed to your main water supply and powered by the supplied adapter.
Open the main water supply to make sure there are no leaks.

The Zigbee valve (VA4220ZB / VA4221ZB) can also act as a secondary valve to the main valve (VA4220WF / VA4221WF) to shut off a second water inlet when leaks are detected.
Once the secondary valve has been added to the main valve, the two valves will always have the same status (OPEN / CLOSE), regardless of whether the command comes from the main or secondary valve.

CONNECT YOUR SECONDARY VALVE TO THE MAIN VALVE

Remove the valve covers by unscrewing the 4 screws with a flat screwdriver.
Connect both valves to a power outlet, using the supplied adapters, near the location where they will be installed. By doing so, you will validate the range of communication between the two valves.
Press the "B" button on the main valve to open the network connectivity session. The indicator lights will light up in sequence to indicate that the session is active.
Press the "A" button on the secondary valve to connect to the main valve.

Main valve VA4220WF / VA4221WF

Secondary valve VA4220ZB /VA4221ZB

Valve light	Status
Green light blinks	Device is connecting
3 green lights lit for 5 s	Successful connection
Red indicator light ON for 5 sec.	Connection has failed*

Once the connection is established, press the "B" button on the main valve to close the connectivity session.

The connection between the 2 valves can be verified by closing the main valve. The secondary valve will then close automatically.

TECHNICAL SPECIFICATIONS

Smart water valve

Ambient temperature: 1°C to 40°C (34°F to 104°F)
Maximum water temperature: 85°C (185°F)
Storage: -20°C to 50°C (-4°F to 122°F)
Valve body: stainless steel
Controller base: fiberglass reinforced
Maximum pressure: 145 PSI
Maximum torque: 2.5 N.m
Power supply: 5 V / 5 W (included)
Emergency power supply: 4 AAA lithium batteries (not included)
