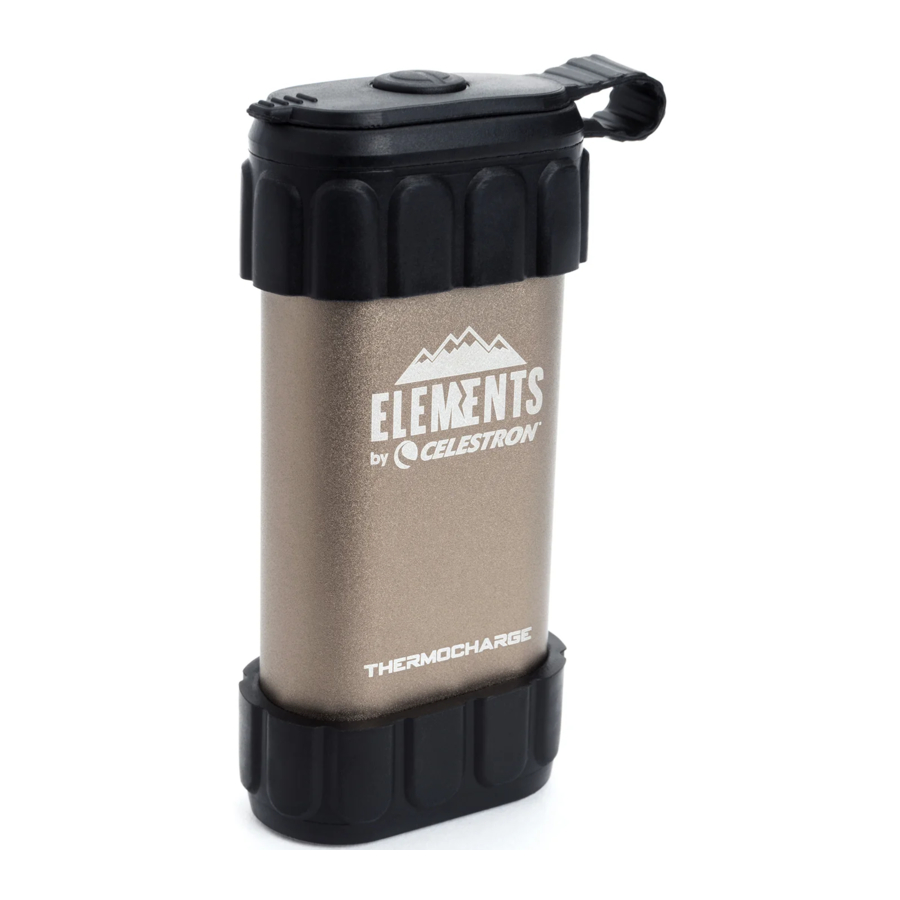

Celestron ThermoCharge - Rechargeable Hand Warmer Power Pack Manual

INTRODUCTION

Thank you for purchasing the Celestron ThermoCharge! ThermoCharge is an essential multi-use tool designed to be used in the elements. Its portable, high-capacity power pack can supply power to your cell phone, MP3 player, and many other USB-powered devices. A built-in flashlight provides illumination while the hand warmer keeps you comfortable in cold conditions.

Read all instructions and warnings thoroughly before using ThermoCharge. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion. Do not allow children to use this product without proper adult supervision.

INCLUDED IN THE BOX ARE

1 - FireCel
1 - USB cable with Mini USB connection
1 Carry strap
1 - Soft carrying bag
1 - Upper silicone protective cap
1 - Lower silicone protective cap

OVERVIEW

1. Mini USB port
2. Green/red LED status indicators
   1. Green indicates ThermoCharge is charging an external device
   2. Red indicates hand warmer mode is on
   3. Blue indicates ThermoCharge's internal battery is charging
3. On/off button
4. 2.0 USB port
5. Top cap
6. Bottom cap

CHARGING THE INTERNAL LITHIUM ION BATTERY

Your ThermoCharge 2-in-1 device has an internal, 4400 mAh rechargeable lithium ion battery, which allows for up to 6 hours of continuous use at a constant temperature of 40° to 45°Celsius (104° to 113°Fahrenheit). Your ThermoCharge ships with a partial charge, but you should charge it completely before using it for the first time.

Follow these steps to charge the internal battery:

1. Attach the Mini USB connector end of the included USB cable to the Mini USB "in" port (1) on your ThermoCharge.
2. Plug the standard USB plug end of the cable into a USB port on a PC, laptop, car charger or USB 5V-500mA adapter plug.
3. Once plugged in, the blue LED (2c) will start to blink, indicating that charging is in progress.
4. Charging is complete when the blue LED (2c) stops blinking.

NOTE: The ThermoCharge is designed with overcharge protection to prevent damage to the internal battery

USING THE HAND WARMER FEATURE

• Press and release the on/off button (3). The unit will begin to heat up. In minutes, it will reach its maximum temperature and you will feel the heat being conducted through the aluminum housing.
• Press the on/off button again to turn ThermoCharge off.
• Use the included caps when extra protection is needed. These silicone caps help repel moisture and protect the device should it be dropped on a hard surface.

CHARGING AN EXTERNAL DEVICE

• Plug your device's USB charging cable into the USB 2.0 port (4) on ThermoCharge.
• Press and release the on/off button (3) quickly, then press and hold the on/off button to begin charging. Your device should indicate it is charging.
• When charge is complete, ThermoCharge will automatically power off.

SPECIFICATIONS

BATTERY: Rechargeable lithium polymer – (2) x 2200 mAh
INPUT: Mini USB Connector / 5V- 1A
OUTPUT: Standard 2.0 USB Connector / 5V- 1A
INTERNAL BATTERY CHARGE TIME: USB - 5 hours
MINIMUM NUMBER OF RECHARGES: >500
LED STATUS INDICATORS
(1) Green LED/Red LED -

• Green indicates charging external device
• Red indicates hand warmer mode

(1) Blue LED indicates internal battery charging

HAND WARMER TEMPERATURE RANGE
40° TO 45° Celsius (104° TO 113°Fahrenheit)

HAND WARMER CONTINUOUS USE TIME
At least 6 hours continuous use (based on fully charged battery)

OPERATING TEMPERATURE RANGE
0° to 45°Celsius ( 32° to 113°Fahrenheit)

STORAGE TEMPERATURE RANGE
68° to 77°Fahrenheit (optimal)

WEIGHT 5.22 oz. (148 grams)

DIMENSIONS
1.77 in x 3.74 in x.90 in (45 mm x 95 mm x 23 mm)

NOTE: Storage of more than 6 months without use may have detrimental effects on the condition of the lithium ion battery. It is recommended that you discharge and recharge fully every 3-4 months to maintain optimal battery life.

WARNINGS

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not Smart Team or Celestron (collectively "Manufacturer") are responsible.

• Do not store battery in high temperature environment, including intense sunlight.
• Do not place battery in fire or other excessively hot environments.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this battery. If there is any damage to the battery such as dents, punctures, tears, deformities or corrosion, due to any cause, discontinue use and contact manufacturer or dispose of it in an appropriate manner at your local battery recycling center.
• Do not disassemble this battery or attempt to repair or modify it in any manner.
• Do not expose this battery to moisture or submerge it in liquid. Keep battery dry at all times.
• Do not attempt to charge battery using any method, apparatus or connection other than the device's USB connector. For questions or instructions for the various ways to charge ThermoCharge, refer to this manual.
• Do not attempt to replace any part of this battery.
• This battery is intended for adult use only. If this battery is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of Purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
• All batteries have gone through a thorough quality assurance inspection. If you find that your battery is excessively hot, is emitting odor, is deformed, abrased, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all battery use and contact Manufacturer.
• For extended storage, first charge your battery for at least one hour.
• Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful, in The United States, under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

DISCLAIMER

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this battery. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this battery as outlined above. If you are responsible for battery use with an unintended mobile device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third party or parties.

MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device

CELESTRON
Torrance, CA 90503
TEL (800) 421-9649 | www.celestron.com
Copyright 2014 Celestron | All rights reserved.
(Products or instructions may change without notice or obligation.)
Designed and intended for those 14 years of age and older.
