Tascam FW-1884 Supplementary Manual
Professional control surface / firewire audio-midi interface cubase sx/sl / nuendo (windows/mac) notes
Hide thumbs
Also See for FW-1884:
- Owner's manual (42 pages) ,
- Manual (35 pages) ,
- Service manual (28 pages)
Related Manuals for Tascam FW-1884
Summary of Contents for Tascam FW-1884

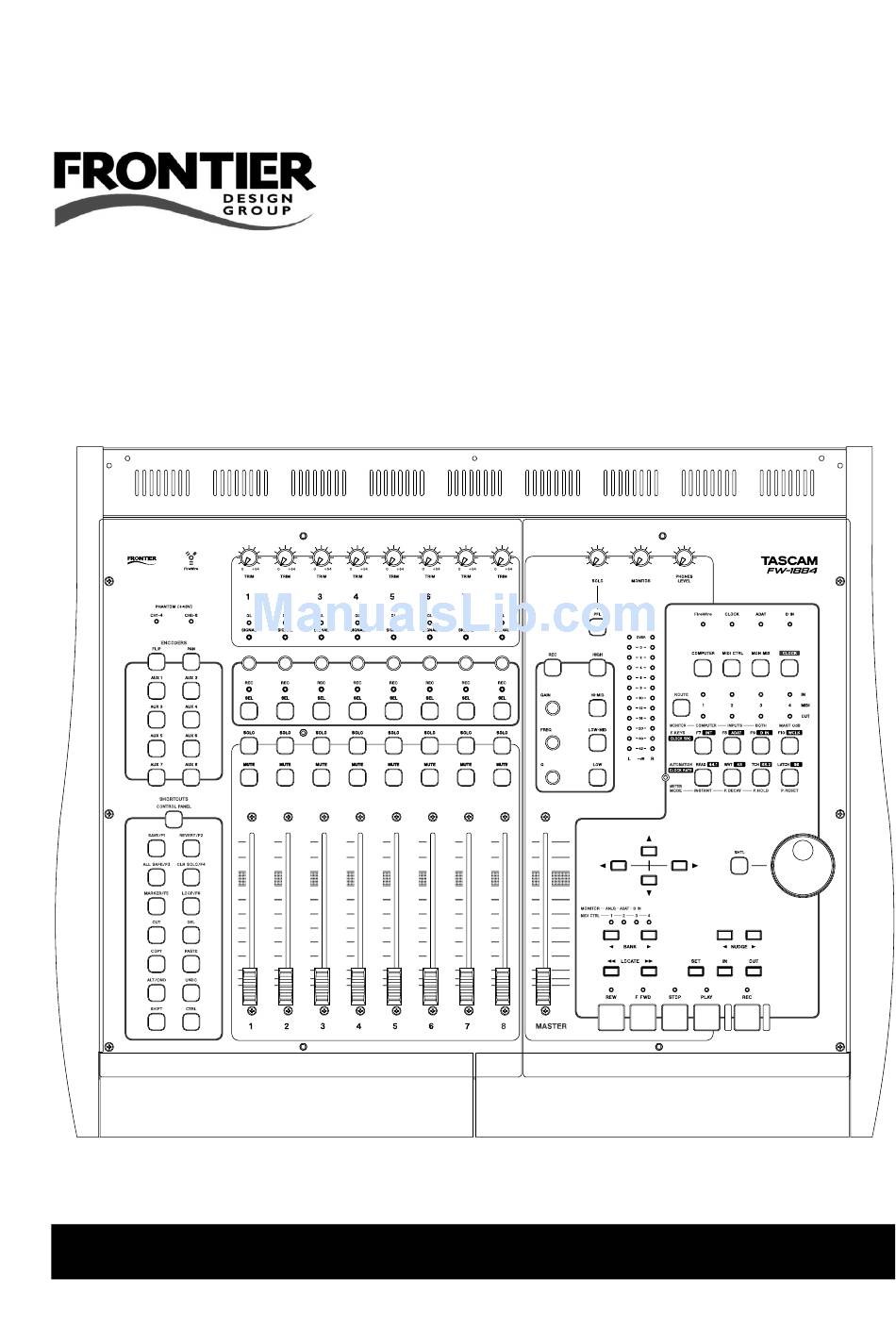

- Page 1 » FW-1884 Professional Control Surface / FireWire Audio-MIDI Interface Cubase SX/SL / Nuendo (Windows/Mac) NOTES...
-
Page 2: Table Of Contents
Table of Contents Setup ...3 To set up the FW-1884 in Cubase or Nuendo 3 To set up the FW-1884 in Mackie Emulation protocol... 3 Emulation mapping...4 EQ (Mackie Control Mode) ...5 Encoder settings ... 5 Shortcuts Section ...6 Function/Automation Keys... 7 Footswitch... -
Page 3: Setup
SL and Nuendo using the Mackie Control or Mackie HUI emulation protocols. (HUI emulation notes can be found in a separate document). Cubase and Nuendo “see” the FW-1884 as a Mackie Control in their Device menus. This section describes the mapping of the FW-1884’s... -
Page 4: Emulation Mapping
Below is a description of Mackie Control emulation mapping within Cubase / Nuendo. Channel Strips The eight channel strips and the master fader on the FW-1884 map directly to the eight channel strips and master fader on the Mackie Control. keys and the faders are identical MUTE SOLO in function. -
Page 5: Eq (Mackie Control Mode)
Cubase SX/SL / Nuendo (Win/Mac): EQ (Mackie Control Mode) EQ (Mackie Control Mode) Press to enable EQ adjustment mode on AUX 2 the FW-1884. Press (page down) to set Frequency and AUX 3 Gain adjustment for all 4 bands using the chan- nel encoders. -
Page 6: Shortcuts Section
Page 3 - continuation of page 2. Actual number of pages will depend on effect type. Shortcuts Section At the bottom left of the FW-1884 are its fourteen illu- minated keys. These emulate the four- SHORTCUTS... -
Page 7: Function/Automation Keys
Cubase SX/SL / Nuendo (Win/Mac): Shortcuts Section Function/Automation Keys Above the FW-1884’s main transport keys are eight illuminated keys which can be used to emulate pressing various Mackie Control function and editing keys. This implementation allows you access to various func- tions within Cubase/Nuendo, including some not silk- screened on the FW-1884’s surface. - Page 8 TEAC AUSTRALIA PTY.,LTD. A.B.N. 80 005 408 462 Phone: +61-3-9672-2400 Facsimile: +61-3-9672-2249 280 William Street, Port Melbourne, Victoria 3000, Australia TEAC ITALIANA S.p.A. Phone: +39-02-66010500 Via C. Cantù 11, 20092 Cinisello Balsamo, Milano, Italy FW-1884 www.tascam.com www.tascam.com www.tascam.com www.tascam.com www.tascam.co.uk www.tascam.de...
