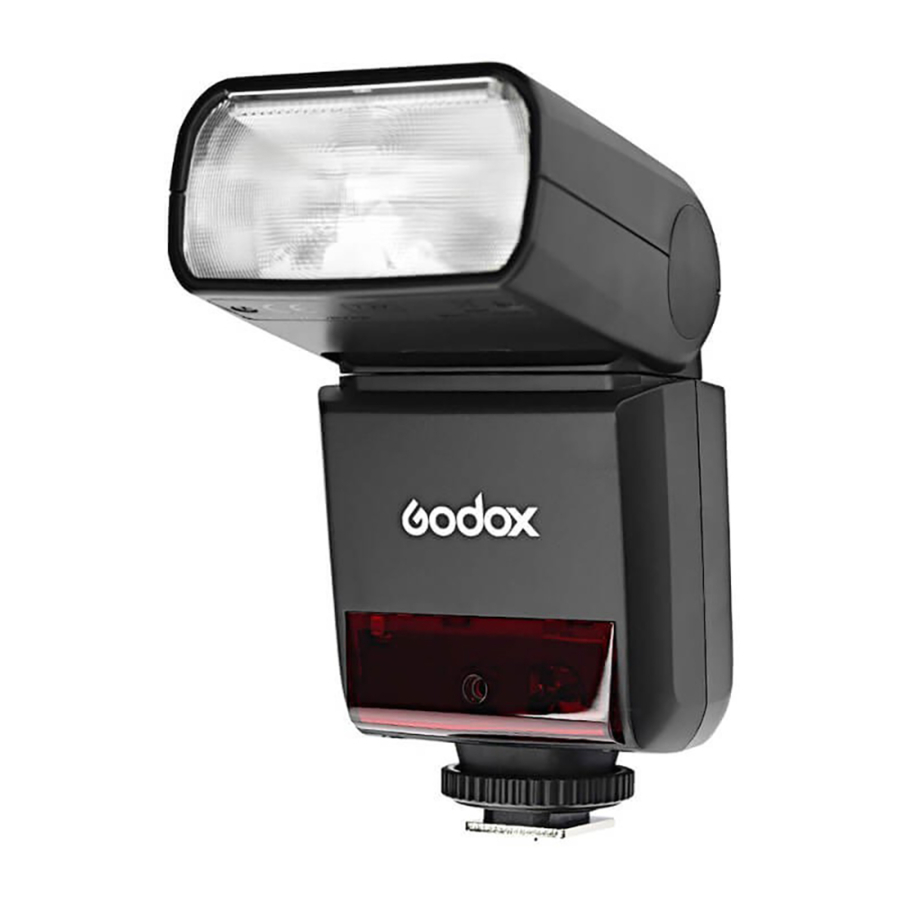

Godox V350N - VING TTL Li-ion Camera Flash for Nikon Manual

Foreword

Thank you for purchasing this product.
This V350N camera flash applies to Nikon series cameras and is compatible with TTL autoflash. With this TTL compatible flash, your shooting will become simpler. You can easily achieve a correct flash exposure even in complex light-changing environments. This camera flash features:

• GN36 (m ISO 100, @105mm).
• Pro 2000mAh Li-ion Battery — 0.1.7s recycle — over 500 full power pops.
• Fully support Nikon TTL camera flash. Workable as Master or Slave unit in a wireless flash group.
• With built-in 2.4GHz wireless remote system to support transmitting and receiving.
• Provided multiple functions, include manual flash, multi flash, HSS (up to 1/8000s), rear curtain sync, FEC, etc.
• Support with firmware upgrade.

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

Keep out of reach of children.

Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may occur if you touch the electronic parts inside it.

Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual impairment may occur.

Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.

Do not leave or store the flash unit if the ambient temperature reads over 50 ⁰C. Otherwise the electronic parts may be damaged.

Turn off the flash unit immediately in the event of malfunction.

Name of Parts

Body

1. Catchlight Panel
2. Built-in Wide Panel
3. Flash Head
4. Optic Control Sensor
5. Focus Assist Beam
6. Hotshoe
7. LCD Panel
8. Lock Ring
9. Battery Compartment
10. USB Port

Control Panel

11. <MODE>Mode Selection Button
12. <ZOOM>Zoom Selection Button
13. <SYNC>High-Speed Sync Button
14. <SLAVE> S1/S2 Optic Slave Triggering Selection Button (in non-wireless mode)
15. <> Power Switch
16. <> Test Button / Flash Ready Indicator.
17. <C.Fn> Custom Function Setting Button (reusable button, long press for 2 seconds)
18. <> Wireless Selection Button (reusable button, long press for 2 seconds)
19. <GR/CH> Group/Channel Button (reusable button, in wireless mode)
20. Select Dial
21. <SET> Set Button

LCD Panel

TTL Autoflash

M Manual Flash

Multi Flash

Radio Transmission Shooting

• Master Unit

• Slave Unit


What's in the Box of V350N

1. Flash unit
2. Mini stand
3. Protection case
4. Diffuser
5. Li-ion battery pack
6. Battery charger
7. Battery charger cable
8. Instruction manual

Separately Sold Accessories

The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: XPro, X IT-N wireless flash trigger, Mini softbox, White & Silver reflector, Honeycomb, Color gels, Snoot, etc.

Battery

Features

1. This flash unit uses Li-ion polymer battery which has long runtime. The available charge-and-discharge times are 500.
2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short circuit.
3. Take only 2.5 hours to fully charge the battery by using the standard battery charger.

1. Do not short circuit.
2. Do not expose to rain or immerse into water. This battery is not water proof.
3. Keep out of reach of children.
4. No over 24 hours'continuous charging.
5. Store in dry, cool, ventilated places.
6. Do not put aside or into fire.
7. Dead batteries should be disposed according to local regulations.
8. Please charge the battery to approx. 60% before being placed for long time.
9. If the battery had ceased using for over 3 months, please make a full recharge.

• Loading and Unloading the Battery
  1. To load the battery, push the battery compartment cover downward and open it.
     Slightly pull out the strip and the battery pack will pop out.

  2. To load the battery, according to the triangle sign on the battery pack, insert it into the compartment until it is locked. Then close the compartment.

• Battery Level Indication
  Make sure the battery pack is securely loaded in the flash. Check the battery level indication on the LCD panel to see the remaining battery level.

Attaching to a Camera

1. Attach the Camera Flash.
   • Slip the camera flash's mounting foot into the camera's hotshoe all the way.

2. Secure the Camera Flash.
   • Rotate the lock ring on the mounting foot until it locks up.

3. Detach the Camera Flash.
   • Rotate the lock ring on the mounting foot until it is loosened.


Power Management

Use Power Switch to power the flash unit on (Long press the button for one second) or off. Turn off if it will not be used for an extended period of time. Setting as a master flash, it will turn the power off automatically after a certain period (approx. 90 seconds) of idle use. Pressing the camera shutter halfway or pressing any flash button will wake up the flash unit. Setting as a slave flash, it will enter sleep mode after a certain period (adjustable, 60 minutes by default) of idle use. Pressing any flash button will wake it up.

Disabling Auto Power Off function is recommended when the flash is used off camera.

Flash Mode: TTL Autoflash

This flash has three flash modes: TTL, Manual (M), and Multi (Stroboscopic). In TTL mode, the camera and the flash will work together to calculate the correct exposure for the subject and the background. In this mode, multiple TTL functions are available: FEC, HSS, second curtain sync, etc.

*Press <MODE> Mode Selection Button and three flash modes will display on the LCD panel one by one with each pressing.

TTL Mode

Press <MODE> Mode Selection Button to enter TTL mode. The LCD panel will display <TTL>.

• Press the camera release button halfway to focus.
• When the shutter button is fully pressed, the flash will fire a preflash that the camera will use to calculate exposure and flash output the instant before the photo is taken.

Display"HI": When the flash output value is up to the maximum value, "HI"will be displayed and blinking for 3 seconds. Adjust the camera's parameters if underexposure appears.
Display"Lo": When the flash output value is up to the minimum value, "Lo"will be displayed and blinking for 3 seconds. Adjust the camera's parameters if overexposure appears.

FEC: Flash Exposure Compensation

With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where minor adjusting of the TTL system is needed based on the environment.
Setting FEC:

1. Press the SET Button and the flash exposure compensation amount will be highlighted on the LCD panel.

2. Turn the Select Dial to set the amount.
   • "0.3"means 1/3 step, "0.7"means 2/3 step.
   • To cancel the flash exposure compensation, set the amount to "+0".

3. Press < SET > button again to confirm the setting.


Shutter Sync Settings

1. High-speed sync: press the <SYNC> button and is isplayed on the LCD panel. Set the shutter sync speed to 1/320s (auto FP) or 1/250s (auto FP) in Nikon camera setting. Turn the camera dial, and the shutter speed can be set to or more than 1/250s. Check the shutter speed through the camera viewfinder to confirm whether the FP high-speed function is used. If the shutter speed is or over 1/250s, it means the high-speed is booted up.
2. Second-curtain sync: press the < > on Nikon camera, and turn the main command dial until is displayed on the panel. Then, set the camera shutter.

• With high-speed sync, the faster the shutter speed, the shorter the effective flash range.
• Multi flash mode cannot be set in high-speed sync mode.
• Over-temperature protection may be activated after 15 consecutive high-speed sync flashes.
• Try to avoid using high-speed sync flash, which will cut short flash tube's lifetime.

Flash Mode – M: Manual Flash

The flash output is adjustable from 1/1 full power to 1/128th power in 1/3rd stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output.

1. Press < MODE > button so that < M > is displayed.

2. Turn the Select Dial to choose a desired flash output amount. In high-speed sync mode, the adjustable flash range is 1/16-1/1.


Flash Output Range

The following table makes it easier to see how the stop changes in terms of f/stop when you increase or decrease the flash output. For example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-0.7, and then increase the flash output to more than 1/2, 1/2+0.3, 1/2+0.7, and 1/1 will be displayed.

Figures displayed when reducing flash output level

Figures displayed when increasing flash output level

In the M mode, high-speed sync and rear curtain sync functions can be achieved.

Optical Sl Secondary Unit Setting

In M manual flash mode, press the <SLAVE> button so that this flash can function as an optic Sl secondary flash with optic sensor. With this function, the flash will fire synchronously when the main flash fires, the same effect as that by the use of radio triggers. This helps create multiple lighting effects.

Optical S2 Secondary Unit Setting

Press the <SLAVE> button so that this flash can also function as an optic S2 secondary flash with optic sensor in M manual flash mode. This is useful when cameras have pre-flash function. With this function, the flash will ignore a single "preflash" from the main flash and will only fire in response to the second, actual flash from the main unit.

• S1 and S2 optic triggering and off camera high-speed mode are only available in M manual flash mode.

Flash Mode — Multi: Stroboscopic Flash

With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving subject in a single photograph.
You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output.

1. Press <MODE> button so that <MuIti> is displayed.

2. Turn the Select Dial to choose a desired flash output.

3. Set the flash frequency and flash times.
   • Press the SET Button to select the flash frequency. Turn the Select Dial to set the number.
   • Press the SET Button again to select the flash times. Turn the Select Dial to set the number.


Calculating the Shutter Speed

During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the shutter speed and set it with the camera.

Number of Flashes I Flash Frequency = Shutter Speed
For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 seconds.

To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession.
After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow at least 15 minutes' rest for the camera flash.

• Stroboscopic flash is most effective with a highly reflective subject against a dark background.
• Using a tripod and a remote control is recommended.
• Stroboscopic flash can be used with"buLb".
• If the number of flashes is displayed as "--", the firing will continue until the shutter closes or the battery is exhausted. The number of flashes will be limited as shown by the following table.

Maximum Stroboscopic Flashes:

Wireless Flash Shooting: Radio (2.4G) Transmission

• You can set up three slave groups for TTL autoflash shooting.
  With TTL autoflash, you can easily create various lighting effects.
• Any flash settings for the slave units on the master flash in TTL mode will be automatically sent to the slave units. So the only thing you need to do is to set the master unit for each slave group without any operation for the slave units at all during the shooting.
• This flash can work in TTL /M /Multi /OFF flash modes when set as a master unit.
  When using Godox 2.4G wireless X system, V350N is perfectly compatible with other products of our company.

As a master unit, V350N can control the following slave unit models: AD600, AD600M, AD36011-C, AD36011-N, V86011N, V85011, TT685N, TT600.
As a slave unit, V350N can be controlled by the following master unit models: XProN, XIT-N, V86011N, V85011, TT685N, TT600.

• Even with multiple slave units, the master unit can control all of them via wireless.
• In this user manual, "master unit" refers to the camera flash on a camera and "slave unit" will be controlled by the master unit.

1. Wireless Settings
   You can switch between normal flash and wireless flash. For normal flash shooting, be sure to set the wireless setting to OFF.
   Master Unit Setting
   1. Long Press the <SYNC> button for 2 seconds so that < > is blinking. Turn the Select Dial until the <> is displayed on the LCD panel, which means the master unit.


Slave Unit Setting

1. Long Press the <SYNC> button for 2 seconds so that <> is blinking. Turn the Select Dial until the <> is displayed on the LCD panel, which means the slave unit.


2. Setting Master Unit's Flash Mode
   1. Press the <SLAVE> Button to choose the group from M/A/B/C. Then, press the < MODE > Button so that the master unit can work in OFF /TTL /M flash mode. Choose one of them as the flash mode of master unit.

   2. Press the <MODE> Button for 2 seconds to switch to M

3. Setting the Communication Channel
   If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the same.
   1. Long press the <SLAVE> Button for 2 seconds until the channel IDs is blinking. Turn the Select Dial to choose a channel ID from 1 to 16.

   2. Press the <SET> button to confirm.

4. Wireless ID Settings
   Change the wireless channels and wireless ID to avoid interference for it can only be triggered after the wireless IDs and channels of the master unit and the slave unit are set to the same.
   Press the <MENU> button to enter C.Fn ID. Press the <SET> button to choose OFF channel expansion shutdown, and choose any figure from 01 to 99.
5. TTL: Fully Automatic Wireless Flash Shooting
   Autoflash Shooting with One Slave Unit
   1. Master Unit Setting
      • Attach a V350N camera flash on the camera and set it as the master unit.
      • M/A/B/C can be set as TTL mode independently.

   2. Slave Unit Setting
      • Set the V350N that to be controlled as the wireless slave unit.
      • The slave unit can be set as A/B/C.

   3. Check the communication channel
      • If the master unit and slave unit(s) are set to a different channel, set them to the same channel.
   4. Position the camera and flashes
      • Position the camera and flashes as the picture shows.
   5. Check the flash operation
      • Press the master unit's Test Button <>.
      • Then, the slave unit will fire. If not, adjust the slave unit's angle toward the master unit and distance from the master unit.

        The slave unit might be out of order or fire an unwanted flash due to the nearby wifi routers or other 2.4G equipments. If in this case, please adjust the flash's channel or turn off the 2.4G equipments.
6. Wireless Flash Shooting with Manual Flash
   This describes wireless (multiple shooting) using manual flash. You can shoot with a different flash output setting for each slave unit (firing group). Set all parameters on the master unit.
   1. Setting the flash mode to
      • Press the <MODE> Button to set the flash to M mode.
   2. Setting flash output
      • Turn the Select Dial to set the flash output of the groups.

   3. Taking the picture
      • Each group fires at the set flash ratio.

7. Multi: Wireless Flash Shooting with Manual Flash
   1. Setting <MuIti> stroboscopic flash.
      • Long press the <MODE> button for 2 seconds so that <MuIti> is displayed. Long press the <MODE> button for 2 seconds again to exit.

   2. Setting flash output/flash frequency/flash times.
      • Setting the flash output/flash frequency/flash times of the groups in the M mode. Setting the multi flash mode.
      • A, B and C group can only control the ON/OFF of the slave unit by pressing the <MODE> Button.


Using a flash (master/slave) with a radio transmission wireless shooting function make it easy to shoot with advanced wireless multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the picture. You can then perform wireless TTL autoflash shooting just by setting the master unit to <TTL>.

Slave/Master Unit's Positioning and Operation Range

• Autoflash Shooting with One Slave Unit

• Use the supplied mini stand to position the slave unit.
• Before shooting, perform a test flash and test shooting.
• The transmission distance might be shorter depending on the conditions such as positioning of slave units, the surrounding environment and whether conditions.

Wireless Multiple Flash Shooting

You can divide the slave units into two or three groups and perform TTL autoflash while changing the flash ratio (factor). In addition, you can set and shoot with a different flash mode for each firing group, for up to 3 groups.

• Auto Shooting with Two Slave Groups

• Auto Shooting with Three Slave Groups


The Reason & Solution of Not Triggering in Godox 2.4G Wireless

1. Disturbed by the 2.4G signal in outer environment (e.g. wireless base station, 2.4G wifi router, Bluetooth, etc.)
   To adjust the channel CH setting on the flash trigger (add 10+ channels) and use the channel which is not disturbed. Or turn off the other 2.4G equipment in working.
2. Please make sure that whether the flash has finished its recycle or caught up with the continuous shooting speed or not(the flash ready indicator is lighten) and the flash is not under the state of over-heat protection or other abnormal situation.
   Please downgrade the flash power output. If the flash is in TTL mode, please try to change it to M mode(a preflash is needed in TTL mode).
3. Whether the distance between the flash trigger and the flash is too close or not
   Please turn on the "close distance wireless mode" on the flash trigger ( < 0.5m):
   X1 series: press the test button and hold on, then turning it on until the flash ready indicator blinks for 2 times.
   XPro series: Set the C.Fn-DlST to 0-30m.
4. Whether the flash trigger and the receiver end equipment are in the low battery states or not
   Please replace the battery(the flash trigger is recommended to use 1.5V disposable alkaline battery).

Other Applications

Auto Focus Assist Beam

Long press the C.Fn to enter C.Fn custom settings and press SET button: choose "ON" or "OFF" to turn on or off the to the AF-assist beam function. When turning on the AF-assist beam function: the red AF-assist lamp will light when it's hard to focus while automatically off when getting correct focus.

• When not attaching to the camera, the auto focus assist beam of V350N does not light up.

Bounce Flash

By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more natural-looking shot. This is called bounce flash.

To set the bounce direction, hold the flash head and turn it to a satisfying angle.

• If the wall or ceiling is too far away, the bounced flash might be too weak and result in underexposure.
• The wall or ceiling should be a plain, white color for high reflectance. If the bounce surface is not white, a color cast may appear in the picture.

Creating a Catchlight

With the catchlight panel, you can create a catchlight in the subject's eyes to add life to the facial expression.

1. Point the flash head upward by 90°.

2. Pull out the wide panel. The catchlight panel will come out at the same time.

3. Push the wide panel back in.
   • Push in only the wide panel.
   • Follow the same procedures as for bounce flash.

• Point the flash head straight ahead and then upward by 90°. The catchlight will not appear if you swing the flash head left or right.
• For best catchlight effect, stay 1.5m/4.9ft away from the subject.

ZOOM: Setting the Flash Coverage and Using the Wide Panel
The flash coverage can be set automatically or manually. It can be set to match the lens focal length from 24mm to 105mm. Also, with the built-in wide panel, the flash coverage can be expanded for 14mm wide-angle lenses.

In Manual Zoom mode, press the <ZOOM> button.

• Turn the Select Dial to change the flash coverage.
• If <AU> is displayed, the flash coverage will be set automatically.

• If you set the flash coverage manually, make sure it covers the lens focal length so that the picture will not have a dark periphery.
• When the low battery indicator is displayed, the ZOOM can not be adjusted, it will constantly be 24mm.

Using the Wide Panel

Pull out the wide panel and place it over the flash head as shown. The flash coverage will then be extended to 14 mm.

• The catchlight panel will come out at the same time. Push the catchlight panel back in.

• When pull out the wide panel, the ZOOM will constantly be 14mm. The <ZOOM> button will not work.

Low Battery Warning

If the battery power is low, < > will appear and blink on the LCD panel. Please replace the battery immediately. When the low battery indicator is displayed, the ZOOM can not be adjusted.

C.Fn: Setting Custom Functions

The following table lists the available and unavailable custom functions of this flash.

1. Press the < ZOOM > Button for 2 seconds until C.Fn menu is displayed.
2. Turn the Select Dial to select the Custom Functions.
3. Press the <SET> Button and the Setting No. blinks.
4. Turn the Select Dial to set the desired number. Pressing the <SET> Button will confirm the settings.
5. Press the <ZOOM> Button to exit.

Protection Function

1. Over-Temperature Protection
   • To avoid overheating and deteriorating the flash head, do not fire more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at least 10 minutes.
   • If you fire more than 30 continuous flashes and then fire more flashes in short intervals, the inner over-temperature protection function may be activated and make the recycling time over 10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then return to normal.
   • When the over-temperature protection is started, is shown on the LCD display.

Number of flashes that will activate over-temperature protection:

Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:

2. Other Protections
   The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference:

Firmware Upgrade

This flash supports firmware upgrade through the USB port. Update information will be released on our official website.

• USB connection line is not included in this product. As the USB port is a Micro USB socket, please use Micro USB connection line.
• As the firmware upgrade needs the support of Godox G2 software, please download and install the "Godox G2 firmware upgrade software" before upgrading. Then, choose the related firmware file.
• As the products needs to do firmware upgrade, please refer to instruction manual of the newest electric version as final.

Checking the version: Press the <MODE> Button and the turn the flash on. Then, the firmware update version (e.g. Version 1.0 will read U-1.0) will be displayed on the LCD panel.

Technical Data

Troubleshooting

If there is a problem, refer to this Troubleshooting Guide.

The Camera Flash cannot be charged.

• The battery is installed in the wrong direction.
  Install the battery in the correct direction.
• The camera flash's internal battery is exhausted.
  <> appears and blinks on the LCD panel, recharge the battery immediately.

The Camera Flash does not fire.

• The camera flash is not attached securely to the camera.
  Attach the camera's mounting foot securely to the camera.
• The electrical contacts of the Camera Flash and camera are dirty.
  Clean the contacts.

The power turns off by itself.

• After 90 seconds of idle operation, auto power off took effect if the flash is set as master.
  Press the shutter button halfway or press any flash button to wake up.
• After 60 minutes of idle operation, the flash unit will enter sleep mode if it is set as slave.
  Press any flash button to wake up.

Auto zoom does not work.

• The camera flash is not attached securely to the camera.
  Attach the camera flash's mounting foot to the camera.

The flash exposure is underexposed or overexposed.

• You used high-speed sync.
  With high-speed sync, the effective flash range will be shorter. Make sure the subject is within the effective flash range displayed.
• You used Manual Flash mode.
  Set the flash mode to TTL or modify the flash output.

Photos have dark corners or only parts of the target subject are illuminated.

• The focal length of lens exceeds the flash coverage.
  Check the flash coverage you set. This flash unit has the flash coverage between 24 and 105mm, which fits full-format cameras. Pull the wide panel out to extend the flash coverage.

Compatible Camera Models

This flash unit can be used on the following Nikon camera models:

• This table only lists the tested camera models, not all Nikon cameras. For the compatibility of other camera models, a self-test is recommended.
• Rights to modify this table are retained.
• The D70S camera do not support rear-curtain sync.

Maintenance

• Shut down the device immediately should abnormal operation be detected.
• Avoid sudden impacts and the product should be dedusted regularly.
• It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
• Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
• This product, except consumables e.g. flash tube, is supported with a one-year warranty.
• Unauthorized service will void the warranty.
• If the product had failures or was wetted, do not use it until it is repaired by professionals.
• Changes made to the specifications or designs may not be reflected in this manual.
