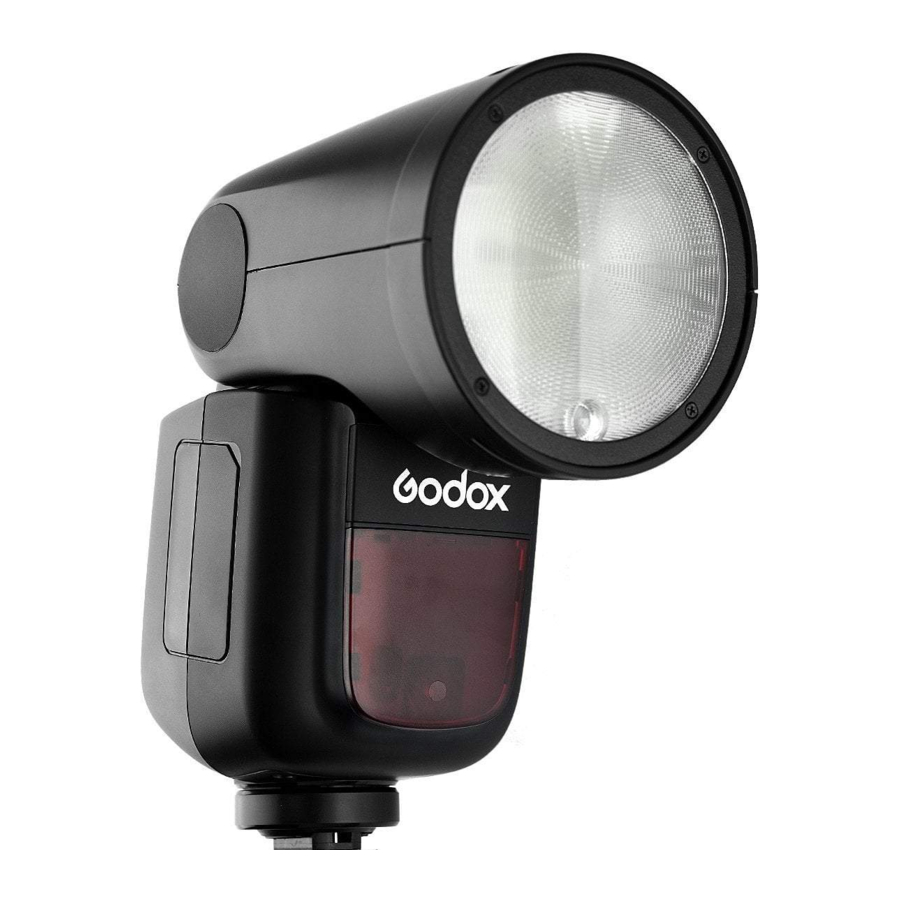

Godox V1N Round Head Camera Flash for Nikon Manual

Thank you for purchasing this product.

This V1N camera flash applies to Nikon series cameras and is compatible with i-TTL autoflash. With this i-TTL compatible flash, your shooting will become simpler. You can easily achieve a correct flash exposure even in complex light-changing environments. This camera flash features:

• With round flash head to achieve soft, even and more creative light effects. It has a 2W LED modeling lamp, which can be used off the camera.
• 76Ws power output at the max step. 81 steps from 1/1 to 1/128.
• Pro 2600mAh Li-ion Battery-max.1.5s recycle-480 full power pops.
• Fully support Nikon i-TTL camera flash. Workable as Master or Slave unit in a wireless flash group.
• Use dot-matrix LCD panel to make clear and convenient operations.
• With built-in 2.4GHz wireless remote system to support transmitting and receiving.
• Provided multiple functions, include HSS (up to 1/8000s), FEC, FEB, etc.
• Stable consistency and color temperature with good even lighting.
• Support with firmware upgrade.

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

Keep out of reach of children.

Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may occur if you touch the electronic parts inside it.

Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual impairment may occur.

Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.

Do not leave or store the flash unit if the ambient temperature reads over 50℃. Otherwise the electronic parts may be damaged.

Turn off the flash unit immediately in the event of malfunction.

Body

1. Flash Head
2. LED Modeling Lamp(01~10)
3. Wireless Sensor
4. Focus Assist Beam
5. Sync Cord Jack
6. Type-C USB Port
7. Battery Remove Button
8. Hotshoe
9. LCD Panel
10. Hotshoe Fixing Buckle
11. Lithium Battery

Control Panel

12. <MENU>Flash Menu Button/Locking Button
13. <>Wireless Selection Button
14. Select Dial
15. Set Button
16. ON/OFF Power Switch
17. < > Test Button / Flash Ready Indicator
18. <ZOOM> Focus Length
19. <MODE>Mode Selection Button
20. < >Modeling Lamp Setting
21. <+/->Power Output
22. Function Button 1
23. Function Button 2
24. Function Button 3
25. Function Button 4

LCD Panel

1. i-TTL Autoflash



• The display will only show the settings currently applied.
• The functions displayed above function buttons 1 to 4, such as SYNC and <M/A/B/C>, change according to settings' status.
• When a button or dial is operated, the LCD panel illuminated.

2. M Manual Flash

3. RPT Flash

4. Radio Transmission Shooting

• Master Unit

• Slave Unit


LCD Panel in Three Modes

• Attached to the Camera

• 2.4G Radio Transmission: As a Master Unit

• 2.4G Radio Transmission: As a Slave Unit


What's in the Box of V1N Kit?

1. Flash Unit
2. Lithium Battery
3. USB Battery Charger
4. USB Line
5. Charger
6. Mini Stand
7. Protection Case
8. Instruction Manual

Separately Sold Accessories

The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects:
XProN & X1N TTL wireless flash trigger, AK-R1 accessory kit for round flash head, etc.

Features

1. This flash unit uses Li-ion battery which has long runtime.
   The available charge-and-discharge times are 500.
2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short circuit.
3. Take only 3.5 hours to fully charge the battery by using the standard battery charger.

Cautions

1. Do not short circuit.
2. Do not expose to rain or immerse into water. This battery is not water proof.
3. Keep out of reach of children.
4. No over 24 hours' continuous charging.
5. Store in dry, cool, ventilated places.
6. Do not put aside or into fire.
7. Dead batteries should be disposed according to local regulations.
8. If the battery had ceased using for over 3 months, please make a full recharge.

Loading and Unloading the Battery

1. To unload the battery, hold down the battery remove button and push the battery downwardly to take it out.

2. According to the triangle sign on the battery pack, insert it into the compartment until a white knob locks the battery with a click sound.


Battery Level Indication

Make sure the battery pack is securely loaded in the flash. Check the battery level indication on the LCD panel to see the remaining battery level.

LED Modeling Lamp

Press the Modeling Lamp Setting button to set the modeling lamp. Short press the Set Button to turn on or off the modeling lamp. When turning the modeling lamp on, turn the select dial to set its brightness. There are 10 levels(01~10) for choice.

Attaching to a Camera

1. Attach the Camera Flash.


• Rotate the hotshoe fixing buckle to the left and insert the camera flash into the camera's hotshoe.

2. Secure the Camera Flash.


• Rotate the hotshoe fixing buckle to the right until it locks up.

3. Detach the Camera Flash.


• Press the button and rotate the hotshoe fixing buckle to the left until it is loosened.

FEC: Flash Exposure Compensation

With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where minor adjusting of the TTL system is needed based on the environment.

Setting FEC:

1. Press Function Button 2 Press the <+/-> button. The icon <> and flash exposure compensation amount will be highlighted on the LCD panel.

2. Set the flash exposure compensation amount.


• Turn the Select Dial to set the amount.
• "0.3"means 1/3 step,
  "0.7"means 2/3 step.
• To cancel the flash exposure compensation, set the amount to "+0".

3. Press Set Button again to confirm the setting.


Second-Curtain Sync

With a slow shutter speed, you can create a light train following the subject. The flash fires right before the shutter closes.

• In camera setting, choose REAR to achieve second curtain sync.

The flash output is adjustable from 1/1 full power to 1/256th power in 1/10th stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output.

1. Press < MODE > button so that < M > is displayed.

2. Press the <+/-> button and turn the Select Dial to choose a desired flash output amount.

3. Press Set Button again to confirm the setting


Optic S1 Secondary Unit Setting

In M manual flash mode, press <S1/S2> button so that this flash can function as an optic S1 secondary flash with optic sensor. With this function, the flash will fire synchronously when the main flash fires, the same effect as that by the use of radio triggers. This helps create multiple lighting effects.

Optic S2 Secondary Unit Setting

Press <S1/S2> button so that this flash can also function as an optic S2 secondary flash with optic sensor in M manual flash mode. This is useful when cameras have pre-flash function. With this function, the flash will ignore a single "preflash" from the main flash and will only fire in response to the second, actual flash from the main unit.

• S1 and S2 optic triggering is only available in M manual flash mode.

RPT: Stroboscopic Flash

With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving subject in a single photograph.

You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output.

1. Press <MODE> button so that <> is displayed.

2. Set the flash frequency and flash times.


• Press the Function Button <Times> to select the flash times. Turn the Select Dial to set the number.
• Press the Function Button 3<Hz> to select the flash frequency. Turn the Select Dial to set the number.

3. Press the <+/-> button and turn the Select Dial to choose a desired flash output.


• After you finish the setting, press Set Button and all the settings will be displayed.

Calculating the Shutter Speed

During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the shutter speed and set it with the camera.

Number of Flashes / Flash Frequency = Shutter Speed

For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 seconds.

To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession. After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow at least 15 minutes' rest for the camera flash.

• Stroboscopic flash is most effective with a highly reflective subject against a dark background.
• Using a tripod and a remote control is recommended.
• A flash output of 1/1 and 1/2 cannot be set for stroboscopic flash.
• Stroboscopic flash can be used with"buLb".
• If the number of flashes is displayed as "--", the firing will continue until the shutter closes or the battery is exhausted. The number of flashes will be limited as shown by the following table.

Maximum Stroboscopic Flashes

ㅤ

• You can set up five slave groups for TTL autoflash shooting. With TTL autoflash, you can easily create various lighting effects.
• Any flash settings for the slave units(auto flash, manual flash and stroboscopic flash) on the master flash in TTL mode will be automatically sent to the slave units. So the only thing you need to do is to set the master unit for each slave group without any operation for the slave units at all during the shooting.
• This flash can work in i-TTL /M /RPT/ OFF flash modes when set as a master unit.

Note:

• Even with multiple slave units, the X series flash trigger can control all of them via wireless.
• In this user manual, "master unit" refers to the camera flash on a camera and "slave unit" will be controlled by the master unit.

Positioning and Operation Range

(Example of wireless flash shooting)

• Autoflash Shooting with One Slave Unit


• Use the supplied mini stand to position the slave unit.
• Before shooting, perform a test flash and test shooting.
• The transmission distance might be shorter depending on the conditions such as positioning of slave units, the surrounding environment and whether conditions.

Wireless Multiple Flash Shooting

You can divide the slave units into two or three groups and perform i-TTL autoflash while changing the flash ratio (factor). In addition, you can set and shoot with a different flash mode for each firing group, for up to 5 groups.

• Auto Shooting with Two Slave Groups


• Auto Shooting with Three Slave Groups


1. Wireless Settings
   You can switch between normal flash and wireless flash. For normal flash shooting, be sure to set the wireless setting to OFF.
   Master Unit Setting

   Press <> button so that < > is displayed on the LCD panel.
   Slave Unit Setting

   Press <> button so that < > or < > are displayed on the LCD panel.

2. Group Mode Selection
   1. Short press the Function Button 1 and <M> group can be changed in OFF/TTL/M. Choose one of them as master unit's flash mode.

   2. Short press the <MODE> button to gain RPT mode.


3. Setting the Communication Channel
   If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the same.
   1. Press <MENU> Button to enter C.Fn CH setting.

   2. In C.Fn CH, turn the Select Dial to choose channel ID from 1 to 32.

   3. Press the Set Button to confirm.

4. Wireless ID Settings
   Change the wireless channels and wireless ID to avoid interference for it can only be triggered after the wireless IDs and channels of the master unit and the slave unit are set to the same. Press the <MENU> button to enter C.Fn ID. Press the Set Button to choose OFF channel expansion shutdown, and choose any figure from 01 to 99.

5. Scan the Spare Channel
   To avoid the interference of using the same channel by others, this function can be used: enter the C.Fn settings and find the SCAN option. When setting it to START, it will scan from 1% to 100%. And the 8 spare channels will be displayed after the scan is completed.


6. i-TTL:Fully Automatic Wireless Flash Shooting
   Using Automatic Wireless Flash with a Single Slave Unit
   1. Master Unit Setting


• Attach a V1N camera flash on the camera and set it as the master unit.
• M/A/B/C can be set as TTL mode independently.

2. Slave Unit Setting


• Set the V1N that to be controlled as the wireless slave unit.
• The slave unit can be set as A/B/C/D/E.

3. Check the communication channel.

• If the master unit and slave unit(s) are set to a different channel, set them to the same channel.

4. Position the camera and flashes.

• Position the camera and flashes as the picture shows.

5. Check that the flash is ready.

• Check that the master flash ready indicator is lightened.

6. Check the flash operation.

• Press the master unit's Test Button < >.
• Then, the slave unit will fire. If not, adjust the slave unit's angle toward the master unit and distance from the master unit.

Using Automatic Wireless Flash with Multiple Slave Units

When stronger flash output or more convenient lighting operation is needed, increase the number of slave units and set it as a single slave unit.

To add slave units, use the same steps as setting "automatic wireless flash with a single slave unit". Any flash group can be set (A/B/C/D/E).

When the number of slave units is increased and the master unit flash firing is ON, automatic control is implemented to make all groups of flashes fire the same flash output and ensure the total flash output up is to standard exposure.

• If the slave unit's auto power off function is workable, press the master unit's test button to power it on. Please note that test firing is unavailable during the camera's regular metering time.
• The effective time of slave auto power off is changeable. (C.Fn-Sv STBY)

Using Fully Automatic Wireless Flash

The FEC and other settings that set on the master unit will also be appeared on the slave unit automatically. The slave unit does not need any operation. Use the following settings to make wireless flashes according to the same methods with normal flash shooting.

• Flash Exposure Compensation ( )

About Master Unit

Use two or more master units. By preparing several cameras that with master units flash attached, cameras can be changed in shooting while keeping the same lighting source (slave unit).

7. M: Wireless Flash Shooting with Manual Flash

This describes wireless (multiple shooting) using manual flash. You can shoot with a different flash output setting for each slave unit (firing group). Set all parameters on the master unit.

1. Setting the flash mode to<M>.

2. Setting flash output.1/2/3/4<M/A/B/C>


• Press Function Button 3 <>. Turn the Select Dial to set the flash output of the groups. Press Set Button to confirm.

3. Taking the picture.


• Each group fires at the set flash ratio.

Setting <M> Flash Mode

You can directly operate the slave unit to manually set the manual flash or stroboscopic flash.

1. Setting the slave unit.
2. Setting flash mode to <M>.


• Press <MODE> button so that <M> is displayed.
• Set the manual flash output.

RPT: Wireless Flash Shooting with Manual Flash

Setting <RPT> stroboscopic flash.

• Press <MODE> button so that <RPT> is displayed.
• Setting the stroboscopic flash.


Other Applications

Sync Triggering

The Sync Cord Jack is a Φ2.5mm plug. Insert a trigger plug here and the flash will be fired synchronously with the camera shutter.

Modeling Flash

If the camera has a depth-of-field preview button, pressing it will fire the flash continuously for 1 second. This is called modeling flash.

It enables you to see the shadow effects on the subject and the lighting balance. You can fire the modeling flash during wireless or normal flash shooting.

• To avoid overheating and deteriorating the flash head, do not fire the modeling flash for more than 10 consecutive times. If you fire the modeling flash 10 consecutive times, allow at least 10 minutes' break for the camera flash.

Auto Focus Assist Beam

In poorly-lit or low-contrast shooting environments, the built-in auto focus assist beam will automatically light on to make it easier for autofocus. The beam will light up only when autofocus is difficult and get out as soon as the autofocus becomes correct.

If you want to turn off the auto focus assist beam, set the "AF" to "OFF" on the C.Fn settings.

Bounce Flash

By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more natural-looking shot. This is called bounce flash.

To set the bounce direction, hold the flash head and turn it to a satisfying angle.

• If the wall or ceiling is too far away, the bounced flash might be too weak and result in underexposure.
• The wall or ceiling should be a plain, white color for high reflectance. If the bounce surface is not white, a color cast may appear in the picture.

C.Fn: Setting Custom Functions

The following table lists the available and unavailable custom functions of this flash.

1. Press<MENU> Button until C.Fn menu is displayed. The "Ver x.x" in the top-right corner refers to the software version.
2. Select the Custom Function No.
   • Turn the Select Dial to select the Custom Function No.
3. Change the Setting.
   • Press Set Button and the Setting No. blinks.
   • Turn the Select Dial to set the desired number. Pressing Set Button will confirm the settings.
   • After you set the Custom Function and press <MENU> button, the camera will be ready to shoot.
4. In the C.Fn states, long press the "Clear"button for 2 seconds until "OK"is displayed on the panel, which means the values in C.Fn can be reset.

1. Over-Temperature Protection

• To avoid overheating and deteriorating the flash head, do not fire more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at least 10 minutes.
• If you fire more than 30 continuous flashes and then fire more flashes in short intervals, the inner over-temperature protection function may be activated and make the recycling time over 10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then return to normal.
• When the over-temperature protection is started, is shown on the LCD display.

Number of flashes that will activate over-temperature protection

Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:

1. Other Protections

The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference:

Troubleshooting

If there is a problem, refer to this Troubleshooting Guide.

The Camera Flash does not fire.

• The camera flash is not attached securely to the camera.

→Attach the camera's mounting foot securely to the camera.

• The electrical contacts of the Camera Flash and camera are dirty.

→Clean the contacts.

The power turns off by itself.

• After 90 seconds of idle operation, auto power off took effect if the flash is set as master.

→Press the shutter button halfway or press any flash button to wake up.

• After 60 minutes (or 30 minutes) of idle operation, the flash unit will enter sleep mode if it is set as slave.

→Press any flash button to wake up.

Auto zoom does not work.

• The camera flash is not attached securely to the camera.

→Attach the camera flash's mounting foot to the camera.

The flash exposure is underexposed or overexposed.

• You used high-speed sync.

→With high-speed sync, the effective flash range will be shorter.

Make sure the subject is within the effective flash range displayed.

• You used Manual Flash mode.

→Set the flash mode to i-TTL or modify the flash output.

Photos have dark corners or only parts of the target subject are illuminated.

• The focal length of lens exceeds the flash coverage.

→Check the flash coverage you set. This flash unit has the flash coverage between 28 and 105mm, which fits medium-format cameras.

Firmware Upgrade

• The USB port is a Type-C USB socket. Type-C USB connection line is applicable.
• As the firmware upgrade needs the support of Godox G3 software, please download and install the "Godox G3 firmware upgrade software" before upgrading. Then, choose the related firmware file.
• As the product needs to do firmware upgrade, please refer to instruction manual of the newest electric version as final.

Compatible Camera Models

This flash unit can be used on the following Nikon series camera models:

This table only lists the tested camera models, not all Nikon series cameras. For the compatibility of other camera models, a self-test is recommended. Rights to modify this table are retained.

Maintenance

• Shut down the device immediately should abnormal operation be detected.
• Avoid sudden impacts and the product should be dedusted regularly.
• It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
• Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
• This product, except consumables e.g. flash tube, is supported with a one-year warranty.
• Unauthorized service will void the warranty.
• If the product had failures or was wetted, do not use it until it is repaired by professionals.
• Changes made to the specifications or designs may not be reflected in this manual.
