CQR SO/PICCOLO/**/G3/S5 - 12 Volt Internal Sounder Manual

Description

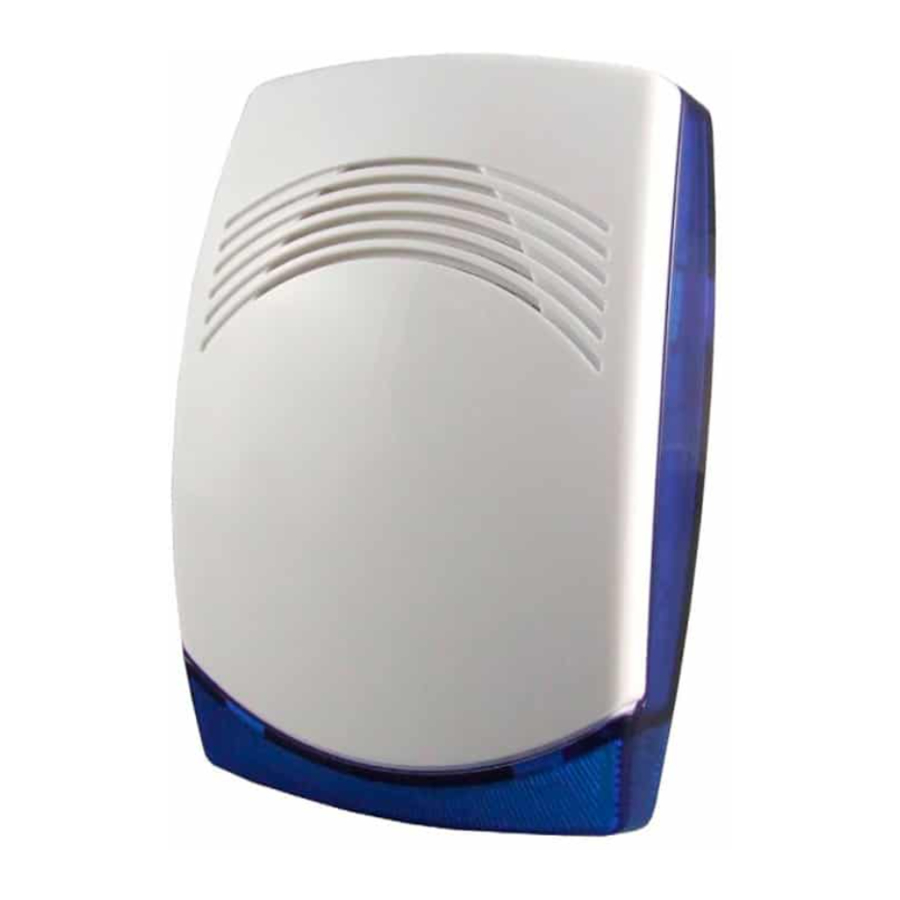

This remotely powered internal sounder can be installed in security systems up to and including Grade 3 Environmental class II in accordance with EN50131:2006 + A1:2009. It is certified by Telefication to EN50131-4:2009. The warning device gives an audible and visual signal of alarm activation. The LED's can also be wired independently to indicate the system status. The sound output is selectable for either alternating or continuous tone. It is also protected against tampering by means of lid removal and removal from the mounting surface.

Mounting Instructions

Identify a suitable mounting location for the sounder on a flat wall. To remove the lid, use a cross point screw driver to unscrew the lid retaining screw enough turns so that the lid is released. Grip both sides or by pressure to the lid top, push the lid away from the screw as shown in the diagram. The lid can now be removed completely. Using the sounder as a template, mark the fixing points on the surface of the selected location. Drill 3 x 5mm holes for the enclosed wall plugs, insert the wall plugs into the holes, feed the cable through the cable entry point on the sounder and using No8 panhead screws, fix the sounder to the selected location. Please note in order for the sounder's tamper protection to detect unauthorised removal from the mounting surface, which is a requirement for grade 3, the bottom fixing hole must be used. Do not overtighten this screw as this is a one time operation and if broken or damaged the sounder will need to be replaced.

Wiring Options

There are five terminals for the connection of wires as shown above. To activate either the sounder or the flashing LED's, connect a negative to the common negative terminal (C-ve) and connect a positive to the appropriate positive terminal ( S+ve or F+ve). To stop the sound or flashing LED's, remove the positive. Terminate the wires into the appropriate terminals. The sound and flash can be wired independently or together, see wiring diagrams over. The default setting for the tone is alternating, to change this to continuous, move the switch from position S1 to S2. Please note that continuous tone does not comply with EN50131-4 In addition to the five main terminals there are also two extra terminals which can be wired independantly to a 12 volt supply from the control panel, this continously powers the two main LED's at a lower intensity and can be used to indicate the system status i.e. set/unset. Once the unit is wired up, replace the lid by reversing the instructions overleaf. Secure the lid with the screw and finally fit the screw hole plug supplied.

Connection Examples

S = Sound +ve

F = Flashing LED's +ve

C = Common -ve

Tamper x 2 = Lid and mounting surface tamper.

System status indication x 2

Specifications
