CQR SO/PICCOLO/**/G3/S5 Operating And Installation Instructions

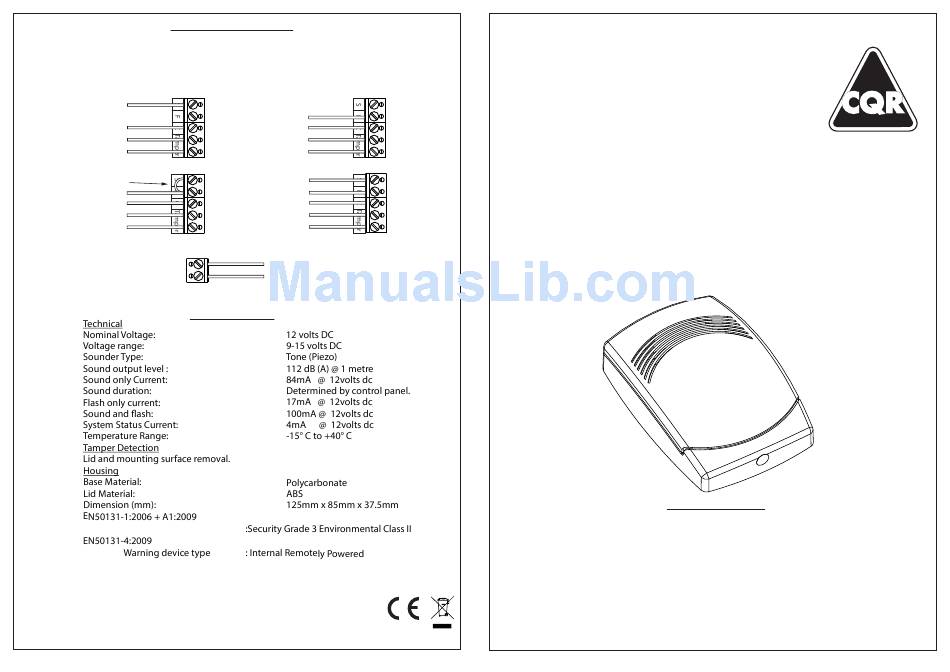

Connection Examples
S = Sound +ve
F = Flashing LED's +ve
C = Common -ve
Tamper x 2 = Lid and mounting surface tamper.
System status indication x 2
+ve
Not Connected
-ve
Tamper
Sound only
Link
+ve
-ve
Tamper
Linked Sound & Flash
System status indication. (Permanently illuminates LED's at lower intensity.)
Specifications
Safety Precautions
Always observe local regulations when disposing of this unit
Plastic bags can suffocate, always dispose of packaging carefully
Environmental Advice.
This product is covered by current WEEE regulations. Please consider the effect on the
environment when disposing of it. Do not put in a domestic waste bin. Only dispose of
at an appointed recycling centre.
4
Not Connected
+ve
-ve
Tamper
Flash only
+ve sound
+ve flash
-ve common
Tamper
Independent Sound & Flash
+ve supply
-ve supply
RoHS compliant.

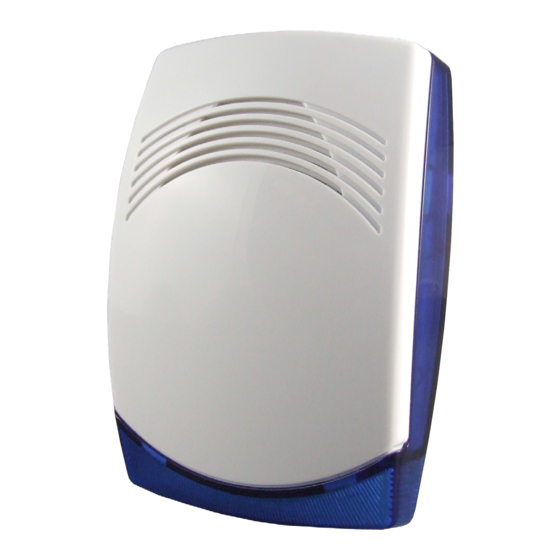

SO/PICCOLO/**/G3/S5
12 volt Internal Sounder
** denotes lens and lid colour
Low profile design.
112dB sound output.
Selectable alternating or continuous tone.
Flashing alarm indication.
System status indicator
Low current consumption.
Tamper protected lid and mounting.
Operating and Installation
Instructions
Description
This remotely powered internal sounder can be installed in security systems up to and
including Grade 3 Environmental class II in accordance with EN50131:2006 + A1:2009. It is
certified by Telefication to EN50131-4:2009. The warning device gives an audible and visual
signal of alarm activation. The LED's can also be wired independantly to indicate the system
status. The sound output is selectable for either alternating or continuous tone. It is also
protected against tampering by means of lid removal and removal from the mounting
surface.
CQR Security. 125, Pasture Road, Moreton, Wirral. CH46 4TH, United Kingdom
Tel: +44 (0) 151 606 9595 Support: +44 (0) 151 606 6311 email: info@cqr.co.uk Web http://www.cqr.co.uk
FIRE & SECURITY
1
SO/PICCOLO/G3 Issue 05
