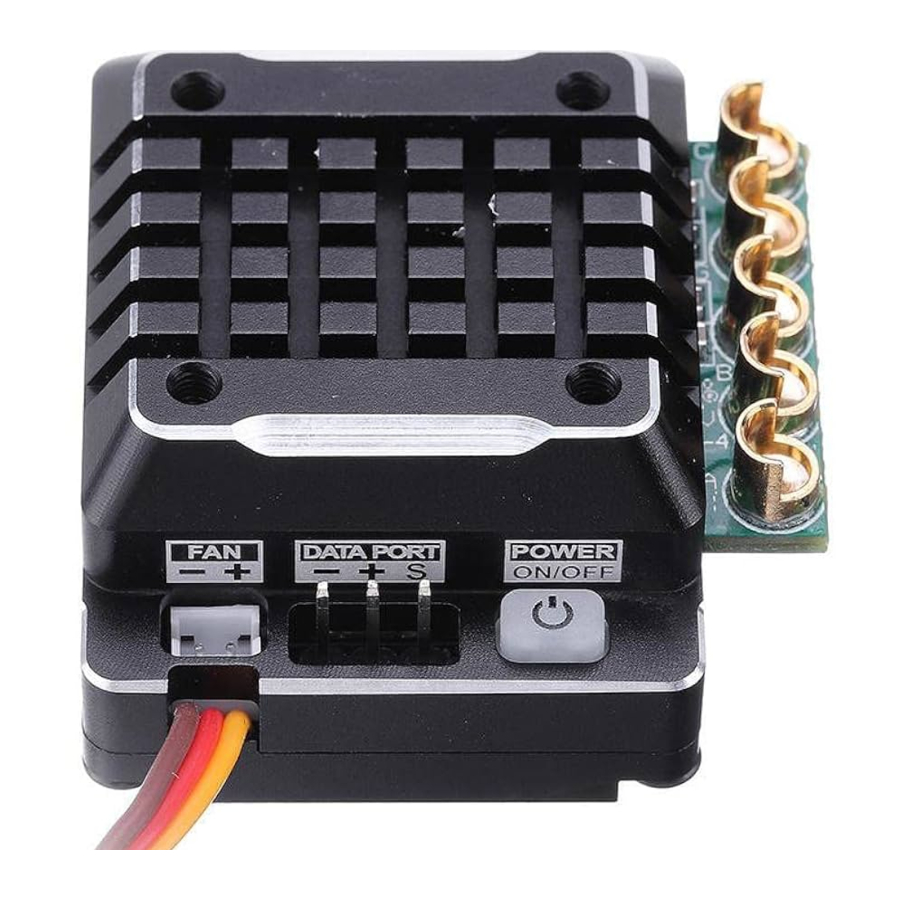

Skyrc TS120 - Advanced Timing System Manual

INTRODUCTION

Please read the Instruction Manual thoroughly before you use the product. These operating instructions are designed to ensure that you quickly become familiar with its features and functions and make full use of this product.

FEATURES

  • Users could set the turbo and boosting timing which can improve the motor RPM to get its best performance.
  • Well-performed throttle and brake control function could control the punch/brake rate by point and the point can be set by user. The precision of the punch/brake rate is 1%. And the user could also custom the throttle/brake curve.
  • Punch control is reasonable and precise with the T+1 Control Technology. It can meet different customers' request for Line and power.
  • Users could modify the setting, monitor the ESC and motor status at any time by smart phone.
  • The system of heat dissipation is effective basing on the analysis of thermo genesis of heat effect and heat transfer modeling. It can help the ESC to get best output power and the best performance.
    Thermo genesis:
    Red copper connector is used internal of the ESC. It can decrease the internal resistance at high current situation and the thermal resistance.
    The circuit is managed by intelligent thermal management kernel algorithm which can improve driving skill and adjust the control time of the dead band. The dynamic loss can be reduced effectively when the motor is running at high speed or the user changes the motor speed frequently so that the motor can be more stable when running.
    Heat transfer:
    The internal resistance can be reduced by laminated copper stack control technology and cooling fan design (8V 0.2A 20000RPM) so that the dynamic thermal equilibrium can be got. In this case, the aluminum heat sinks can works effectively.
  • The electronic switch is built in so that it could save space. And the electronic switch is more sensitive and reliable.
  • The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
  • Safety features: low voltage protection, motor and ESC overheat protection and signal lost protection.
  • It can be programmed by program box, PC ( connected with SKYLINK) or smart phone via Bluetooth module.
    The firmware can be updated by connecting the ESC with PC or smart phone.

SAFETY NOTE

  • It is not a toy and suitable for users older than 14 years old.
  • Never allow water, moisture, oil or other foreign materials to get inside ESC, motor, or on the PC Boards. It may damage the ESC completely.
  • Never disassemble the ESC and modify the components on the PC Boards.
  • Suggest using the original wires and connectors which are packed in the box.
  • Never solder one part for more than 5 seconds as some components will get damaged by high temperature.
  • Never run the ESC w/o load at full throttle and it may damage the bearings and other moving parts.
  • Please make sure the location where to fix the ESC has good airflow ventilating so that the heat could dissipate quickly.
  • To avoid short circuit, please keep the ESC connectors far away from other metal parts.
  • Never connect the battery in polarity in reverse.
  • Please remove the pinion gear before performing calibration and programming functions with this system. Please keep your hands, hair, cloth, clear from the gear train and wheels of an armed high performance
  • Before you switch on the ESC, please make sure all the cables are well solder with the connectors (It is easy to get loose when running). What's more, make sure the cables not touch the moving parts.
  • Electronic motor timing will increase the temperatures of ESC and brushless motor. Use extreme caution when setting up and testing your application to avoid overloading and overheating.
  • Incorrect Boost and Turbo timing setting may cause permanent damage to the ESC and motors. Please choose proper ratio and timing setting according to motor's instruction.
  • To avoid signal interference, please always turn on the transmitter first THEN turn on the speed control. Do the opposite when powering it off.
  • Never use faulty accessories, e.g. motor which may damage the ESC. Always insulate exposed wiring with heat shrink tubing or electrical tape to prevent short circuits, which can damage ESC too.
  • Always disconnect the battery pack from the speed control when not in use to avoid short circuits and possible fire hazard. When the ESC is switched off, there is still small current and it may cause over discharge of the battery after some time.
  • The ESC can support 4-9 cells NiMH or 2-3 cells LiPo battery.

Note: We will not be responsible for any damage caused by non-compliance with above instruction.

PREPARATION

  1. Plan Speed Control Placement
    Choose a location for the speed control that is protected from debris. To prevent radio interference, place the speed control as far away from the radio receiver as possible and keep the power wires as short as possible. Select a location that has good airflow ventilating. If the ESC gets air flow, it will run cooler; and that means it will be more efficient.
  2. Mount Speed Control in Vehicle
    Use double-sided tape to mount the speed control in vehicle (do not use CA glue). Use double-sided tape to mount the switch where it will be easy to access. Select a position where it will not get damaged or get switched OFF during a crash or roll-over.
  3. Soldering
    Cut the ESC's BLUE, YELLOW & ORANGE silicone motor power wires to the desired length and strip about 3.2mm-6.35mm (1/8"-1/4") of insulation from the end of each wire. "Pre-tin" the wire by heating the end and applying solder until it is thoroughly covered.

    By very careful not to splash yourself with hot solder.
    Place the ESC's BLUE Phase 'A' motor wire onto motor's 'A' solder tab and solder. Use soldering iron to apply heat to exposed wire; begin adding solder to tip of soldering iron and wire. Add just enough solder to form a clean and continuous joint from the plated area of the solder tab up onto the wire. Solder the ECS's YELLOW Phase 'B' motor wire to the motor's 'B' solder tab and Solder the ESC's ORANGE Phase 'C' motor wire to motor's 'C' solder tab.

CONNECTION

CONNECTION

  1. Connect the motor sensor harness to ESC. Insert the 6 pin connector on the end of the motor's sensor wires into ESC's sensor harness socket.
  2. Connect Throttle lead to ESC and other end to the Receiver (Throttle Channel, Ch2)
  3. Solder the motor and the ESC.
  4. Connect ESC to batter pack.

ESC CALIBRATION

Calibration is necessary for the first use of the ESC, or whenever used with a new/different transmitter. Individual transmitter's signals for full throttle, full brake and neutral vary. You must calibrate your ESC so that it will operate more effectively with your transmitter.

How to calibrate the ESC?

  • ESC switch OFF.
  • Connect the ESC to the battery and the motor.
  • Turn on the transmitter.
  • Press and hold the ESC switch for few seconds, the motor will ring long beep once. After that, the red LED will blink the motor will ring like beep-beep-beep... in a row which indicates it is time to set the neutral position, full throttle and full brake one by one. You could release the ESC switch now.
  • Keep the throttle trigger in neutral position, press the ESC switch once, the green LED will blink once then extinguish and the motor will ring beep once which indicates the neutral position has been set.
  • Hold full throttle and press the ESC switch once, the green LED will blink twice then extinguish and the motor will ring twice like beep-beep which indicates the full throttle has been set.
  • Move the throttle trigger to full brake and hold full brake, press the ESC switch once, the green LED will blink three times then extinguish and the motor will ring three times like beep-beep-beep which indicates the full brake has been set.
  • After the calibration is finished, keep the throttle in neutral position, the red LED will stay ON, the ESC and the motor is ready to work.

ESC ON/OFF AND LED INDICATOR

  1. ESC ON/OFF: When the ESC is OFF, press the switch once, the motor will ring beep once and the red LED will stay on (Motor boost and turbo timing is on), then the ESC is ready to work. When the ESC is on, press the switch once, the LED will extinguish and the ESC is OFF.
    Note 1: After running at full load, the ESC will be very hot. In this case, please turn off the ESC after it cools down. Or turn off the transmitter to power off the ESC.
    Note 2: When the motor is running, the ESC can't be powered off by pressing the switch; when the motor stops working, the ESC can be powered off. In an emergency, please disconnect the battery to power off the ESC.
  2. Explanation of LED Indicator
    The throttle trigger is in neutral position Red LED is blinking (zero timing)
    The throttle trigger is in neutral position Red LED stays on
    (Motor boost and turbo timing is on)
    The motor is running while the throttle trigger doesn't reach to the highest throttle/brake position Green LED is blinking.
    The throttle trigger is at the highest throttle/brake position. Green LED stays ON

ESC PROGRAMMING

The ESC can be programmed by program box, PC (connected with SKYLINK) or smart phone via Bluetooth module.

Programmable Items and Description

Section Program Item Description
General Setting Running Mode Forward/Brake Forward/Brake/Reverse Forward/Reverse
Motor Direction Normal Reverse
Reverse Speed 25-100% (in 1% increment)
Voltage Cutoff 3.0-11V (in 0.1V increment) Auto (3.2V)
ESC Overheat Protection 85℃/185℉ 105℃/221℉ 125℃/257℉ Disable
Motor Overheat Protection 85℃/185℉ 105℃/221℉ 125℃/257℉ Disable
Throttle Control Punch Rate Switch Point 1-99%(in 1% increment)
1st Stage Punch Rate 1-100%(in 1% increment)
2nd Stage Punch Rate 1-100%(in 1% increment)
TH Input Curve Line Custom
Throttle Dead Band 0.002-0.150ms
Throttle Status
Brake Control Drag Brake 1-100%(in 1% increment)
Brake Strength 0-100%(in 1% increment)
Initial Brake =Drag Brake 0-50%
Brake Rate Switch Point 1-99%(in 1% increment)
1st Stage Brake Rate 1-100%(in 1% increment)
2nd Stage Brake Rate 1-100%(in 1% increment)
Brake Input Curve Line Custom
Boost Timing Boost Timing 0-64 deg (in 1° increment)
Boost Start RPM 1000-35000RPM (in 500RPM increment)
Boost End RPM 3000-60000RPM(in 500RPM increment)
Boost Liner Slop Line Custom
Boost Constrain by TH Yes No
Turbo Timing Turbo Timing 0-64 deg (in 1° increment)
Turbo Activation Method Full TH RPM Full TH+RPM
Turbo Full TH Delay Instant 0.05-1S(in 0.05S increment)
Turbo Start RPM 9000-50000RPM/MIN(in 1000RPM increment)
Turbo Engage Slop 1-64 deg/0.1S (in 1° increment)
Turbo Deactivate Slop Instant 1-64 deg/0.1S(in 1°increment)

*The output power of the motor will be improved when you adjust the motor timing. Electronic motor timing will increase the temperatures of ESC and brushless motor. Use extreme caution when setting up and testing your application to avoid overloading and overheating. Incorrect Boost and Turbo timing setting may cause permanent damage to the ESC and motors. Please choose proper ratio and timing setting according to motor's instruction.

Here is some suggestions about motor timing,

Motor Turns 3.5T/4.0T 4.5T/5.5T 6.5T/7.5T 8.5T/9.5T 10.5T/11.5T ≥13.5T
Boost Timing 0 0 10 15 20 30
Turbo Timing 10 15 45 55 45 55

Profiles Preset

The users could preset and store 10 sets of profiles in the ESC. These data could be called out for application at any time without any special program setting. The user could also reset the profile according to his request. There is one factory default setting called Modify in the ESC. This mode can be used for modify class of touring car racing.

Setting Details of Modify Mode

Modify Mode Setting Value

Section Program Item Description
General Setting Running Mode Forward/Brake
Motor Direction Normal
Reverse Speed 25%
Voltage Cutoff 3.2V/1S
ESC Overheat Protection 105℃/221℉
Motor Overheat Protection 105℃/221℉
Throttle Control Punch Rate Switch Point 50%
1st Stage Punch Rate 25%
2nd Stage Punch Rate 50%
TH Input Curve Line
Throttle Dead Band 0.080ms
Throttle Status
Brake Control Drag Brake 10%
Brake Strength 75%
Initial Brake =Drag Brake
Brake Rate Switch Point 50%
1st Stage Brake Rate 75%
2nd Stage Brake Rate 95%
Brake Input Curve Line
Boost Timing Boost Timing
Boost Start RPM 15000RPM/MIN
Boost End RPM 25000RPM/MIN
Boost Liner Slop Line
Boost Constrain by TH Yes
Turbo Timing Turbo Timing 10°
Turbo Activation Method Full TH
Turbo Full TH Delay 0.1S
Turbo Start RPM 20000RPM/MIN
Turbo Engage Slop 62°/0.1S
Turbo Deactivate Slop 40°/0.1S

How to program the ESC?

  1. PC via SKYLINK (optional part SK-600013)
    How to program the ESC - Step 1
  2. Smart Phone via Bluetooth Module (optional part SK-600058)
    How to program the ESC - Step 2
  3. Program Box (optional part SK-300046)
    How to program the ESC - Step 3

SPECIFICATION

Constant/Burst Current 120A/760A
Motor Compatible Brushless Sensor & Sensorless ESC
Car Compatible 1/10 and 1/12 Buggy and Truck
1/10 and 1/8 Crawlers
Motor Limits 5-6S NiMH or 2S LiPo--≥3.5T(1/10 Buggy), ≥5.5T(1/10 Truck)
8-9S NiMH or 3S LiPo--≥5.5T(1/10 Buggy), ≥8.5T(1/10 Truck)
Resistance 0.0003ohm
Battery Cell Count 4-9S NiMH or 2-3S LiPo
BEC Output 6V@3A, line
Size 39x38x20mm (LxWxH)
Weight 45g (w/o wire)
FAN 8V@0.2A, MAX 12.6V

REMARK: All the testing results are working with 540 class motors with standard timing.

Manufactured by
SKYRC TECHNOLOGY CO., LTD.
www.skyrc.com

© 2013 SkyRC Technology Co., Ltd. All Rights Reserved.
7504-0332-01 Ver 1.0
