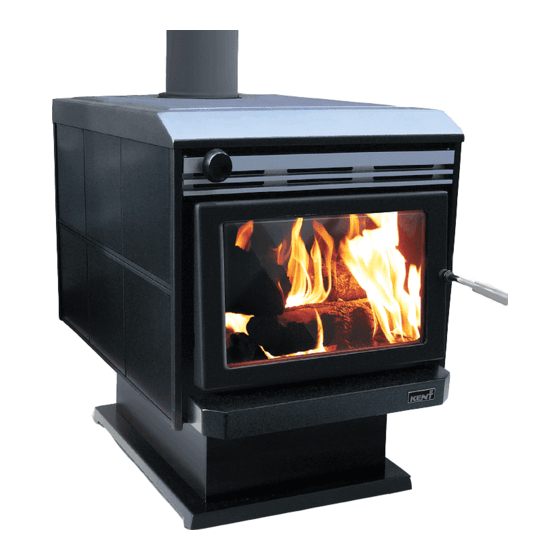

KENT Tilefire, KWF296-6068 - Wood Stove Standard Installation Manual

GENERAL INFORMATION

1. The Tilefire Freestanding Wood Heater, when installed according to these instructions, complies with the provisions of AS/NZS 2918- 2001 Appendix B - "Thermal Testing of Installation Clearances".
2. You must obtain a Building Consent from your Local Authority before installing this heater, and we suggest that your Insurance Company be advised of the installation.
3. Do not allow any makeshift compromise installation methods. This could result in a house fire. The Tilefire must be installed according to these instructions. We suggest that a New Zealand Home Heating Association-registered installer be used for installing the appliance.
4. The clearances given in these instructions are necessary to prevent overheating of nearby combustibles and drying out of the house structure. They may not be reduced without authorisation.
5. There must be a clearance of at least 1 metre between the front of the Tilefire and any building structure or other substantial immovable object in front of the heater.

PRIOR TO INSTALLATION

1. The minimum requirements for installing your Kent heater are an assembled heater, a hearth, a flue kit and material for flashing the roof penetration.
2. Select the location for the heater, bearing in mind the clearances required (Refer Table 1 and Fig 1).

   Table 1

   	Minimum Installation Clearances								Hearth Clearances
   (mm)	A	B	C	D	E	F	G	H	J	K	L	M	N
   With flue shield	75	300	300	200	150	260	565	457	890	1120	1350	1000	760

3. Check the proposed route of the flue to ensure it is clear of roof trusses and rafters in the ceiling space or other obstructions. We recommend that the flue is vertical and without elbows or bends if possible, and installed strictly in accordance with the manufacturer's installation instructions. Oversize flues may reduce the performance of the heater and should not be used.
4. The Tilefire requires up to 40 cu.m/h of fresh air for burning, and this must come from outside the house. A normal house will allow enough air in through incidental openings to satisfy this. We recommend that a source of air be located near the heater for best performance. This can be a window that is left ajar while the heater is in use. If this is not possible, and the house is particularly air-tight, a vent may need to be installed next to the heater to provide the air required. Lack of air will lead to a heater that is hard to light and get going, or in bad cases, to smoke spilling back into the room. This situation can also lead to excessive carbon monoxide levels through incomplete combustion.

FLUE SYSTEMS

The flue system should be vertical and without bends. If an offset is required, it should be as close to the heater as practicable and should not be offset more than 500mm from the centreline of the flue stub. Clearances from the flue pipe to combustible materials must be maintained (refer Table 1 and Fig 1). Restrictions or leaks in the flue system may reduce the draught, and, in severe conditions, could cause smoke to enter the room. The flue pipe shall extend not less than 4.6m above the top of the floor protector. The flue cowl must be at least 600mm above the highest point of the roof if within 3 metres of it, or 1000mm above the roof penetration if more than 3 metres from the ridge. No part of the building, or any adjacent building may be in, or above, a circular area of a horizontal radius of 3 metres from the flue exit (Fig 2 *).

* These heights are given as a general minimum, and in actual practice the presence of surrounding structures, trees, fences, etc. may necessitate additional height for satisfactory performance. The cowl must be fitted to prevent entry of birds, snow and rain. At all flue joints, the swaged end of the upper piece must be fitted to the plain end of the lower piece.

FLOOR PROTECTOR

An insulating floor protector is not required for the Tilefire heater, but a floor protector of non-combustible material must be used. The floor protector must extend under the heater, a minimum of 300mm in front of the door opening, and 180mm to either side of the heater. The minimum floor protector size for a wall installation is 890mm wide and 1120mm front to back, excluding trim. For a corner installation the minimum length along the wall is 1000mm and diagonally from the corner to the front edge is 1350mm, also excluding trim.

ASSEMBLY

The Tilefire is supplied with additional component packs that contain the ash spill tray, fire bricks, baffle and air tube and plinth. Before starting assembly, please unpack these and familiarise yourself with the components as you read these instructions.

when lifting the heater, always lift from under the cabinet outer surround. DO NOT LIFT from the door, ash spill tray or front air slide as these will be damaged.

Begin assembly by laying the heater carefully on its back on a padded surface. Place the 4 coach-bolts from the bolt pack through the holes in the floor of the firebox from inside and screw on the hexagonal spacer nuts. Place the heat-shield onto the bolts with the turned up edge facing the door frame. Fit the plinth wrapper onto the bolts and fix in place with lock washers and nuts. Note that the open side of the plinth wrapper must face to the rear of the heater (Refer Fig. 3). Screw the plinth base to the wrapper using 4 screws provided (Refer Fig. 4). Place the heater back onto its base, taking care to lift the heater, not roll it, to avoid damage to components.

SEISMIC RESTRAINT

The heater must be restrained against movement due to earthquakes. The Tilefire is restrained by fixing the heater to the floor with two bolts of 6mm diameter through the holes provided in the plinth base, through the hearth and floor and fixed with heavy washers and nuts. For solid concrete floors, use 8mm DYNABOLTS^® or similar with a minimum depth of engagement into the floor of 50mm. Location of fixing bolts (Refer Fig. 5)

DOOR HANDLE AND DOOR

The door handle is pre-fitted and should not require any adjustment on assembly of the heater. Any adjustment required to maintain the correct fit of the door is made at the door catch pin on the right side of the door lip. To adjust the fit of the door catch, loosen the lock nut and turn the eccentric pin to loosen or tighten the fit. Re-tighten the lock nut (refer Fig. 6).

AIR CONTROL KNOB

The air control knob is fitted to the stem with a grub-screw to retain it. If this requires replacing, it will be necessary to loosen this screw before pulling off the knob. Refit the knob by lining up the flats in the knob with the flats on the stem and pushing home. Tighten the grub-screw.

ASH SPILL TRAY

Fit the ash spill tray under the door opening by placing the hex head bolts through the two holes under the door lip, from inside the firebox, and screw them into the two captive nuts in the back face of the ash spill tray.

FIREBRICKS, BAFFLE PLATE AND AIR TUBE

Fit the secondary air tube, if not already fitted. The tube has a notch in one end - this is the right hand end. Slide the sleeve from the component pack onto the tube. Place the tube into the firebox and insert the left end into the hole in the left side of the firebox. Lift the right end up and slide it into the hole in the right side of the firebox, rotating it to allow the notch to fit over the tab in the hole (refer Fig. 7).

Slide the sleeve to the left until it enters the hole in the left side of the firebox, and retain it with the pin supplied. The pin should pass completely through the sleeve and air tube. Note that the sleeve should not project outside the firebox. If necessary, reverse the sleeve on the air tube (refer Fig. 8).

The brick pack comprises 8 bricks 280mm x 115mm x 25mm, and two bricks 250mm x 188mm x 25mm. Place the baffle plate into the firebox and hold up against the roof while 4 bricks are placed on end on either side of the firebox. Note that the baffle is placed with the concave surface down. Lower the baffle plate down onto the bricks so the tops of the bricks are retained behind the angles on either side of the plate. Fit the two remaining wide bricks on end across the back of the firebox. It may be necessary to fit these by putting the two outer edges of the bricks into position against the side bricks and then pushing both inner edges back at the same time like a folding door (refer Fig. 9). Ensure the baffle plate is pushed hard against the back wall of the firebox.

FLUE INSTALLATION

Once the heater and hearth are positioned correctly and bolted down, install the flue as described in the Manufacturer's Instructions included in the flue kit. It is very important for safety that the instructions are followed correctly and no parts are omitted or altered. Once all components are correctly installed, your heater is ready for use. On initial light up, the presence of smoke may be noticed. This is normal and will dissipate quickly. DO NOT BURN YOUR HEATER TOO QUICKLY TO BEGIN WITH. Allow several small fires to build up a layer of ash in the heater, and cure the paint before using maximum power.

FOR MORE INFORMATION, REFER TO THE INSTALLATION INSTRUCTIONS INCLUDED WITH THE FLUE KIT.

SPARE PARTS

Certain parts of the Tilefire will require periodic replacement in normal use. These parts include the baffle plate and air tube, the door rope and glass seal, firebricks and control knobs and handles. Because we have no control over the conditions of use of the heater, we cannot say how long these parts may last. Replacement parts may be purchased from your Kent dealer. To ensure the correct parts are ordered, please refer to the parts diagram (Refer Fig. 10), and advise the dealer of the date of purchase and serial number of the Tilefire. The serial number is located on the identification plate on the back panel of the panels, For enamelled panels, please also advise the colour of the panels required.

TILEFIRE PARTS DIAGRAM

1. Top Decorative Panel
2. Top Surround
3. Firebox Assembly
4. Back Panel
5. Rear Heat Shield
6. Tile Holder and Tiles
7. Front Tile Holder Bracket-RH
8. Base Heat Shield
9. Plinth Wrapper
10. Plinth Base
11. Air Slide
12. Ash Spill Tray
13. Door Handle Assembly
14. Door Seal Rope
15. Glass Retainer
16. Door Glass and Seal Tape
17. Door frame
18. Air Control Knob
19. Alloy Grille
20. Secondary Air Tube, Bush and Pin
21. Firebricks
22. Upper Plate/Baffle
23. Front Tile Holder Bracket-RH
24. Tile Holder and Tiles

Single Storey Flue Install

Second Storey Flue Install
