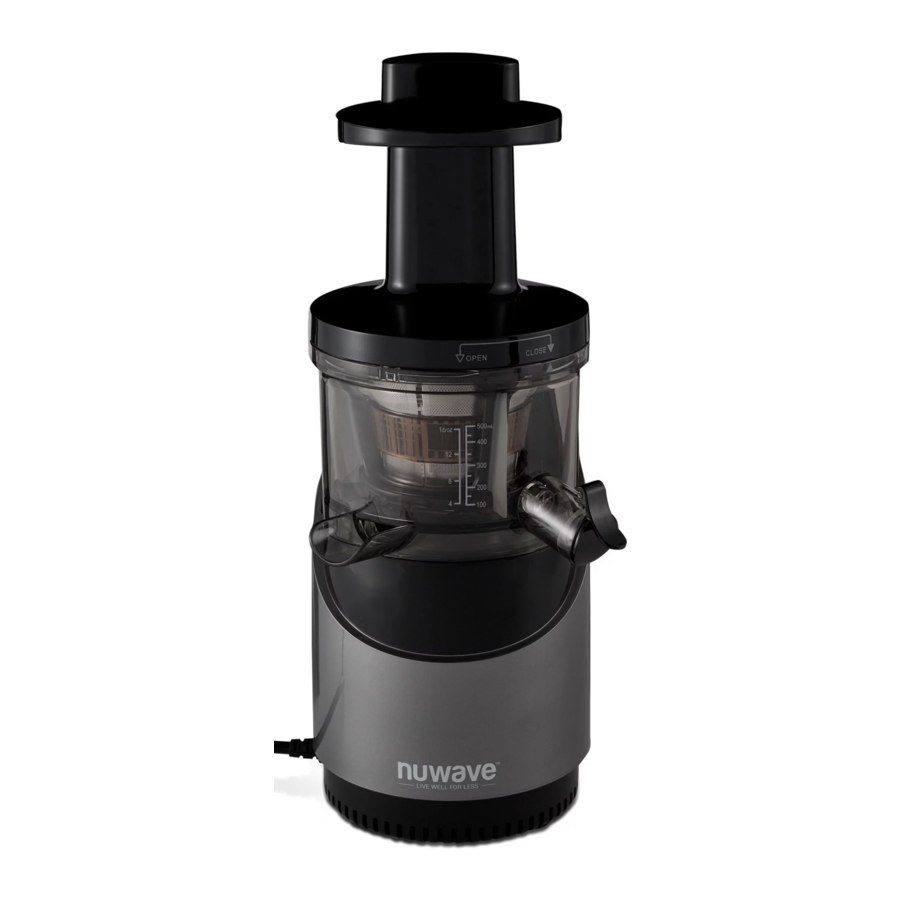

NuWave Nutri-Master - Slow Juicer Manual

NuWave Nutri-Master - Slow Juicer Manual

Also See for Nutri-Master:

Advertisement

NuWave Nutri-Master - Slow Juicer Manual

IMPORTANT SAFEGUARDS

All users of this appliance must read and understand these safety precautions before operating to avoid personal injury or damage to the appliance.


Hazards or unsafe practices that could result in appliance damage, serious personal injury or death.

  1. When using electrical appliances, basic safety precautions should always be followed. Read all instructions before using the NuWave Nutri-Master Slow Juicer.
  2. Close supervision is necessary when any appliance is used near children.
  3. To protect against risk of electrical shock, do not put the main body (motor) in water or any other liquid.
  4. Avoid contact with moving parts.
  5. Unplug from outlet when not in use, before assembling or taking off parts and before cleaning.
  6. To protect against electric shock, DO NOT immerse cord, plug or any part of the main unit in water or any other liquids.
  7. Do not operate any appliance with damaged cord or plus, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to NuWave, LLC for examination repair or electrical or mechanical adjustment.
  8. Always make sure hopper is securely fastened in place before motor is tuned on. Do not unfasten hopper while juicer is in operation.
  9. Do not let cord hang over edge of table or counter.
  10. Be sure to turn switch to off position after each use of your juicer. Make sure the motor stops completely before disassembling.
  11. Do not put your fingers or other objects into the juicer while it is operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble juicer to remove the remaining food.
  12. Do not place on or near a hot gas or electric burner or in a heated oven.
  13. Do not use outdoors.
  14. Do not use appliance for other than intended use.
  15. Do not use chamber if it is cracked or chipped.
  16. Do not use attachments not recommended or sold by the product manufacture.
  17. Do not plug or unplug the product into/from the electrical outlet with a wet hand.
  18. To disconnect from an electrical outlet, pull directly on the plug: do not pull on the power cord.
  19. Children should be supervised to ensure that they do not play with the appliance.
  20. Do not let the power cord come in contact with hot surfaces, including the stove.
  21. Do not operate the appliance if the rotating sieve is damaged.
  22. Only operate the appliance if the pulp container is in place.
  23. Never insert ingredients by hand. Always use the provided food pusher.
  24. Do not attempt to remove parts when locked in place. Always ensure that parts are rotated to the open position before removing.

SAVE THESE INSTRUCTIONS


Hazards or unsafe practices that could result in minor personal injury or appliance damage.

  1. Do not operate without locking the Hopper properly.
  2. Do not attempt to juice hard materials such as large seeds (those that cannot be swallowed or chewed), pits, or ice.
  3. Do not attempt to move the base while operating.
  4. Do not put any parts into the dishwasher or use abrasives to clean. Expose to heat or abrasives can cause damage.
  5. Do not operate the appliance while the Chamber is empty. Operating without adding any ingredients will damage the Auger.
  6. If food gets stuck in the feeding tube, do not use anything other than provided pusher.
  7. Do not use for more than 30 minutes continuously (for household use only).
  8. If the appliance gives off an unpleasant smell or smoke or overheats, stop using immediately and contact customer service. When using a new appliance, it may give off a smell, which will disappear naturally over time.
  9. Do not input fruit preserved in sugar, honey, alcohol, etc, as the hopper may not open easily.
  10. Always unplug the appliance after use.
  11. Always place the product on a flat, level, stable surface.
  12. Keep the product out of reach of children and pets. This product is not intended for use by children.
  13. After using the Slow Juicer, user should clean the Auger with mild detergent and cooking oils such as olive oil or canola to remove color from pigment from the fruit.

PARTS DESCRIPTION

PARTS DESCRIPTION

  1. Pusher
    Model# 27121
  2. Hopper
    Model# 27133
  3. Auger
    Model# 27122
  1. a Fine Strainer
    Model# 27123
  1. b Coarse Strainer
    Model# 27124
  2. a Spinning Brush
    Model# 27125
  1. b Silicone Brush
    Model# 27126
  2. a Chamber
    Model# 27127
  1. b Pulp Spout
  1. c Juice Spout
  1. d Juice Cap
    Model# 27128
  2. Cleaning Brush
    Model# 27132
  3. Base
    Model# 27131
  4. Pulp Container
    Model# 27130
  5. Juice Container
    Model# 27129

ASSEMBLY INSTRUCTIONS

  1. Place the Strainer (Fine or Coarse) inside the Spinning Brush. Push the Strainer into the Spinning Brush until the edges properly align and the Strainer easily rotates within the Spinning Brush.

    ASSEMBLY INSTRUCTIONS - Step 1
    Both the Strainer and Chamber have Red Dots which indicate proper alignment.
  2. Lower the Spinning Brush with Strainer attachment into the Chamber. Place the Spinning Brush inside the Chamber so that the Red Dots are properly aligned. Do not force the Spinning Brush downward during assembly.
  3. Place the Auger directly in the middle of the Strainer attachment and carefully rotate the Auger clockwise until it is properly secured and aligned.
  4. Ensure that the Juicer power switch is set to the OFF position. Place the Hopper on top the Chamber with OPEN aligned with the arrow on the Chamber.


    Rotate the Hopper clockwise until CLOSE is aligned with the arrow on the Chamber and the Hopper is locked into place.
    ASSEMBLY INSTRUCTIONS - Step 2
  5. Place the Chamber onto the Base ensuring that the arrow on the back of the Hopper is aligned with the arrow on the base. The Chamber must be properly sealed and aligned on the Base to function.
    ASSEMBLY INSTRUCTIONS - Step 3

SPINNING BRUSH DISASSEMBLY


    • Remove the Strainer from the Spinning Brush.
    • Locate the inner groves on the Spinning Brush.


    • Pull the center tab of the Silicone Brush out.

    • Push the top of the Silicone Brush down towards the center opening.

    • Pull the top tab out.

    • Pull the bottom of the Silicone Brush up towards the center opening.

    • Pull the bottom tab out.
    • Reverse steps to assemble

      warning Note: Use the Cleaning Brush to clean the Spinning Brush, Silicone Brush and Strainers.

OPERATING INSTRUCTIONS

  1. Ensure that the power switch is set to OFF before operating.

  2. Set the power switch to FORWARD to begin.

  3. OPERATING INSTRUCTIONS - Step 1
    • Gently insert ingredients into the Hopper to juice. Only use the Pusher if ingredients become lodged in the Hopper.
    • Once juicing is complete and all pulp has been ejected, set the power switch to OFF.
      OPERATING INSTRUCTIONS - Step 2


Ensure that the Auger has completely stopped moving before setting the power switch to FORWARD or REVERSE.

Cleaning
Once you're done juicing, ensure the power switch is set to OFF and position the pulp spout over your sink or waste receptacle. Set the power switch to REVERSE to easily and quickly remove excess pulp from the chamber.

Are you unable to open the Hopper after juicing?

  • After juice extraction, pour water into the hopper. The hopper will open easily after simple cleaning.
  • Press and hold the power switch on REVERSE for 3-4 seconds. This releases pressure from the chamber and makes opening the Hopper easier.


DO NOT SUBMERGE BASE UNDER WATER.

PRECAUTIONS


Ignoring or otherwise disregarding directions and label warnings may result in serious injury or death. Do not plug or unplug the appliance with wet hands or when water is present near the power source. This may cause electric shock or injury.
Only operate the appliance with a power source of 120V AC. Not doing so may result in suboptimal performance, electric shock or even fire. If the power source uses a different voltage, it may result in motor failure.

Plug the power cord into a proper outlet, pushing it tightly and securely into place. Failing to properly plug in the power cord may result in electric shock or fire.
If the power cord is damaged, do not plug it into an electric outlet or attempt to operate the appliance. This may result in electric shock, injury or fire.

IF THE POWER CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER.

Do not alter, disassemble or otherwise alter the appliance. Do not insert foreign objects into the appliance. This may result in appliance failure, electric shock or fire.

For technical support, contact our customer service department by calling 1-877-689-2838 or emailing help@nuwavenow.com Monday-Friday from 7:00AM to 8:00PM (CST).

Do not dampen or otherwise splash water on the Base. Never operate the appliance with wet hands. Always ensure that liquids do not get into the power switch. This may result in electric shock or fire.

Never insert your fingers or other foreign objects such as kitchen utensils into the Hopper or Chamber during operation. Never disassemble the Chamber during operation. This may result in appliance failure or injury.

KEEP OUT OF REACH OF CHILDREN. THIS APPLIANCE MUST NEVER BE USED BY CHILDREN.


When violating the labeling requirement, it may cause serious injury or damage to the appliance.
Do not operate without locking the hopper properly. It may cause an injury or a failure.

DO NOT INSERT A FINGER OR FOREIGN OBJECT INTO THE CHAMBER.

If the Auger has stopped rotating during normal operation, press and hold the power switch on REVERSE for 3-4 seconds. Then, set the power switch to FORWARD to resume juicing. If this fails to solve the problem, then disassemble and reassemble the Chamber and try again. If the Auger repeatedly stops rotating during operation, parts may be damaged and performance may be compromised. Should this problem continue to occur, immediately cease operation and contact the customer service department for assistance.

Do not attempt to move the Base, disassemble the Chamber or attempt to lock parts while the appliance is in operation. This may result in appliance failure or injury. Should you need to attempt any of these actions, set the power switch to OFF and unplug the power cord before doing so.

Exercise caution when operating the appliance while wearing loose clothing such as neckties and scarves in order to prevent accidents.

Always place the appliance on a flat, stable surface.
Do not operate the appliance for more than 30 continuous minutes. This may cause the motor to overheat and fail. Let the appliance rest for about 1 hour in order for the motor to cool down sufficiently before operating once again.

Only add ingredients to the Hopper safely using your hands or the provided Pusher, when necessary. Do not use any other objects as inserting foreign objects into the Hopper may cause appliance failure or injury.

Always use care when operating or transporting the appliance.
If the appliance begins to smoke or gives off an unpleasant smell, cease operation immediately and contact the customer service department for assistance.

Always unplug the appliance between uses. Disconnect the appliance from the power supply when left unattended and before assembly or disassembly. When unplugging the appliance, always hold the power cord directly. Pulling on the wire may cause electric shock or fire.

Do not clean the appliance at temperatures 176°F (80°C) or higher. Do not place the appliances in a microwave oven, dishwasher or dryer. This may cause the parts to deform and appliance failure.

The appliances weighs 14.3 lb. (6.5 kg) when empty. When transporting the appliance, always grab the appliance by the Base with both hands. Do not hold the appliance by the Hopper or Chamber. This may damage the appliance.

TROUBLESHOOTING GUIDE

When the Auger stops during operation
TROUBLESHOOTING GUIDE - Step 1
Press and hold the power switch on REVERSE for 3-4 seconds. This releases pressure from the chamber and makes opening the Hopper easier.

  • While set to REVERSE, the appliance will push ingredients upward.
  • REVERSE only functions while the power switch is held down. The appliance will automatically shut off when the power switch is released.

TROUBLESHOOTING GUIDE - Step 2
If these steps are followed and the Auger remains motionless, disassemble the Chamber, clean all parts and reassemble to try again.

warning Note: If the Auger still won't turn after following the above directions, disassemble chamber set, clean the parts and try again. If the Auger is stuck in place, or the Hopper cannot be easily removed, set the power switch to REVERSE, then OFF, then FORWARD and repeat the process 2-3 times to safely dislodge the stuck parts.


When the power switch is set to OFF, the Auger will not immediately stop moving. Do not set the power switch to FORWARD or REVERSE while the Auger is moving. Wait until the Auger comes to a complete stop before operating.

PROBLEM POSSIBLE CAUSE RESOLUTION
The appliance will not start. Power supply is cut off. The chamber is not properly aligned. Ensure that the power cord is properly plugged into a working outlet. Check that all parts are properly assembled and reassemble if necessary.
The Chamber is stuck on the Base. Excessive ingredients or unknown objects are stuck in the Chamber. Press and hold the power switch on REVERSE for 3-4 seconds. Repeat 2-3 times as necessary then gently remove the Chamber from the Base.
The Hopper is stuck in the Chamber. Excessive ingredients or unknown objects are stuck in the Chamber. Press and hold the power switch on REVERSE for 3-4 seconds. Repeat 2-3 times as necessary then gently press down on the Hopper while turning to remove. Do not attempt to forcefully remove the Hopper.
The appliance has stopped working during normal operation. Excessive ingredients or unknown objects are stuck in the Chamber. The appliance has automatically shut off due to overheating. Let the appliance cool down for about 5 minutes before resuming operation. Press and hold the power switch on REVERSE for 3-4 seconds. Repeat 2-3 times as necessary.
The appliance emits a squeaking noise during operation. There is friction between the Chamber and Auger. This squeaking noise is perfectly normal. Do not operate the appliance without inserting ingredients.
The appliance vibrates while in use. Vibration is perfectly normal. Vibration is perfectly normal. If there is excessive vibration, causing imbalance, check that the Auger is defective and contact customer service if necessary.
There is a watermark or scratch on the Auger. These marks are created during the manufacturing process and are perfectly normal. These marks occur over time and do not affect the performance of the appliance.
Parts of the appliance have become stained. Dyes found naturally in foods. Some dyes found naturally in foods are perfectly normal and do not affect performance of the appliance. To minimize staining, rinse and clean the parts after every use.
There is mold present on the Silicone Brush Improper cleaning. Detach and thoroughly clean the Silicone Brush after every use.
The Strainer is damaged. Excessive ingredients, large, hard objects such as ice or pits, or unknown objects are stuck in the Chamber. Refer to Operating
Instructions for proper usage and juicing instructions. Do not force excess foods into the Chamber.
Parts are not able to be properly assembled. Parts have been exposed to abrasive materials or excessive heat. Do not clean any parts in the dishwasher or with harsh detergents. If your parts have been deformed, contact customer service for assistance.
Juice contains too much pulp. Excessive ingredients or unknown objects are stuck in the Chamber, clogging the strainer. Food hasn't been cut into small enough pieces. Cut ingredients into smaller pieces to prevent fibers from becoming stuck in the Auger. Insert ingredients at a slow pace, allowing sufficient time for pulp to be ejected before adding more ingredients.

For more information regarding the Nutri-Master Slow Juicer please contact Customer Service

1.877.689.2838
help@nuwavenow.com

Monday-Friday 7:00 AM - 8:00 PM CST

www.NuWaveNow.com
