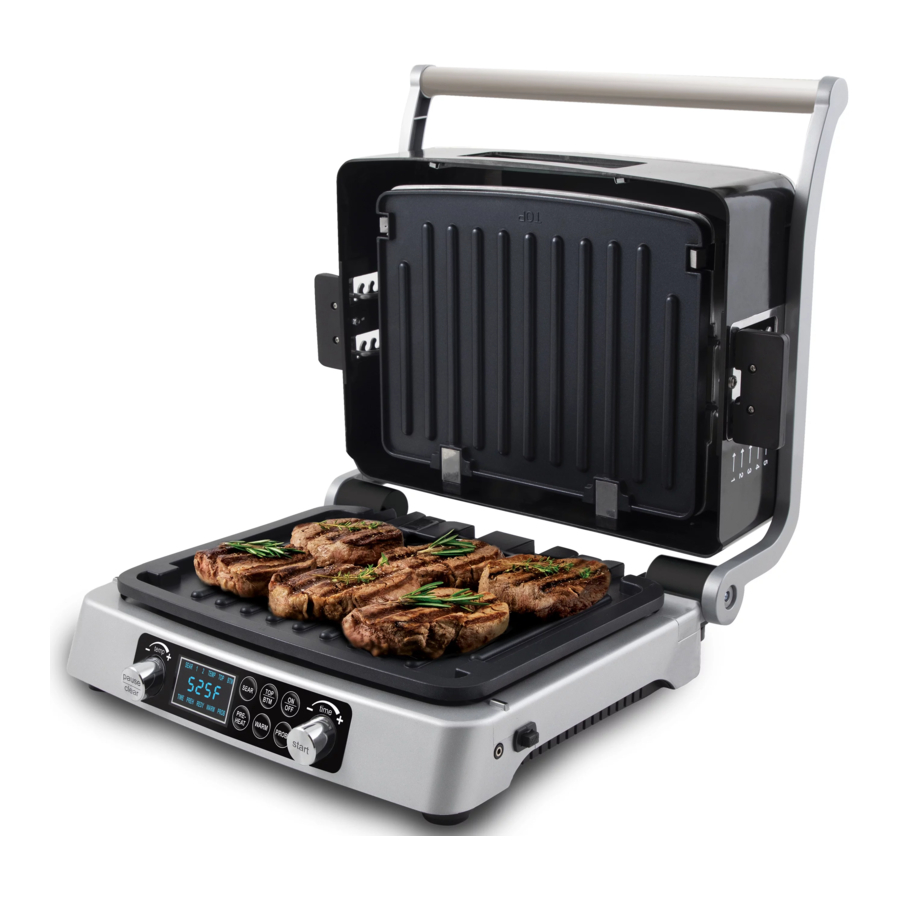

NuWave Jubilee 35001 - Digital Grill with Temperature Probe Manual

PRODUCT REGISTRATION

REGISTER NOW for an additional 3 mounths warranty!
As a special thank-you for registering your NuWave unit, you'll automatically receive an additional 6 months added to your limited manufacturer's warranty!*
All you have to do is follow these simple steps.

1. Using your smartphone or smart device, scan the QR code located on the unit label on the back of the unit.

2. You will be directed to NuWave's product registration page with your unit's unique serial number automatically entered in the appropriate field.
   NOTE: If you do not have a web-enabled smart device, simply visit nuwavenow.com/QR and manually enter in your unit's serial number.
3. Fill out the remaining information and complete the optional survey.
4. Once you submit your information, you will receive a confirmation email containing your extended warranty details.

*Register your product within 1 year of date of purchase for a free 3-month extension of your limited warranty.

DOWNLOAD THE QR CODE APP TO YOUR MOBILE DEVICE

1. Open your mobile app store (App Store, Google Play).

2. Search for "QR code readers."

3. Simply download the QR code reader to your phone, open it, scan the code and you are ready to go.
   NOTE: You may need to open your downloaded QR code reader each time you want to scan a QR code.


IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

When using the Jubilee, basic safety precautions should be followed:

1. Do not touch hot surfaces. Only use handles or knobs.
2. To protect against electrical shock, do not immerse cord, plugs, or the Jubilee in water or other liquids.
3. Do not operate the Jubilee with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
4. If the power cord is damaged, do not attempt to operate the Jubilee.
5. Close supervision is necessary when the Jubilee is used near children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. The use of other accessories that are not intended to be used with the Jubilee is not recommended. Doing so may damage the Jubilee and can cause accidents.
7. NOT INTENDED FOR OUTDOOR USE.
8. Do not let cord hang over edge of table or counter or touch hot surfaces.
9. Do not place on or near a hot gas, electric burner, or in a heated oven.
10. Extreme caution must be used when moving the Jubilee containing hot oil or other hot liquids.
11. To disconnect, turn the Jubilee "OFF", then remove plug from the wall outlet.
12. FOR HOUSEHOLD USE ONLY.
13. Do not leave appliance unattended while in use.
14. Never put the Jubilee against a wall or other appliances. Keep at least a minimum of 3 inches of free space for the back, left/right sides, and top of the appliance.
15. Never place objects on top of the Jubilee.
16. Never leave utensils in contact with any part of the Jubilee, including Grill Plates.
17. Never use sharp-edged or metal utensils on any part of the Jubilee, including Grill Plates, as scratching may occur. Use only wood or heatproof, plastic utensils.
18. Do not use aluminum foil or other objects between Grill Plates and the food while cooking.
19. Do not disassemble. There are no user-serviceable parts.
20. Do not remove the Drip Tray from appliance when cooking.
21. Do not place a hot Grill Plate under water, on a fragile surface, or on a countertop.
22. Turn off and unplug the Jubilee when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
23. Keep this manual handy for future reference.

ADDITIONAL SAFEGUARDS

SEE CLEANING AND MAINTENANCE BEFORE USE

Electrical Information
A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
If a longer detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it could be pulled on by children or tripped over unintentionally. The Jubilee should be operated on a separate electrical outlet from other operating appliances due to wattage limitations. Certain models of the appliances may have a polarized plug (one blade is wider than the other). To reduce the risk of an electric shock, this plug is intended to fit into a polarized outlet one way. If the plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit properly, contact a qualified electrician. Do not attempt to modify the plug in any way.
3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS
Read and understand the entire manual before using the Jubilee.

1. Turn power OFF and unplug when the Jubilee is unattended.
2. Do not operate the Jubilee if abnormal sounds are detected. Inspect the Jubilee's parts after each use and after the unit has cooled down. If there are loose, damaged, or missing parts, contact Customer Service at 1-877-689-2838 or email help@nuwavenow.com.
3. Always use extreme caution when operating and maintaining the Jubilee or any appliance.
4. Children should be supervised to ensure that they do not play with the appliance.
5. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

DO NOT USE THE JUBILEE FOR OTHER THAN ITS INTENDED USE.
Note: Put the Jubilee on a surface that is horizontal, even, and stable. This appliance is intended for normal household use. It is not intended to be used in environments such as staff kitchens/ cafeterias of shops, offices, farms, or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts, and non-residential environments.

Never use the Jubilee with loose, damaged, or missing parts.

NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS, ADDITIONAL SAFEGUARDS, OR THE INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR JUBILEE THAT CAN VOID YOUR WARRANTY AND CREATE THE RISK OF SERIOUS INJURY.

In case of malfunctions, immediately unplug and contact Customer Service Department.
1-877-689-2838 • help@nuwavenow.com

PARTS & ACCESSORIES

1. Grill Lid Part #: 35612
   Top Shell Part #:35612a
   Handle Bar Part #:35612b
   Outer Shell Part #:35612c
   Hinge (Right) Part #:35612d
   Hinge (Left) Part #:35612e
2. Handles
   Part #: 35613
3. 1. Grill Hook
      Part#: 35616 (Left)
   2. Grill Hook
      Part#: 35617 (Right)
4. 1. Top Grill Plate
      Part #: 35614
   2. Bottom Grill Plate
      Part #: 35615
5. Grill Base
   Part #: 35611
6. Drip Tray
   Part #: 35619
7. Probe
   Part #: 35620

For replaceable parts head over to Replaceable Parts section and then NuWaveNow.com

Before First Use
Before using your Jubilee, remove all packaging, stickers, and adhesives. Wipe outside of unit with a damp cloth. Dry all sides thoroughly before use. Wash all removable parts in warm, soapy water or in the dishwasher, top rack only.
Hand-wash both sides of the Grill Plates or clean in dishwasher, top rack only. Dry Grill Plates thoroughly before assembling into Grill Base and Lid. Using a clean cloth or paper towel, apply small amount of oil onto Grill Plates (sides facing out) before using for the first time. See Cleaning & Maintenance.

ASSEMBLY GUIDE

Grill Plate Assembly

Make sure your Jubilee is on a flat, stable surface before installing Grill Plates. The Jubilee should be fully open (at a 90-degree angle) when assembling or removing Grill Plates.

Top Grill Plate Assembly

1. For first-time assembly, locate Top Grill Plate and Handles. Before attaching Top Grill Plate to Jubilee, make sure top (adjustable) Handles are in position 1. See Removing the Handles under Cleaning & Maintenance for more.


2. Once Handles are in place, slide Top Grill Plate onto the tabs at the back of the Top Grill Plate Assembly.

3. Push the Top Grill Plate into position so that the Grill Plate Clips snap into place


Allow Grill Plates to cool down completely before removing after use.

Drip Tray Assembly

Your Jubilee comes with a Drip Tray for easy removal of grease.

1. Locate slot for sliding Drip Tray into appliance on the back of the Jubilee.

2. Carefully slide in Drip Tray into opening.

   • Always make sure Drip Tray is assembled into the Jubilee before cooking.
   • Tray only slides in one way.

Probe Assembly

1. Take end of Probe (plug) and connect into end of the unit (jack).
2. Insert other end of Probe into the food. Push "start". Unit will start to cook at desired temperature. See Probe under INSTRUCTIONS for more.


As with most electrical appliances, electrical parts are live even when the Jubilee is off. Make sure the unit is unplugged when assembling.

QUICKSTART

ON/OFF
Press ON/OFF. This button also stops any cooking function. While cooking, press ON/OFF to cancel.

START
Select a cooking function, press start to begin cooking. Default is 375˚F for 10 min.

TEMP
Turn pause/clear to adjust the cooking temperature before and while cooking.

TIME
Turn start to adjust the cooking time before and while cooking.

TOP/BTM
Adjusts the temperature of the Top and Bottom Grill plates. Press TOP/ BTM, turn pause/clear to adjust. Press TOP/BTM to adjust the Bottom Grill Plate. Temperatures range from 0˚F to 475˚F.

SEAR
Sear your food before the regular cooking process. 525˚F for 2 min. are the defaults. Press SEAR. If preferred, adjust Sear temp and time and press start.
Note: The Sear function can be set for before or after regular cooking cycle. Refer to SEAR in INSTRUCTIONS for details.

WARM
Quickly warm your favorite leftovers. 145°F for 60 min. are the defaults. Press WARM and use the dials to adjust temperature and time. Press start to begin.
Note: Refer to WARM in INSTRUCTIONS for details.

PREHEAT
For crispier results, 375˚F is the defaults. If preferred, adjust Sear temp and time and press start. Once the unit has reached the set temperature the Jubilee will beep and a 5-minute countdown will begin. Place your food into the Jubilee, set your cooking temperature and time, and press start.

PROBE
Use the Digital Probe for perfect results every time. 160˚F is the default.
Plug the Probe into Jubilee unit (Jack). Press and hold PROBE for 2 seconds and set Probe target internal temperature for food using pause/clear. Insert the other end of the Probe into your food.
Press start to begin cooking.
Note: Refer to Probe in INSTRUCTIONS for details.

INSTRUCTIONS

Getting Started

1. Press ON/OFF once to turn your Jubilee on. The unit is set to default at 375˚F for 10 min.

2. After the unit is turned on, adjust the times and temperature by turning the dials.
3. Press start. Time will be displayed and a countdown will begin.

See Temperature and Time for adjusting your temperature and time.

Pause/Clear

1. When cooking, press pause/ clear once to pause the unit.


• If time was displayed, the remaining time will be displayed.
• To resume cooking press start.
• Temperature and time can still be adjusted while in pause.

2. Press pause/clear again to clear any program out. If the display is showing the remaining cooking time when the unit is paused, the display will continue to show the remaining time. Conversely, if the display is showing the cooking temperature when the unit is paused, the display will continue to show the temperature.

Top/Bottom

The Jubilee can cook your food using heat from the top, bottom, or both. Default is 375˚F for 10 min.

1. Press TOP/BTM.

   • Turn pause/clear to adjust temperature between 0˚F and 475˚F.

   • If set to "0F", the Top (upper) Grill Plate will be off.
2. Press TOP/BTM again. BTM will be displayed.
   • Adjust the temperature as needed between 0˚F and 475˚F.
   • If set to "0F", the bottom (lower) Grill Plate will be off.

Temperature

Use pause/clear on the left to decrease or increase temperature.

1. Turn pause/clear to the right toward (+) to increase temperature or to the left (-) to decrease temperature.
   • Temperature range is 60˚F ~ 475˚F in 5-degree increments.
2. To decrease or increase the temperature in larger increments, turn dial quickly.

Time

Use start on the right to decrease or increase time.

1. Turn start to the right toward (+) to increase time or to the left (-) to decrease time.
   • Time range is 00:00-99:59. Displays in minutes and seconds.
2. To decrease or increase the time in larger increments, turn dial quickly.

Preheat

1. Set your cooking temperature and time.
2. Press PREHEAT.

3. Press start. The unit will start preheating to the set cooking temperature.

   • Once the desired temperature is reached, REDY and 5 will be displayed and a 5-min. countdown will begin.
4. Place your food onto the Grill Plate. Press start and a countdown will begin.
   • If food is not placed onto grill within 5 min. and start is not pressed, the unit will turn to standby mode.

Sear

Use "SEAR" to cook your foods at a high temperature before, after, or when using a combination of cooking with regular temperatures.

Sear 1
Sear 1 always functions BEFORE regular cooking.

1. Press SEAR.

   • Default is 525°F for 2 min.

   • Time can be adjusted for up to 5 min.
2. Press start. A countdown for 2 min. will begin.
   • When the countdown is finished the unit will cook at 375°F for 10 min. and the countdown time will be displayed.
   • When cooking is done, End will be displayed.

Example: Press ON/OFF >> Adjust cooking temperature and time to 300˚F for 20 min. >> Press SEAR once >> Press start.
The unit will:

• Cook at 525˚F for 2 min.
• Cook at 300˚F for 20 min.
• Finish cooking and display End.

Sear 2
Sear 2 always functions AFTER regular cooking stages.

1. Press SEAR three times.

   • Default is 525°F for 2 min.

2. Press start. The unit will cook at 375°F for 10 min., and then sear at 525°F for 2 min.
   • When the cooking has finished, End will be displayed.
   • Use the dials to adjust your temperature and time for the phase of cooking after SEAR. When the cooking has finished, End will be displayed and the unit will beep three times.

Example: Press ON/OFF >> Adjust cooking temperature and time to 300˚F for 20 min. >> Press SEAR three times >> Press start.
The unit will:

• Cook at 300˚F for 20 min.
• Cook at 525˚F for 2 min.
• Finish cooking and display End.

Sear 1 2

1. Press SEAR twice.
   • Default is 525°F for 2 min.
2. Press start. The Jubilee will cook your food at 525°F for 2 min. and then cook at 375°F for 10 min.
   • The countdown time will be displayed during this cooking phase.
   • When the cooking has finished, End will be displayed and the unit will beep three times.
   • Use the dials to adjust the temperature and time for the phase of cooking after sear.

Example: Press ON/OFF >> Adjust cooking temperature and time to 300˚F for 20 min. >> Press SEAR twice>> Press start. The unit will:

• Cook at 525˚F for 2 min.
• Cook at 300˚F for 20 min.
• Cook at 525˚F for 2 min.
• Finish cooking and display End.

Warm

1. Press WARM. 145F will be displayed.

   • The default in WARM is 145°F for 60 min.
   • Temperature range is 60-200˚F.
   • Use the dials to adjust temperature and time in Warm mode.
2. Press start.
   • The Jubilee will start to cook at 375°F for 10 min., and then will keep food warm at 145°F for 60 min.
   • Press ON/OFF, WARM, or pause/clear at any time to stop the Warm function.
3. Once Warm function has finished, End will be displayed.

Warm as an Independent Function

1. Press ON/OFF.
2. Press and hold down WARM for 2 seconds. The grill will begin to warm.
   • Adjust warming temperature and time using the dials.

Note: To cancel Warm function at any time press WARM.

Probe

The Probe function is used to cook your food until a preset internal temperature is reached. Probe needs to be plugged into the Jubilee with other end inserted in food.

1. Press ON/OFF.
   • Adjust the cooking temperature.
2. Plug the Probe into the unit (jack). Press PROBE. 375F will change to display the current Probe temperature.

3. Press and hold down PROBE for 2 seconds to adjust the Probe temperature (default is 160F). Press and hold PROBE for 2 seconds to display the Probe set temperature.
   • To change the desired probe internal temperature during cooking, turn pause/clear. If nothing is adjusted within 3 seconds, the last probe temperature entered will be set.
4. When desired temperature of the Probe is reached, End will be displayed.
   • If sear 2 was selected, once the desired probe temperature has been reached the Jubilee will begin cooking at sear 2. When finished, End will be displayed. See Sear section for more.

   • If WARM was selected, once the desired probe temperature has been reached the Jubilee will begin cooking at WARM. When finished, End will be displayed.

Note: If PROBE is pressed and the display shows Prob1 or Prob2, one of the following problems has occurred:

1. The Probe is not plugged into the Jubilee
   Or
2. The set probe temperature is higher than the cooking temperature. (Prob2)

Adjusting Cooking Level of Top Grill Plate

The Jubilee has 5 adjustable cooking levels, making it easy to cook foods of varying thickness.
To adjust Top (upper) Grill Plate cooking level from food:

1. Holding both Handles, and move Handles with Grill Plate toward front of the unit to adjust and slide.
2. Move and slide to position higher or lower and place in chosen slot (1-5). Open and close Lid to ensure Grill Plate is secure.


Probe Temp Guide

Meats	Temp. °F	Rare °F	Med Rare °F	Med °F	Med Well °F	Well °F	Time Min.
Chicken, breast Turkey, breast Duck, breast	360					165*	6 - 8 per lb 7 - 9 per lb 5 - 7 per lb
Chicken, whole Turkey, whole Duck, whole	360					165*	8 - 10 per lb 11 - 13 per lb 10 - 13 per lb
Chicken, thigh Turkey, thigh Duck, thigh	360					165*	14 - 16 per lb 14 - 16 per lb 9 - 11 per lb
Steak 1" thick	400 or 450	125	135	145*	150*	160*	3 - 8
Burgers ½ lb	350	125	135	145	155*	160*	5 - 7
Roast Beef (bonein) Roast Beef (boneless)	325	125	135	145*	150*	160*	15 - 20 per lb 10 - 15 per lb
Lamb (bone-in) Lamb (boneless)	325	125	135	145*	150*	160*	15 - 20 per lb 10 - 15 per lb
Pork (bone-in) Pork (boneless)	350			145*	150*	160*	15 - 20 per lb 10 - 15 per lb
Salmon, Tuna, Halibut, Swordfish				145*	150*	160*	2 - 3
Fish Steaks 1" thick	350			145*	150*	160*	5 - 7
Sausage	360					160*	4 - 5
Note: Times may vary. Consuming raw or undercooked meats, poultry, or seafood may increase your risk of food borne illness. *To reduce the risk, cook your food to USDA-safe temperatures.

CLEANING & MAINTENANCE

Before First Use

Before using your Jubilee, remove all packaging, stickers, and adhesives. Wipe outside of unit with a damp cloth. Dry all sides thoroughly before use. Wash all removable parts in warm, soapy water or in the dishwasher, top rack only.

Hand-wash both sides of the Grill Plates or clean in dishwasher, top rack only. Dry Grill Plates thoroughly before assembling into Grill Base and Lid. Using a clean cloth or paper towel, apply small amount of oil onto Grill Plates (sides facing out) before using for the first time.

Cleaning the Jubilee

Between use, clean the outside and insides of your Jubilee with a soft damp cloth and mild nonabrasive soap. Do not use harsh cleansers or cleaning pads or brushes. Dry the Jubilee on outside and insides thoroughly before using again.

Do not immerse Jubilee Base in water. Clean with damp sponge or cloth and wipe dry.

Top/Bottom Grill Plate Removal

Before removing Top or Bottom Grill Plate, ensure the Jubilee has completely cooled and unit is unplugged.

1. To remove the Bottom Grill Plate, push Clip Release Button located on the right side of the bottom base. The Bottom Grill Plate releases from Grill Plate Clips.

2. Carefully remove the Bottom Grill Plate by pulling the plate toward you. The Bottom Grill Plate should easily slide out.
3. To remove the Top Grill Plate, push the Clip Release Button located on the right side of the Top Grill Assembly.

4. Carefully remove the Top Grill Plate by pulling the Plate up. The Top Grill Plate should easily slide out


Removing the Handles

The Handles on the Jubilee are removable and can be handwashed or cleaned in the dishwasher, top rack only.

1. Remove Top (upper) Grill Plate. See Top/Bottom Grill Plate Removal.

2. Locate the two silver Grill Hooks under Lid.

   • Each side will have a Hook.
3. Remove end of Hook from the slot for each.

4. Grab middle of Lid from the underneath. Lift and swing out metal ends of the Handle from holes.

5. Pull out Handle. Repeat steps for other Handle.


Cleaning the Grill Plates

When cooled, clean both sides with warm soapy water and a damp dishcloth or clean in the dishwasher, top rack only. Do not use harsh cleansers or cleaning pads or brushes. If needed, presoak the Grill Plates before cleaning.

Cleaning Between Recipes

If you are grilling different foods and the Grill Plates are not being removed, wipe any remaining food debris or grease off with a damp cloth or paper towel.

Removing the Drip Tray

1. Locate the Drip Tray in the back of the Jubilee. Tray is long and runs parallel with back rear of appliance under the hinge.

2. Carefully slide out Drip Tray.


• Tray only slides out one way.

Cleaning the Drip Tray

Oil may build up in the Drip Tray after using your Jubilee. The Drip Tray is removable. Always check before cooking to see if the Drip Tray is full.

1. Slide out the Drip Tray from the back of the Jubilee.
2. Empty out oil in the Drip Tray.
3. Clean the Drip Tray using warm soapy water or clean in dishwasher, top rack only.
4. Dry the Drip Tray thoroughly before returning to unit.

Use extreme caution when removing or disposing of oil or grease.

The power cord needs to be unplugged from the power source before inserting or removing any attachments or parts and before cleaning.

Reinstalling the Handles

To reinstall handle(s), reverse actions/steps 1-5 from "Removing the Handles."

1. Place metal ends of one Handle through the opening of position 1.
2. Insert metal ends into holes in underneath of Lid.
3. Hold in place and swing silver Grill Hook up and insert end into its slot.

4. Repeat with other Handle.
   • Ensure Handles are secure.
5. Reinstall the Top (upper) Grill Plate.
   • Open and close Lid to ensure Grill Plate is secure.

TROUBLESHOOT GUIDE

Your NuWave Jubilee was engineered with an automatic shut-off feature to prevent overheating during use.

• If the Jubilee shuts off to cool itself down, an odor may be detected. Unplug the unit and wait for it to completely cool down.
• To prevent overheating, do not cook at temperatures or settings not recommended for specific ingredients or recipes.
• Do not leave unit on or cook for prolonged times not needed.

Problem:			Solution(s):
Prb1			Probe not connected to unit.
Prb2			Probe target temperature higher than cooking temperature.
Prb3			Probe short circuit.
Prb4			Probe Sensor not detecting temperature increase.
Er1			The unit is overheating. Allow to cool. If problem persists contact Customer Service.
Err1			The unit is malfunctioning. Contact Customer Service.
Err2			The unit is malfunctioning. Contact Customer Service.

Immediately unplug and contact Customer Service Department if you experience any malfunctions. 1-877-689-2838 or help@nuwavenow.com

nuwavenow.com

Documents / Resources

References

• http://nuwavenow.com/QR
• App Store - Apple
• Google Play
• http://nuwavenow.com

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download NuWave Jubilee 35001 - Digital Grill with Temperature Probe Manual
