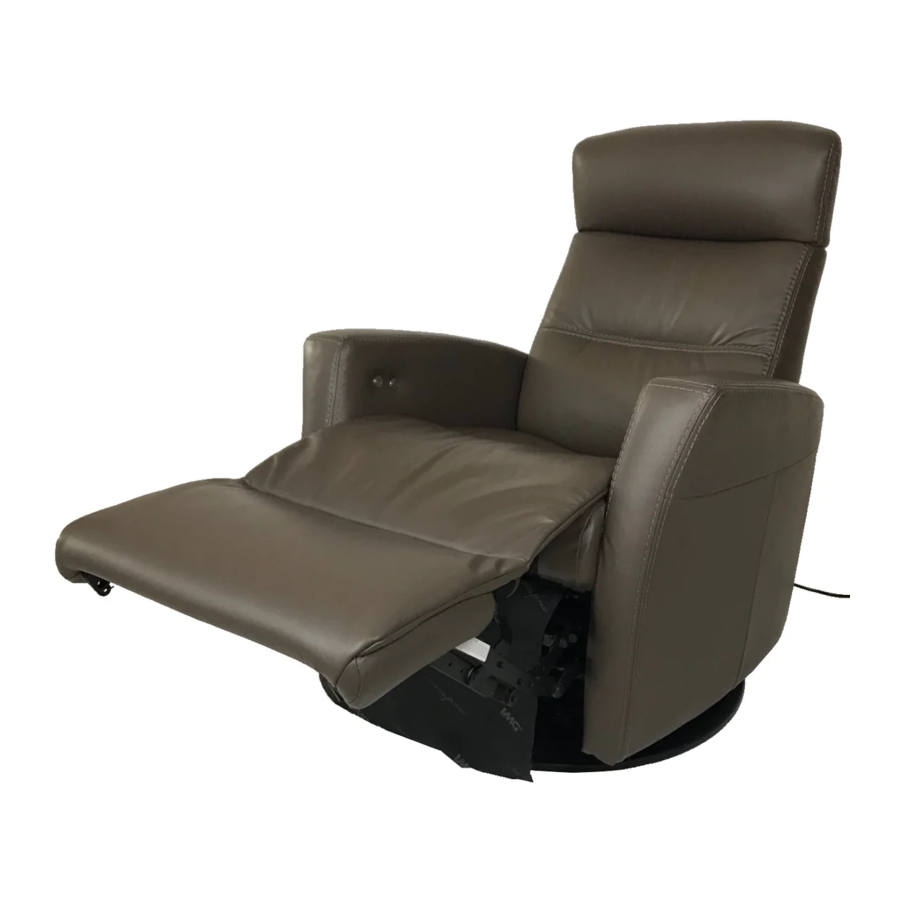

IMG Power Recliner, Motion Sofa Manual

IMPORTANT

Read this and other relevant instructions before using the product. Keep this manual for future reference.

TO REDUCE THE RISK OF INJURY.
DO NOT OPERATE THE UNIT UNTIL MODULAR UNITS ARE CONNECTED PROPERLY AND THE BACK(S) IS (ARE) INSTALLED AND LOCKED.

DO NOT PLUG THE TRANSFORMER IN UNTIL INSTRUCTED.

STEP 1

Locate the Power Transformer (s), extension cable(s) and cable plug(s). The Power Transformer(s) and Cable Plugs (s) are secured under the rear seat frame. Carefully remove them from the seat frame. Remove the packing and unwind the cables.

STEP 2

Assemble and connect modular units and install the back(s) as shown in the separate Modular seating system assembly instruction.

STEP 3

The extension cable is already connected to the motor and securely attached to the rear seat mechanism.

If you need longer extension cable cut the plastic wrapping carefully and unwind the cable.

STEP 4

Connect the Power Transformer to the Extension cable. Connect the Extension cable two prong connector with the Power Transformer receptacle. Make sure the connection is secured, with no gaps.

STEP 5

Connect the cable plug to the Power Transformer.

Make sure the connection is secured with no gaps.

STEP 6

The cable from the switch to the motor is already attached and secured as long as the switch is placed on a side arm. When the switch is placed on the side of a center arm you need to connect the switch cable to the motor. Please take the cable placed under the center arm and unwind it enough so it can reach the motor receptacle.
Сonnect the switch cable to the motor.
Make sure the connection is secured.

STEP 7

Make sure that any cords or cables are properly secured and stays away from moving parts and the mechanism.

STEP 8

Repeat 3-4 for multiple seats.

STEP 9

Choose a location for the unit(s) that is close to an electrical outlet and plug in the cable plug(s).

SAFETY RULES

READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING.

TO REDUCE THE RISK OF ELECTRIC SHOCK OR SERIOUS INJURY:

Disconnect the electrical plug from the wall outlet before cleaning, moving, servicing or when not in use for an extended period of time.
Do not use this product if it is wet, in water, around water or any liquid.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

Always keep open flame and lit cigarettes away from upholstered furniture. Upholstered furniture may burn rapidly with toxic gas and thick smoke.
Closely supervise children and disabled persons using this product.
Sit down in the unit slowly. To avoid tip over, do not throw your weight against the back of the unit. Move the unit into or out of the reclining position slowly, making sure that no children or pets are in close proximity.
This product has many moving parts, serious injury can occur if not used properly. Keep children and pets away from the mechanism. Keep hands, fingers and body parts away from the mechanism.
Only the occupant should operate the unit. Never attempt to open the legrest by pulling on it.
Do not stand, sit or place extra weight on the arms, back or open legrest.
To safely exit the unit and prevent a tripping hazard bring the back upright and close the legrest.
Do not use this product if it is damaged. Do not use attachments or substitute parts.
This product is intended for indoor residential use only.
Provide a clear path for operation of the chair, back and legrest. Place tables and rugs at a distance to allow the legrest to fully extend without rubbing or interference.
Check the condition of the power transformer, electrical cord, plug and connectors regularly. Keep the power transformer and electrical cords away from heat sources. Never operate the unit with a damaged power transformer, electrical cord, plug or connector. Contact your IMG dealer for service.
Do not use unit if power control is damaged or wet. Do not use unit if e.g. the hand control unit has been dropped in water or any liquid. Contact your IMG dealer for service.
This product is not intended for use as a health care device.
Users of medical devices should contact their health care provider before using this product. Do not use this product if you have poor circulation, are immobile or cannot sense heat, except as directed by your health care provider.
Do not use this product where aerosol (spray) products are being used or where oxygen is being administered.
Do not operate the unit until the back is installed and locked.
Use care when moving the product. Before lifting the product, secure the mechanism to prevent unexpected opening or movement. Never move the product by the mechanism, legrest, handle, reclining back or swivel base. Disconnect modular units. Securely grip non-moving parts only.
Do not attempt to disassemble or service the motor. No serviceable parts are inside. Contact your IMG dealer for service information.
Keep hands, arms and body parts away from the open area between a reclined back and an upright back on a motion sofa. This area must remain clear at all times to provide unobstructed movement and prevent injury that could occur when a reclined back is returning toward the upright position.
