IMG Modular Seating System Instruction Manual

USER INSTRUCTION
By using the handle located at the inside of the arm or between seats - the
footrest can be unfolded and the back can be regulated into rest positions.
FOLDED FOOTREST (IN) UNFOLDED FOOTREST (OUT)
• The back is locked in upright • The back angle can be
position adjusted from upright to
• Neck can be adjusted rest positions
• The neck and head support
can be adjusted
The built-in footrest can be unfolded by pushing the handle up placed
inside of the arm or between seats. To fold in the footrest you should use
your feet to press the footrest down towards the floor and move your
bodyweight forward in the chair.
Do not use shoes directly against the footrest. This could cause damage to
the cover/upholstery. Do not sit on the armrests. Never lift/carry the chair
by the back or the footrest. Lift the chair by grabbing under the chairs arms
or base. Two people are required to lift/carry the chair.
MAINTENANCE
Bolts, screws and knobs can loosen after an extended period. This can
create damage to the frame and instability to the furniture. Therefore, it is
important to check and tighten all bolts, screws and knobs periodically. IMG
recommends you to do this at least every four (4) months or as needed.
IMG Relaxers are equipped with an advanced mechanism that is made with
many components, springs and moveable parts. Naturally, some sounds
from the steel frame mechanism will occur. To avoid uncomfortable sounds
you should tighten the screws regularly and use a few drops of oil or
transparent grease on all screws and pivot points. Use penetration oil spray
that is not too liquid to avoid leak/spill or transparent grease suitable for
this type of application. Please ask your retailer for more information.
SAFETY RULES
PS! Please be aware that improper use can cause injury.
• The back cover skirt(s) must always be properly fastened with Velcro
tape to avoid hands/fingers accessing into the chairs mechanism from
the rear.
• Adult supervision is required at all times when children are using the
furniture, as moving mechanisms may be triggered causing serious
injury.
• Mechanisms must only be triggered by the person sitting in the chair
at the time.
• Keep hands and feet away from the mechanism(s).
• Always leave the chair(s) in upright position with folded in footrest.
• Do not sit on the armrest.
• Never sit on the footrest. Do not use the chair(s) or footrest(s) as step
ladder.
• Use care when moving the product. Before lifting the chair secure the
mechanism(s) to prevent unexpected opening or movement. Never
move the chair by the mechanism, leg-rest, handle, back or base.
Disconect modular units before moving. Securly grip non-moving
parts like arms or seat frame.
• Each chair can only be used by one person at a time.
• Armrest protection covers are recommended where supplied
(for fabric cover).
• If parts are missing, broken, damaged or worn – cease use of the
product until repairs are made, by a factory authorized parts only.
• Failure to follow these warnings could result in serious injury.
IMG Group AS Postboks 251 N-6239 Sykkylven Norway
Tel: + 47 70 27 10 40 office@imgcomfort.com
imgcomfort.com

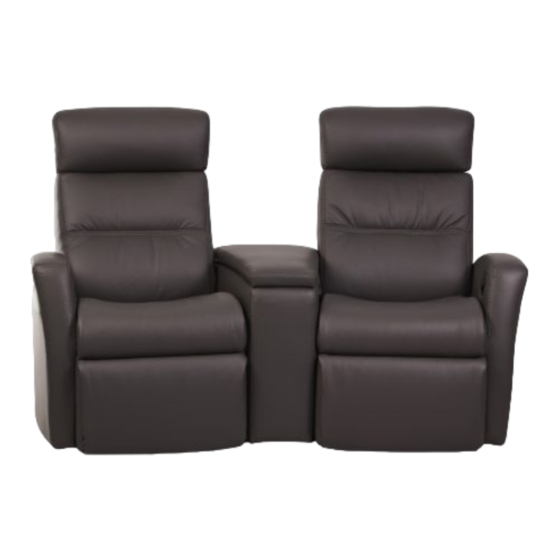

CONGRATULATIONS
You are now the proud owner of a
Modular Seating System by IMG.
We are confident you will enjoy the comfort
and style of this new furniture.
IMPORTANT
Read this and other relevant instructions
before using the product. Keep this manual
for future reference.
018 EN MOTION SOFA & HT SYSTEM 2012.09
