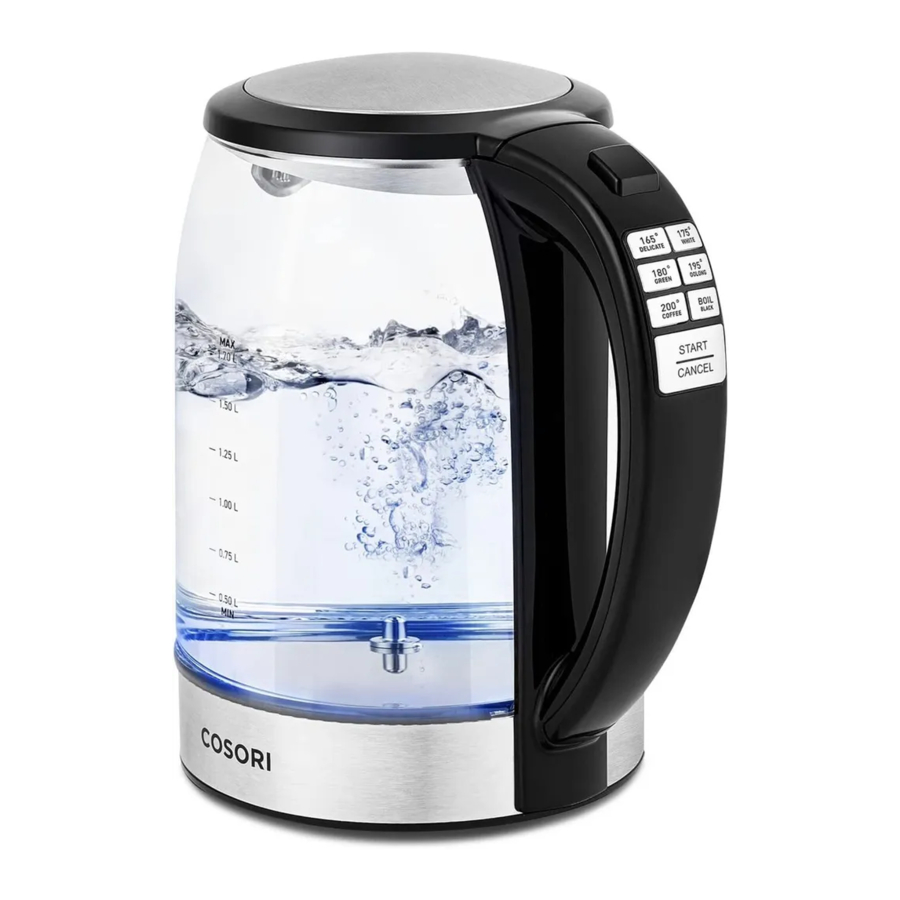

COSORI CO117-DK - Original Digital Glass Kettle Manual
Package Contents
1 x Digital Glass Kettle
1 x Power Base
1 x User Manual
Specifications
Power Supply | AC 120V, 60Hz |
Rated Power | 1500W |
Capacity | 7 US cups / 1.8 qt / 1.7 L |
Dimensions | 9.8 x 8.7 x 6.1 in / 25 x 22 x 15.6 cm |
Weight | 2.7 lb / 1.2 kg |
IMPORTANT SAFEGUARDS
Always follow basic safety precautions when using your kettle.
Read all instructions.
![]() |
- Do not touch hot surfaces. Use handle.
Do not touch the base or glass parts of the kettle during or immediately after operation. |
- Do not fill the kettle above the "MAX" line. This may cause water to boil over and may cause scalding.
|
- Always handle with care when there is hot water inside the kettle to avoid scalding.
|
- Do not immerse the kettle, base, cord, or plug in water or other liquids.
- Closely supervise children near the kettle. Do not allow children to use or play with this kettle.
- Unplug the kettle when it is not being used and before cleaning. This will avoid electric shock and prevent moisture from causing a short circuit in the power base while it is plugged in.
- Allow to cool before putting on or taking off parts, and before cleaning.
- Do not use the kettle if it is malfunctioning, broken or chipped, or if the power cord or plug is damaged in any way. Do not try to repair the kettle. Contact Customer Support.
- Using accessory attachments not recommended by the manufacturer may result in fire, electric shock, or injury.
- Do not use outdoors.
- Place the kettle on a dry, flat surface. Do not place the kettle on or near heat sources such as stovetops, ovens, radiators, etc.
- Always make sure the lid is closed while the kettle is operating. Do not cover the spout opening while the kettle is operating.
- To disconnect, use the START/CANCEL button to turn the kettle off, then remove the plug from the wall outlet.
- Only use the kettle as directed in this manual.
- Household use only.
SAVE THESE INSTRUCTIONS
Plug & Cord
- Do not let the cord (or any extension cord) hang over the edge of a table or counter. Do not allow the cord to touch hot surfaces.
- This kettle has a 3-prong grounding plug. Always plug in to a grounded electrical outlet. Do not modify the plug in any way.
- This kettle uses a short power-supply cord to reduce the risk of entangling or tripping. Use extension cords with care.
- Any extension cord must also be a groundingtype 3-wire cord.
- The marked electrical rating of an extension cord should be at least as high as the rating of the kettle.
Electric Power
- If the electrical circuit is overloaded with other appliances, this kettle may not operate properly. The kettle should be operated on a separate electrical circuit from other appliances.
GETTING TO KNOW YOUR GLASS KETTLE
A. ![COSORI - CO117-DK - Overview Overview]()
- Filter
- Spout
- Lid
- Kettle
- Heating Plate
- Power Base
- Lid Release Button
- Handle
Note:
- The filter is made with food-grade stainless steel.
Controls
![COSORI - CO117-DK - Controls Overview Controls Overview]()
- 165°F DELICATE
Sets the kettle to 165°F / 74°C, the ideal temperature for delicate tea. - 175°F WHITE
Sets the kettle to 175°F / 80°C, the ideal temperature for white tea. - 180°F GREEN
Sets the kettle to 180°F / 82°C, the ideal temperature for green tea. - 195°F OOLONG
Sets the kettle to 195°F / 91°C, the ideal temperature for oolong tea. - 200°F COFFEE
Sets the kettle to 200°F / 93°C, the ideal temperature for coffee. - BOIL BLACK
Sets the kettle to 212°F / 100°C to bring water to a boil. This is the ideal temperature for black tea. - START/CANCEL
- Press any time to start or cancel heating.
- Press and hold for 3 seconds to turn Keep Warm Mode on/off.
BEFORE FIRST USE
Water Test
Perform the Water Test before using your kettle to make sure it's working properly. Do not drink the water that is boiled during this test.
- Remove all packaging from your kettle and its accessories.
- Completely unravel the power cable and place the power base on a flat, level, stable surface.
- Fill the kettle with water to the "MAX" line, then put the lid on the kettle. [Figure 1.1-1.2]
![COSORI - CO117-DK - Water Test Water Test]()
- Press BOIL BLACK. Then, press START/CANCEL to begin heating.
- Turn off the kettle once it has finished boiling the water. Allow it to cool, then pour out the water. Rinse thoroughly 2–3 times with cold water.
USING YOUR GLASS KETTLE
Heating Water
Only heat water in this kettle. Use pure, filtered water for best results.
- Press the Lid Release Button to open the lid.
- Fill the kettle to the desired level. Make sure the kettle is filled above the "MIN" line and below the "MAX" line. Wipe any excess water from the kettle's body and power base.
- Close the lid, place the kettle onto the power base, and plug in. [ Figure 2.1 ]
![]()
- Press a preset temperature button. You can only select 1 preset at a time.
- Press START/CANCEL. The kettle will begin heating. Press START/CANCEL at any time to stop heating early.
- The kettle will automatically switch to and the kettle will pause heating. If you Keep Warm Mode once it has finished put the kettle back within 60 seconds, it heating the water. will resume Keep Warm Mode. After 60 seconds, the kettle will turn off.
Boil-Dry Protection
- This kettle has a boil-dry safety feature. If there is no water inside the kettle, it will automatically turn off to avoid damaging the heating element. Fill the kettle with cold water and allow it to cool before using again.
Keep Warm Mode
- Keep Warm Mode automatically maintains the selected temperature for 60 minutes.
- If you select the Boil Black preset, the kettle will hold the temperature at 200°F as a safety feature to keep the water from boiling for too long.
- If you take the kettle off the base during Keep Warm Mode, all lights will turn off, and the kettle will pause heating. If you put the kettle back within 60 seconds, it will resume Keep Warm Mode. After 60 seconds, the kettle will turn off.
- Keep Warm Mode can be turned on/off while the kettle is in standby mode by pressing and holding START/CANCEL for 3 seconds. When Keep Warm Mode is turned off, the START/CANCEL indicator light will change from blue to white. If Keep Warm Mode is off, the kettle will automatically turn off once it has reached the preset temperature.
CARE & MAINTENANCE
Note: Do not remove the filter from the lid. Doing so will break the filter.
Cleaning
- Unplug the kettle and allow it to cool before cleaning.
- Wipe the kettle and base with a soft, damp cloth. Make sure the electric socket on the underside of the kettle is kept dry.
- Dry all parts after every use.
Note: Never immerse kettle or power base in water.
Descaling the Kettle
You should descale the kettle at least once a week if you use it frequently. Descaling removes any mineral deposits that have built up inside the kettle. Always descale the kettle before and after storing for long periods of time.
- Unplug the kettle and pour out all water. Make sure the kettle is cool.
- Squeeze half a lemon into the kettle, or add ½ US cup / 118 mL of distilled vinegar into the kettle.
- If the kettle has thick scale buildup, scrub the inner walls with a nonscratch scrub sponge.
Note: Do not use steel wool, as this can scratch the kettle.
- Add 2 US cups / 473 mL of water. Boil the mixture.
- Pour out the mixture, then wipe off any remaining scale with a non-abrasive cloth, sponge, or cleaning brush.
- Repeat as needed.
Note: For quick descaling, add 3 US tbsp / 44 mL of baking soda and ½ US cup / 118 mL of vinegar into the kettle. Swirl the mixture around until it coats the walls of the kettle, wipe with a nonscratch sponge, and pour the mixture out. This method will only work for a thin layer of scale.
![]()
