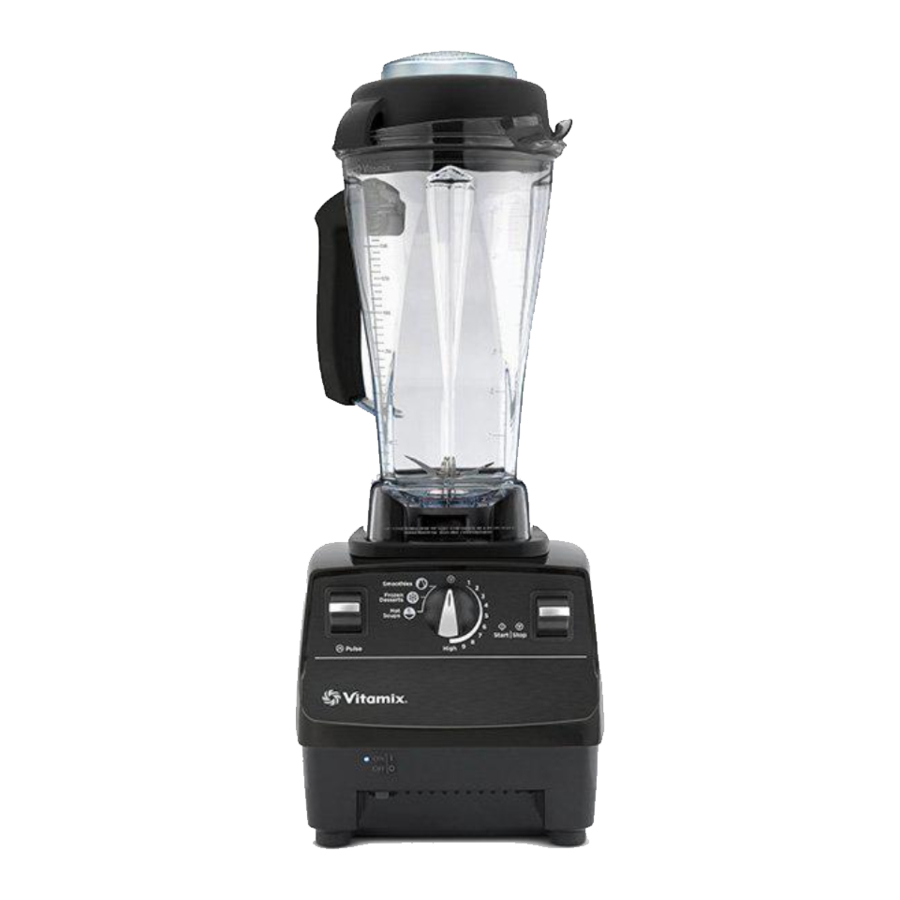

Vitamix 6300 - High-Performance Blender Manual

PARTS & FEATURES

2-Part Lid: Always use the lid and the lid plug when the machine is in operation.

Lids are not interchangeable between different container styles, types, and sizes.

Snap the lid onto the container and leave in place for a few minutes. Once the lid has been left on the container, it will be much easier to lock or remove.

Lid Plug: Insert through the lid and secure by turning clockwise. Remove the lid plug to use the tamper or add ingredients.

To Lock the Lid in Place:

1. Position lid on container with lid flaps midway between the spout and the handle.
2. Push the lid onto the container until it locks in place.
3. The lid must always be secured when processing, especially hot liquids that may scald.

Rotating Blades Can Cause Severe Injury.
DO NOT reach into container while machine is running.

To Remove the Lid: Lift up on one lid flap while holding the container securely.
To Remove the Lid Plug: Rotate the lid plug counterclockwise from the "locked" to "unlocked" position and lift out.
Container: Ounces, cups, and milliliters are clearly marked. A second dry blade container is available for purchase to grind grain and knead bread dough. The blade is marked "D." Grinding grains will cloud the lower three inches (8 cm) of the container.
Automatic Overload Protection: Your Vitamix motor is designed to protect itself from overheating. If the motor shuts off, follow these instructions:

• 120 Volt machines: Turn off the power switch for up to 45 minutes to reset. Reset time will be extended if high room temperatures exist. To reduce the reset time, unplug the machine, remove the container, and blow air into the center section of the bottom with a hair dryer on the cool setting.
• 220 Volt machines: 220/240 motors are equipped with a reset button. If the motor shuts off, press the black reset button on the bottom of the machine.

Power Cord: Your machine is equipped with a long power cord. Store the unused portion neatly underneath.
Bottom View / Cord Wrap: Plastic cord retainers hold the cord securely. There is no need to unscrew the cord retainers to let out more cord. They are flexible, and return to position after the cord is lifted out.

Reset Button: On 220/240 volt machines only.

ABOUT THE BLADES

The Vitamix machine comes standard with the wet blade container. The blade is identified by a "W" for wet. This blade is used for most of your recipes. Additional containers with wet or dry blades may be purchased separately.

Rotating Blades Can Cause Severe Injury.
DO NOT reach into container while machine is running.

Wet Blade Container: Designed for processing liquids, including juice, frozen mixtures, sauces, soups, purees, batters, and for wet chopping. The wet blades can also grind grain and knead dough, but they are not quite as efficient as the dry blades in this application. If used for grinding, your container will mar and become cloudy; see instructions for dry container use.

Dry Blade Container: These blades are clearly marked "D" and are designed specifically for grinding dry materials such as grains, cereal, and coffee, and are also used for kneading bread dough. The dry blades can NOT process liquids efficiently. If you grind herbs on a regular basis, you may wish to purchase a separate dry blade container and replace blades as needed.

Moving Parts May Become Hot With Extended Use.
DO NOT touch.

HOW TO USE THE TAMPER

The tamper allows you to accelerate the process of very thick and/or frozen mixtures that cannot be processed in a regular blender. Using the tamper maintains circulation by preventing air pockets from forming. While the machine is running, and only through the lid plug opening, use the tamper to press ingredients into the blades as you make frozen ice creams and nut butters, or purée fruits and vegetables.

Rotating Blades Can Cause Severe Injury.
DO NOT put hands, spatulas, etc. in the container while the machine is running or while the container is still on the base.

• The splash disk (near the top of the tamper) and lid prevent the tamper from hitting the blades when the lid is secured properly in the locked position.
• The container should not be more than two-thirds full when the tamper is used during blending.
• Do not use the tamper for more than 30 consecutive seconds (to avoid overheating).
• If the food does not circulate, the machine may have trapped an air bubble. Carefully remove the lid plug while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening.
• Holding the tamper straight down may not always help the ingredients circulate. If need be, point the tamper toward the side or corner of the container.


CONTROL PANEL

On/Off Switch (l)/(O): The switch is located on the front left side of the machine below the control panel and below the On/Off light. The On/Off switch controls the power to the machine. While plugged in, switch to On to ready the machine for blending. Shut off the power switch at night or whenever the machine will be left unattended.

On/Off Light: The light is located on the front left side of the machine below the control panel and above the On/Off switch. (See illustration above.) When lit, the machine is plugged in and the On/Off switch is powered On. The power light will flash when a pre-programmed setting is used to indicate that the program is near completion. Push down the Start/Stop switch to activate a program or initiate continuous Variable speed operation.

Start/Stop Switch : Push down the Start/Stop switch to activate a programmed setting or the Variable option. Push again to stop.

Variable Speed/Programming Dial: The center Variable dial serves two functions. When rotated left of center, the dial is used to select one of three programs that are activated by pushing down the Start/Stop switch. (Programs will automatically stop after a preset time.) When rotated right of center, the dial is used to select the Variable speed of the blade. The machine is activated and stopped by pushing down the Start/Stop switch.

Pulse Switch : The pulse switch can be used to quickly refresh product in the container or to temporarily activate the machine. In Variable settings (right of center), the pulse switch will activate at the speed setting of the dial for the duration that the switch is held down. When the Variable dial is set on a program (settings left of center), the pulse switch will activate at 50% of High speed for the duration the switch is held down.

Start/Stop Switch: If necessary, you may stop a program mid-cycle with the Start/Stop switch, not the On/Off switch. If the On/Off switch is used by mistake, wait 30 seconds for power to recycle and the timer to reset before resuming operation.

HINTS FOR SETTING SPEEDS

Always start the machine with the center Variable Speed/Programming Dial on 1. Slowly turn the Variable Speed/Programming Dial to the desired speed depending on the recipe used.

Use the highest setting called out in the recipe for as much of the processing time as possible to make whole food juices, soups, shakes, frozen mixtures, purées, nut butters, and for grinding grains. Processing times will generally be less than one minute (most take less than 30 seconds). High speed provides the best quality of refinement, breaking down ice, frozen fruit, whole fruits or vegetables, and grains to a smooth lump-free consistency.

TIP: Blending too long at too low a speed setting will overheat the machine and cause the Automatic Overload Protection to turn the machine off. Blending on a higher speed maximizes the motor's cooling fan to avoid overheating.

If the food does not circulate, the machine may be overloaded or may have trapped an air bubble. Carefully remove the lid plug while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening. If circulation problems continue, reduce the machine speed. A lower speed may allow food to circulate when a higher speed does not. Once the food is circulating freely, increase the speed back to the higher setting and continue processing.

Never Start on Speeds Above 1 with Hot Liquids to Avoid Possible Burns.
Use Caution; escaping steam or splashes may scald.
Lock the lid. This will prevent expansion from affecting the position of the lid when the machine is turned on.
Start on Variable 1, slowly increase to High.

OPERATING INSTRUCTIONS

Wet Blade Container

Designed for processing liquids including juice, frozen mixtures, sauces, soups, purees, batters, and for wet chopping.

1. Make sure that the Variable Speed/Programming Dial is set to 1.
2. Load the container before placing it on the motor base. Place liquids and soft foods in the container first, solid items and ice last. Although not necessary for blending, you may want to cut or break food into smaller pieces for more precise measuring of ingredients.
3. Securely fasten the 2-part lid. Always use the complete 2-part lid when blending (unless the tamper is inserted through the lid plug opening). Especially when blending hot ingredients, make sure the lid is securely latched.
4. With the motor off, set the wet blade container on the motor base by aligning it over the centering pad. Do not ever attempt to put a container on an operating motor base or to operate a motor base without a container properly in place.
5. Start with the Variable Speed/Programming Dial on 1. Activate the machine by turning the On/Off switch to On (|), then push the Start/Stop switch down and slowly increase to the desired speed. Your container will shift and get into an aligned position.
6. Take proper care when handling and processing hot ingredients and making hot soups and sauces.

Never Start on Speeds Above 1 with Hot Liquids to Avoid Possible Burns.
Use Caution; escaping steam or splashes may scald.
Lock the lid. This will prevent expansion from affecting the position of the lid when the machine is turned on.
Start on Variable 1, slowly increase to High.

7. Due to the machine's speed, processing times are much quicker than standard appliances. Until you are accustomed to the machine, count your time carefully to avoid over-processing.
8. After turning the machine off, wait until the blades completely stop before removing the lid or container from the motor base.

Dry Blade Container

If purchased, your dry blade container should only be used for hard, dry materials, such as grain, and for kneading dough.

1. Make sure that the Variable Speed/Programming Dial is set to 1.
2. Securely fasten the 2-part lid. Always use the complete 2-part lid when blending (unless the tamper is inserted through the lid plug opening).
3. With the motor off, set the dry blade container on the motor base by aligning it over the centering pad. Do not ever attempt to put a container on an operating motor base or to operate a motor base without a container properly in place.
4. Start with the Variable Speed/Programming Dial on 1. Activate the machine by turning the On/Off switch to On (|), then push the Start/Stop switch down and slowly increase to the desired speed. Your container will shift and get into an aligned position.
5. After turning the machine off, wait until the blades completely stop before removing the lid or container from the motor base.
6. Due to the machine's speed, processing times are much quicker than standard appliances. Until you are accustomed to the machine, count your time carefully to avoid over-processing.
7. Grinding dry material for more than two minutes could damage your machine. Regular use may result in cosmetic marring of the container and cause the blades to become dull over time.
8. Grinding some herbs may release volatile oils, causing the container to discolor permanently. Others have strong odors that may linger in the container, affecting the flavour of other foods. The grinding of some herbs and spices may also cause the blade to dull over time, or the container to crack.

Program Settings

Your Vitamix 6300 machine comes equipped with three program settings for the most commonly used and requested recipes. Rotating the Variable Speed/Programming Dial to the left of the center stop position allows you to select a program for Smoothies, Frozen Desserts, or Hot Soups. These programs are optimized for these recipe categories, but may also work well with other recipe choices.

The programs start on a low speed and ramp to High over the course of the program, stopping automatically at the end of the program. Programs can be interrupted by pushing down the Start/Stop switch at any time. If reactivated by pushing down the Start/Stop switch, the program will start at the beginning.

The Pulse function can be used when a program is selected. Pushing down the Pulse switch when a program is selected will cause the machine to run at 50% of High power for as long as the switch is pushed down.

Note: The automatic overload protection shuts the motor off. It does so to protect the machine from overheating. To restart, wait for it to cool down with the power off (up to 45 minutes). When the motor shuts off always review your processing technique and your instructions.

Your recipes may:

• be too thick
• have too much material in them
• be processed too long at too low a speed setting. Use High speed whenever possible.

If the motor seems to be overheating, but the automatic overload protection has not turned the machine off, stop and remove the container. Due to varying ice temperatures, ice shapes, softness of food, speed of processing, etc., the quantity of ice required in a recipe and blending times may vary slightly from those mentioned in recipes.

Never Start on Speeds Above 1 with Hot Liquids to Avoid Possible Burns.
Use Caution; escaping steam or splashes may scald.
Lock the lid. This will prevent expansion from affecting the position of the lid when the machine is turned on.
Start on Variable 1, slowly increase to High.

CARE AND CLEANING

Container

To prepare your new machine for initial use, follow the steps under Normal Cleaning below. This will clean the unit, and break-in the motor.

Normal Cleaning:

1. Fill the container half full with warm water and add a couple drops of liquid dish washing detergent to the container.
2. Snap or push the complete 2-part lid into locked position.
3. Select variable speed 1. Turn the machine on and slowly increase the speed to High.
4. Run the machine on High speed for 30 to 60 seconds.
5. Turn off the machine, and rinse and drain the container.

To Sanitize:

1. Follow Normal Cleaning instructions above.
2. Fill the container half full with water and 1 1/2 teaspoons of liquid bleach.
3. Snap or push the complete 2-part lid into locked position.
4. Select variable speed 1. Turn the machine on and slowly increase the speed to High.
5. Run the machine on High speed for 30 to 60 seconds.
6. Turn off the machine, and allow mixture to stand in the container for an additional 1 1/2 minutes.
7. Pour bleach mixture out. Allow container to air dry.
8. Do not rinse after sanitizing.

Lid and Lid Plug

Separate the lid and lid plug. Wash in warm soapy water. Rinse clean under running water, and dry. Reassemble before use.

To ensure continued and effective performance, do not put the container, lid, or lid plug in the dishwasher.

Motor Base

1. Unplug the power cord.

Electrical Shock Hazard.
Disconnect power before cleaning machine.
Failure to follow instructions can cause death or electrical shock.

2. Wash the outside surface with a damp, soft cloth or sponge, which has been rinsed in a mild solution of liquid detergent and warm water. Do not place the motor base in water.
3. The centering pad can be removed for more thorough cleaning.
4. Thoroughly clean the switches so they work freely. They may become sticky from use. Use a moistened cotton swab to clean the grooves around the water-shielded switches. Immediately dry any excess water.
5. Polish with a soft cloth.

TROUBLE SHOOTING

Automatic Overload Protection

Your Vitamix machine is equipped with a special feature: Automatic Overload Protection. This built-in feature is designed to protect the motor and prevent your machine from overheating. That means peace of mind for you as a Vitamix owner. When engaged, this Automatic Overload Protection will cause the motor to shut off and possibly emit a light odor.

Tips to prevent "overloading" your Vitamix machine:

• Process only Vitamix recipes when learning to use the machine
• Do not process recipes at lower speeds than recommended
• Do not process recipes at higher speeds than recommended
• Do not process recipes longer than recommended
• Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades

Retainer Nut Loosening

In the event that the retainer nut at the bottom of your container loosens and no longer securely holds the blade assembly in place, DO NOT CONTINUE TO USE THE CONTAINER. Call Vitamix Customer Service Department at 1-440-235-4840, or your local dealer immediately for instructions.

Vita-Mix Corporation
8615 Usher Road
Cleveland, OH 44138-2103 U.S.A.
1-800-848-2649 / 1-440-235-4840
www.vitamix.com
