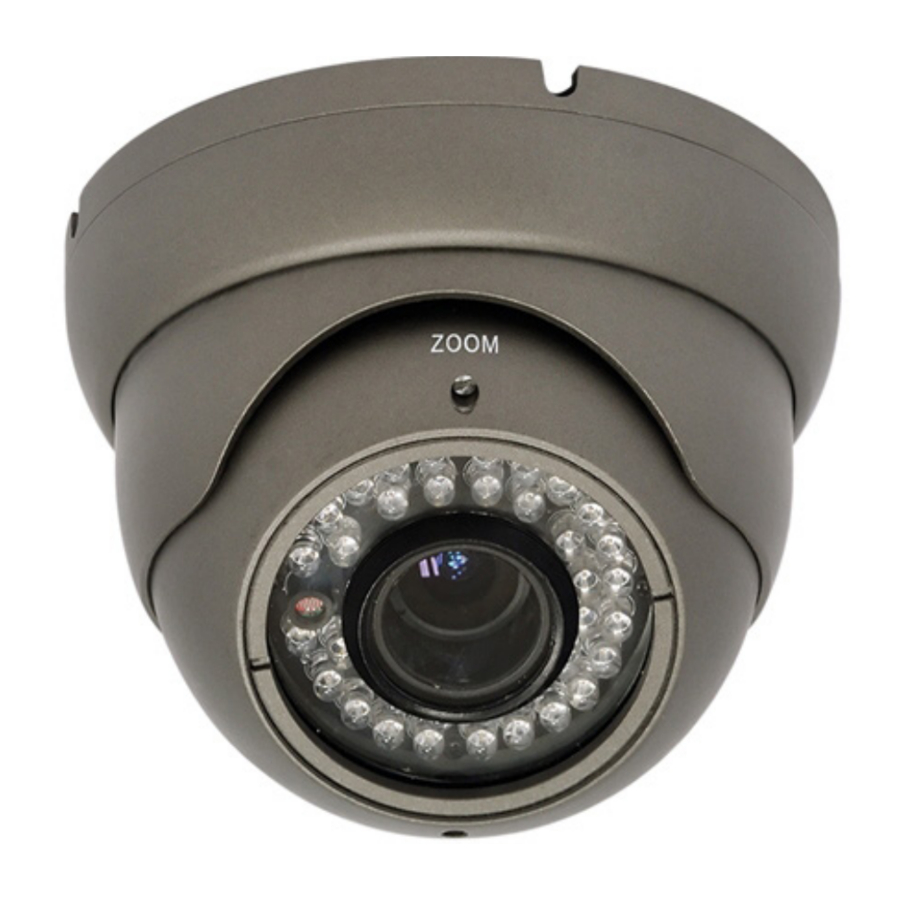

PRAXIS PE-7142IP 2.8-12 - Outdoor Network IR Dome Camera Manual

SAFETY INSTRUCTION

RISK OF ELECTRIC SHOCK.
DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO PREVENT ELECTRIC SHOCKS AND RISK OF FIRE HAZARDS, DO NOT USE OTHER THAN SPECIFIED POWER SOURCE.

The symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient Magnitude to constitute a risk of electric shock to persons.

The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) Instructions in the literature accompanying the appliance.

Thank you for purchasing this Outdoor Network IR Camera PRAXIS.

1. Please study the instruction manual before your applications and keep it for your future reference.
2. Do not flash LED light directly on the eyes when LEDs are on.
3. Do not install the camera on a unstable surface. It will cause falling or other hazards.
4.
   Do not use improper power, it could cause fire or electric shock.
5.
   Do not disassemble or re-model the camera, it could cause fire, electric shock or other hazards.
6.
   Stop using the camera when you find a malfunction like smoke or unusual heat, it could cause fire or electric shock.
7. Do not cut or peel off the cable.
8. Do not adhere dangerous articles to the camera.
9. Please use the camera unit within given temperature and electricity limit.
10. Installation should be done by qualified service person only.

FEATURES

1. Support Single Stream, Dual Stream, TriStream
2. Support WEB Configuration, IE Surveillance
3. Support Android, IOS remote monitoring
4. Support Motion Detection Recording/ Capture upload via FTP/SMTP
5. Support DDNS
6. Support OSD,allows to modify system time and IP Camera's name
7. Support P2P

CONNECTING

TROUBLESHOOTING GUIDE

Restore the factory settings situation

1. Web port is changed and device can't access Camera.
2. IP address is changed so that it can't access Camera.
3. Other unknown reason so that it can't access Camera.

Why does it shows Get Param Failed

1. Please check the IP information, such as port.
2. Please make sure the IP Camera connected correctly.
3. The network status is poor.

Why screen get stuck when we preview remote

1. Network unstable (We need a better network).
2. Computer configuration is poor, For example, CPU or Graphics card.
3. Simultaneous access to too many people.
4. Your camera frame rate and resolution of the problem.

Adding client equipment what are the issues that need attention?
In our client add device, manually entering the information must be correct. If the camera working in LAN, you can search and add, but you must pay attention to your user ID and password.

Why use Web pages can't access the unit

1. The IPC input address errors.
2. Do not has install the corresponding OCX control.
3. The IPC logon account password error.
4. Relatively slow speed of the network or online more.

Why can not access the unit after update

Clean browser cache. Steps: open IE, click "Tools" and select "Internet Options", then you can see "Temporary Internet files" and click "Delete Files", it will prompt a dialog you need to check "Delete all offline content" and click "OK". Also you can click "Start" and select "Run" then enter "cmd", enter "arp - d" in "Command Prompt" interface. Re-access the camera.

Which one is the camera's onvif port

Our onvif ports: 80 or 8999.

ACTIVATION

1. Open your IE browser.
2. Enter the IP address: 192.168.1.168.
3. Log on for the first time need to download and install the OCX controls. When the installation is complete you will pop up the following tips.
4. Click OK, and then refresh the interface, Enter your account number and password, our default accounts: admin password: admin.

How to pass the "RTSP" access the IP camera
Download and install the VLC software.
Open the media, select open network stream.
VLC madia player 4 Media 4 Open Network Stream...
Input rtsp://192.168.1.168:80/0
Click Play, and then a password window will pop up.
Default username: admin
Default password: admin
Click OK.

Default IP of the IP camera is 192.168.1.168. If your computer is not in the 192.168.1.xxx, you must be unified network segments, for example, modifying the computer address or modify the IP camera.

PRAXIS IPС CMS FEATURES

1. Support the N organizational structure, management and user access management.
2. To support the search device.
3. Support for displaying the front-end equipment list.
4. Support for multiple video window on the screen and the screen control.
5. Support privacy covered.
6. Support capture.
7. Support motion detect.
8. To support the client logs.
9. Support all kinds of small medium and large databases, such as SOL, MYSQL and XML data.
10. Add and edit device support EXCEL software.
11. Support intelligent video transmission protocol.
12. Coordinated operation of multiple server support.
13. To support real-time monitoring and alarm video support, automatic monitoring video recording, video playback
14. The support network and load balancing.
15. Support network upgrading.
16. DIY user interface and multi language support.
17. Support upload with SMTP and FTP.
18. Support plan videos record.
19. Support multi connected devices, video equipment.
20. Support forXML data storage.

SPECIFICATION

PACKING LIST
