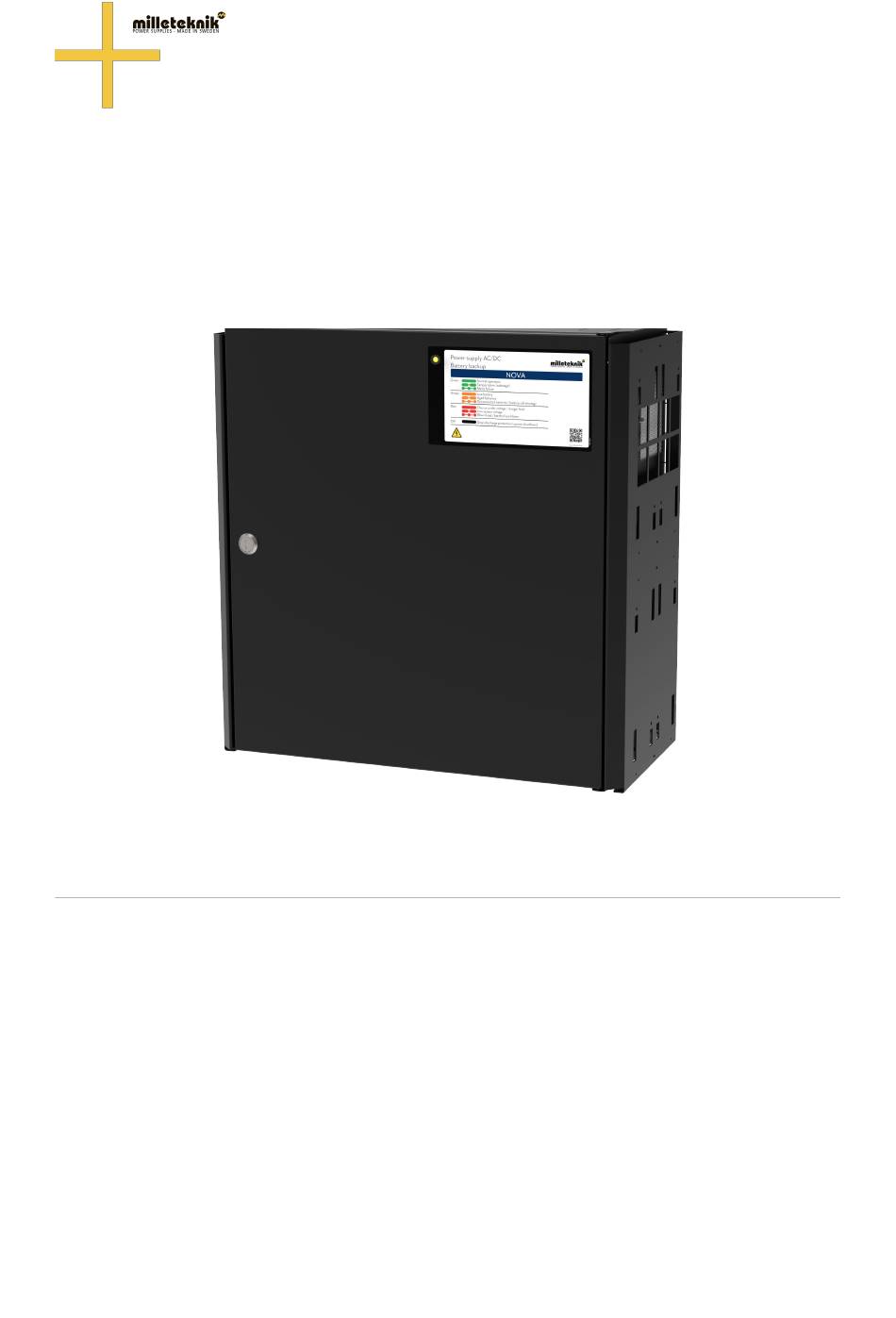

- Page 1 NOVA FLX L NOVA 12V 10A FLX L...
- Page 2 350-215 Publication date 2023-10-25...
-
Page 3: Table Of Contents
Table of Contents 1. Revisions and the edition of this document .................. 4 2. Variant overview NOVA ....................... 5 3. Component overviewNOVA FLX L ....................5 4. Mounting FLX L ......................... 6 4.1. Console for FLX M and FLX L ..................7 5. -
Page 4: Revisions And The Edition Of This Document
12. Address and contact details ....................24 1. REVISIONS AND THE EDITION OF THIS DOCUMENT The current and most recently published edition of this document is available at www.milleteknik.com. The validity of this document can not be guaranteed, as new editions are published without prior notice. -
Page 5: Variant Overview Nova
2. VARIANT OVERVIEW NOVA Table 1. Variant overview Product name Certified name Mother- Mother- Mother- Mother- board: board board board: PRO1 PRO2: PRO2 v3 PRO3 NOVA 12V 10A FLX S 12 V meets the requirements but is not certified. NOVA 12V 10A FLX M NOVA 12V 10A FLX L NOVA 24V 5A FLX S NOVA 25 50-FLX-S... -
Page 6: Mounting Flx L
Table 2. Component overview Number Explanation Bracket, reversible for wall mounting or 19 "rack. Sabotage contact. Cabinet in powder-coated sheet metal. Optional card slot. Power supply. Motherboard. Cable entries. Battery fuse. Space for batteries. 4. MOUNTING FLX L The unit can be mounted in a 19" rack or on a wall. The supplied brackets can be attached in two ways: When mounting on a wall, the brackets must sit backwards, against the wall. -
Page 7: Console For Flx M And Flx L
4.1. Console for FLX M and FLX L Bracket is reversible and can be mounted in two ways. It comes with brackets in to the device. For FLX L, four brackets must be used. 5. CONNECTION OF BATTERIES, 12 V Battery wiring is mounted on the circuit board upon delivery. -
Page 8: Pro3 Motherboard
6. PRO3 MOTHERBOARD 6.1. Motherboard - description Figure 2. PRO3 The motherboard controls the device and distributes power. See technical data for more information. Table 3. Circuit board overview, explanation No . On circuit board Explanation Power supply control. 1=not prioritized 2=external alarm. LED. -
Page 9: Fuses
6.1.1. Fuses Table 4. Fuses on PRO3 / NEO3 Fuse Type Explanation T2.5A Mains fuse T16A Load fuse 1 - (for P2:2) T16A Battery fuse T3A-T10A* Load fuse 1+ (for P2: 1) T3A-T10A* Load fuse 2 + (for P2:3) *The size of the fuse depends on the battery backup (rated) power outlet (A) . FUSE REPLACEMENT WARNING (A) There is a risk of damage if the fuse is changed to a larger one than what the unit is delivered with. -
Page 10: Connect Load
6.1.3. Connect load MAX CURRENT The maximum current must not be exceeded. Max current is indicated on nameplate on the device. If there are one or more connection cards (to increase the number of load outputs), load must be connected there and not on the main board. Table 6. -
Page 11: Led (Dip 8)
Table 9. Low battery voltage Alarm for low battery voltage is given when Dip 7 22,8 V* 24 V *25% of battery capacity remains. LED (DIP 8) LED/battery-test always lights up when the door is open. Dip-switch 8=ON turns off the LED. Dip-switch 8=OFF turns on the LED. -
Page 12: Reset After Battery Replacement -Pro3
6.1.6. Reset after battery replacement -PRO3 After battery replacement, the device needs to measure the capacity of new batteries and clear previ- ously set battery capacity. All alarms are cleared from the units memory, statistics remains and can not be cleared. •... -
Page 13: Commissioning - How To Start The Unit
8. COMMISSIONING - HOW TO START THE UNIT Connect batteries Connect / switch on fuses connect load, alarm and possibly. other connections. Screw the mains cable into the terminal block and attach the terminal block to the motherboard. Switch on mains voltage. The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. -
Page 14: Adjustment Of Tamper Switch
Disconnected batteries / battery cell shortage Over or under voltage / charger fault Low system voltage Blown load / battery fuse blown Deep discharge protection (system shutdown) www.milleteknik.se The indicator diode (LED) shows Explanation Solid green light Normal operation. Slow green flashes Sabotage alarm. -
Page 15: Nova Product Sheet
Figure 4. NOVA FLX L NOVA FLX L can be mounted on a wall or in a 19" rack. *12 V and 24 V units are certified, with the exception of the NOVA 12V 10A FLX L which meets the requirements but is not certified. -
Page 16: Name, Article Number, E-Number And Certificate Number
NOVA FLX S can have an extra battery box. NOVA FLX M and NOVA FLX L with 1-4 extra battery boxes *. NOVA FLX M and NOVA FLX L with battery shelves in 19 ”rack *. * The battery boxes and shelves are connected via a 9-pin connector. -
Page 17: Reserve Operating Times, Power Outlet And Load Output Current
12 V / 24 V Maximum charging current for batteries NOVA FLX L The battery backup has controlled charging ** (controlled charging) which prevents batteries from being overcharged and extends their service life significantly. The NOVA series must be used with AGM batteries. -
Page 18: Circuit Boards - Technical Data
NOVA 12V 10A FLX L Unit without battery box Unit with Unit with 1 battery box 2 battery boxes Max battery capacity 90 Ah According to. SSF1014, Alarm Class 1-2 2.2 A According to. SSF1014, Alarm Class 3-4 0.9 A Imax A (max discharge current) 10 A Imax b (max charging current) -
Page 19: Technical Data, Alarm Card For Pro 3 / Neo3
Producer Milleteknik AB Country of origin Sweden Manufactured in Milleteknik's factory in Partille, Sweden. This translation is not verified and should be cross referenced with the swedish original before use. Table 12. Alarm overview Alarm overview in al- Relay 1 * /... -
Page 20: Power Supply
Alarm overview in al- Relay 1 * / Relay 2 * / Relay 3 * / Relay 4 * / Communi- Indicator phabetical order Alarm out- Alarm out- Alarm out- Alarm out- cation LED on put 1 put 2 put 3 put 4 (P5: 1-9) main card... -
Page 21: Technical Data Enclosures
Contacted support for questions about spare parts. SUPPORT AFTER THE WARRANTY PERIOD Milleteknik provides support during the life of the product, but no longer than 10 years after the date of purchase. Replacement for an equivalent product may occur if the manufacturer deems that repair is... -
Page 22: Questions About Product Performance
11.10. Batteries - recommended, not included 11.10.1. Batteries are not included they are sold separately Batteries are sold separately. 11.10.2. Battery combinations NOVA FLX L Battery capacity (Ah) Battery type Number of batteries Batteries in unit... -
Page 23: Reserve Operating Times For Different Alarm Classes - Overview
Battery type Maintenance-free AGM, lead-acid battery. 12 V 45 Ah Table 14. 10+ Design life * battery Article number E-number Article name Terminal Measure. Height Weight per Make width depth piece MT113-12V45-01 5230546 UPLUS 12V 45Ah M5 Bult 197x165x170 mm 14.5 kg UPLUS 10+ Design Life... -
Page 24: Address And Contact Details
1175 1345 1048 1150 10 A 12 A 14 A 16 A 18 A 20 A Subject to typos. 12. ADDRESS AND CONTACT DETAILS Milleteknik AB Ögärdesvägen 8 B S-433 30 Partille Sweden +46 31 340 02 30 info@milleteknik.se www.milleteknik.com...
