- Page 1 CALI AXIS ALL TUBE AMPLIFIER...
- Page 2 Rhythm of the Mk IV, and a modified British lead mode. But these are just a few of the classic sounds at your finger- tips. Nembrini Audio have extended the possibility of the original hardware to customize your tone: • Power amplifier section •...
- Page 3 PRE - AMPLIFIER 1 - GAIN : This is by far the most critical and powerful of the controls in Cali Axis. It not only determines the overall gain amount, shape and sensitivity of each mode, it also functions as a tone control.
- Page 4 3 - MASTER : Adjust the preamp level. 4 - PRESENCE : This control usually regulates either brightness or negative feedback in the power section of an am- plifier. In the Cali Axis a whole new approach to this traditional circuit was taken.
- Page 5 CALI AXIS ALL TUBE AMPLIFIER PRE - AMPLIFIER 1 - DYN VOICE : This innovative circuit enabled the Cali Axis one space package to include all the power and sonic character of the 5 band graphic equalizer found aboard most Cali combos and heads.
-
Page 6: Effect Section
CALI AXIS ALL TUBE AMPLIFIER EFFECT SECTION In this section you can select, enable and change the order(drag and drop the colored rectangle) of the single FXs. Please note, it is not possible to drag the Power Amplifier before the Pre Amplifier. - Page 7 CALI AXIS ALL TUBE AMPLIFIER FX - DELAY 1 - SYNC : Activates/deactivates the delay synchronization with the host DAW tempo. 2 - TIME : Provides adjustment of delay time, when the host SYNC is on, it will be with time division.
- Page 8 CALI AXIS ALL TUBE AMPLIFIER FX - MODULATION 1 - SYNC : Activates/deactivates the modulation synchronization with the host DAW tempo. 2 - RATE : This sets the rate of the chorus/tremolo effect. Clockwise rotation quickens the rate and counterclockwise rota- tion slows down.
- Page 9 CALI AXIS ALL TUBE AMPLIFIER FX - REVERB 1 - DECAY : Controls the time for the reflections to die away. 2 - LOW CUT : Remove the low frequencies from the re- verb. 3 - HIGH CUT : Remove the high frequencies from the re- verb.
- Page 10 CALI AXIS ALL TUBE AMPLIFIER FX - FILTER A 1 - TIGHT : Clockwise rotation reduces low frequency content tightening the low range, suitable for 7/8 strings guitars. 2 - HARSH : Clockwise rotation reduces high frequency con- tent. 3 - POWER : When on it engages the filter section.
- Page 11 CALI AXIS ALL TUBE AMPLIFIER FX - FILTER B 1 - RUMBLING : Clockwise rotation reduces low frequency content. 2 - HARSH : Clockwise rotation reduces high frequency con- tent. 3 - POWER : When on it engages the filter section.
- Page 12 CALI AXIS ALL TUBE AMPLIFIER FX - NOISE GATE 1 - THRESHOLD : This sets the threshold level where the noise suppression starts working. Adjust it depending on the signal level and noise level, and when too low, counter- clockwise.
- Page 13 CALI AXIS ALL TUBE AMPLIFIER FX - COMPRESSOR 1 - THRESHOLD : Controls the compressor’s threshold, left led indicates the amount of gain reduction. 2 - RATIO : Controls the compressor’s ratio. 3 - ATTACK : Controls the compressor’s attack time.

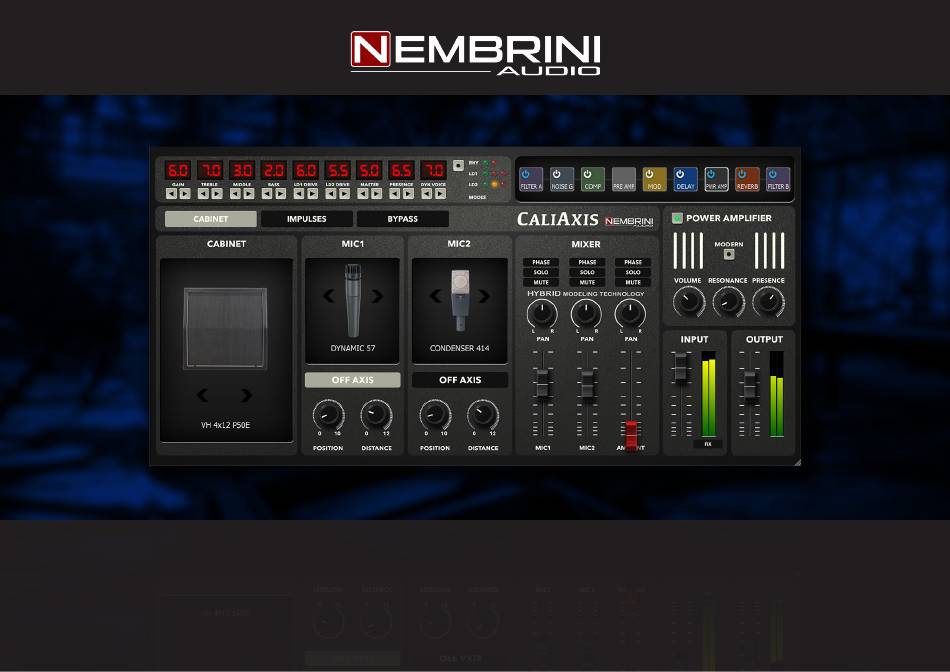

- Page 14 CALI AXIS ALL TUBE AMPLIFIER Cabinet - Impulse Loader 1 - Recording Chain Mode: these three buttons switch between the included cabinet/recording chain emulation, the Impulse Loader and the complete bypass of the entire cabinet/recording chain section.
- Page 15 CALI AXIS ALL TUBE AMPLIFIER 2 - POWER AMP: This section manages the power amplifier section powered by four EL34 virtual tubes with presen- ce, resonance, volume and power to engage it. MODERN button change the negative feedback in a way to have a more “modern” presence behaviour.
- Page 16 CALI AXIS ALL TUBE AMPLIFIER Cabinet MODE 1 - Cabinet: you can choose between six selected cabinet emulations: 1- VH 4x12 P50E: based on VHT* 412S 4x12 with Eminence* P50E speakers. 2- VH 4x12 V30: based on VHT* 412 4x12 with Celestion* Vintage 30 speakers.
- Page 17 CALI AXIS ALL TUBE AMPLIFIER 2 - Mic 1 and Mic 2 settings: You can use 2 virtual microphones for your amp recording chain and select between 4 different models, select between ON or OFF Axis positions, change the Position and Distance.
- Page 18 CALI AXIS ALL TUBE AMPLIFIER IMPULSES MODE The Nembrini Audio Impulses Loader lets you load up to three 3rd-party impulse responses and blend them. The following settings are available for each of the three loaded IRs: 1 - Empty button: unloads the current IR 2 - Browse button: opens an explorer window to select a folder and shows you the contained wav files on the right side display (5).
-
Page 19: Bypass Mode
5 - Browse/Preview display: in this display, you can browse your IRs or preview the resulting IR waveform BYPASS MODE In this mode the whole cabinet/recording chain section and impulses loader are completely bypassed, letting you use your favourite impulse loader or your real power amplifier and speaker system with the Cali Axis All Tube Amplifier plugin. - Page 20 CALI AXIS ALL TUBE AMPLIFIER The Toolbars 4 5 4 Top Toolbar 1 - Open the manual and the information about the plugin. 2 - + and - buttons allow you to scroll through the presets. 3 - Undo/Redo changes made to the parameters of the plugin at any time.
- Page 21 CALI AXIS ALL TUBE AMPLIFIER 1 - Shows you the active preset. Click on the label to see the preset list. 2 - Allows you to override the currently selected preset. 3 - Save the current selected preset as a new preset with a name of your choice.
-
Page 22: Legal Disclaimer
* Please note that all marks and models are all trademarks of their respective owners, which are in no way associated or affiliated with Nembrini Audio. These marks and names are used solely for the purpose of describing certain tones produced using Nembrini Audio’s modelling...
