  • Page 1 HIVOLT 103 CUSTOM GUITAR AMPLIFIER...
  • Page 2 Hivolt 103 Custom plugin is a 2 channel amplifier with shared EQ for both channels. It has 4 inputs, 2 for each chan- nel (normal and brilliant). Hi inputs are DOWN and LO inputs are UP. Patching of channels works here, and you can blend for additional versatility.

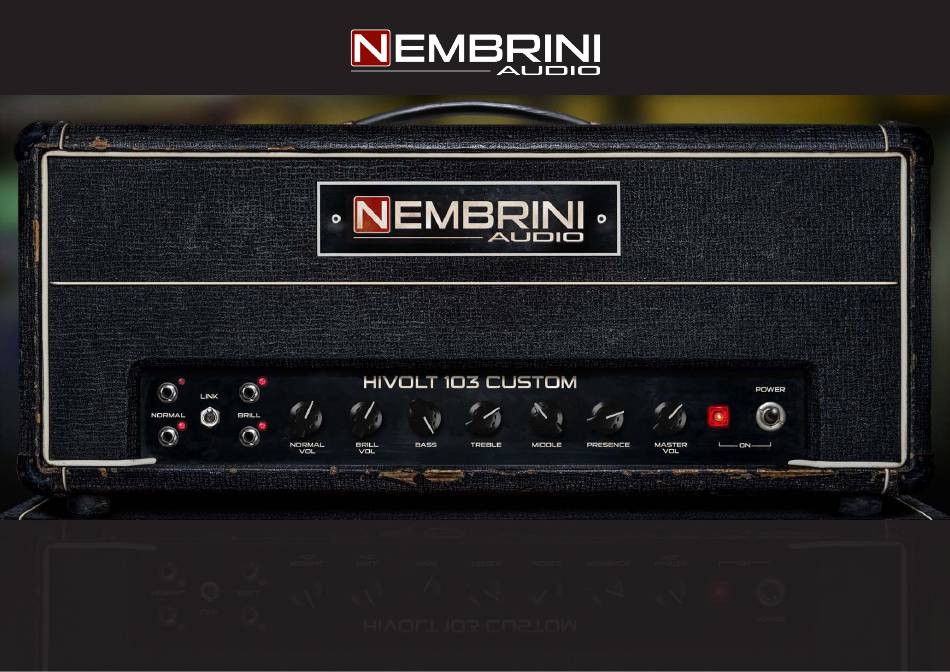

  • Page 3 HIVOLT 103 CUSTOM GUITAR AMPLIFIER Front Panel The front panel contains the main controls of the Hivolt 103 Custom Guitar Amplifier plugin: 1 - Inputs: Channel input selection, the ‘HIGH’(bottom) input will give you more gain and output volume whereas the ‘LOW’(top) input will be quieter and have more clean headroom.
  • Page 4 HIVOLT 103 CUSTOM GUITAR AMPLIFIER 4 - Bass: This adjusts the bottom end, turning it clockwise increases the amount of low frequencies. 5 - Treble: This adjusts the top end. Turning it clockwise increases the amount of high frequencies (treble) present in the sound, making your guitar tone brighter.
  • Page 5 HIVOLT 103 CUSTOM GUITAR AMPLIFIER 1 - Cabinet - Impulse Loader button: Opens and closes the Cabinet - Impulse Loader panel.
  • Page 6 HIVOLT 103 CUSTOM GUITAR AMPLIFIER Cabinet - Impulse Loader panel 1 - Recording Chain Mode: these three buttons switch between the included cabinet/recording chain emulation, the Impulse Loader and the complete bypass of the entire cabinet/recording chain section. The Cleaner (2), Noise Gate (3) and Levels (4) sections are always active in all three...
  • Page 7 HIVOLT 103 CUSTOM GUITAR AMPLIFIER 2 - Cleaner: this filter section has been added to our Hivolt 103 Custom to clear your tone Rumbling: reduces the low-frequency content Harsh: reduces the high-frequency content 3 - Noise Gate: allows you to eliminate the noise produced by a large amount of gain...
  • Page 8 HIVOLT 103 CUSTOM GUITAR AMPLIFIER Cabinet MODE 1 - Cabinet: you can choose between six selected cabinet emulations: 1- VH 4x12 P50E: based on VHT* 412S 4x12 with Eminence* P50E speakers 2- MB RECT 4x12 V30: based on Mesa Boogie* Rectifier 4x12 with Celestion* Vintage 30 speakers 3- ORANGE 4x12 V30: based on Orange* 4×12 with Celestion* Vintage 30 speakers...
  • Page 9 HIVOLT 103 CUSTOM GUITAR AMPLIFIER 2 - Mic 1 and Mic 2 settings: You can use 2 virtual microphones for your amp recording chain and select between 4 different models, select between ON or OFF Axis positions, change the Position and Distance.
  • Page 10 HIVOLT 103 CUSTOM GUITAR AMPLIFIER IMPULSES MODE The Nembrini Audio Impulses Loader lets you load up to three 3rd-party impulse responses and blend them. The fol- lowing settings are available for each of the three loaded IRs: 1 - Empty button: unloads the current IR 2 - Browse button: opens an explorer window to select a folder and shows you the contained wav files in the adja- cent display (5).

  • Page 11: Bypass Mode

    5 - Browse/Preview display: in this display, you can browse your favourite IRs or preview the resulting IR waveform BYPASS MODE In this mode the whole cabinet/recording chain section and impulses loader are completely bypassed, letting you use your favourite impulse loader or your real power amplifier and speaker system with the Hivolt 103 Custom Guitar Amplifier plugin.
  • Page 12 HIVOLT 103 CUSTOM GUITAR AMPLIFIER The Toolbars 4 5 4 Top Toolbar 1 - Open the manual and the information about the plugin. 2 - + and - buttons allow you to scroll through the presets. 3 - Undo/Redo changes made to the parameters of the plugin at any time.
  • Page 13 HIVOLT 103 CUSTOM GUITAR AMPLIFIER 1 - Shows you the active preset. Click on the label to see the preset list. 2 - Allows you to override the currently selected preset. 3 - Save the current selected preset as a new preset with a name of your choice.

  • Page 14: Legal Disclaimer

    * Please note that all marks and models are all trademarks of their respective owners, which are in no way associated or affiliated with Nembrini Audio. These marks and names are used solely for the purpose of describing certain tones produced using Nembrini Audio’s modelling...
