1

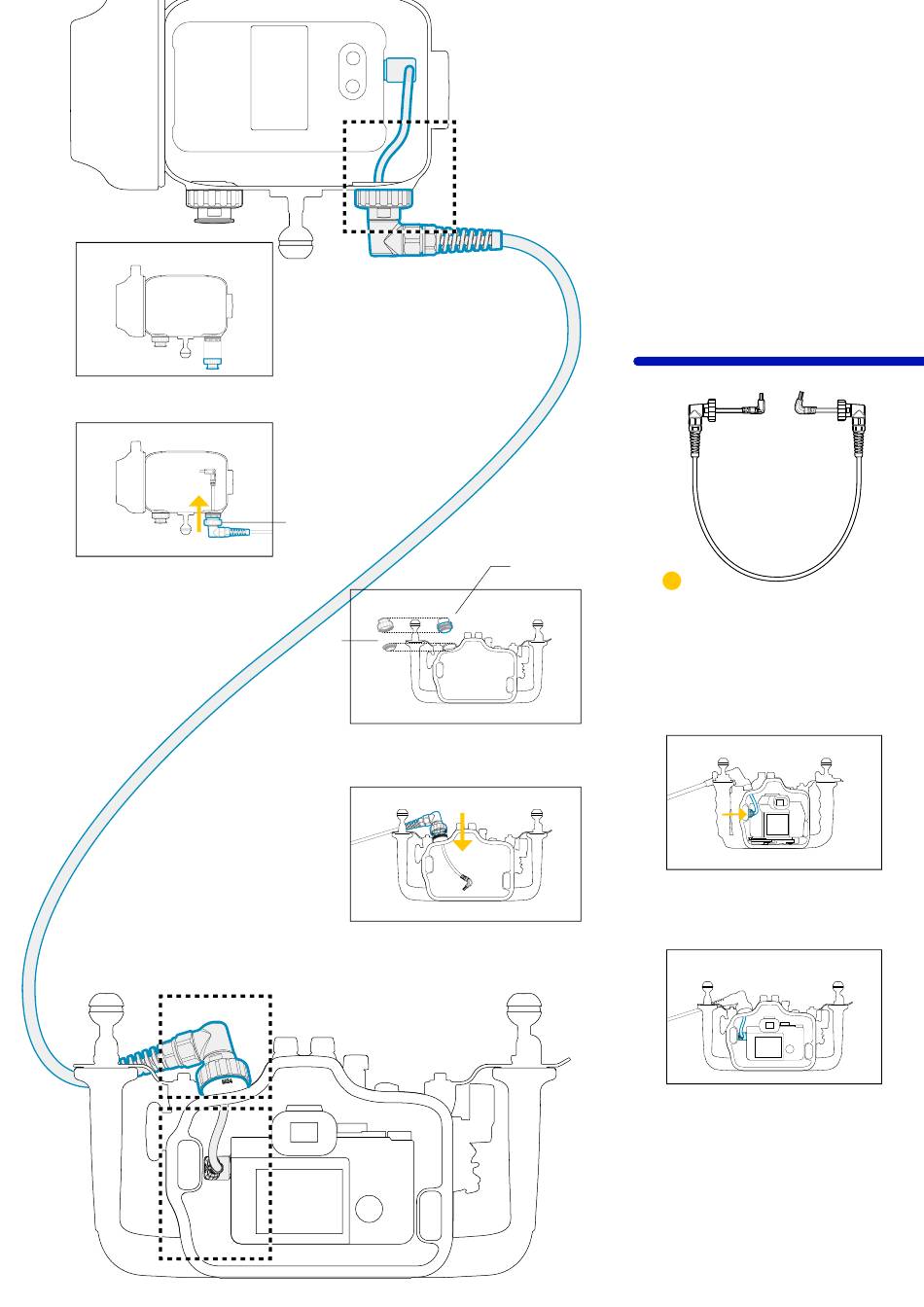

unscrew the M28 accessory
port cap from monitor housing
plug the cable into the
accessory port, gently push
the connection head into the
accessory port until it cannot
go further then tighten the
screw
2
3
1
connection head
2
remove adaptor cap
M24 accessory
port cap
unscrew the M24 accessory port cap
from the camera housing and screw
the M24 adaptor into the housing port
plug the cable into the accessory port,
gently push the connection head into
the accessory port until it cannot go
further then tighten the screw
M24A3R140
M24 - HDMI Connector Type A - 140mm
PAC K AGE CO NT E NTS
M24 adaptor for
HDMI 2.0 cable
1
M24A3R140-M28A1R170 HDMI 2.0 Cable
3
plug the cable into the HDMI micro
jack on the camera with camera
tray attached before sliding into the
camera housing
slide the camera tray into the
housing along the tray rail then lock
camera tray
*Please carefully place the cable
as shown in the diagram to avoid
interferences with internal
mechanisms
April, 2022
PN 25094
User Manual
HDMI 2.0 Cable
To monitor
To camera
