1

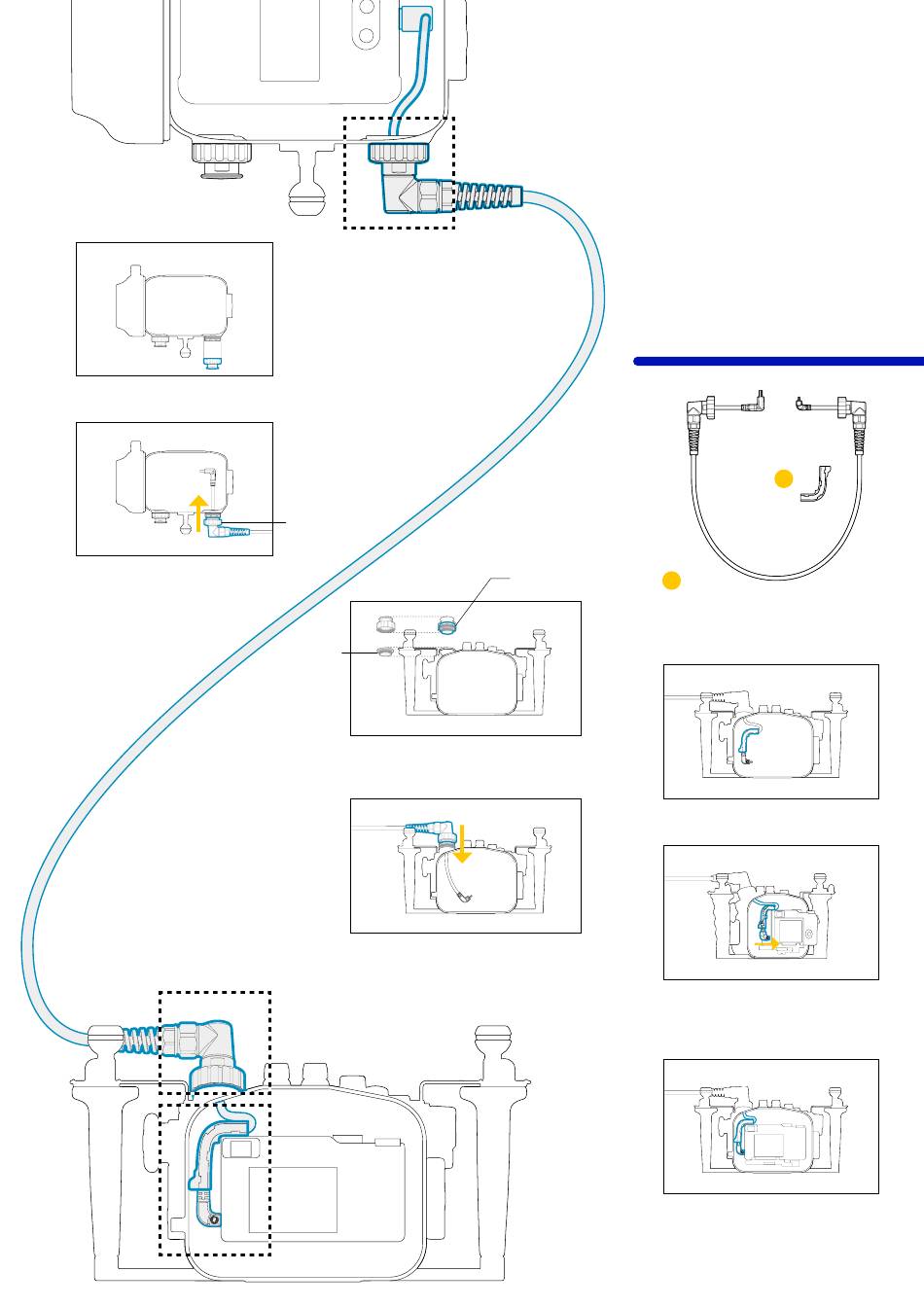

unscrew the M28 accessory
port cap from monitor housing
plug the cable into the
accessory port, gently push
the connection head into the
accessory port until it cannot
go further then tighten the
screw
2
3
1
connection head
2
remove adaptor cap
M24 accessory
port cap
unscrew the M24 accessory port cap
from A7C housing and screw the M24
adaptor into the housing port
plug the cable into the accessory port,
gently push the connection head into
the accessory port until it cannot go
further then tighten the screw
M24D3R140
M24 - HDMI Connector Type D - 140mm
PAC KAG E CON T ENTS
M24 adaptor for
1
HDMI 2.0 cable
M24D3R140-M28A1R170 HDMI 2.0 Cable
3
place the cable clamp as shown
above
plug the cable into the HDMI micro
jack on the camera with camera
tray attached before sliding into the
camera housing
slide the camera tray into the
housing along the tray rail then
lock camera tray
May, 2021
PN 25098
User Manual
HDMI 2.0 Cable
To monitor
To camera
2
Cable Clamp
1
Advertisement
Table of Contents
Related Manuals for Nauticam M24D3R140-M28A1R170
Summary of Contents for Nauticam M24D3R140-M28A1R170
- Page 1 M24 adaptor for accessory port, gently push HDMI 2.0 cable M24D3R140-M28A1R170 HDMI 2.0 Cable the connection head into the remove adaptor cap accessory port until it cannot go further then tighten the screw...
- Page 2 7 mm located. Total Cable Length 1000 mm Depth NAUTICAM accepts no liability for any damage to and defects of the products caused by improper use and/ Rating 150 m or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
