IP Power 9828
User Manual
Version: 1.00
Firmware Version: 1.09
Date Released: March . 2019
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9258 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IP Power 9258

Summary of Contents for IP Power 9258

  • Page 1 IP Power 9828 User Manual Version: 1.00 Firmware Version: 1.09 Date Released: March . 2019 - 1 -...
  • Page 2 Warning: Any changes made to this equipment without permission may cause damages to the device! IMPORTANT NOTICE 1. IP Power 9828 was designed for indoor use, we carry no responsibility for possible damages caused by outdoor use, especially in the rain.

  • Page 3: Table Of Contents

    Table of Content WELCOME ......................5 Introduction ..............................5 Features : ............................... 6 Specification ..............................6 Minimum System Requirements ......................... 7 Package Contents ............................7 INTERFACE DESCRIPTION ................8 Outlook ................................8 SETTING UP YOUR DEVICE ................8 Before Starting .............................. 8 Hardware Connection ..........................
  • Page 4 Communication ............................40 IP SERVICE .............................43 System Setting : ............................45 Management .............................45 System Information ..........................49 System Log ...............................49 Firmware ..............................50 CONTROLLING THE DEVICE ................51 CGI HTTP Commands ..........................51 Telnet Control ..............................53 FAQ : ........................54 - 4 -...

  • Page 5: Welcome

    Welcome Introduction IP Power 9828 is a new generation of the Power Distribution Unit (PDU) & Remote Power Control (RPC) system. With embedded web server and HTTPS protection , 9828 supports higher grade security as working on Internet. User can control power easily and more safely through the web browser in Windows , Android or iOS system , like Internet Explorer (IE) , Google Chrome , Safari web browser or control through APP in Android or in iOS system .

  • Page 6: Features

    14. Specific software developed by Aviosys and provided free of charge : - SDK Available : HTTP Command - Windows software “ IP Power Center “ : Control Multiple Aviosys IP Power devices in one software - CNT software ( Cross Network Technology )- allows user eliminate set up work on any Router without port forwarding , simply Plug &...

  • Page 7: Minimum System Requirements

    ⚫ Power input : 15A / 90-120VAC , 10A / 210-240VAC , 50-60Hz. ⚫ Maximum loading of each output: 10Amp ⚫ Maximum of Total loading : 10Amp ⚫ Fuse protection : 10Amp ⚫ Dimensions: 200 x 140 x 35 mm ( L x W x H ) ⚫...

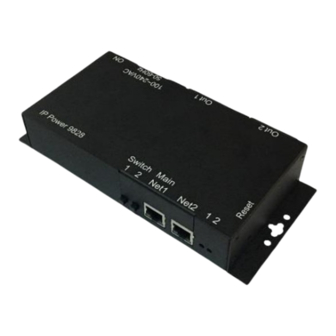

  • Page 8: Interface Description

    Interface Description Outlook Front : Switch 1& 2 for The two buttons are for emergency safety switch Buttons Control outlets The default function is Toggle ( Switch ON / OFF ) . But the buttons function can be setup as 6 modes : OFF, ON, Shut down on Lan , Wake on Lan , Toggle or None .

  • Page 9: Hardware Connection

    Hardware Connection Before hardware connection, please make sure that there is no more than 2 net work card ( include dynamic network card ) . If there are morn than two network card in your PC. You may not get the IP address of 9828 The default setting of 9828 `s IP is by DHCP assigned by Router.

  • Page 10: Software Installation

    Network Connecting by LAN “ IPEDIT “ LAN connect by IP search software IP Edit is a search tool designed to search, configure, or access the IP Power 9828 from a local network computer. IP Power 9828 Default Login / Password Please use our IP Search tool “IPEDIT.exe “...
  • Page 11 Default as DHCP status , 9828 will auto get the IP address from user`s router by the suggest hardware connection as following : 9828 ------- Router ------- PC ( with Web browser ) If there is no assigned IP to 9828 by the connection , the 9828 will change to FIX IP address : ⚫...

  • Page 12: Internet Setup

    Setup Port Mapping / Port Forwarding in your router. Please check your Router owner’s manual . ⚫ Use our own software “ IP Power Center “ : Please refer to the “IP Power Center “ manual in the online CD website . - 12 -...

  • Page 13: Using Ip Service

    Using IP Service IP Service is a function which allows user to search for the device easily without having to remember long complicated IP address. Instead, if user know the device’s name of user’s IP Power device and user can easily find IP Address with IP Service. To log in the webpage of 9828 on Internet , user still need to do the “Port Forwarding “...

  • Page 14: Web Interface

    Second Option 1.) Open Internet Explorer type in the IP Address of the device followed by the : sign. For example: http:192.168.122.188:9258 192.168.122.188 – IP Address 2.) Once you have typed in the IP address of the 9828 and it is ready to be worked.
  • Page 15 The IP Power 9828 Console consists of six main sections which will be explained in details below. ⚫ Device name : Hide or Display the left setting column ( for smart phone control ) ⚫ Information : Date , Current Amp Usage &...

  • Page 16: Device Name

    Device name : This section show the device name You can change the device name here : Application → IP Server → Device name Please change the name in English only and do not use symbol like !@#$%^&*()_+ Device Name & Display / Hide the left setting section : For Smartphone user to control 9828 easily , user can select to show or to hide the left control section by pressing the blue area near device name for Smartphone control : With left control section :...

  • Page 17: Information

    Information : Date and Time : In this section, it shows Time at Year – Month – Date , Hours : Minutes : Seconds . To setup the Time , Please go to “ System → Management → NTP Settings “ , please press “Apply”...

  • Page 18: Current Usage & Temperature

    Current Usage & Temperature : ⚫ Current : It show the toal current usage of outlet 1 & 2. The maximum current is at 10A . ⚫ Temperature: It show the temperature of the 9828 box inside -10 ~ 60 ℃ 14 ~104(℉) 20190227 Tim will ask Andy on 0304 ⚫...

  • Page 19: Control

    Control There are 2 setting pages in this Section. One is “ Power Control “ and another one is “Advance Setup “ A. Power Control : User can do the following 3 basic operation in this page : 1. Manual control each port ON or OFF directly by pressing the power sign. Power Cycle control : Manually Control the relay delay to turn ON / OFF .
  • Page 20 OFF → ON ( 8 sec ) → OFF Original Outlet as “ ON “ , select final status as “ OFF “ & fill 5 sec : After press power cycle button, the outlet will be ON for 5 seconds and then turn OFF .
  • Page 21 B. Advance Setup : User can do the following 4 advance operation in this page : ⚫ Port Name setting User can name each power by click the name above the power button The number of character is max. 12 characters and Please change the name in English only and do not use symbol like !@#$%^&*()_+ ⚫...
  • Page 22 9828 will follow control by HTTP/CGI command or by Schedule setting. Forbidden Power cycle : Stop to “power cycle“ control in the webpage manually . 9828 will follow control by HTTP/CGI command or by Schedule setting. For example : Forbidden outlet #1 & power cycle # 2 . The manual control button will be grey and can not control as following : E-mail Alarm Setting : Use can enable /disable the e-mail alarm here.
  • Page 23 9828 can be used to safely turn off the WINDOWS or LINUX system through Network. With this feature you can remotely shutdown any system which that is connected to the IP Power 9828 through normal Windows / LINUX shut down procedure. Before operating the software shutdown function it is essential to install our software.

  • Page 24: Schedule

    WOL in PING Setting : Schedule In this section , user can see the setting schedule list first up to 29 rules . To setup each schedule , please press “ Schedule Setting “ , then user can get the “ Schedule List “ page as following : Please click the button to switch between “...
  • Page 25 The schedule allows you to control the power outlet turn ON , OFF , Cycle , WOL , SOL or Reboot at the assigned time user arrange in schedule Adding a Scheduled Event 1. Select the Action Duration : There are 3 setting - Once , Every Day . Every Week 2.
  • Page 26 Once the scheduler has been Set Up , hit the “ ADD No.:X Power Schedule “ button and you will see your setting located on the bottom of the Action section . Apply / Edit a Schedule Event : Please select the Rule you want to edit in Scheduler Table. , Change the setting like Duration , Date , Time and Action.

  • Page 27: Ping

    Ping The Ping function allows the device to Ping an IP Address automatically to act as a watchdog to make sure the device getting Ping and working properly. Please Click the button to switch between “ Ping Setting “ & “ Ping List “ . User can hide the setting section by press “ Ping List “ There are 4 rules for Ping .
  • Page 28 2. Ping Base Setting : ⚫ Ping Interval : The number of seconds ( Sec., 1~9999 ) between each ping . ⚫ Response Time Out : The number of milliseconds ( ms. ,1~9999) of the device will wait for a response from the Pinged device if no ping is detected within this time it will be considered a Ping failure.
  • Page 29 ⚫ Conditional Mode : User can select the action activate by one / two IP Host failure or either one fail Single : Execute Action by one IP Host failure . : Execute Action by either one IP Host failure as setting 2 pcs IP Host : Execute Action by both IP Host failure as setting 2 pcs IP Host Single : 9828 will Ping one IP address.
  • Page 30 ⚫ Failed times then action : Setup the times as get ping failure for 9828 to execute the setup ON/OFF / Reset action of setting . ping onetime and ( range 00~99) ⚫ Repeat : After the ON/OFF/Reset action , user can setup the Ping action to keep ping ( Continue ) or to Stop Ping ( Stop) .

  • Page 31: Network

    Network : There are 3 sections in this port : LAN Network , DNS setting and Port setting LAN Network Settings : The network status is connected by ether cable with RJ45 connector. There are 3 ways to connect the network : By Static IP / DHCP / UPNP A.
  • Page 32 B. DHCP Mode : Obtain IP address via DHCP mode . setup the DNS and port This allows the 9828 to obtain an IP Address automatically from user`s server connected to Internet. Recommended for non- advance users. User can only revise the Host Name under DHCP mode. This is also the default setting for fast LAN connection solution.
  • Page 33 C. UPNP : With UPNP function , user can log in webpage through Internet without setting Port forwarding / port mapping in your router . No matter use “ FIX IP “ or “ DHCP” , user can enable this UPNP function .

  • Page 34: Application Settings

    Application Settings : Email There are 2 sections in this part -- E-mail setting and POP3 Control : ⚫ Email Setting : User can get e-mail advice as one of the following situation happen : Receive E-mail with IP information & MAC Address as 9828 device boot up. Receive E-mail as ON/OFF status change in each output .
  • Page 35 ⚫ SMTP Server: This is the mail server of sender . If user select @gmail or @hotmail account as SMTP Server , 9828 will fill the SSL & Port automatically ⚫ Port : This is the port of SMTP Server. Most common port to send out e-mail is port 25 ⚫...
  • Page 36 ⚫ POP3 Control User can control each port turn ON or turn OFF by e-mail. The command format is limited . Please enable the function first . Settings Section : To set up 9828 be controlled by e-mail , user need to know the both sender`s e-mail address and receiver`s e-mail account Name and Password.
  • Page 37 ⚫ Mail Number : For 9828 to search as command mail in the number of your email receiver latest . EX. : setup 20 that 9828 will check the latest 20pcs email in receivers mail box for the 9828 command mail ⚫...
  • Page 38 Command format : IPPOWERCTRL:TAG=Test;POWER1=OFF;POWER2=OFF;POWER3=OFF;POWER4=OFF There are 2 section of the command IPPOWERCTRL:TAG=Test This is command part. Beside the tag message part ( like Test on above example) user can change in setting section , the other command must be CAPITAL and are fixed content . 2.

  • Page 39: Ddns

    ⚫ Execute e-mail command by “ Body “ DDNS The DDNS section allows user to setup the 9828 with a DDNS server (i.e. www.dyndns.com). After the server has been setup correctly, enter the necessary information into the 9828 DDNS settings. Note : The DNS server will have extra change as apply new account.

  • Page 40: Communication

    Communication 9828 supports SNMP, Telnet , Modbus TCP and BACnet TCP 1. SNMP This section is for development of system integrator who is familiar with SNMP knowledge. In community Authority , user can select “ Read only” or “Read / Write” - 40 -...
  • Page 41 In “ Trap “ type ,user can select “ v1 trap “ , “ v2c trap “ or “ v2c inform” In MIB file section , user can get MIB information. 2. Telnet In This section is for development of system integrator who is familiar with Telnet to enable /disable the Please refer page 50 for telnet contents .
  • Page 42 C-2 Modbus Gate way model : Need to Enable Modbus , Enable RTU & fill Modbus ID . C-3 Modbus RTU : Need to Enable Modbus , Enable RTU & fill Modbus ID . - 42 -...

  • Page 43: Ip Service

    CNT2 ( MQTT ) IP Service & CNT Setting : The IP SERVICE allow 9828 to be accessed easily on the internet by our IP Power Center or IP EDIT. With this feature anyone can find its device with no problems.
  • Page 44 ⚫ Enable : Enable or Disable this function by clicking the small box . ⚫ IP Service Server & CNT Server List : For easily setting , please select same server number for the 2 servers. ⚫ Device name , Country & City : User can search the 9828 by Device name , Country or City.

  • Page 45: System Setting

    CNT2 ( MQTT) – For developing only. 9828 supports MQTT fucniton. Please contact with your distributor for the details if you would like to develop own system. System Setting : Management In this section there are 5 settings: Administrator setting, Langrage Settings , NTP settings , Import Configuration files and System Reset .
  • Page 46 Administrator setting In this section allows user to change password for 3 different authorization level . The account name and password can be changed , but each Authorities only support one Account name & one password. Administrator: The Administrator has the authority to create other users, remove users, and control the device.
  • Page 47 Langrage Settings There are 3 language option of 9828 .The default langrage is English. The other two languages are “Traditional Chinese “ and “ Simple Chinese “ . NTP setting In this section , user can setup the date , time , current time , time zone , NTP server and sync with NTP to get the time synchronization .
  • Page 48 Before click “ Ok “ to import , please do read following notice : ⚫ Do NOT import DAT file which is not export form 9828. The warranty will be invalided if any wrongdoing from “ Import “ . ⚫ Please do Import the file in LAN / Ethernet .

  • Page 49: System Information

    System Information User can get the system information here . System Log In this section , user can get the 9828 system operation information and send the information to assign Server IP address ( not support name ) . The system information will be deleted after 9828 device power reboot.

  • Page 50: Firmware

    Firmware The firmware update function only support in LAN connection . Before update , please DO READ THE HI-LITE MESSAGE BLOW : It takes about 1 minute to upload upgrade flash and be patient please. Caution! A corrupted image will hang up the system. To update the 9828 , please follow the instruction below to prevent anything happens like update incomplete or hardware disable which may be caused by wrongdoing of updating : 1) Turn off all chat programs including ( Skype, FB.

  • Page 51: Controlling The Device

    Controlling the Device Besides HTTPS/CGI command and Telnet we supply here , 9828 also support SNMP ( MIB) , Mudbus/TCP and BACnet /TCP . Please check page #41 to check and enable the function . CGI HTTP Commands CGI Commands allow you to easily integrate the 9828 with other systems and programs. Please read the instructions carefully on how to use the Http:// Commands To use http:// Commands open up a web browser and type in the command that you would like to use.
  • Page 52 mac=007628000284</p> <!--CGI-DATAEND--> 2.3 To get the status of power on/ off： getpower http://192.168.1.18/set.cmd?cmd=getpower System return： CGI Command : Data follows p61=0, p62=0 P61 to P62 means : POWER1 to POWER2 2.4 To set the power on / off ：setpower&p6x=0 or 1 p6x=0 means off，p6x=1means ON，x can be 1 to 2 ( power1 to power 2) Example : Turn on POWER1 and turn off POWER2：...

  • Page 53: Telnet Control

    Telnet Control Please enable the telnet function in “Application “ → “ Communication “ Or Check page #41 to check and enable the function . Notice: The command “ –C “ & “ -T “ are for models 9828 only . - 53 -...

  • Page 54: Faq

    FAQ : Q1: Why can`t I see the 9828`s IP address in IPEDIT.exe ? Ans.: Please check if your 9828 had boot up successfully . There is a short beep sound to show 9828 boot up successfully after device power up for 45 second. There are several possibilities for this issue as 9828 boot up successfulle : 1.
  • Page 55 Q3 : Why can`t I receive e-mail ? Ans.: Please check the DNS and GATEWAY setting first ( Check user router or ask user ISP company ) .There is a test button for checking the setting success or fail to send e-mail.
