  • Page 1: User Manual

    IP POWER 9258 USER MANUAL IP POWER 9258 USER MANUAL...
  • Page 2 IP POWER 9258 USER MANUAL USER MANUAL 　 　 　 IP POWER 9258T / 9258S Version: V1.50 2008.04 - 1 - VER. X.X,...
  • Page 3 1. We have no responsibility for the possible damage caused by improper usage or abnormal working environment. 2. Do not use IP POWER in strong shaking condition. 3. Please contact the dealer If IP POWER works improperly. Copyright © 2005 All rights reserved. No part of this publication may be reproduced, stored...

  • Page 4: Table Of Contents

    IP POWER 9258 USER MANUAL Table of Content 1. INTRODUCTION......................4 .......................... FEATURES 9258 ....................FUNCTION DESCRIBE 2.SPECIFICATION......................5 ......................PACKAGE ONTENTS ..................MINIMUM YSTEM EQUIREMENTS 3.INTERFACE DESCRIPTION ..................6 4.HARDWARE & SOFTWARE INSTALLATION............7 ....................HARDWARE INSTALLATION ....................SOFTWARE INSTALLATION 5. INITIAL SETTING ......................8 .................

  • Page 5: Introduction

    IP POWER 9258 USER MANUAL 1. Introduction IP POWER 9258 is a web controller which can be easily used in the industry field. With the remote network control technology, user can control or query the power supply of equipment. User can do this in any computer connected to the internet or local area network, there is no special program needed, also there is no need to open the external case of the computer.

  • Page 6: Specification

    NOTICES: 1. IP Power 9258S : for 220-250V, please use power (IN) wire at 10A current.. Max output current: (total) 10A. Max ( individual) 6A. 2. IP Power 9258T : for 100-120V, please use power (IN) wire at 15A current..

  • Page 7: Interface Description

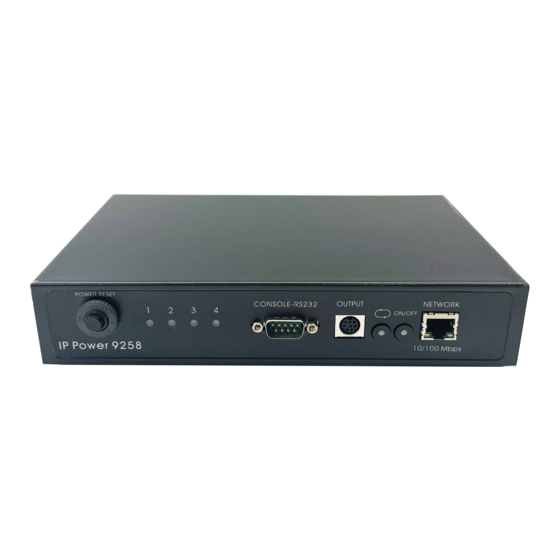

    Front interface shown below: From left to the right 1. RESET: self-protect AC reset button. IP Power 9258 can cut off the power supply of outlets automatically if there is a shortcut or current overload. After user having solved the problem, push the reset button, the AC power supply will become normal.

  • Page 8: Hardware & Software Installation

    Max. output current: (total) 15A , (individual) 6A Software installation Having connected the power supply and network wire with RJ45 port to the 9258, please install the software by following the steps below: 1. Start your computer, put the installation disc in the CDROM, then find the file named ipeditv3.exe in the installation disc.

  • Page 9: Initial Setting

    IP POWER 9258 USER MANUAL 5. Initial Settings Initial setting through the Ethernet Open “IPEdit.exe”. Make sure that the IP Kamera 9060-O is properly turned on and there is a Ethernet connection from the RJ45 cable. In the local devices section of IPEdit all AVIOSYS products under the same subnet network will appear.
  • Page 10 1. Double click and highlight your IP Power 9258 device. The default device name and IP/Network settings will all be displayed on the right hand side of IPedit. Make sure that the IP Address of your 9258 is setup on the same subnet network as your PC’s (Subnet mask, Gateway) Represents that your 9258 does not match the gateway of your router.
  • Page 11 1.) Make sure the RJ45 network cable is connected and the 9258 is powered on. 2.) * The default IP address of the 9258 is 192.168.10.100. If you cannot get into the webpage of the 9258, please make sure to set subnet of the IP Kamera 9258 to match with your PC Subnet Mask.

  • Page 12: Setting Of Software Shut Down Controlled Pc/ Server

    Setting of software shut down controlled PC/ Server 9258 can be used to safely turn off the PC/Server through Network. With this feature you can remotely shutdown any PC/ Server which that is connected to the IP Power 9258 through normal Windows shut down procedure.
  • Page 13 6. Please fill correct information in each section : * IP9258 Address: Please type in the IP address of the 9258. * HttpPort: Fill the port of 9258, default value is 80, if amend the port in 9258 please correct. * UserName: admin...

  • Page 14: Hardware Control & Setting

    IP POWER 9258 USER MANUAL 6. Hardware Control & Settings * This function teaches you how to use the hardware control the power on/off of the devices NOTE: This function is solely used for manually selecting which ports you need to be on or off. It was designed so that you can still have the ability to turn on or off certain ports in the case you do not have Ethernet connection.

  • Page 15: Control And Setting Throuth The Internet Explore

    IP POWER 9258 USER MANUAL 7. Control and settings through the Internet Explore) To login to the IP Power 9258 device through Internet Explorer, type in the IP Address of your device into the address field of IE. This will take you to the IP 9258 Login page.

  • Page 16: Power Supply State Query

    IP POWER 9258 USER MANUAL With this page the user can control the Power On/Off of the 4 separate outlets. It also includes a timer feature that allows you to delay in seconds when you want the power to activate after you click on apply.
  • Page 17 IP address so you can access the 9258 through the internet. Now type the new IP address in the address field of IE, you can visit the 9258. You also can use the ipedit.exe to find the IP Power 9258 and modify its IP address.
  • Page 18 2. Select Cookie: To disable HTTP command & SDK control 2.) DDNS Settings Please refer to page 23 for more details 3.) Setup Email When you finished the e-mail settings, you can set to let IP Power 9258 to send its IP address automatically. - 17 - VER.
  • Page 19 5.) Receiver:no longer than 50 English letters. Please use blank space to separate two receiver’s e-mail address. After you have finished this setting, you will receive the email to inform you the IP address of the IP Power 9258 every time you enter the webpage.

  • Page 20: Setting The Password

    With the power schedule the user can use this section to schedule daily events to control the devices attached to the 9258 If user wishes to control the power in one outlet of IP Power 9258, you can fill in the time in the ower control column and choose on or off.

  • Page 21: Setup Up Own Outlet Default Status

    After both the motherboard and network card have been setup, you can use WOL function by following the steps below: Step 1: Log in 9258 web page and go to “Network Wakeup” Step 2: Type in your MAC address then press “send” – the PC will be power ON.
  • Page 22 * NTP function: customer can synchronize the time of 9258 to the Internet web address time. Please refer following the NTP server IP address : * 131.246.9.116 * 139.18.25.34 * 128.176.191.9 Note: To work NTP, please do set up in e-mail and have to receive e-mail from 9258. - 21 - VER. X.X,...

  • Page 23: Firmware Update

    When there a new firmware to update, the user will get additional functions that is created for the IP Power 9258. Click the firmware update on the right side of the page; and wait for a new window to pop up.
  • Page 24 Step 3: Click the Brower button to find the corresponding update file (you can download it from our web site or ask it from the dealer), then click Update button to start update firmware. When the update is finished, you must wait one minute before you restart the IP Power 9258. NOTICE: * Before running the online update program, please make sure that the TCP port is set to 80,or the online update may fail.

  • Page 25: Ddns Setting

    Domain Name Server (host name), user name, password etc in the DDNS webpage of 9258. after that, every time 9258 start or user select to submit, 9258 will send a message package including its current IP address, domain name to www.dyndns.com,...

  • Page 26: Check Status Through Snmp

    IP POWER 9258 USER MANUAL 9. Check 9258 status though SNMP 9258 support SNMP V1 and V2 , user can use snmp program to get the status of each port in 9258. - 25 - VER. X.X,...

  • Page 27: Control And Settings Through Http Order

    Explanation for the command SetPower: IP address (XXX.XXX.XXX.XXX): 192.168.1.10 (IP Address of the device) Username: admin (Username of the device) Password: 12345678 (Password of the device) When you use this command, 9258 you will get the following message output : - 26 -...
  • Page 28 IP POWER 9258 USER MANUAL <html>P60=1,P61=1,P62=1,P63=0</html> * Schedule Control: User can use HTTP command to arrange the 9258 operation in specific time ，http command format as follow: http://username:password@XXX.XXX.XXX.XXX/Set.cmd? CMD=SetSchedule+Power=**+YY=****+MM=**+DD=**+HH=**+MN=**+SS=**+PARAM=**** +ONOFF=* Explanations of each part of the order for the command SetSchedulePower: IP Address (XXX.XXX.XXX.XXX): 192.168.1.10 (IP Address of the device)

  • Page 29: Faq

    3. Only support HTML langrage to amend the webpage. Step 1 : Open the 9258 Webpage SDK file , and choose the webpage planned to amend. For example : web page “ipcontrol “ html file ” - 28 -...
  • Page 30 IP POWER 9258 USER MANUAL Step 2 : Open amend webpage “ipcontrol “ html file : Step 3. Amend webpage by HTML langrage( get from right click as in amend webpage”): Step 4 :Save file format as “UNIX” : Like choose “DOS to UNIX - 29 - VER.
  • Page 31 IP POWER 9258 USER MANUAL Step 5. After amend the other 9258 webpage you plan to amend . Please open program “Make9258Html “ in 9258 web page SDK and just press” make html patch”. Step 6 . There will be a new file “ Update_2006-01-11.bin” which is the BIN file include the amend webpage.
  • Page 32 * If update fail and can not get IP address by IP EDIT , please use RS232 jack ( DB 9 Cable) connect with the PC and 9258, and you can get IP address to log-in and update again. Please refer follow step: 1.POWER OFF the 9258...
  • Page 33 IP POWER 9258 USER MANUAL Please check the message and get your IP address. 6. Use this IP address to update again. We supply original firmware V1.22 for update. 7. Log in this address to update again. 8. If still can not finish update successful, please check if create BIN file too big .
