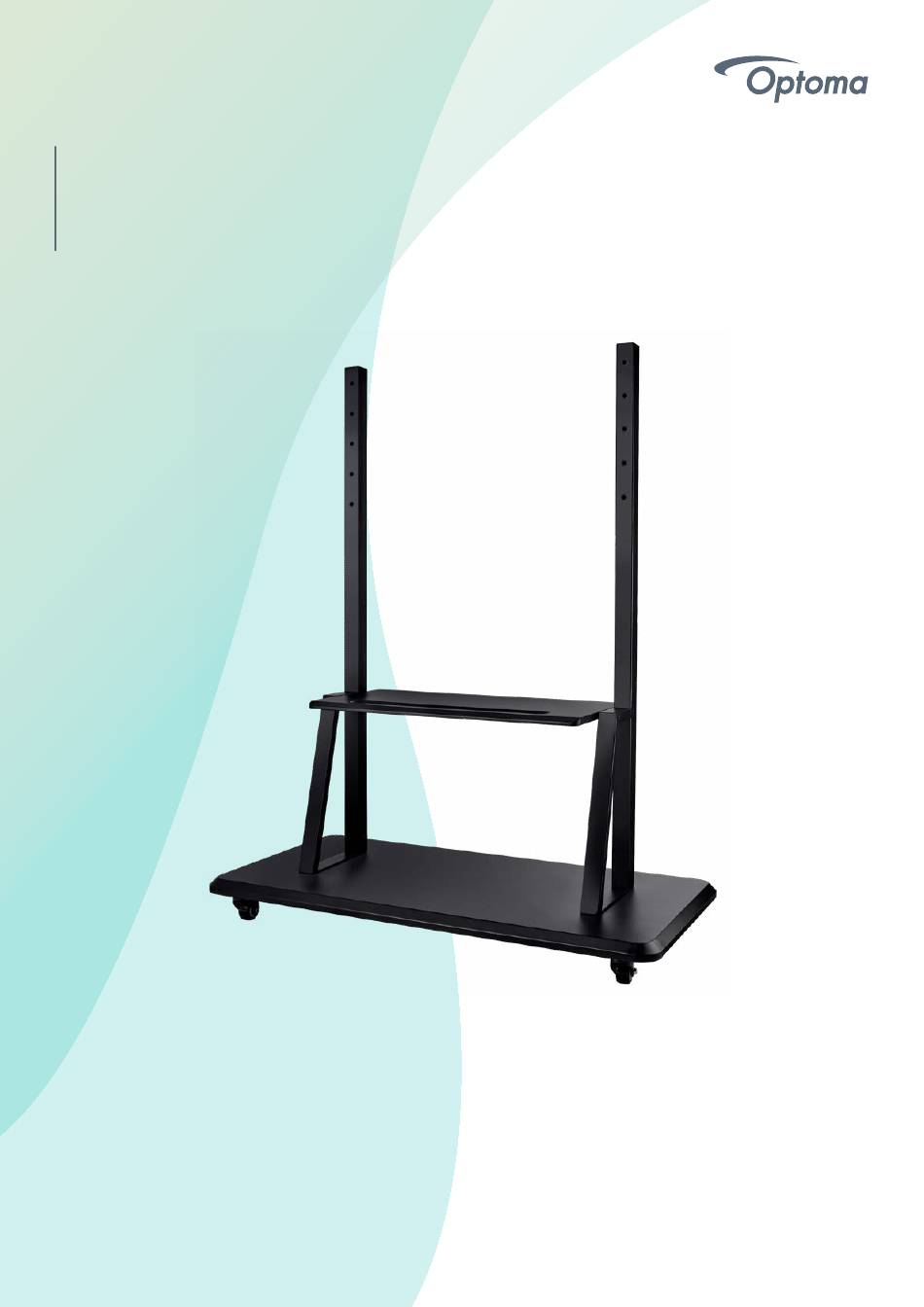

- Page 1 MOBILE TROLLEY ST01 User guide - Optoma 3-Series IFP setup and installation The fixed mobile trolley allows you to easily transport your display between locations. optoma.com...
- Page 2 SETUP AND INSTALLATION Wall Mounting Installation Use only an Optoma-approved optional wall mount kit (available separately). Kit will include the following items: Screw (x4) Screw (x8) Screw (x2) Dual mounting brackets and wall mount Anchor (x8) Washer (x8) Wall Mount Specifications...
- Page 3 SETUP AND INSTALLATION To mount the IFP on the wall, complete the following steps: Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four screws (A). Drill eight small holes on the mounting location and insert the anchors into the holes. Position the wall mount on the wall, then secure the wall mount with eight screws (B) through the washers into the installed anchors on the wall.
- Page 4 SETUP AND INSTALLATION Align and hook the dual mounting brackets to the wall mount. Secure the dual mounting brackets and the wall mount with two screws (C). Note: ‡ The maximum wall mount kit load capacity:160kg (352lbs). Please ensure that the wall mount is installed on a wall that can bear the weight of the IFP. If an ‡...
- Page 5 SETUP AND INSTALLATION Installing an External Mini Computer Install the mini PC bracket on the rear side of the IFP, then complete one of the following to install the mini computer: ‡ Install the screws onto the mini computer, then align and hook the mini computer to the mini PC bracket. ‡...
- Page 6 SETUP AND INSTALLATION Stand Mounting Installation (Optional) The stand mount kit includes the following items: Pen tray (x1) Wheel (x4) Screw (x16) Screw (x4) (x4) Washer (x4) Split Ring Lock Washer (x4) Stand pole (x2) Stand base (x1) Screw (x4) Washer (x4) (x4)
- Page 7 SETUP AND INSTALLATION Flip the stand base so that you can see the screw holes for the wheel, then install the wheel onto its slot and secure it with four screws (J). Repeat the same procedure to install the remaining three wheels. Place the stand base on the stable surface, then install the stand pole onto its slot and secure both standoffs with two nuts (G) through the washers and G1).
- Page 8 SETUP AND INSTALLATION Align the pen tray with the screw holes on the middle part of the poles, then secure the pen tray with four screws (H). Install the wall mount on the upper part of the poles, then insert the screws (K) through the screw holes from the rear side of the poles.
